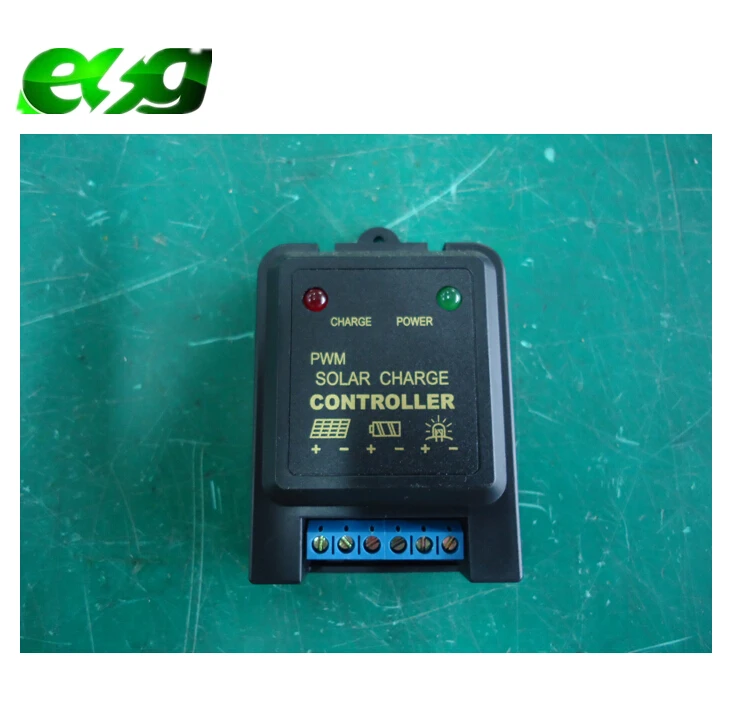

For any DC system 12V 60a 80a 50a 300a 24v 500a solar small charge controller
- Category: >>>
- Supplier: Guangzhou Henda Power Co. Ltd.
Share on (62017934923):
Product Overview
Description
for any DC system 12V 300a 24v 500a solar small charge controller
for any DC system 12V 300a 24v 500a solar small charge controller
Products Details
for any DC system 12V 300a 24v 500a solar small charge controller

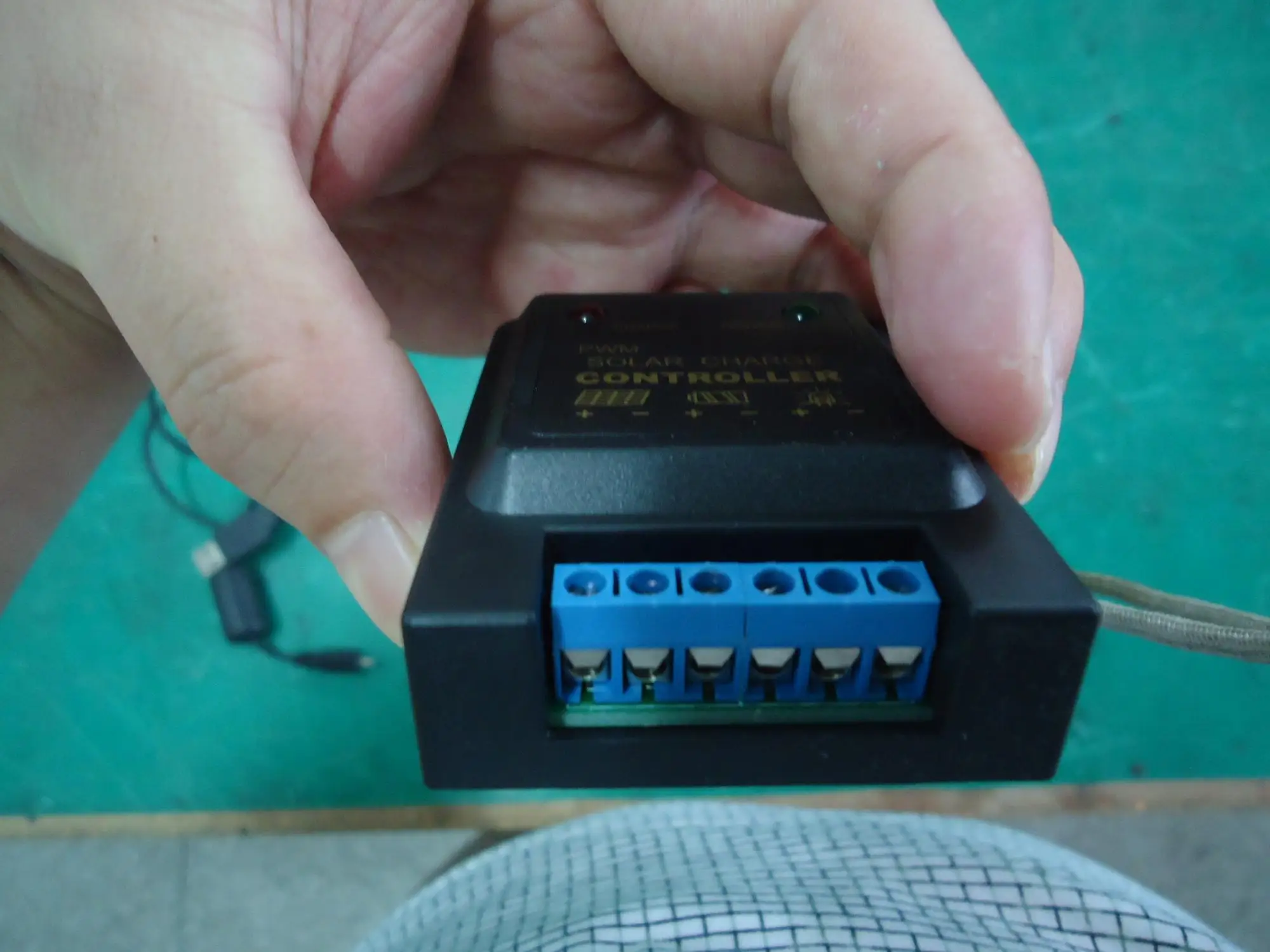

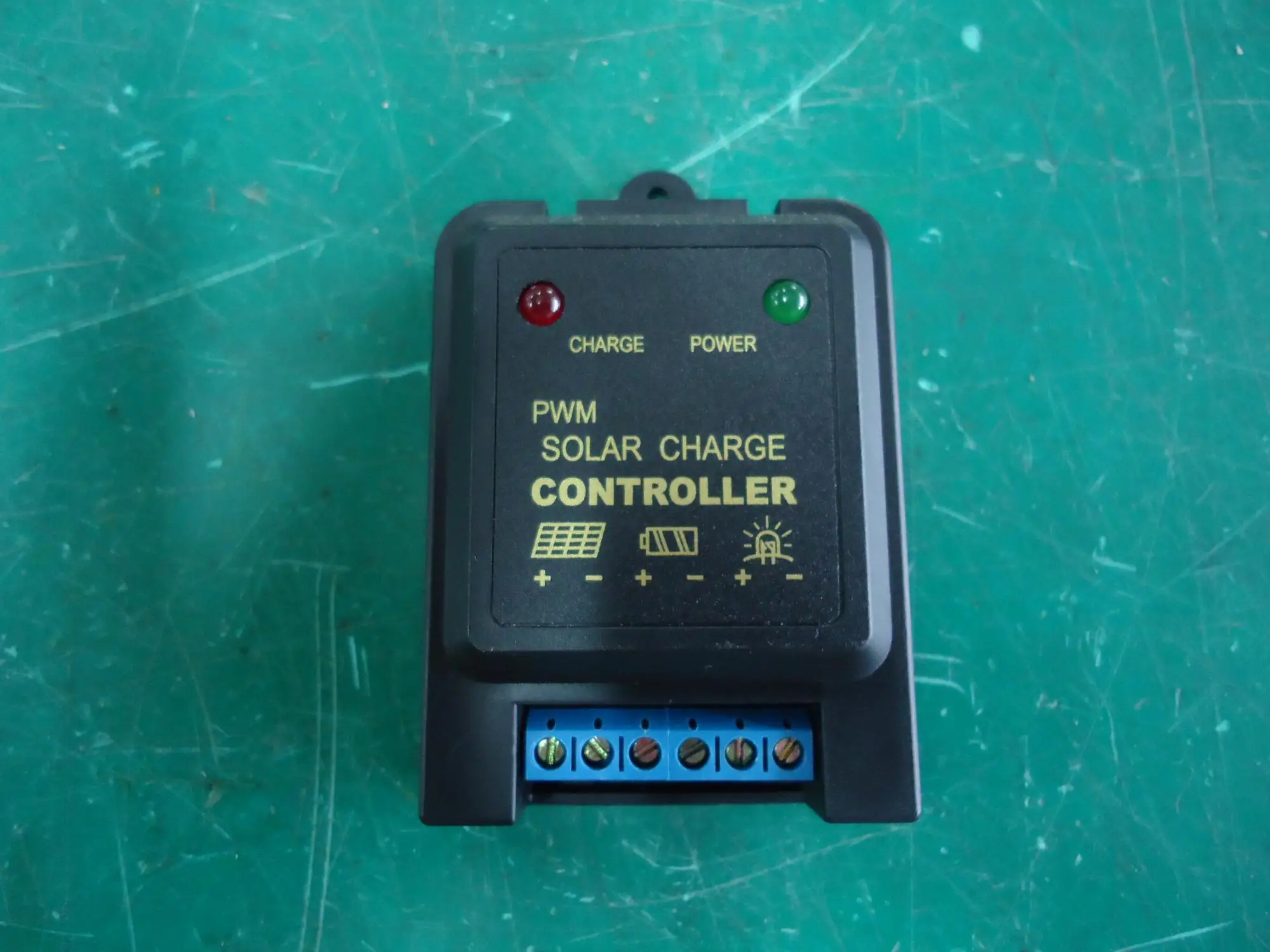

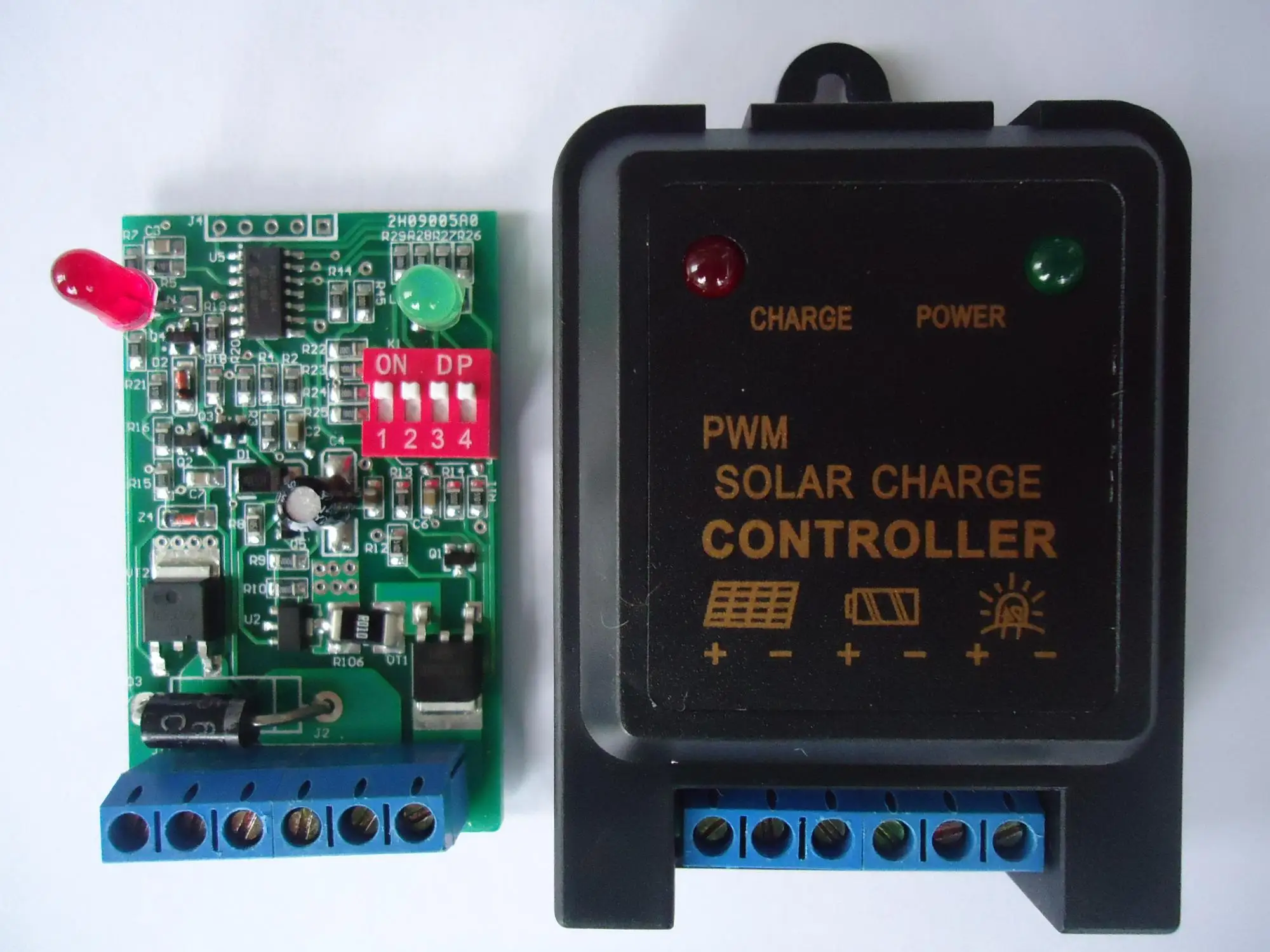

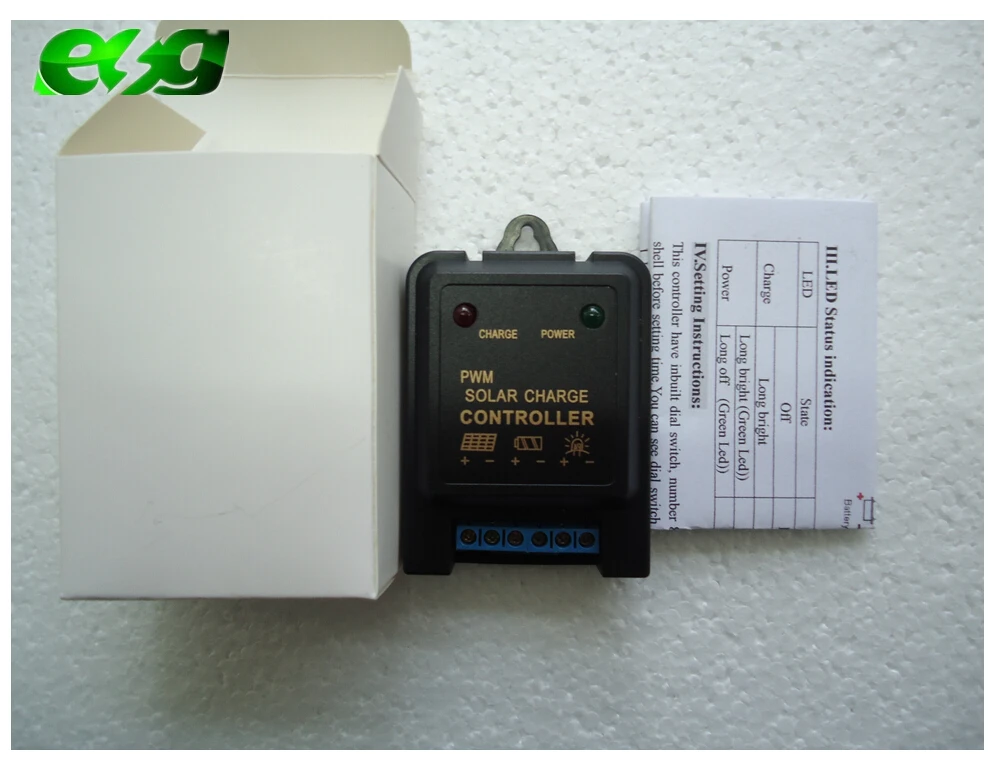

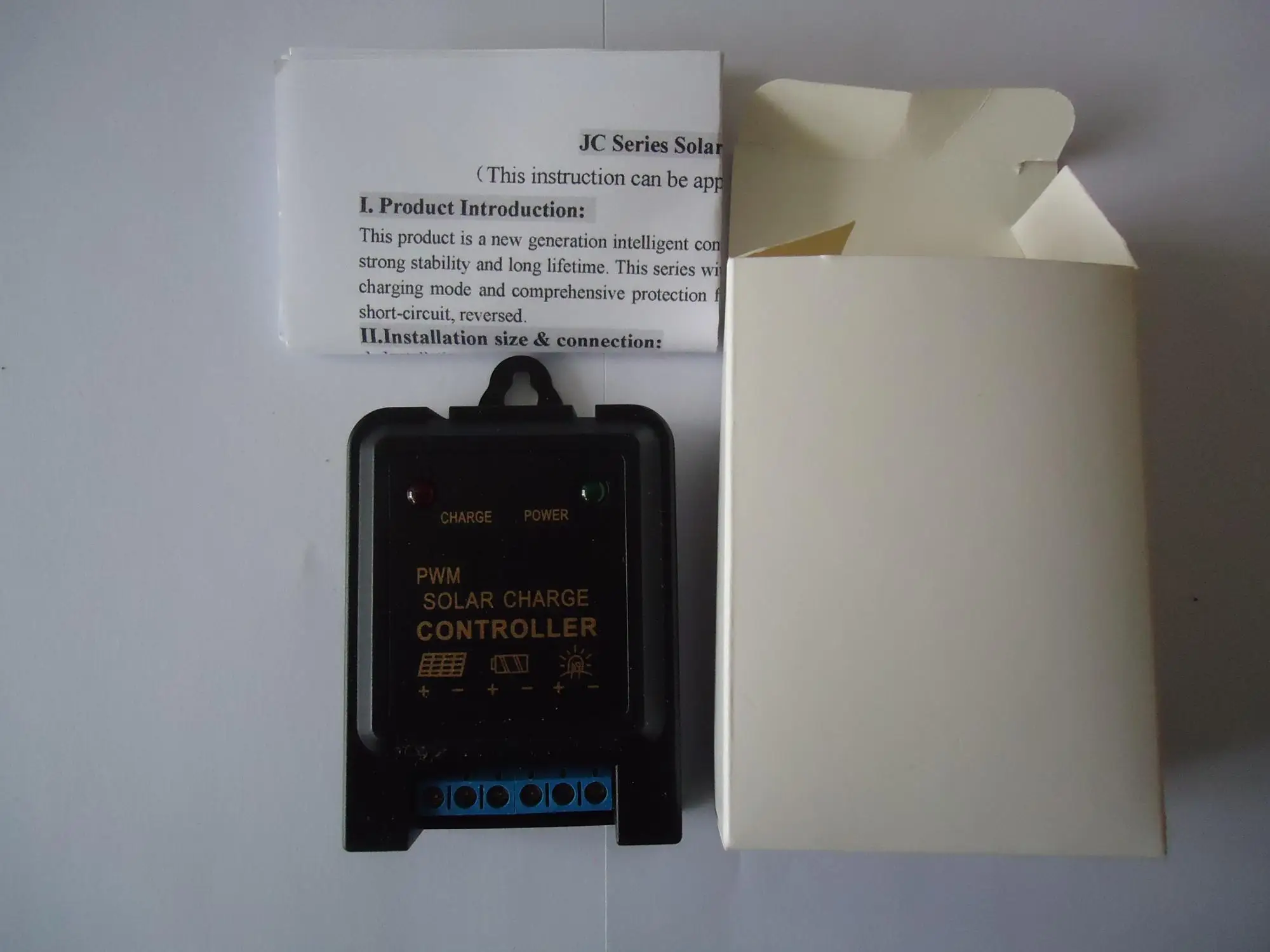

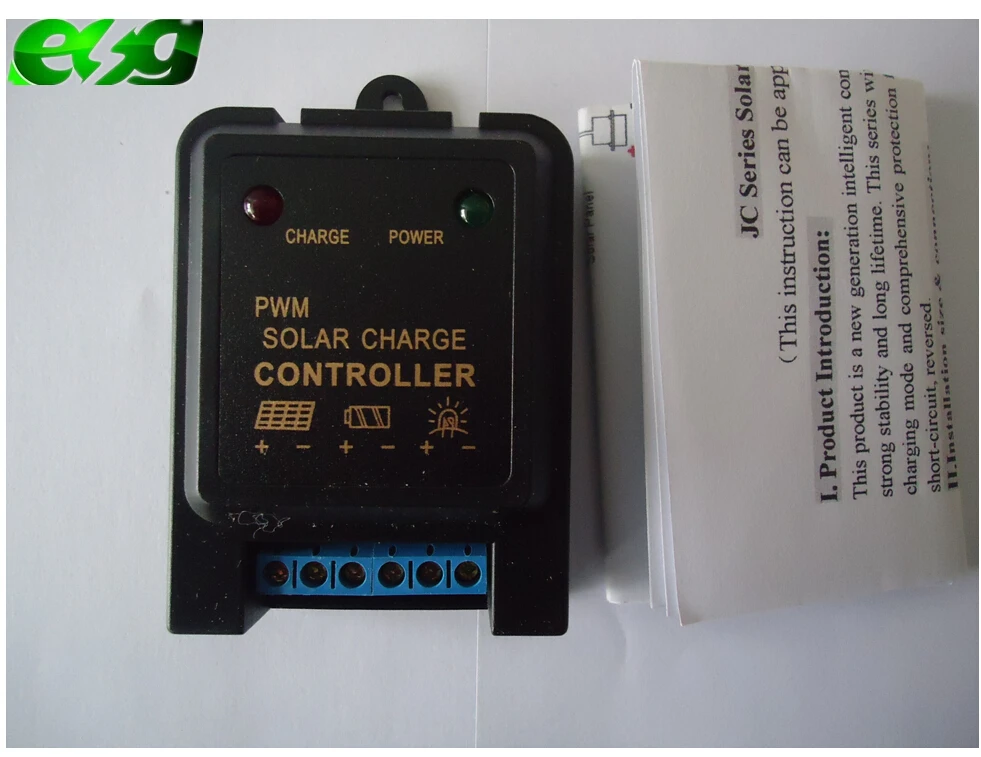

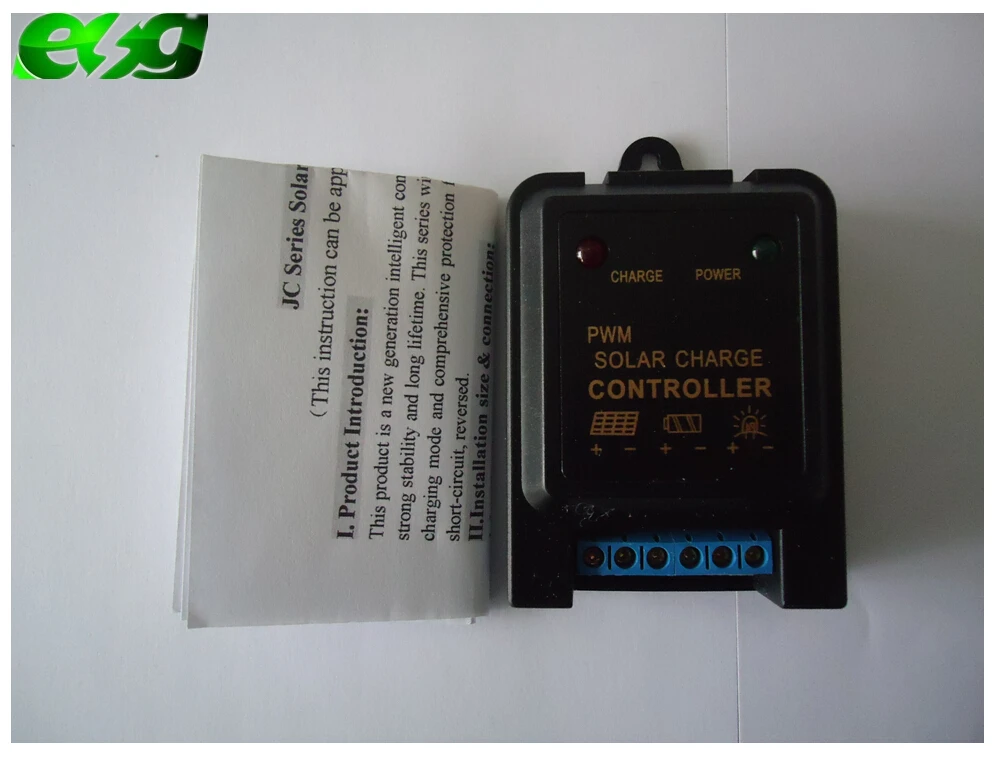

3A 6V/12V PWM Solar Charge Controller for Solar Panel, Workable for Home System or Solar Light (Adjusted according to actual requirement)
Hot-selling product for any DC system 6V 3a 12v 5a solar small charge controller
Characteritics of the function
1,Equipped with the MCU,artificially controlled.
2,Equipped with device to avoid the over charge,over release,electronic short circuit,over loading,battery inversely connecting,solar battery inversely connecting.
3,The series connection PWM circuit is implemented to form the major charging circuit,make the voltage loss 50% lower than the diode charging circuit,and the charging efficiency 3%-6% higher than the non-PWM.
4,The LED displyer shows the batteries current situation to make the customer get the information of the batteries.
5,The controller can automatically identify the voltage of 6V/12V
Hot-selling product for any DC system 6V 3a 12v 5a solar small charge controller
Model | HD0603/JC1203 |
Rated Voltage | 6V/12V |
Strong charging pressure | 7.4/14.8V |
Equilibrium charging | 7.25/14.5V |
Float charging pressure | 6.85/13.7V |
Under voltage | 5.4V/10.8V |
Under recover voltage | 6.5/13V |
Non –load current | ≤6mA |
Charging circuit voltage drop | ≤0.2V |
Discharge circuit voltage drop | ≤0.1V |
Maximum charging current | 3A |
Maximum load current | 3A |
Controller protection | overcharge, over-discharge, over-current, short-circuit, reversed |
Charging Mode | PWM Charging Mode |
Using elevation | ≤5500m(more than 2000m should be used in lower power |
Working temperature | -20°C~55°C |
Gross Weight (KG) | 0.05KG |
Net Weight (KG) | 0.035KG |
Product size(Length*Width*Height) | 79.5mm*52mm*21.5mm |
Protection level | IP22 |
for any DC system 12V 300a 24v 500a solar small charge controller
Model sheet | |||
DC Voltage | Rate Power | Dimension | Weight/kg |
12V | 500W | 305*145*210mm | 6.6 |
24V | |||
48V | |||
12V | 600W | 305*145*210mm | 6.6 |
24V | 5.6 | ||
12V | 1000W | 370*170*230mm | 9.78 |
24V | 10.5 | ||
48V | 385*205*323mm | 10.5 | |
12V | 1500W | 370*170*230mm | 11 |
24V | 11.5 | ||
48V | 385*205*323mm | 11.5 | |
Hot-selling product for any DC system 6V 3a 12v 5a solar small charge controller

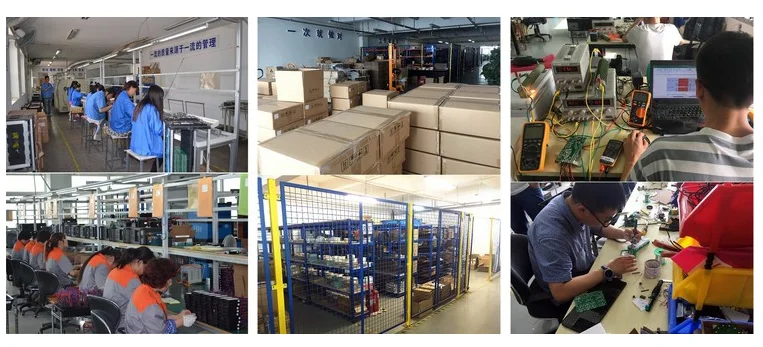

Workshop
for any DC system 12V 300a 24v 500a solar small charge controller

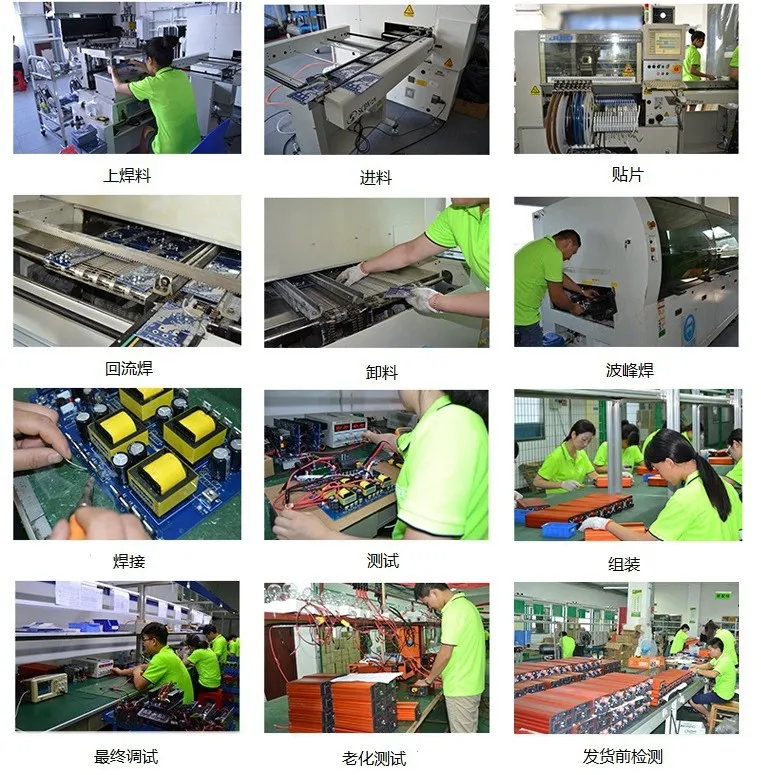

Production Line
for any DC system 12V 300a 24v 500a solar small charge controller
Certifications
Hot-selling product for any DC system 6V 3a 12v 5a solar small charge controller
Company introduction
Company Introduction
for any DC system 12V 300a 24v 500a solar small charge controller
for any DC system 12V 300a 24v 500a solar small charge controller
Domestic and foreign exhibitions
for any DC system 12V 300a 24v 500a solar small charge controller
for any DC system 12V 300a 24v 500a solar small charge controller
for any DC system 12V 300a 24v 500a solar small charge controller
FAQ
FAQ
Q1: What’s for any DC system 12V 300a 24v 500a solar small charge controller payment terms?
A1:We accept almost all payment terms,such as T/T,L/C,DA,DP,Western Union,MoneyGram
Q2: OEM Service
A2: We can print for any DC system 12V 300a 24v 500a solar small charge controller LOGO on Battery case , if for any DC system 12V 300a 24v 500a solar small charge controller quantities reached 100PCS , We also can print for any DC system 12V 300a 24v 500a solar small charge controller LOGO on Battery carton.
Q3: Warranty process.
A3: We provide 1 ~ 5 years different warranty.
Q4:How long is for any DC system 12V 300a 24v 500a solar small charge controller delivery time?
A4:Normally,the whole production cycle need 15 days from material to finished products,but we can send goods within 7 days,because we have lead plate in stock.
Q5: Why for any DC system 12V 300a 24v 500a solar small charge controller price is competitive ?
A5: Because the lead plate , battery case etc , all the battery accessories all from for any DC system 12V 300a 24v 500a solar small charge controller own factory.
