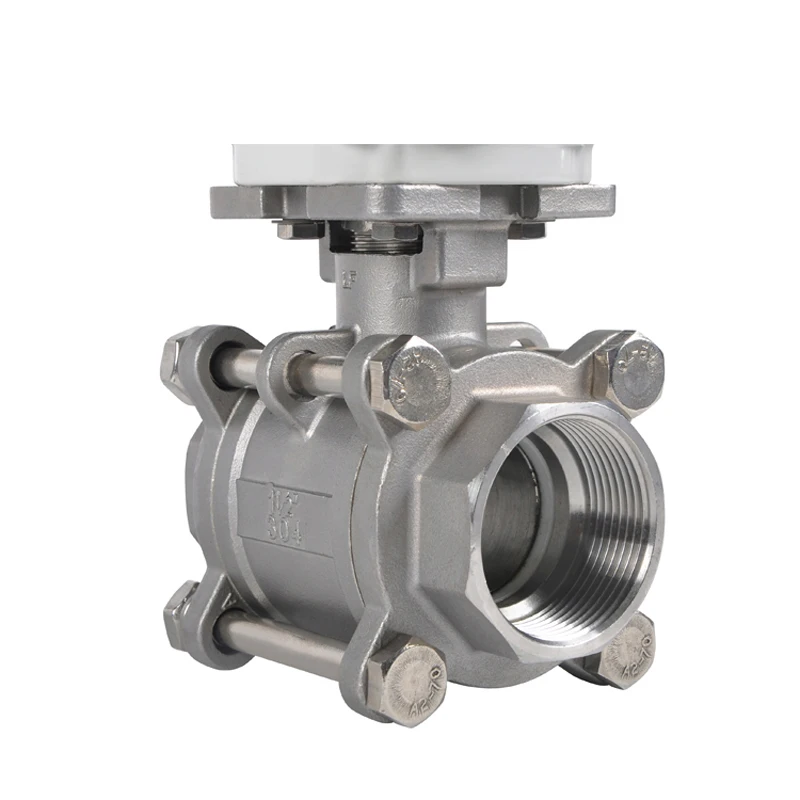

Electric Valves DN15/50/100/ 12V 24V DC 110V 220V 240V Volt 2 Way 4 20ma Motorized Actuator Ball Valve With Manual Control
Electric Valves DN15/50/100/ 12V 24V DC 110V 220V 240V Volt 2 Way 4-20ma Motorized Actuator Ball Valve With Manual Control
Electric Valves DN15/50/100/ 12V 24V DC 110V 220V 240V Volt 2 Way 4-20ma Motorized Actuator Ball Valve With Manual Control
Electric Valves DN15/50/100/ 12V 24V DC 110V 220V 240V Volt 2 Way 4-20ma Motorized Actuator Ball Valve With Manual Control
Electric Valves DN15/50/100/ 12V 24V DC 110V 220V 240V Volt 2 Way 4-20ma Motorized Actuator Ball Valve With Manual Control
Electric Valves DN15/50/100/ 12V 24V DC 110V 220V 240V Volt 2 Way 4-20ma Motorized Actuator Ball Valve With Manual Control
Electric Valves DN15/50/100/ 12V 24V DC 110V 220V 240V Volt 2 Way 4-20ma Motorized Actuator Ball Valve With Manual Control

Electric Valves DN15/50/100/ 12V 24V DC 110V 220V 240V Volt 2 Way 4 20ma Motorized Actuator Ball Valve With Manual Control

Share on (62017939342):


Price:$109.20 - $121.30

Quantity:


Product Overview

Description







Product Description




Advantages:
1. 50Nm torque enough power to open the valve fully
2. Environmental protection and energy conservation
3. Quick and easy installation
4. Field controlling and remote monitoring

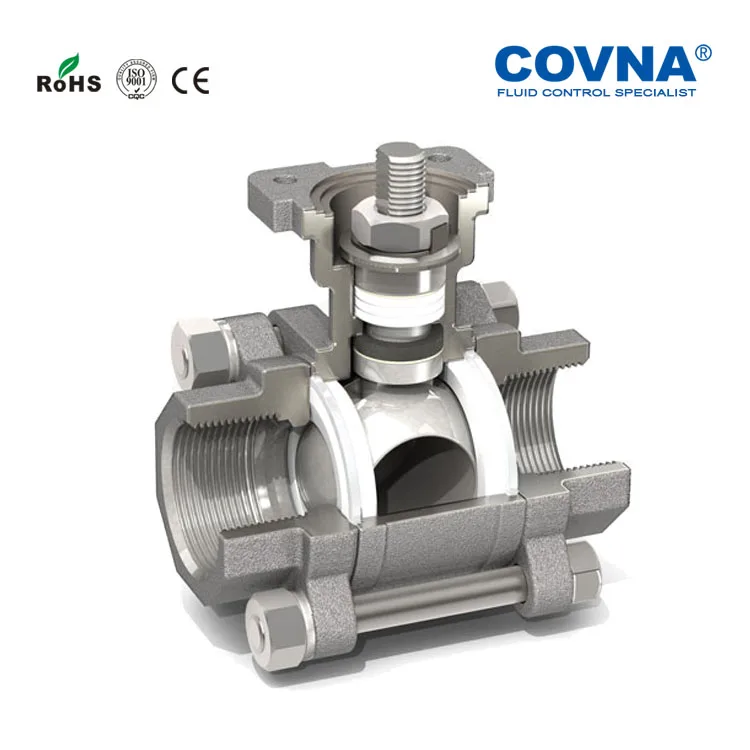

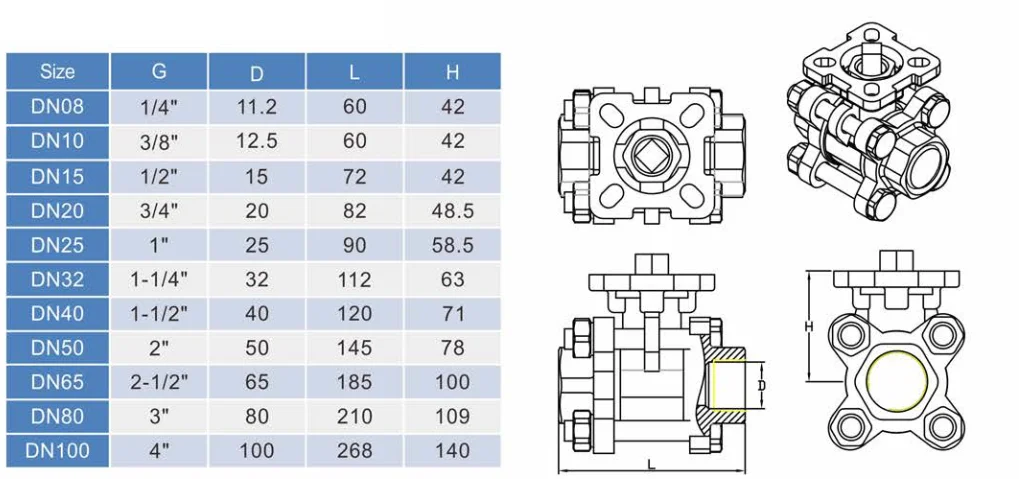

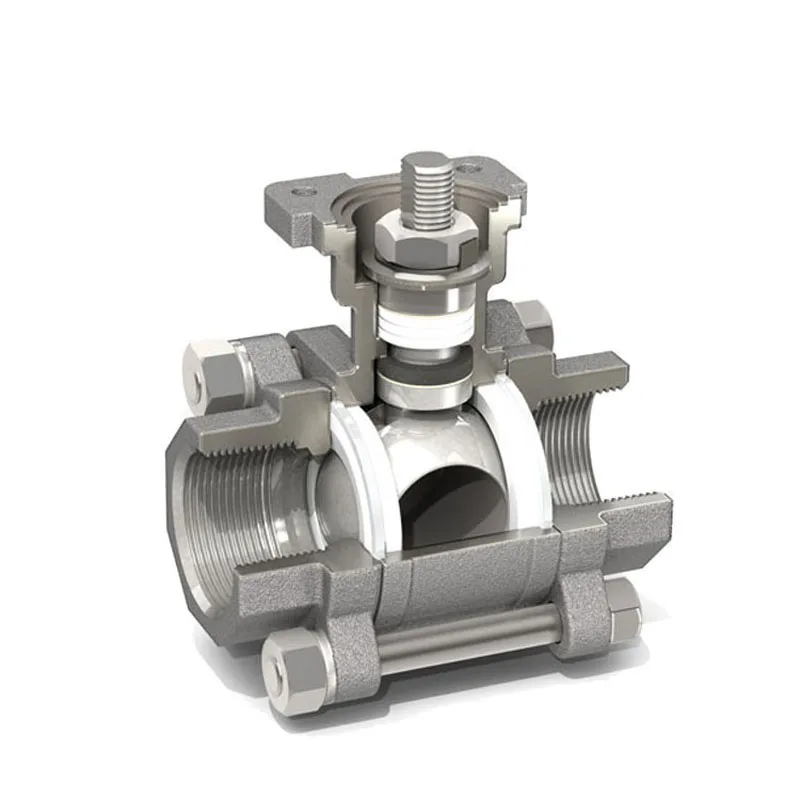

Technical Parameters of 3-Piece Electric Ball Valves:


Item
DN15/50/100/ 12V 24V DC 110V 220V 240V Volt 2 Way 4-20ma Motorized Actuator Ball Valve With Manual Control
Medium Temperature
-10~180℃
Working Pressure
PN 1.0 to 6.4 MPa
Size Range
DN15~50
Body Material
Stainless Steel
Core Material
Stainless Steel
Sealing Material
PTFE
End Connection
Thread
Structure
Straight Through Flow Path
Applicable Medium
Water, Oil, Air, Gas, etc










Technical Parameters of Electric Actuator:




Features Of COVNA Quarter-Turn Electric Actuator:
● 90 degree rotation
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● AC/DC power supply, signal control and manual override
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty




Series
05
10
16
30
60
125
250
400
Torque Output
50Nm
100Nm
160Nm
300Nm
600Nm
1250Nm
2500Nm
4000Nm
90° Cycle Time
20S
15/30S
15/30S
15/30S
30S
100S
100S
100S
Angle Of Rotation
0-90°
0-90°
0-90°
0-90°
0-90°
0-90°
0-90°
0-90°
Working Current
0.23A
0.35A
0.4A
0.45A
0.6A
1.03A
1.85A
2.7A
Drive Motor
50W
75W
80W
100W
130W
210W
285W
360W
Voltage Options
DC12V, DC24V, AC24V, AC110V, AC220V, AC380V
Input Signal
4-20mA, 1-5VDC, 0-10VDC
Output Signal
4-20mA, 1-5VDC, 0-10VDC
Protection Class
IP65 protection class
Ambient Temp
-20 to +60°C
Wiring Diagram
A: ON/OFF type with light indicator signal feedback
B: ON/OFF type with passive contact signal feedback
C: ON/OFF type with resisance potentiometer signal feedback
D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback
E: Regulation type with servo control module
F: DC24/DC12V direct ON/OFF type
G: AC380V 3-phase power supply with passive signal feedback
H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback
