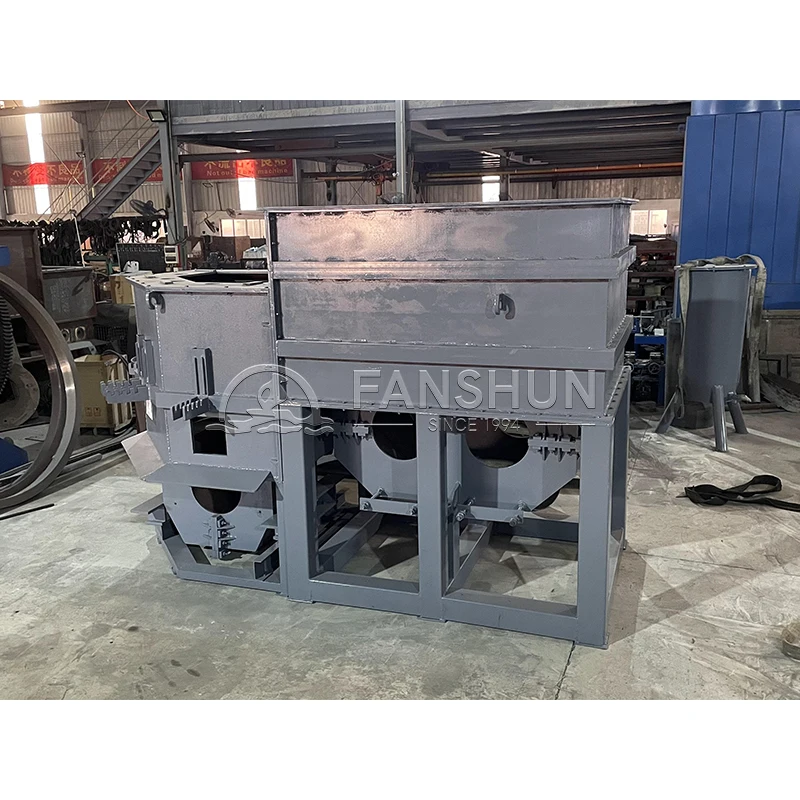

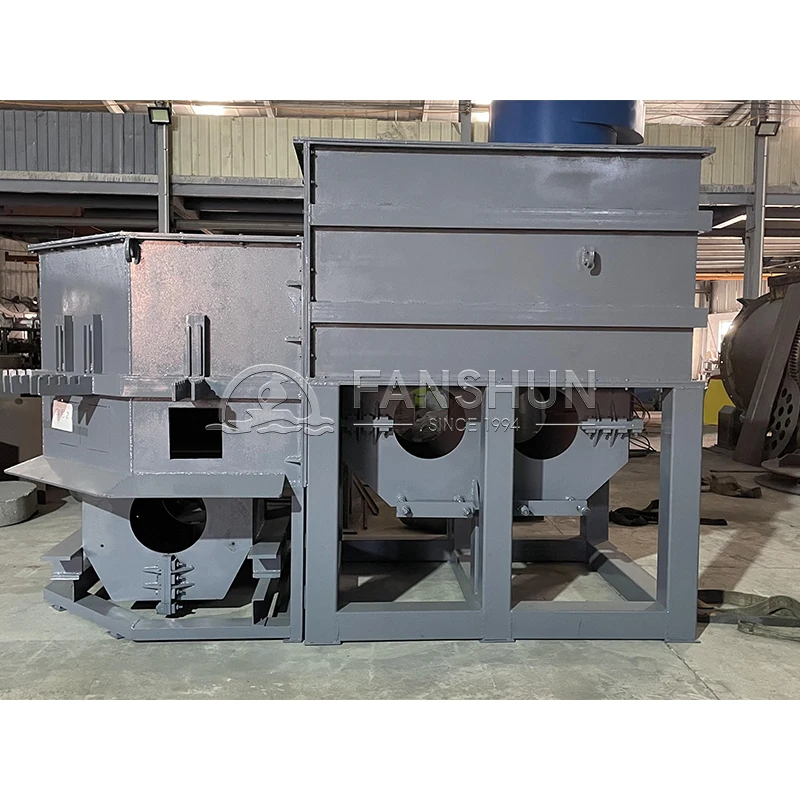

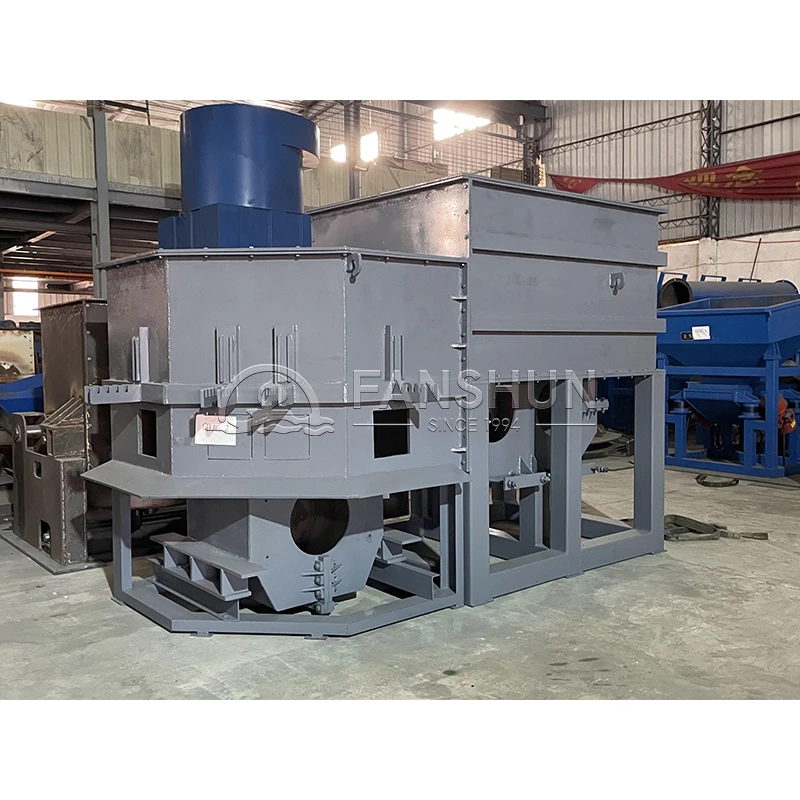

induction furnace for copper/aluminum/brass scrap melting furnace and holding furnace
- Category: >>>
- Supplier: Foshan Fanshun Machinery Co. Ltd.
Share on (62017940444):
Product Overview
Description
Products Description
GYT Cored Industrial Frequency Induction Melting Furnace is designed for melting bronze and brass etc.
Product Size
Power frequency core furnace operating procedures
Melt tin bronze, brass and red copper, lead to cast Φ80-Φ250 round rod, 150-200 can be cast with double or multiple heads at the same time, user-defined size, can also be used for melting copper, using semi-continuous casting method to put copper water into the holding furnace reduce wastage
Model | Unit | GYT-300 | GYT-500 | GYT-750 | GYT-1000 | GYT-1500 | ||||
Rated Power | kw | 75 | 120 | 180 | 240 | 360 | ||||
Rated voltage | v | 380V | ||||||||
Number of phases | / | 3 | ||||||||
Power | hz | 50 | ||||||||
maximum melting temperature | °C | Brass 1080 / Copper 1350 | ||||||||
melting rate | kg/h | Copper 300 | Copper 500 | Copper 750 | Copper 1000 | Copper 1500 | ||||
Brass 400 | Brass 650 | Brass 900 | Brass 1200 | Brass 1800 | ||||||
power consumption | kwh/t | 250-300 | ||||||||
Number of molten grooves | pcs | 1 | 1 | 2 | 2 | 2 | ||||
cooling method | / | water cooling / air cooling | water cooling | |||||||
furnace weight | kg | 3500 | 5000 | 5500 | 6000 | 7000 | ||||
Holding furnace weight | kg | 3500 | 5500 | 5500 | / | / | ||||
Electric cabinet shape | m | 1*0.8*2 | 1*0.6*2 | 1*0.6*2 | 1*0.6*2 | 1.2*1*2 | ||||
Product comparison before and after melting

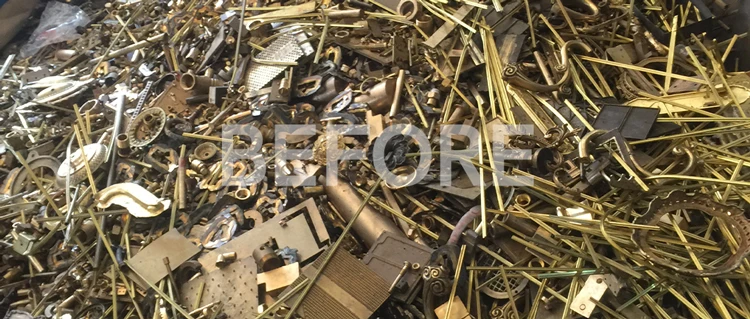

Before melting

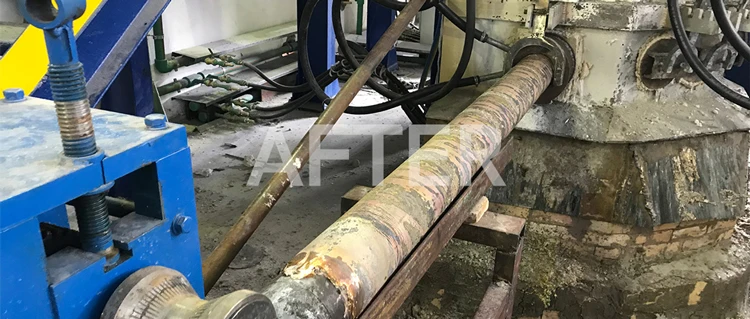

After melting

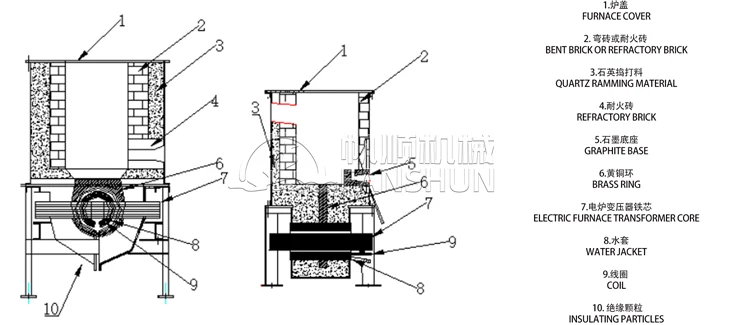

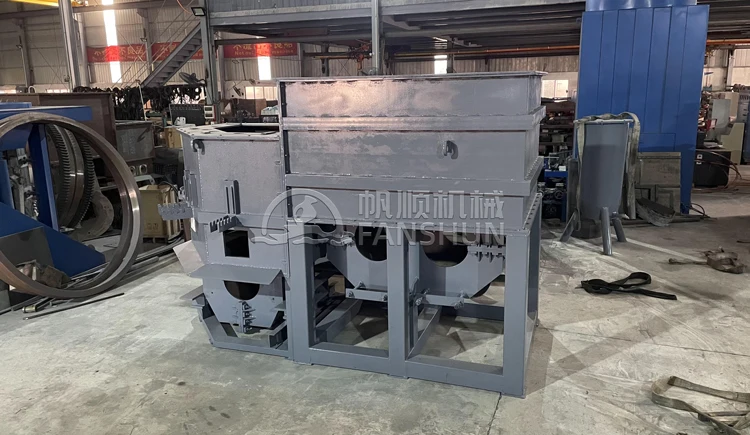

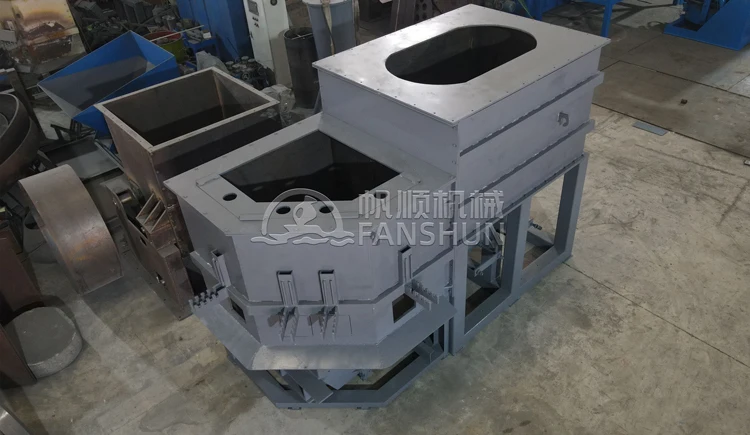

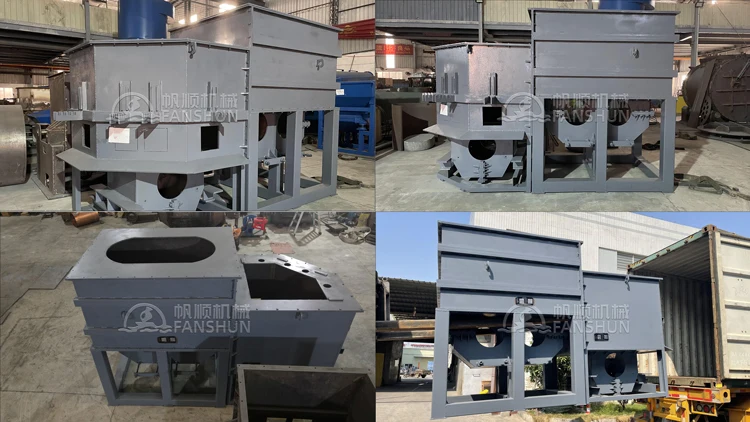

Detailed images
Accessories for Power frequency core furnace

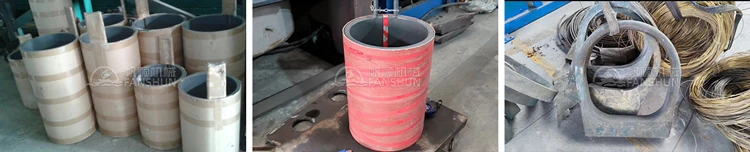

① Water jacket ② Coil ③ Copper ring
