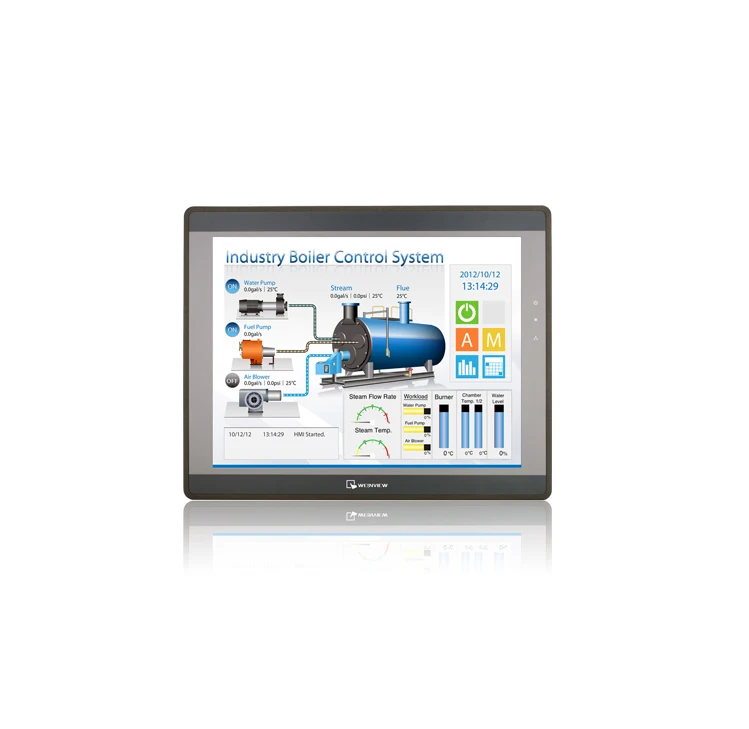

Hot sale 15 inch 4 wire resistive PLC controller with 1024 x 768 resolution touch screen HMI
Hot sale 15 inch 4-wire resistive PLC controller with 1024 x 768 resolution touch screen HMI
Hot sale 15 inch 4-wire resistive PLC controller with 1024 x 768 resolution touch screen HMI
Hot sale 15 inch 4-wire resistive PLC controller with 1024 x 768 resolution touch screen HMI
Hot sale 15 inch 4-wire resistive PLC controller with 1024 x 768 resolution touch screen HMI

Hot sale 15 inch 4 wire resistive PLC controller with 1024 x 768 resolution touch screen HMI

Share on (62017964338):


Price:$880.00 - $980.00

Quantity:


Product Overview

Description



Product Description




Display
monitor
15 ”TFT
Resolution
1024 x 768
brightness
400
Contrast
700: 1
Backlight type
led
Backlight life
> 50,000 hours
Backlight color
24 bits
Touch panel
Types of
Four-wire resistive
Touch accuracy
Action zone length (X) ± 2%, width (Y) ± 2%
Memory
Flash
128 MB
Memory (RAM)
256 MB
Processor
Cortex A8 32Bit RISC 600MHz
I / O interface
SD card slot
SD
USB Host
USB 2.0 x 1
USB Client
USB 2.0 x 1
Ethernet interface
10/100 Base-T
Serial interface
Com1: RS-232 / RS-485 2w / 4w, Com3: RS-485 2w
Perpetual calendar
Built-in
Power supply
Input power
24 ± 20% VDC
Power consumption
1000mA @ 24VDC
Withstand voltage
500VAC (1 minute)
Insulation resistance
Over 50MΩ @ 500VDC
Resistant to vibration
10 to 25Hz (X, Y, Z axis 2G for 30 minutes)
Specification
shell material
Aluminum

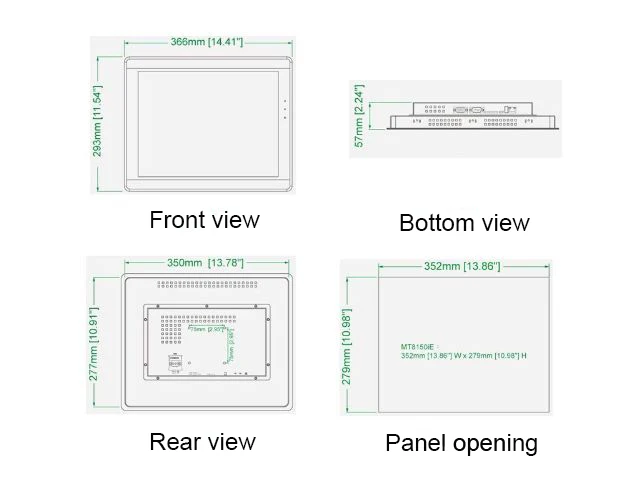

Dimensions WxHxD
366 x 293 x 57mm
Hole Size
352 x 279 mm
weight
Approximately 2.75 kg
Surroundings
Protection class
NEMA4 / IP65
Ambient storage temperature
-20 ° ~ 60 ° C (-4 ° ~ 140 ° F)
Operating ambient temperature
0 ° ~ 50 ° C (32 ° ~ 122 ° F)
Relative ambient humidity
10% ~ 90% @ 40 ° C (non-condensing)
Certification
CE
Compliant with CE certification standards
Software
EasyBuilder Pro V4.00.01 or later


Product Usage

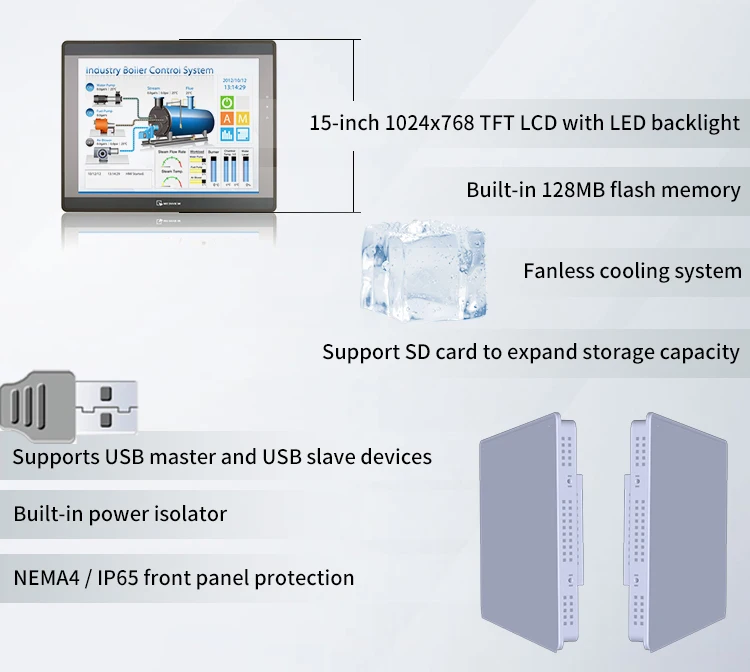

15-inch four-wire resistive display. It has its own fanless cooling system. The flash memory of the display unit is 128MB and supports SD card to expand the storage capacity. The relative ambient humidity is 10% to 90% (non-condensing) at 40 ° C, which can cope with relatively harsh environments.



The human-machine interface's IO interface has four interfaces: SD, USB, Ethernet interface and serial interface. The backlight type is LED. It supports COM1 / COM3 RS485 built-in isolator as well as COM1 and COM3 RS485 2W. It supports MPI. Built-in power isolator

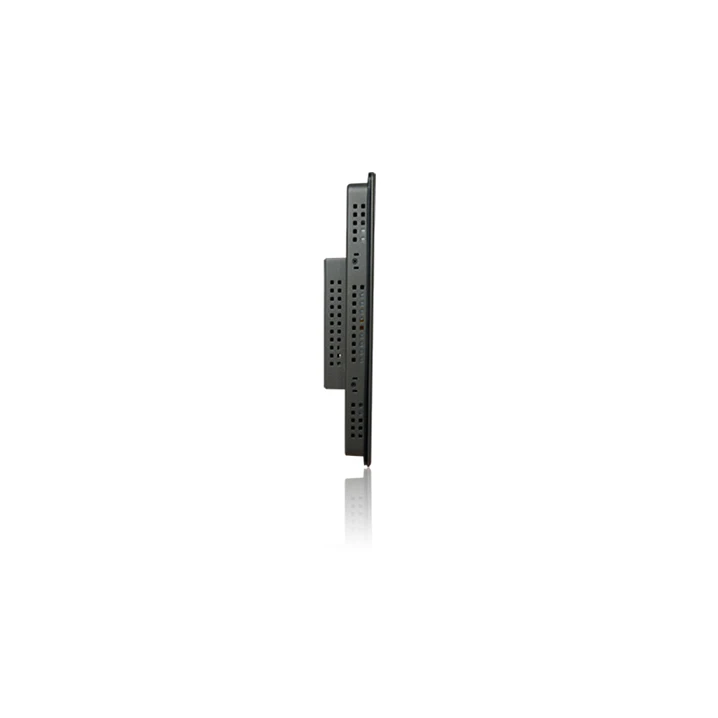

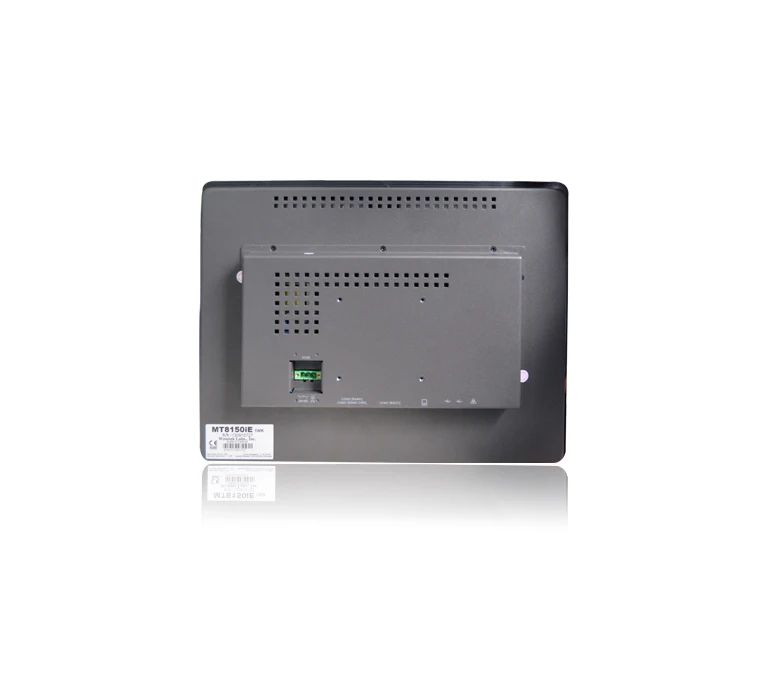

Details Images




Packing&Shipping






Company Introduction




FAQ


1. Are you a manufacturer or trade company? We are both factory and trade company, we have engineers for study & design and
workers to produce and operate, etc, we could support you one-stop products and service. 2. What is your MOQ? No MOQ Limits! We
support sample order and could do products with & without Logo. 3. If I am not familiar with the operation, do you have a manual
to help? Our Software, User Manual and Programme case can be downloaded freely on our official website, or you could consult the
sales for those documents. Meantime, we have an engineers team who could do help on your technician problem and give you a useful
solution.
