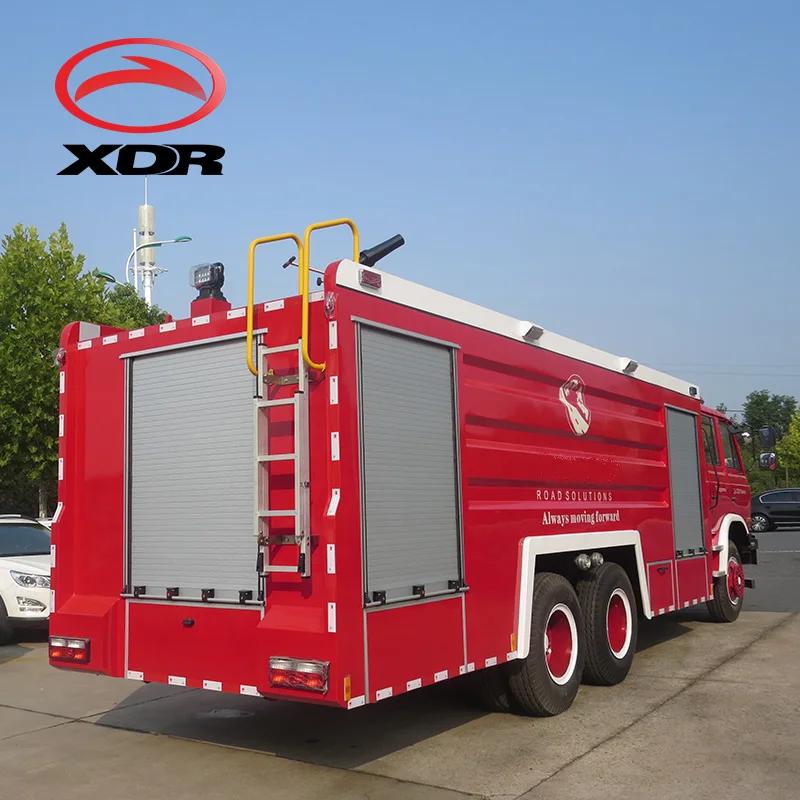

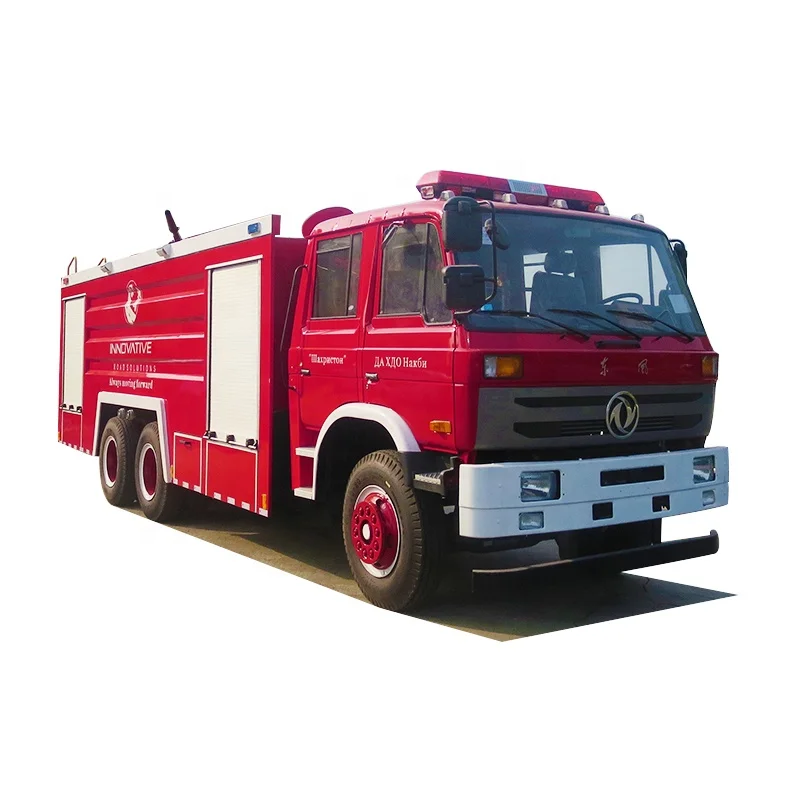

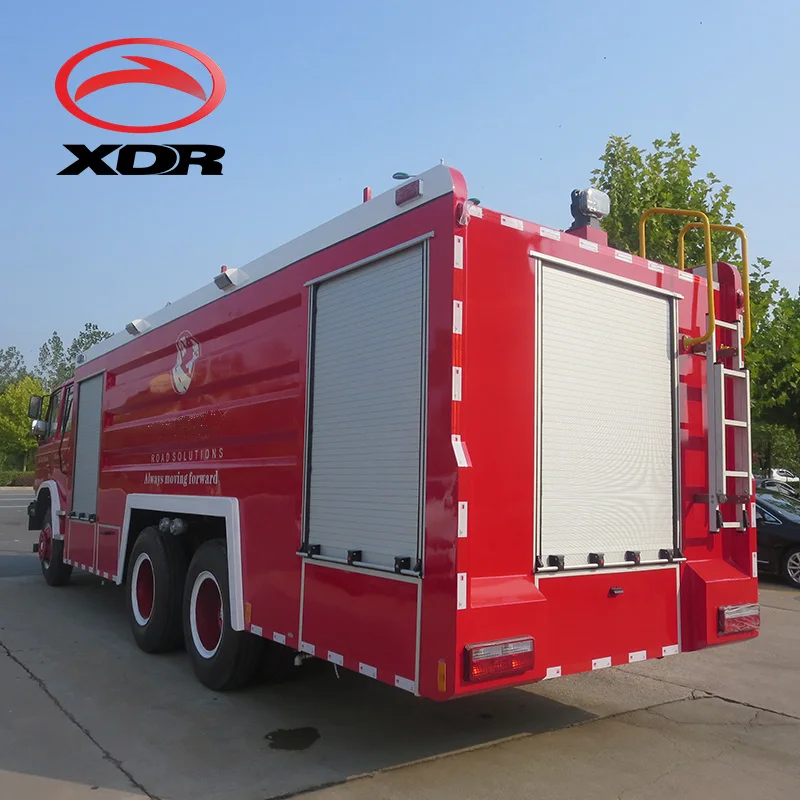

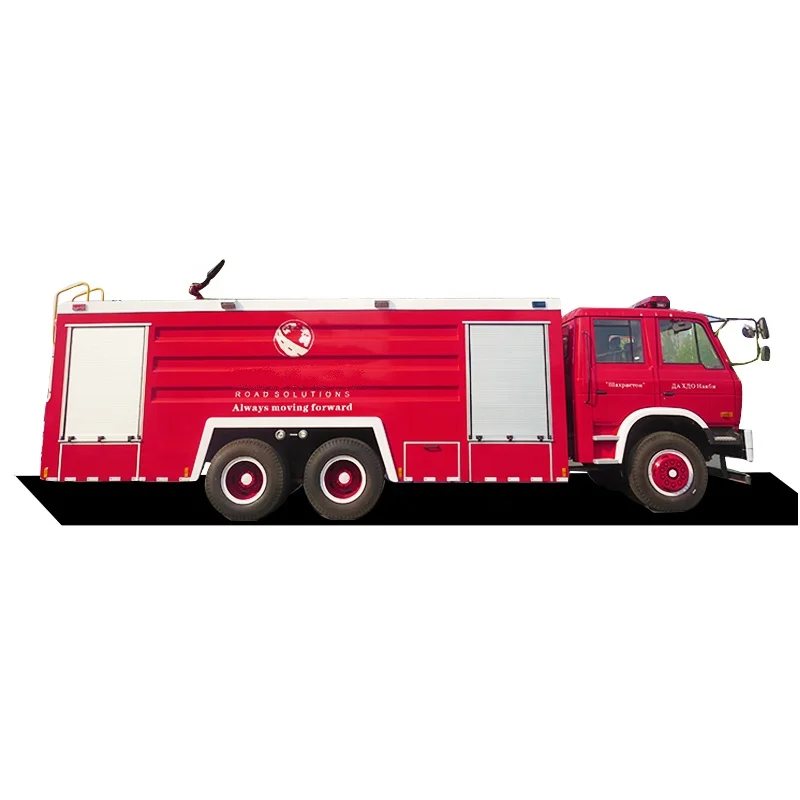

Suizhou XDR 3000gallons water tanker fire rescue fire fighting truck

XDR 10000-12000 liters water fire truck

Vehicle Parameters

General

Vehicle Model

YZR4350GXFSG

Vehicle Brand

XDR

Chassis Brand

Dongfeng(EQ1258KB3GJ)

Overall Dimension(mm)

9980×2500×3680

GVW/Curb Weight(kg)

25000/11500

Chassis Parameters

Cab

Cab Seat

2+4

Air Conditioner

Optional

Engine

Fuel Type

diesel

Engie Model

B210 33

Engine Brand

Dongfeng Cummins

Power(kw/hp)

154/210

Displacement(cc)

5900

Emmission Standard

Euro3

Chassis

Drive Type

4*2

Transmission

6speed, Manual

Wheelbase(mm)

4325+1350

Tyre Specification

10.00-20

Tyre No.(pcs)

6+1

Max Speed(km/h)

90

Paint

Red

Fire Truck Water Tank Structure Parameters

Tank Volume

10000-12000L

Tank Material

Carbon Steel

Tank Thickness

4/3/3mm

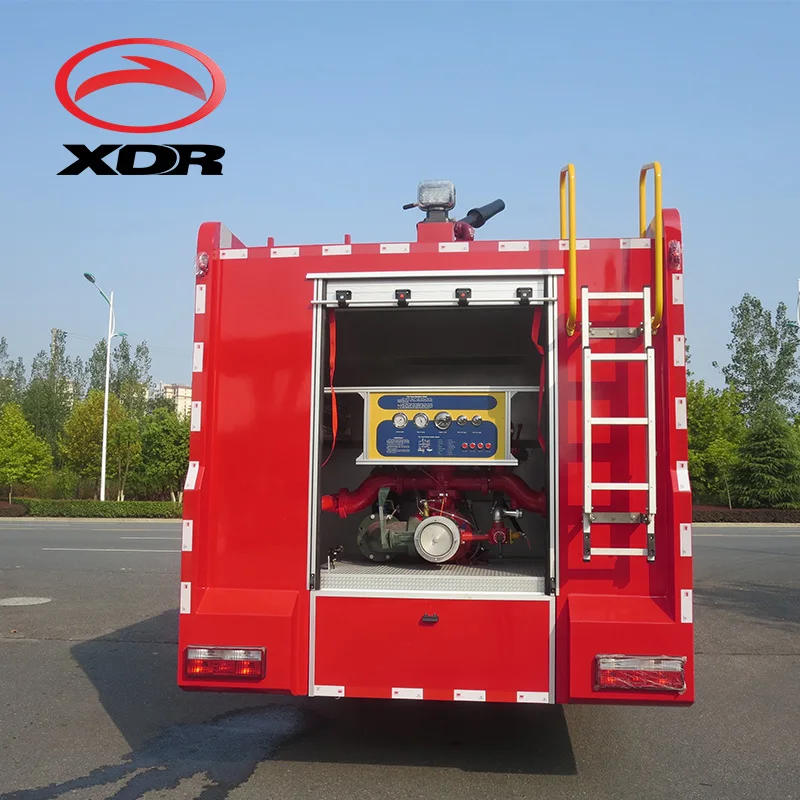

Fire pump

CB10/60

Fire monitor

PS50

Color and Logo

Optional

Standard configuration

Chassis,sub frame, van body,national standard equipment box, 25 units national standard fire-fighting equipment,fire pump(CB10/20,
CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off,
sliding gate, row type lights, reel, common tools,rear climbing ladder,water tank.

Selective configuration

foam type,dry powder type,stainless tank,other requirements.
