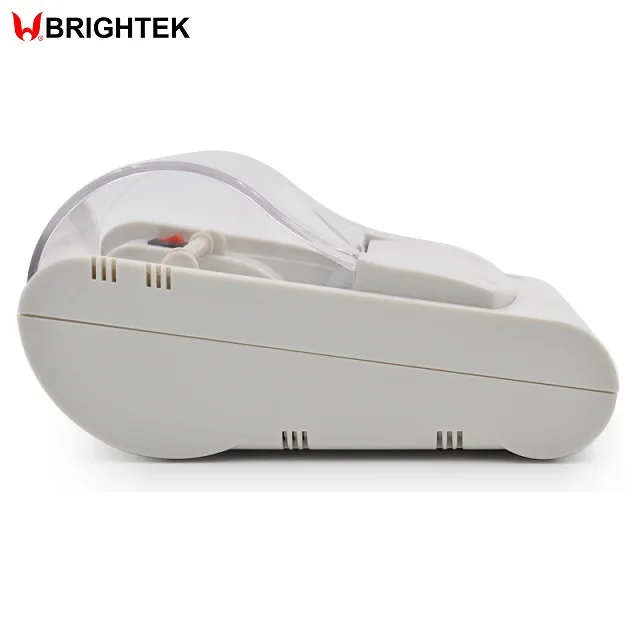

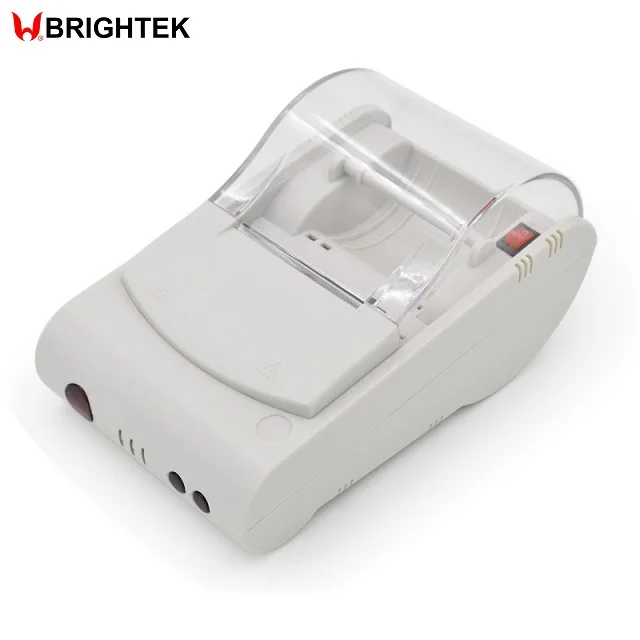

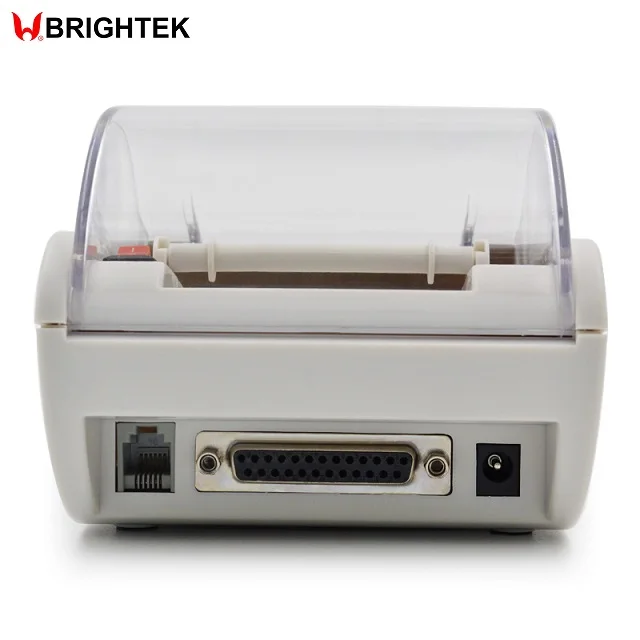

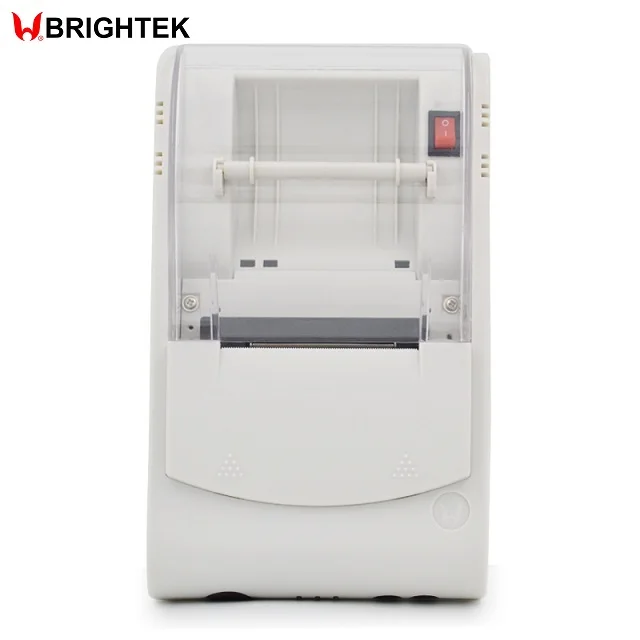

Desktop POS 58mm Dot Matrix Printer (WH T1)

Product Overview

Description

Feature:

• Very silent printing through direct thermal printing method


• Stylish, delicate and elegant appearance


• Interface: Serial RS-232C or TTL


• Abundant figure/ curves/ characters print function


• Function setting, auto printing promotion


• Easy to operate, easy to maintain


• Easy paper loading



Specification:



Item	Specification
Printing method	Dot Matrix
Paper out detection	Paper end sensors function
Paper loading way	Easy paper loading
Paper width	44mm or 58mm
Print width	33.6mm or 48mm
Resolution ration	96dots/line, 144dots/line, 240dots/line
Life of printing head	6,000,000 character lines
Printing speed	1 line/sec, 0.7 line/sec, 0.4 line/sec
Character	6*8dots, 6*12dots, 8*16dots
Chinese character library	GB2312,16*16dots, 12*12dots
Outline dimension	110mm*180mm*90mm
Paper supplied	Thermal paper roll (44mm/58mm, 50mmΦ)
Interface	Serial RS-232C / TTL
Input power	DC 5V, 15W/ 9V-24V, 25W
Operating temperature	5℃~ 50℃
Storage temperature	-20℃~ 60 ℃
