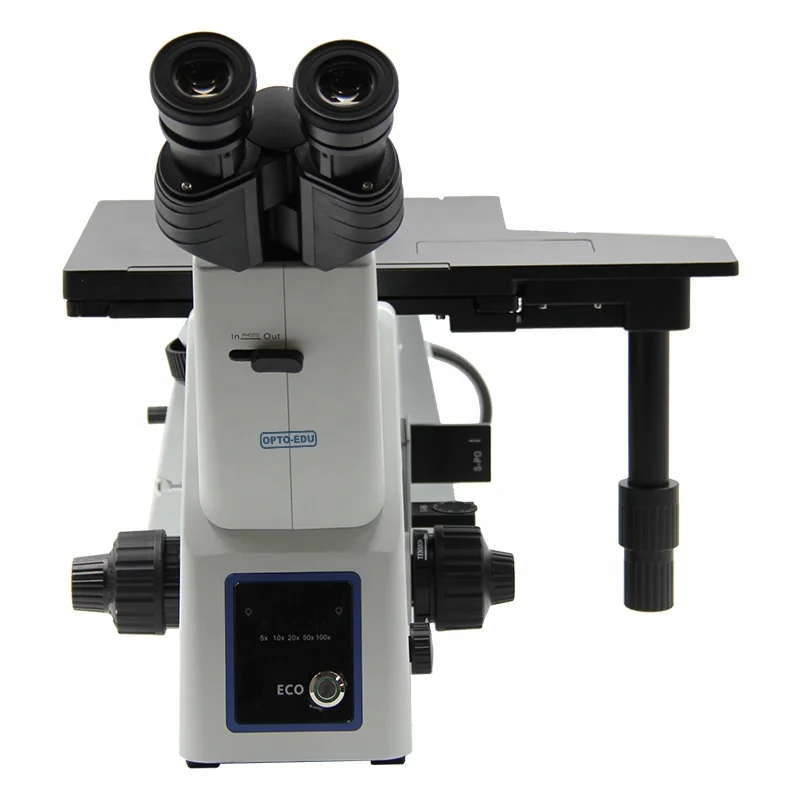

OPTO EDU A13.0912 A Trinocular Optical Industry Inspection Inverted Metallurgical Microscope
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (62018076448):
Product Overview
Description
A13.0912-A Inverted Metallurgical Microscope, BF,DF,DIC,PL,ECO, Semi-APO | ||||
Optical | Infinity Color Corrrected Optical System, BF,DF,DIC,PL,ECO, Semi-APO | |||
Frame | One-piece Construction,With Filter Slot & Polarizing Slot | |||

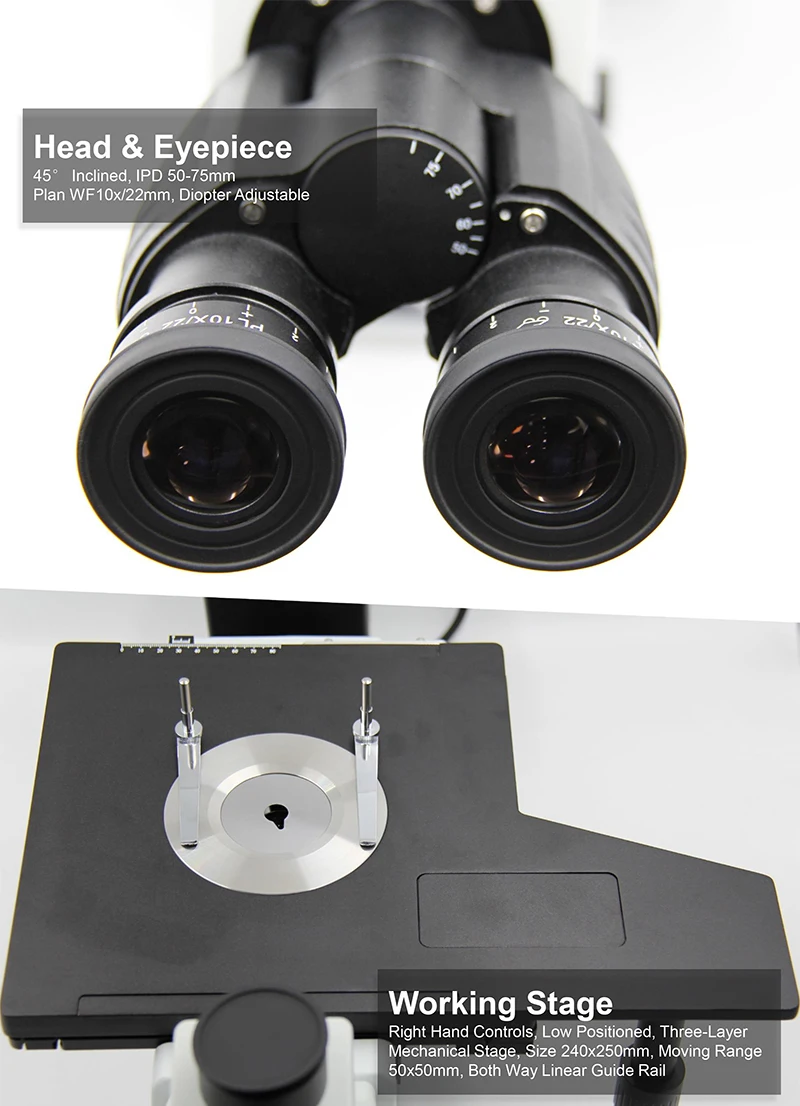

Head | Trinocular Head, Split Ratio 100:0 or 0:100, 45° Inclined, IPD 50-75mm | |||

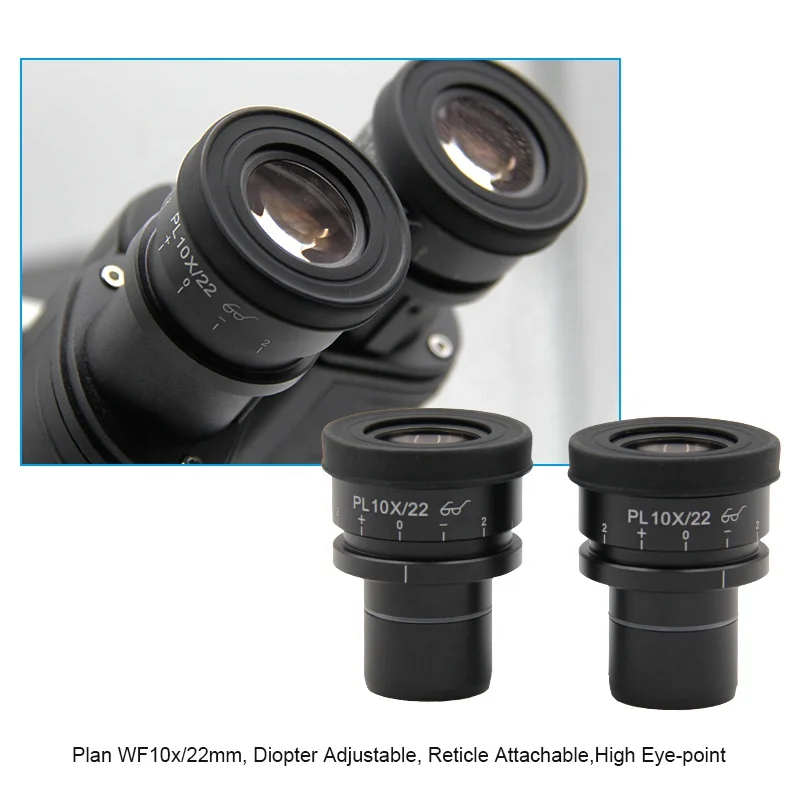

Eyepiece | Plan WF10x/22mm, Diopter Adjustable, Reticle Attachable,High Eye-point | |||
Field | Bright & Dark Field, With BD Shifter | |||

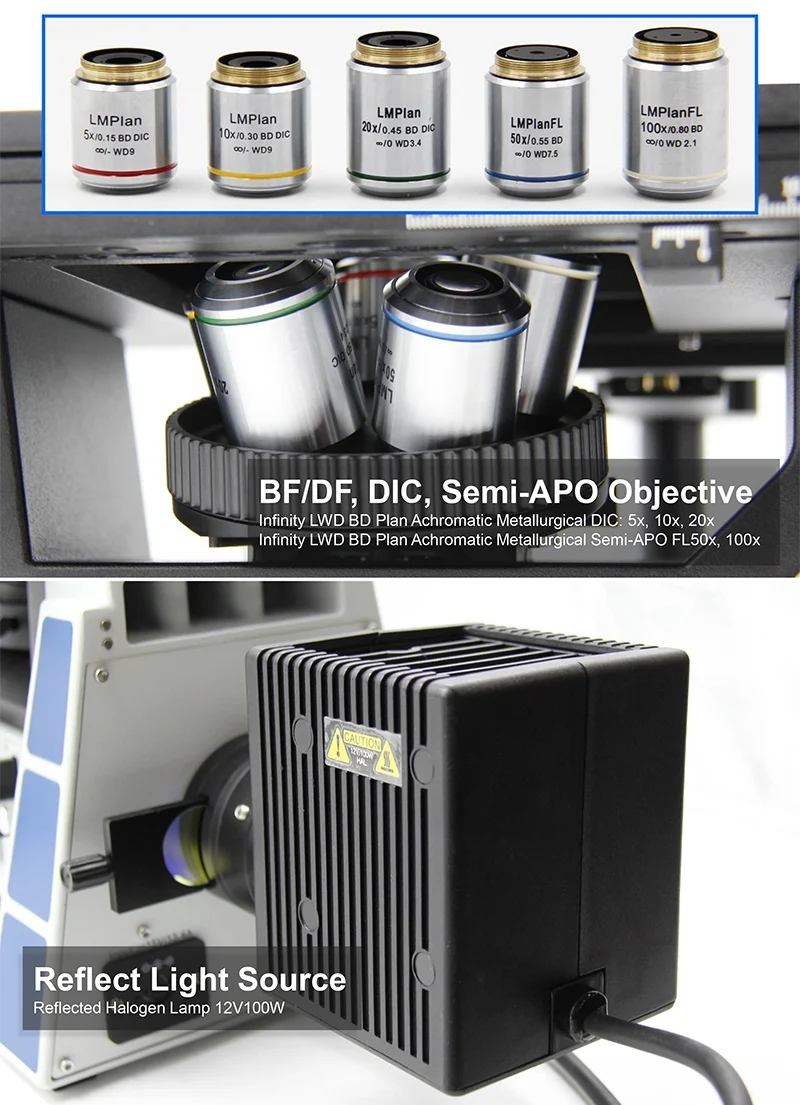

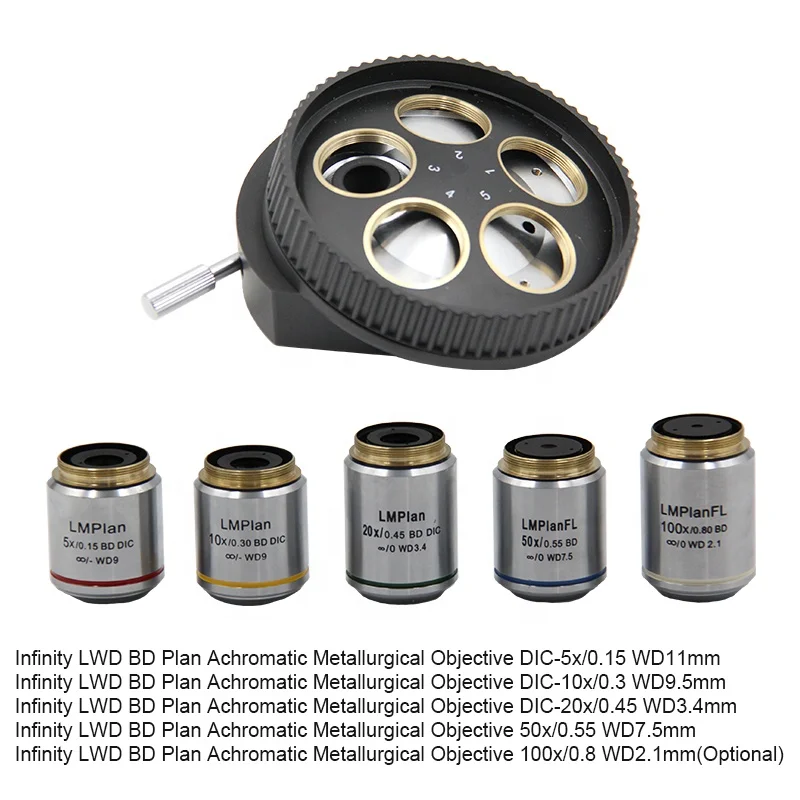

Objective | Infinity LWD BD Plan Achromatic Metallurgical DIC-5x/0.15 WD11mm | A5M.0939-5 | ||
Infinity LWD BD Plan Achromatic Metallurgical DIC-10x/0.3 WD9.5mm | A5M.0939-10 | |||
Infinity LWD BD Plan Achromatic Metallurgical DIC-20x/0.45 WD3.4mm | A5M.0939-20 | |||
Infinity LWD BD Plan Achromatic Metallurgical Semi-APO FL50x/0.55 WD7.5mm | A5M.0940-50 | |||
Focus | Coaxial Coarse & Fine Focusing System With Adjustable Tension, Coarse Range 9mm (6.5mm up & 2.5mm down), Fine Precision 2μm | |||

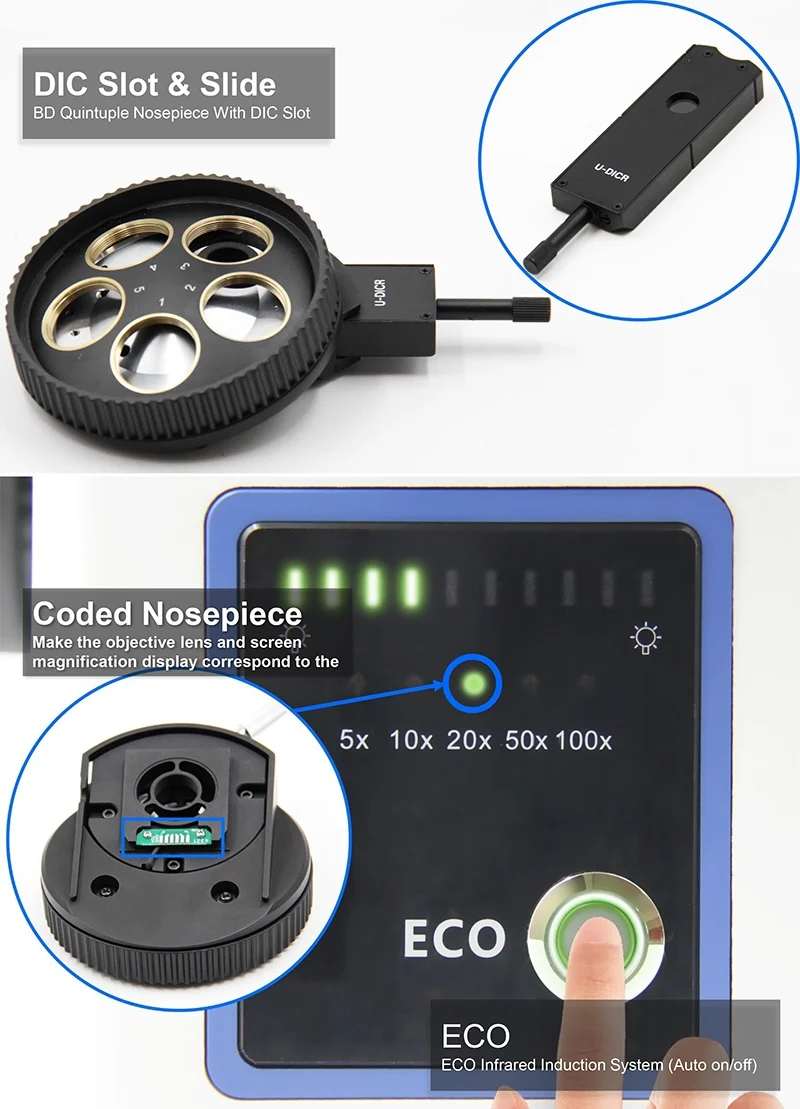

Nosepiece | Coded BD Quintuple Nosepiece With DIC Slot | |||
Stage | Right Hand Controls, Low Positioned, Three-Layer Mechanical Stage, Size 240x250mm, Moving Range 50x50mm, Bothway Linear Guide Rail | |||
Metal Specimen Holder (Dia. 25) | ||||

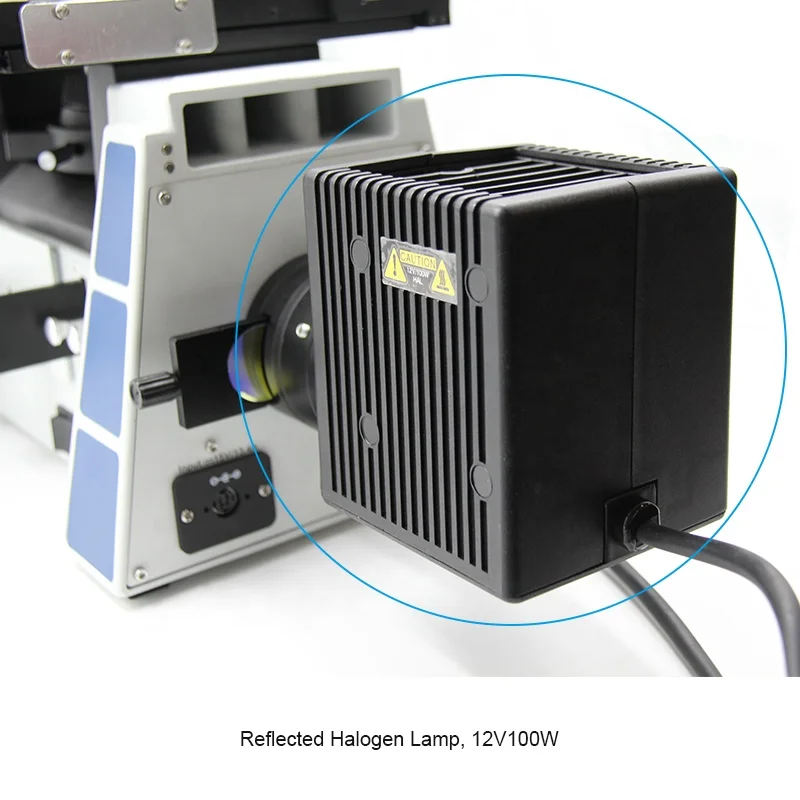

Light Source | Reflected Halogen Lamp 12V100W | |||

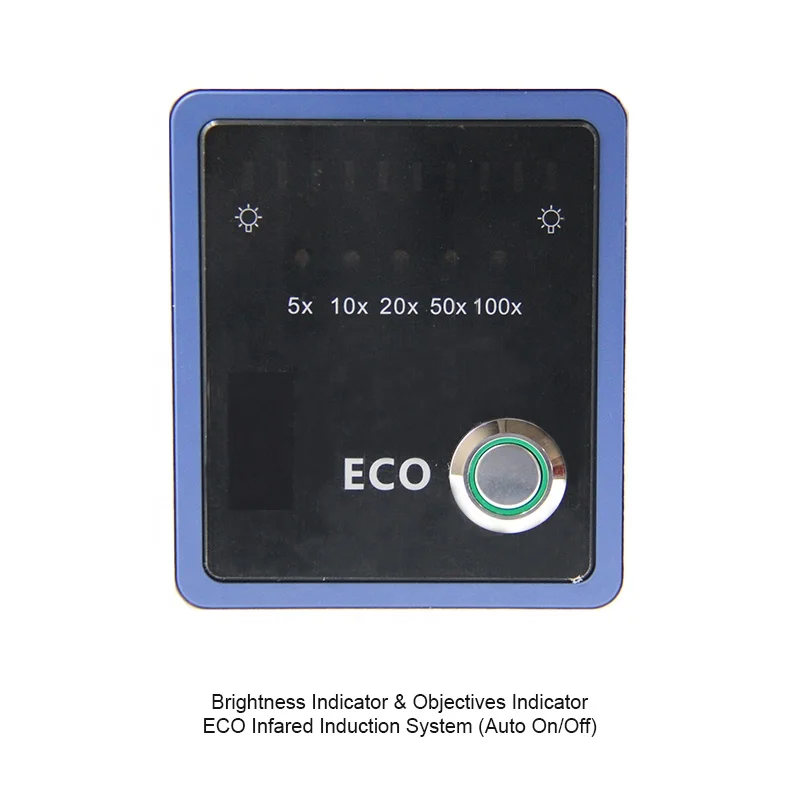

Light Indicator | ||||
Brightness Adjustable | ||||
ECO Infared Induction System (Auto on/off) | ||||
External Wide Voltage Transformer, 100V-240V Input, 12V13.4A Output | ||||

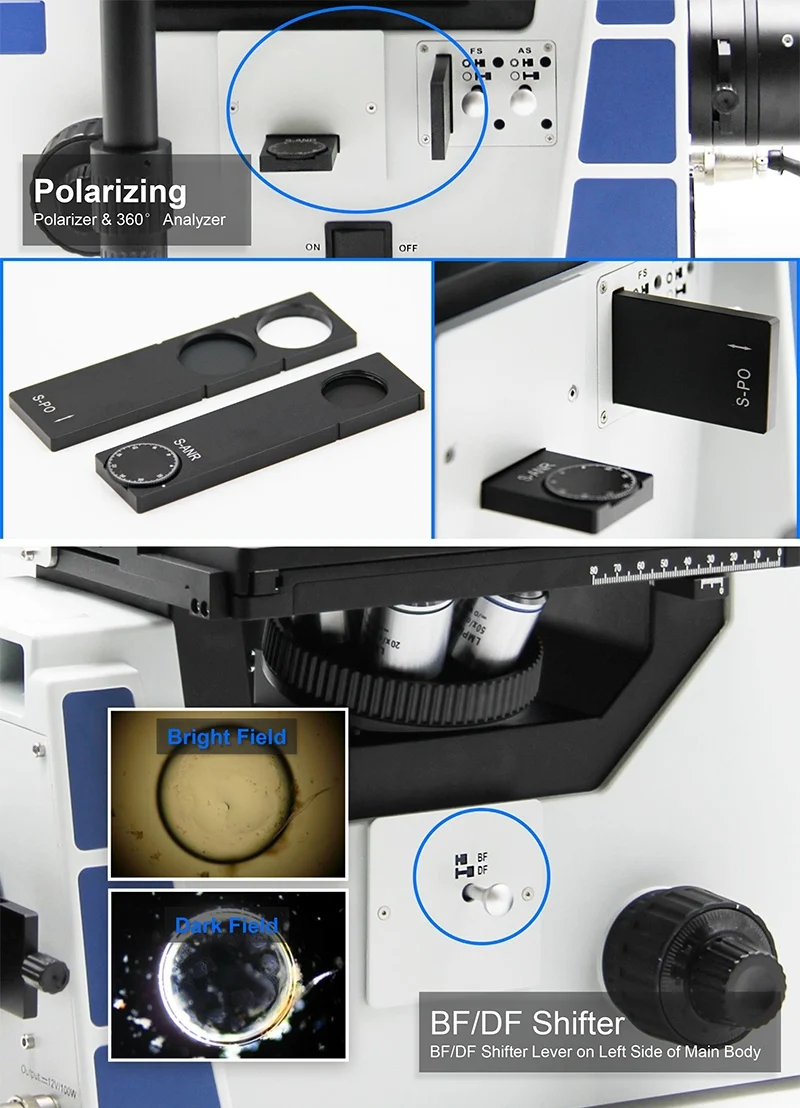

BF/DF | BF/DF Shifter Lever on Left Side of Main Body | |||
Polarzing | Polarizer & 360° Analyzer | |||
Optional Accessories | ||||
Eyepiece | Plan WF15X/16mm, Diopter Adjustable, High Eye-point | A51.0904-1516T | ||
Objective | Infinity LWD BD Plan Achromatic Metallurgical Semi-APO FL100x/0.8 WD2.1mm | A5M.0940-100 | ||
Adapter | 0.35x C-Mount | A55.0934-35 | ||
0.5x C-Mount | A55.0934-05 | |||
0.65x C-Mount | A55.0934-65 | |||
1x C-Mount | A55.0934-1 | |||
DIC | DIC Slider | A5M.0955 | ||
