hot sale HOBBY CNC MILLING Machining center VMC650 MACHINE MILLING CNC MINI
- Category: >>>
- Supplier: Tengzhou Hipow Machinery Co. Ltd.
Share on (62018083280):
Product Overview
Description
Product Description
 |
hot sale HOBBY CNC MILLING Machining center VMC650 MACHINE MILLING CNC MINI |
 |
Main Feature 1.Taiwan HIWIN high precison guideway 2.Taiwan-made spindle unit,8000-12000rpm available 3.Taiwan OKADA 16/24T ATC can be choosen 4.Reliable Control System:Fanuc,Siemens,Mitsubishi,GSK. 5.The 4th and 5th axis can be installed freely.
|

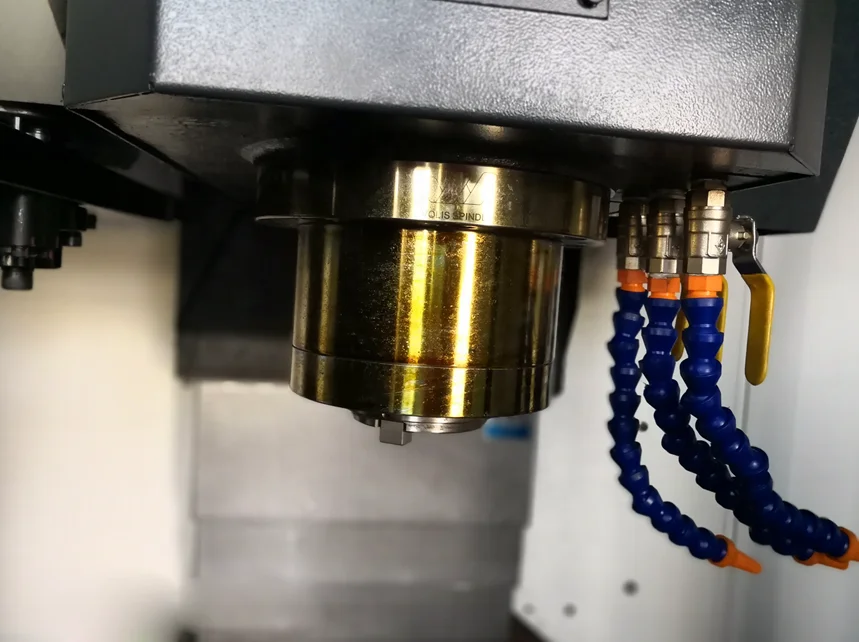

1. TAIWAN High Precision Speed Spindle
1)High Speed, Stable Performace
2)8000,10000,12000rpm available
3)BT40,BT50 Spindle Taper freely choosen

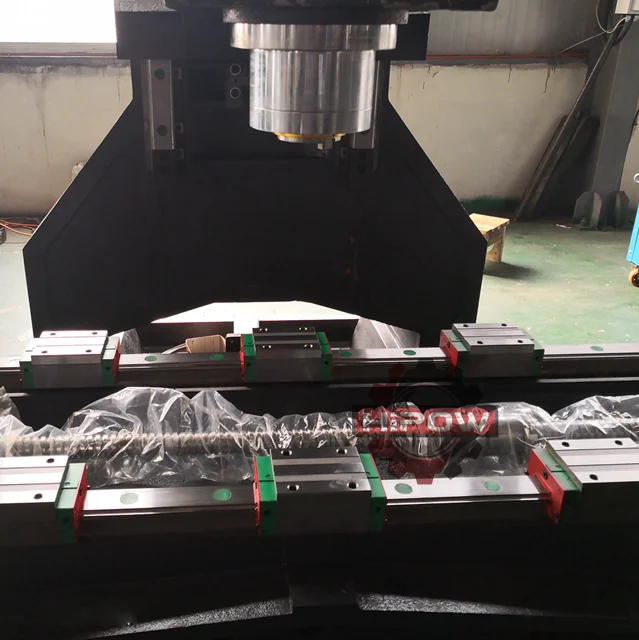

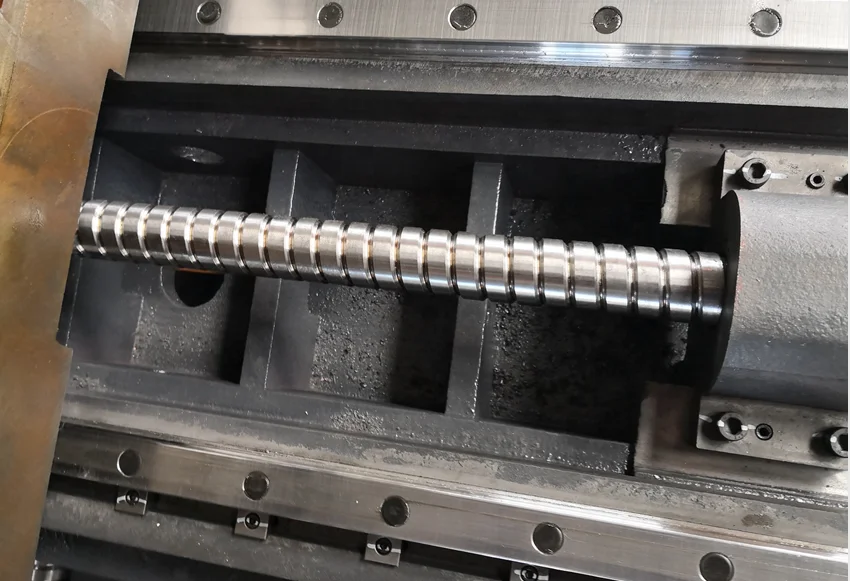

2. TAIWAN Linear Guideway
1)High Rigidity,High Performance
2)High Precision,Long Using Life

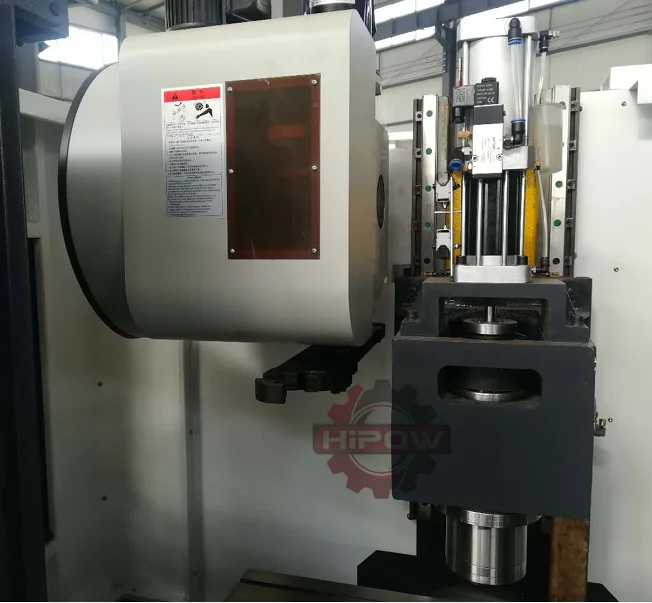

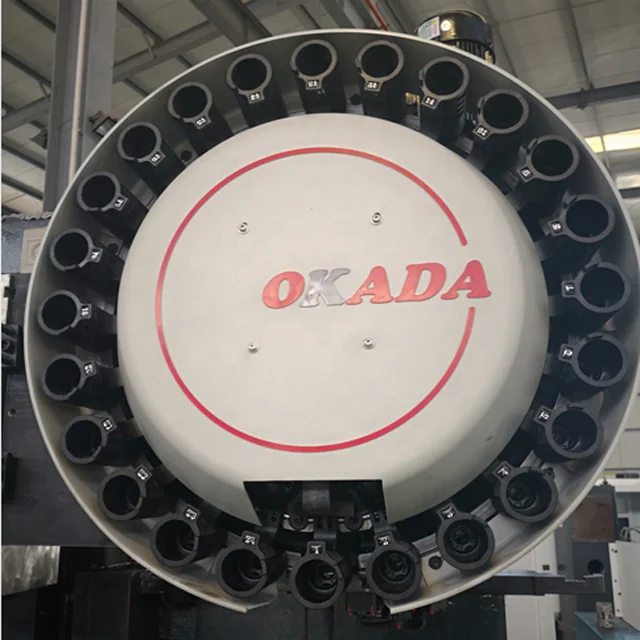

3. TAIWAN DiscType Tools Magazine
1)OKADA Disc Type ATC 16T,24T ATC can be choosen
2) Disk Type Tools Magazine is optional parts

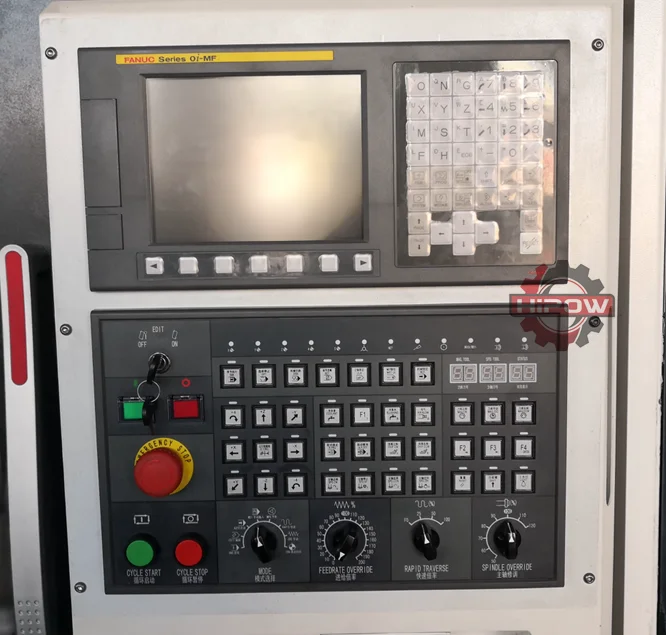

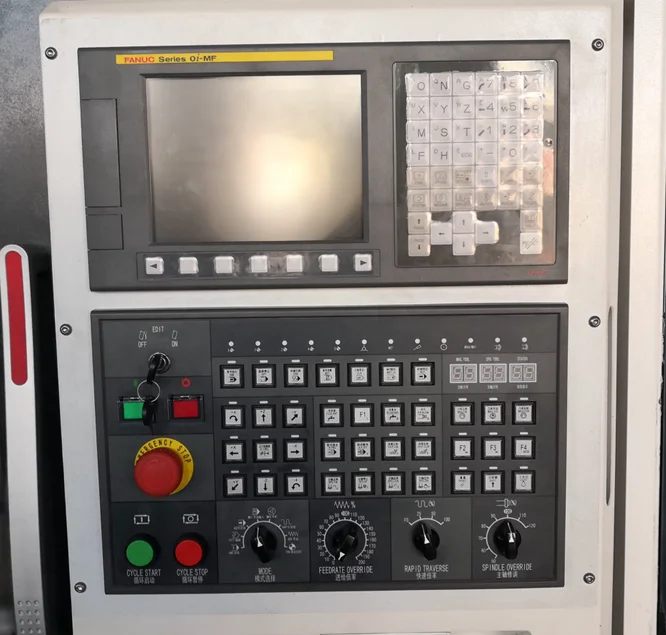

4. Reliable Control System
1)Standard : GSK25I, KND System,
2)Optional:Fanuc,Siemens,Mitsubishi and other system
5. High Quality Electrical Parts
1)High Quality Electrial Compotents is used
2)Make the Machine performance Better.
 |

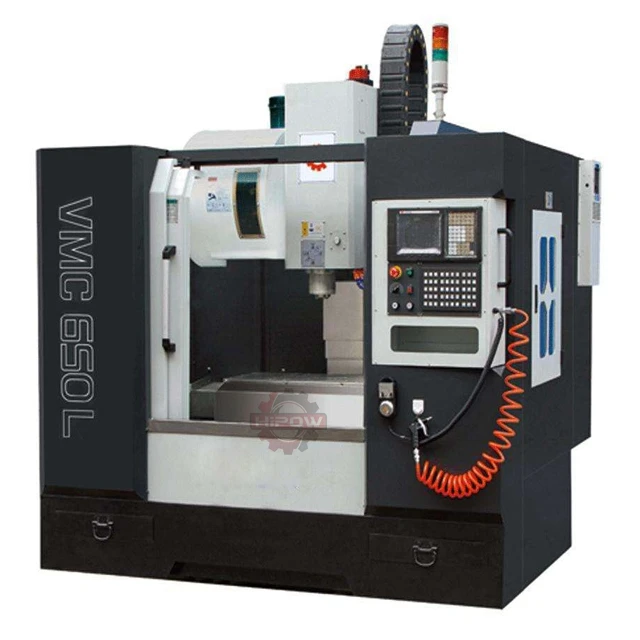

VMC650 | |
Table Travel X/Y/Z (mm) | 650/500/500 |
Spindle nose to table (mm) | 130-630 |

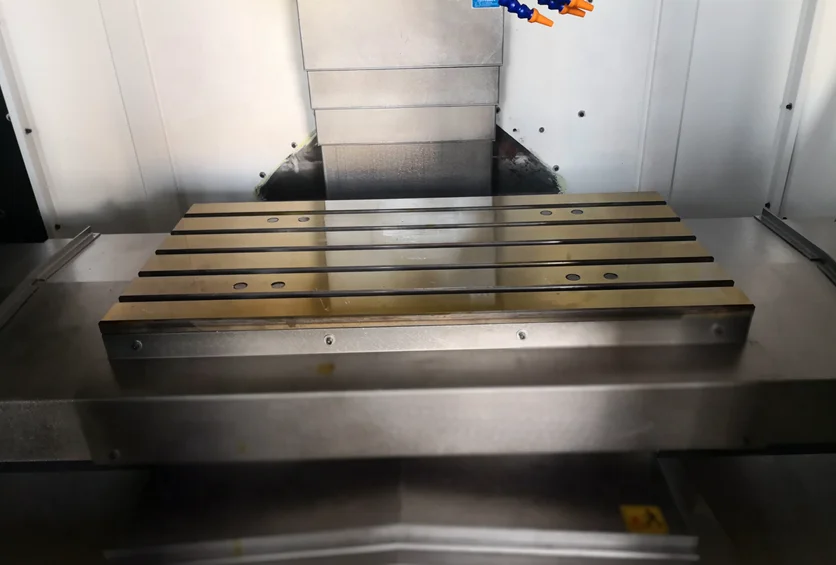

Table size (mm) | 900*420 |
Max.Table load (Kg) | Hard/Linear Guideway 600KG/400KG |
T-slot | 5-16-80 |
Spindle Taper | BT40 |
Spindle speed ( r.p.m) | 8000 |
Main motor ( Kw) | 5.5 |
X,Y Axis Torque(N.M) | 10 |
Z Axis Torque(N.M) | 15 |
Rapid feed (X/Y/Z) (m/min) | 24/24/18 |
Cutting speed mm/min | 1-5000 |
Positioning accuracy (mm) | 0.007 |
Repeatability accuracy (mm) | 0.003 |
Tool changer Type | Disc Type Tool Charger |
Tool changer Number | 16 T |
Max Tools Diameter (mm) | 130 |
Max Tools Weight (KG) | 6 |
Controlling System | GSK25i/Siemens 808D |
Power supply | 3 Phase 380V±10% 50Hz±10% |
Machine weight ( KG) | 3800 |
Machine Size (L/W/H ) | 2400*2200*2500mm |
Company Information
 |
Packaging & Shipping
 |
| Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole. |
FAQ
 | |
| Q1. | How can I get a quotation? |
| A. | Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. |
| Q2. | Can you provide customized machine or SPM (Special purpose machine)? |
| A. | Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| Q3. | Can you provide training for operation CNC machines? |
| A. | Yes, free training in our factory is available. |
| Q4. | How about your price? |
| A. | Send me details about what you need, you will get the best price in China. The price is competitive over the world. |
| Q5. | What’s the delivery time, and what’s the package? |
| A. | Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package. |
