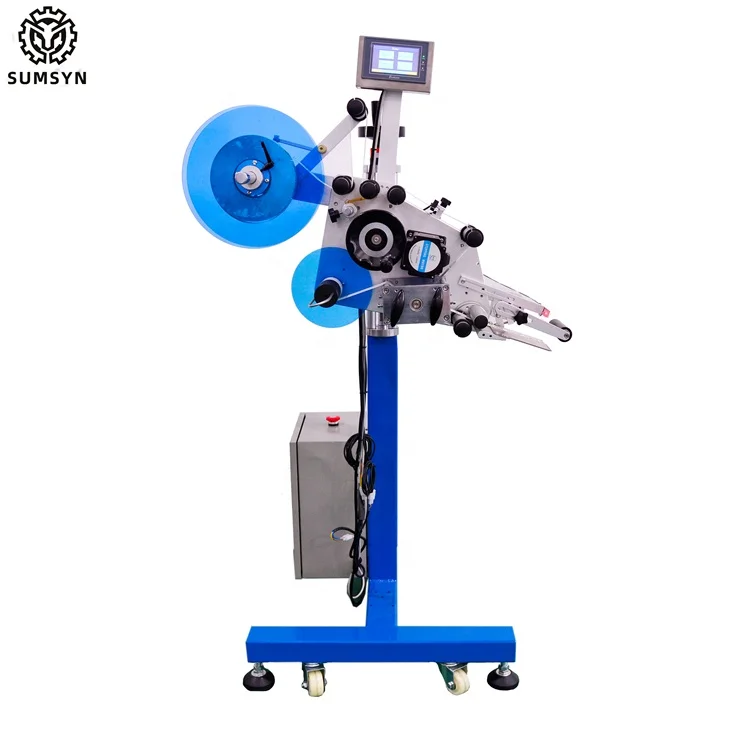

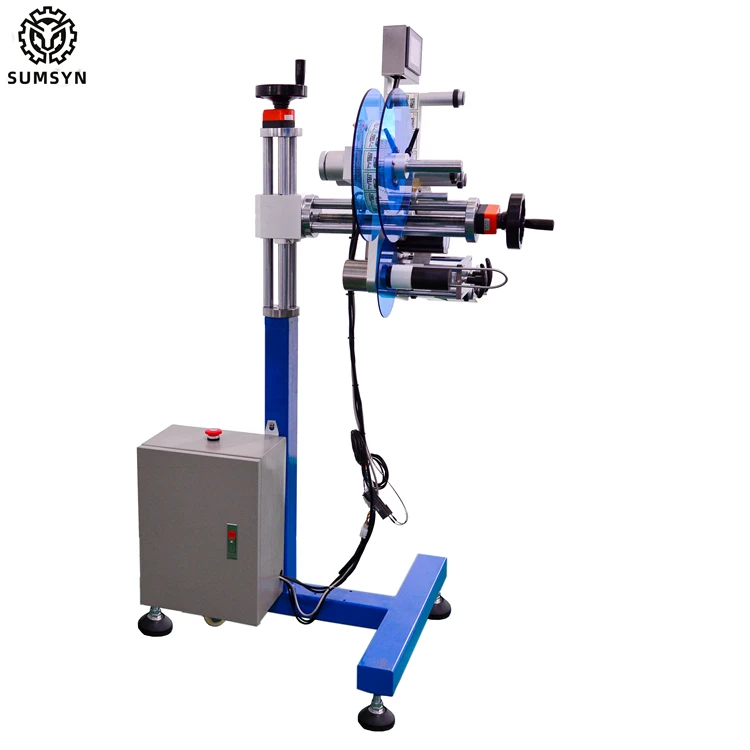

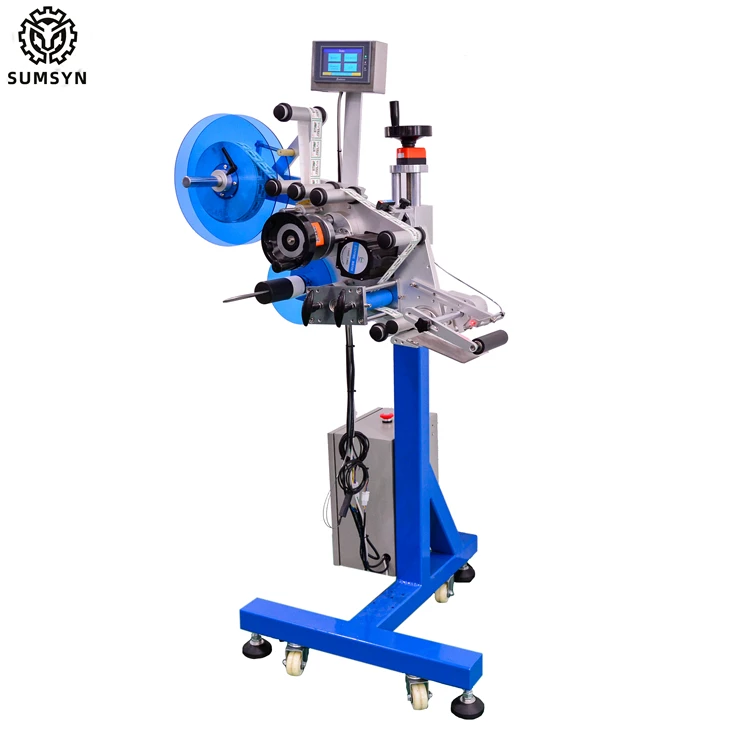

High performance automatic labeling machine head
- Category: >>>
- Supplier: Dongguan Sumsyn Automation Equipment Co. Ltd.
Share on (62018101238):
Product Overview
Description
Product Information
Product Name: Automatic plane assembly line labeling machine
Model： SS-12821
General Information
Applicable to the labeling on top surface, flat, plane of products. Suitable for apply in assembly line, production line, packing line, etc.
Similar Items

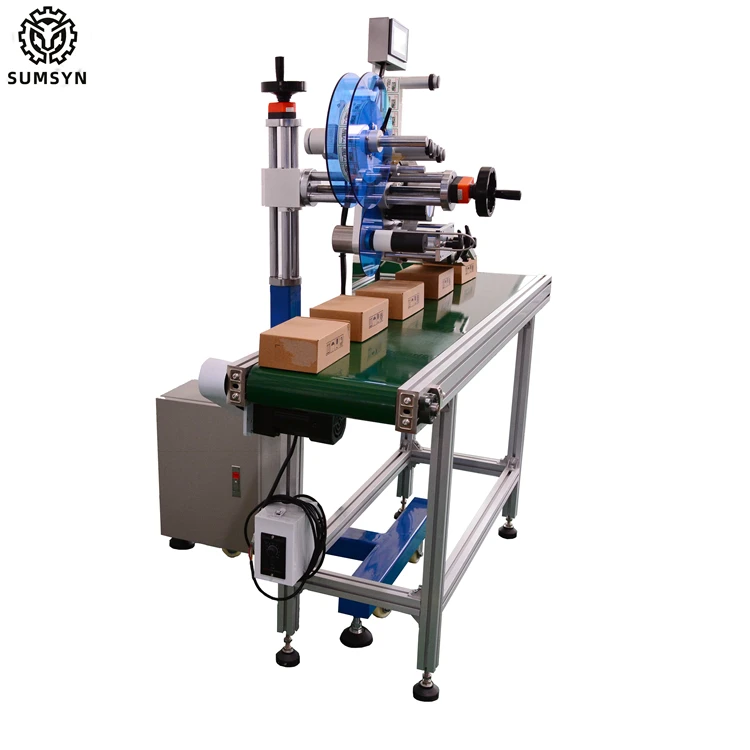

Add Belt Conveyor
Without Belt Conveyor
Machine Specification
Detail | Specification |
Applicable Product size | As customer's product |
Applicable outer diameter of label roll: | φ280mm |
Applicable inner diameter of label roll | φ76mm |
Labeling precision | ± 1 mm |
Labeling speed | 40 ~ 200 pcs/min |
Weight | about 180 kg |
Frequency | 50HZ |
Voltage | 220V |
Power | 380W/830W depend on motor |
Overall dimensions of the machine (L × W × H): | about 750mm*700mm*1450mm |
Air pressure | N/A |
Optional functions and components:
(1) hot print coding / ink-jet printing function;
(2) Special electric eye
(3) other functions (according to customers’ requirements).
(2) Special electric eye
(3) other functions (according to customers’ requirements).
