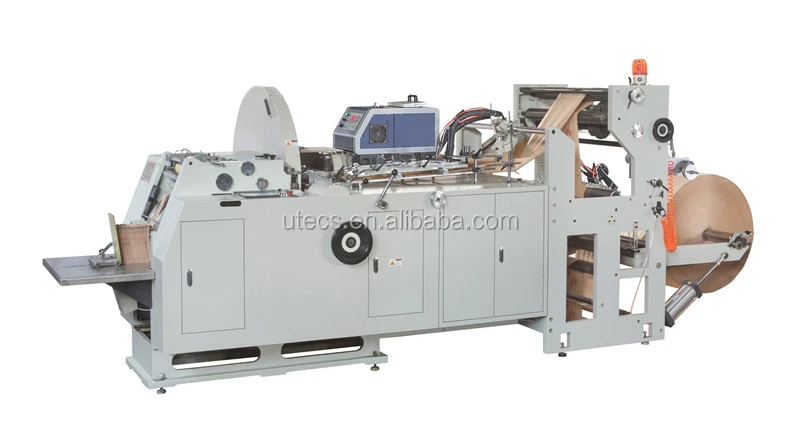

HD400B Automatic point tooth disposable craft food brown kraft paper sachet bag sac Making forming Machine
- Category: >>>
- Supplier: Hangzhou Utecs International Co. Ltd.
Share on (62018144324):
Product Overview
Description
HD400B Automatic point tooth disposable craft food brown kraft paper sachet bag sac Making forming Machine
Videos
Video demonstration only for reference
Video 01: https://youtu.be/J79CINijNdk
Video 02: https://youtu.be/Qsrd_F3lKbw
Product Description
Description:

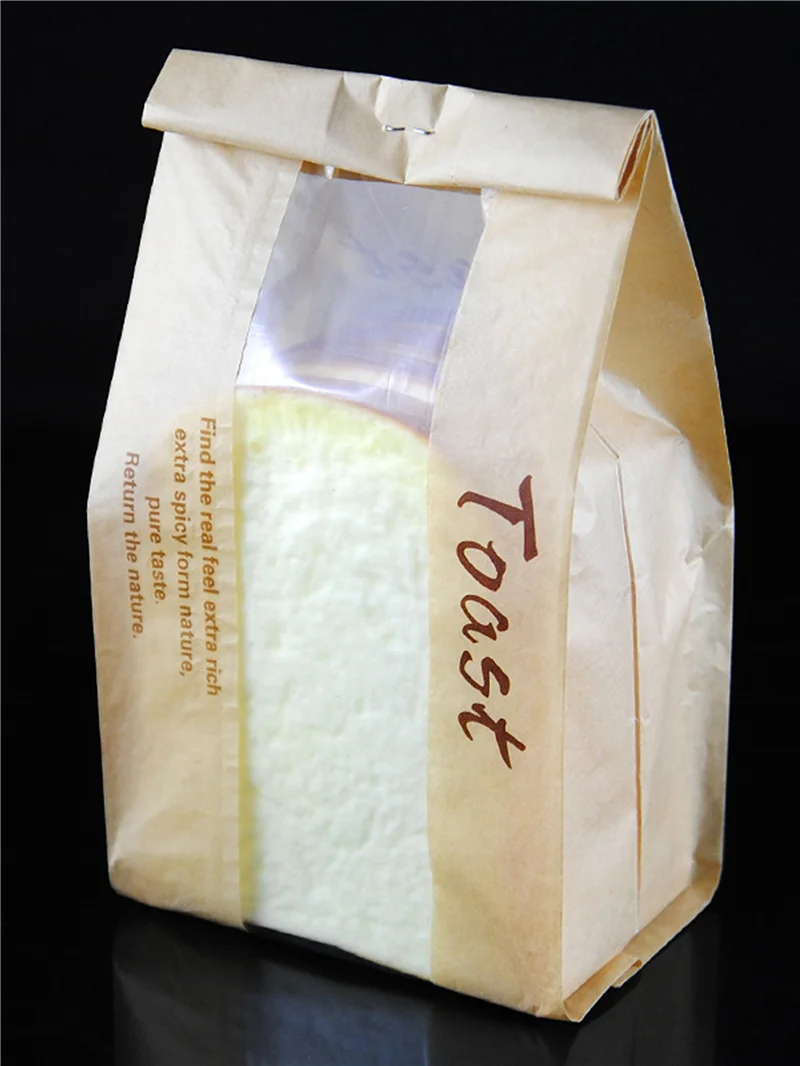

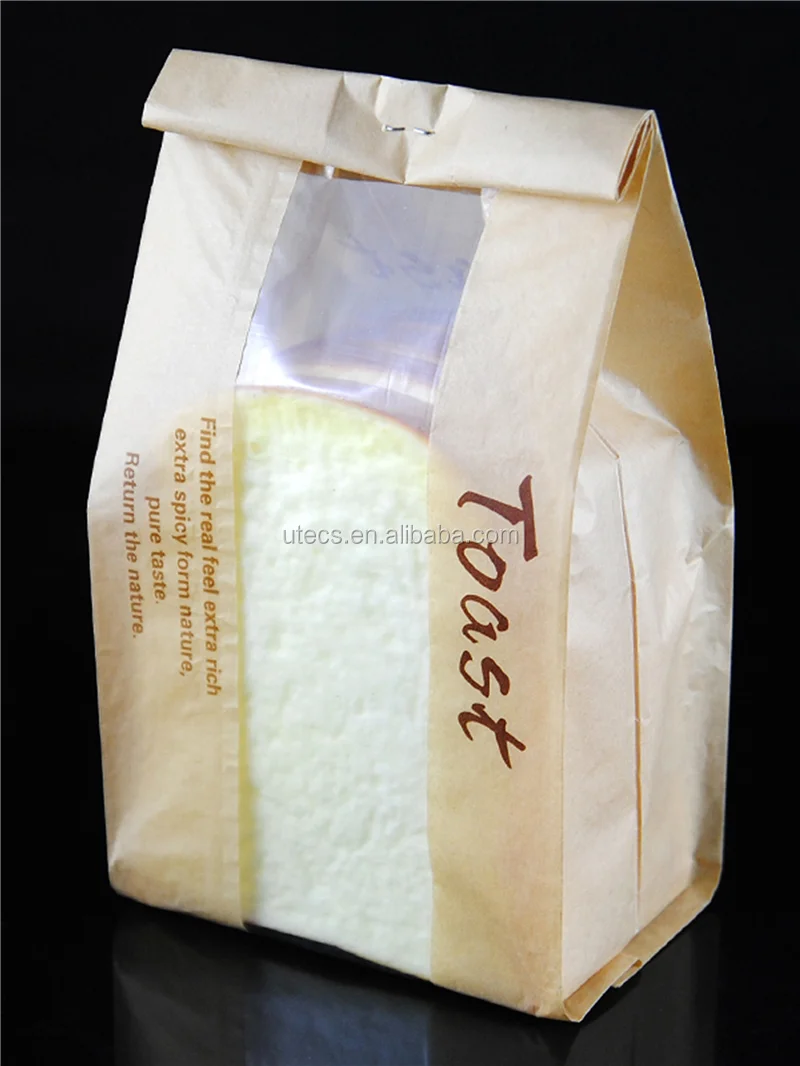

This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.
Features:
1. Controls bag length freely in a range through the human-machine interface
2. Adopt touch screen and PLC programmable control system, the work condition can be shown real time.
3. Equipped with an accurate photocell system for printed mark tracking
4. Color mark error stopping system
5. Double photoelectric sensor limit automatic correction control system
6. Material lifting adopt pneumatic lift structure.
7. Automatic lubrication system
Parameters:

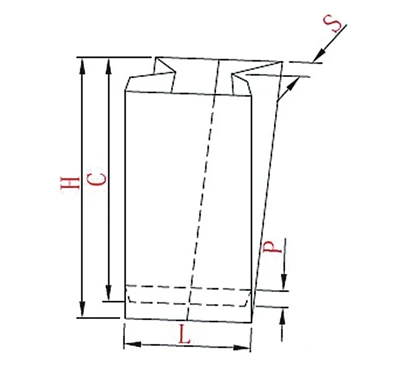

Type | HD-400B | HD-600B |
Cutting Length(C) | 150-460 mm | 230-625 mm |
Bag Length(H) | 145-455 mm | 225-620 mm |
Bag Width(L) | 70-280 mm | 70-280 mm |
Gusset Depth(S) | 0-50 mm | 0-50 mm |
Standard Flap(P) | 12-20 mm | 12-20 mm |
Film Width | 50-180mm | 50-180mm |
Film Thickness | 0.015-0.04mm | 0.015-0.04mm |
Max.Speed | 400 pcs/min | 400 pcs/min |
Max Film Diameter | 450mm | 450mm |
Paper Thickness | 30-80 gsm | 30-80 gsm |
Paper Roll Width | 220-700 mm | 220-700 mm |
Max.Roll Diameter | 1000 mm | 1000 mm |
Reel Inner Diameter | 76 mm | 76 mm |
Total Power | 8 kw | 8 kw |
Weight of Machine | 3200 kg | 3300kg |
Overall Dimension | 4580×1650×1850mm | 4680×1650×1850mm |
Detailed Images

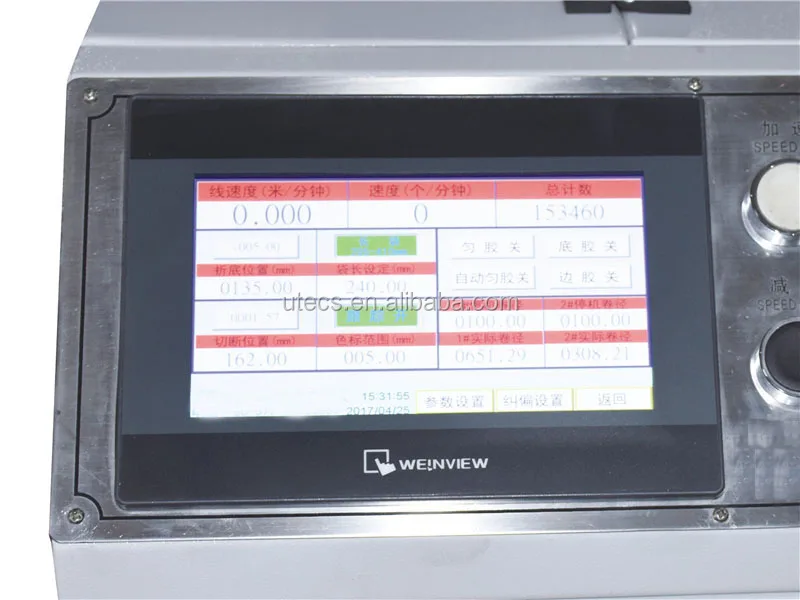

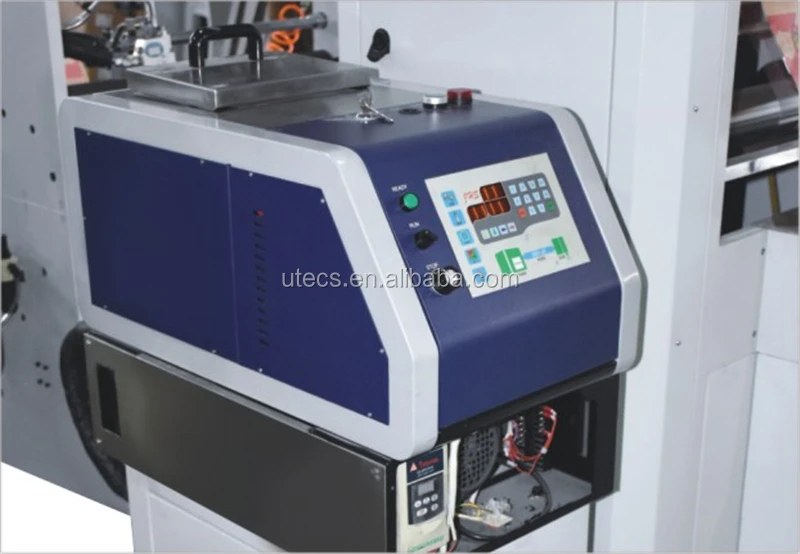

Man-machine Interface Touch Screen

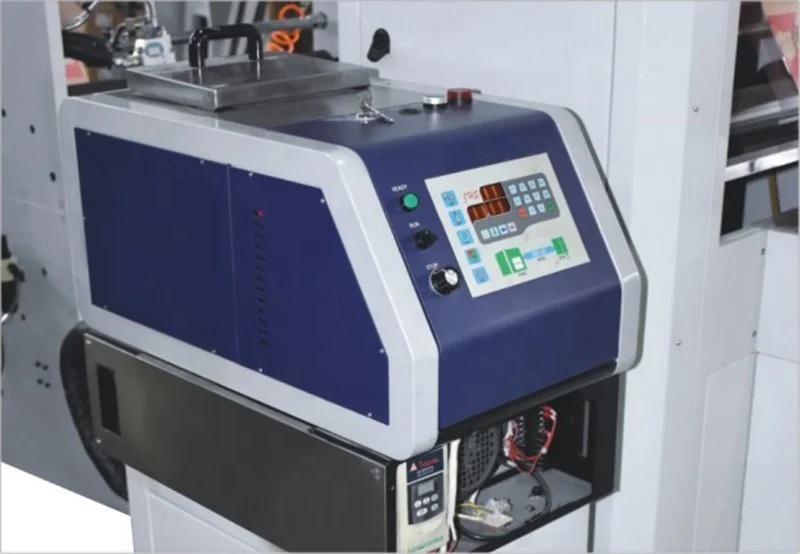

Automatic Counting System

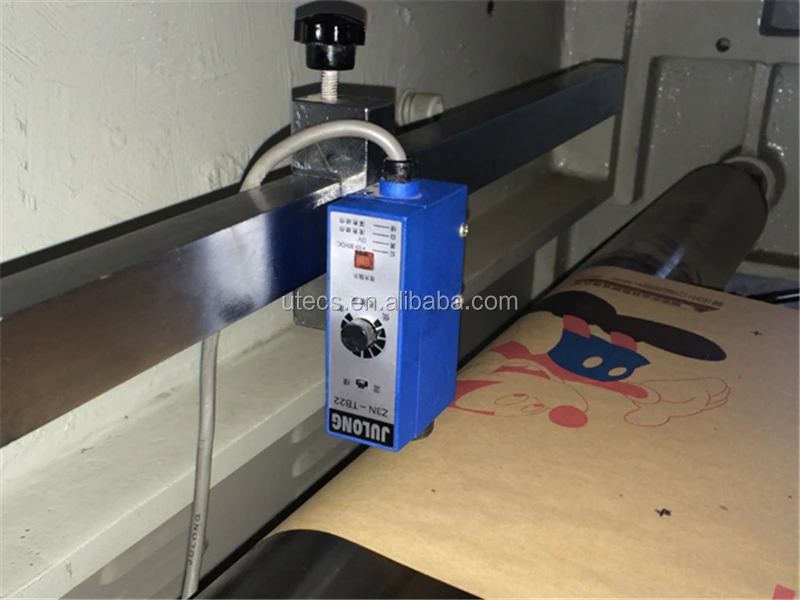

Color Mark Tracking System

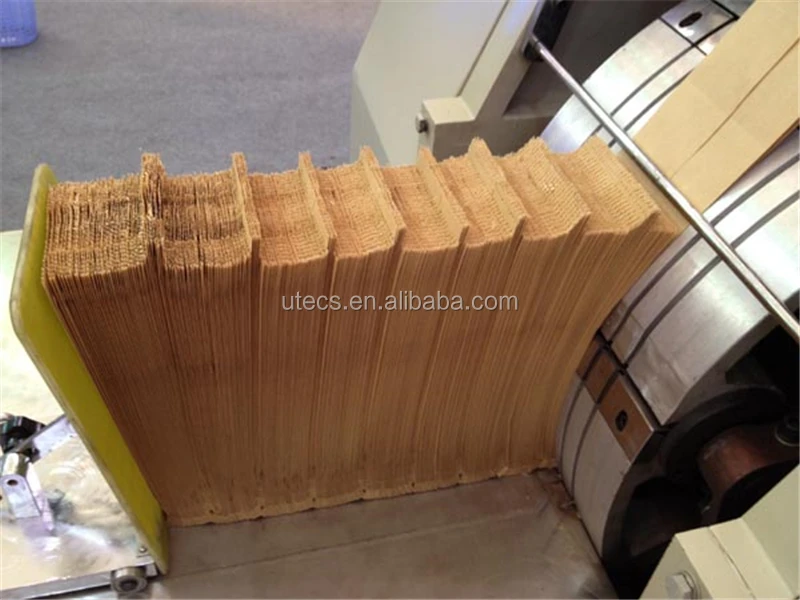

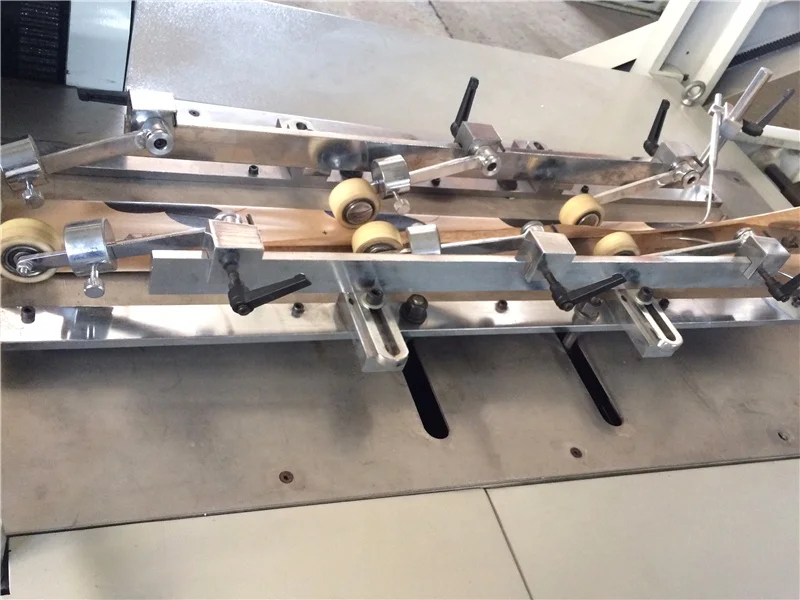

Paper Tube Forming System

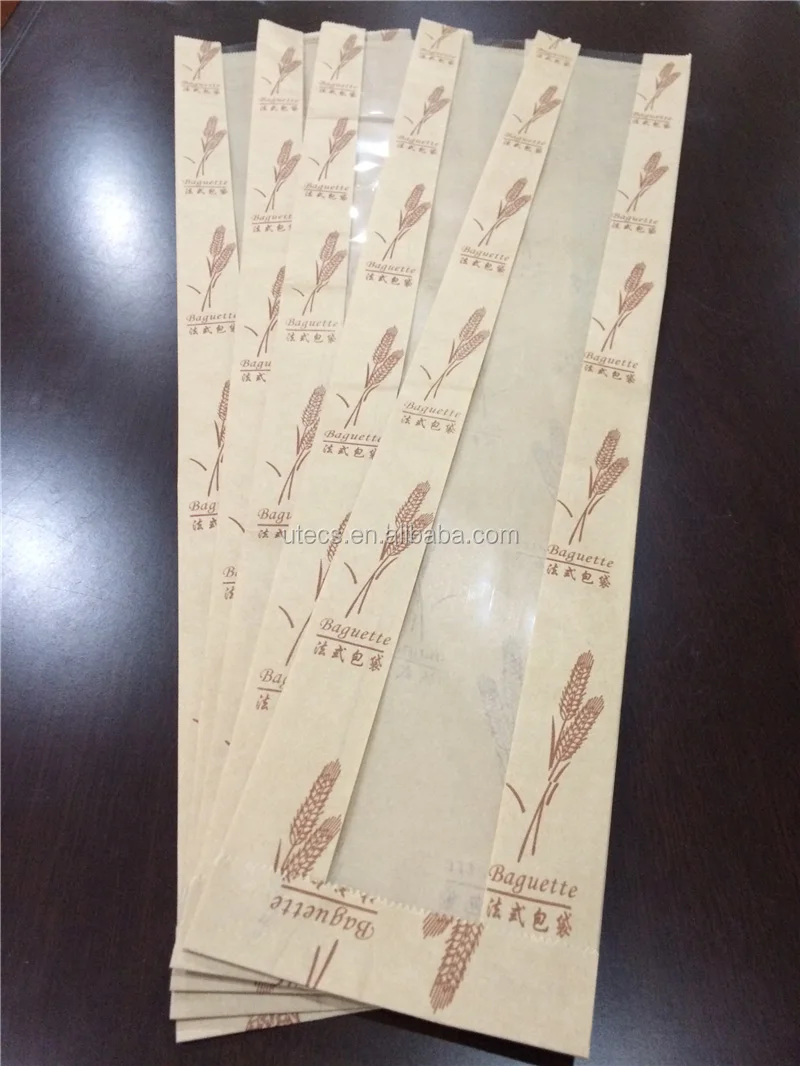

Automatic Window Patching Device

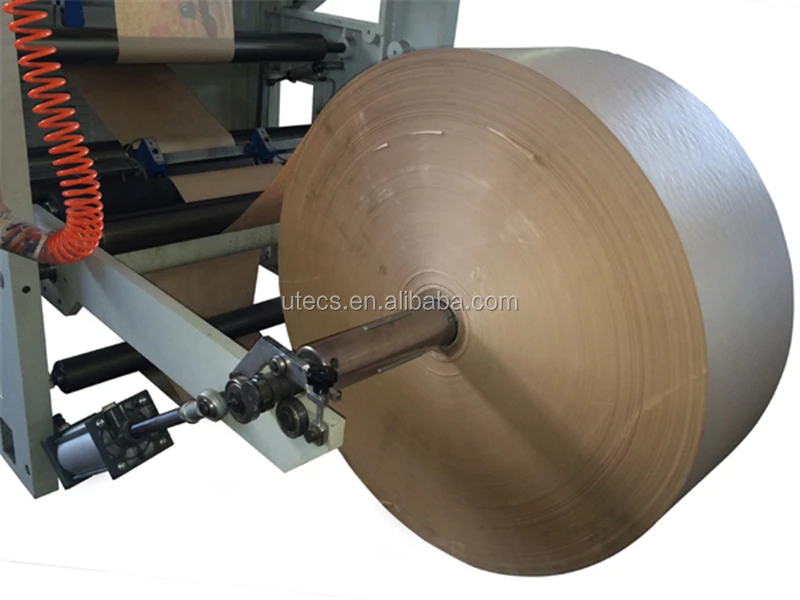

Pneumatic Paper Reel Loader
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
Certifications
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
