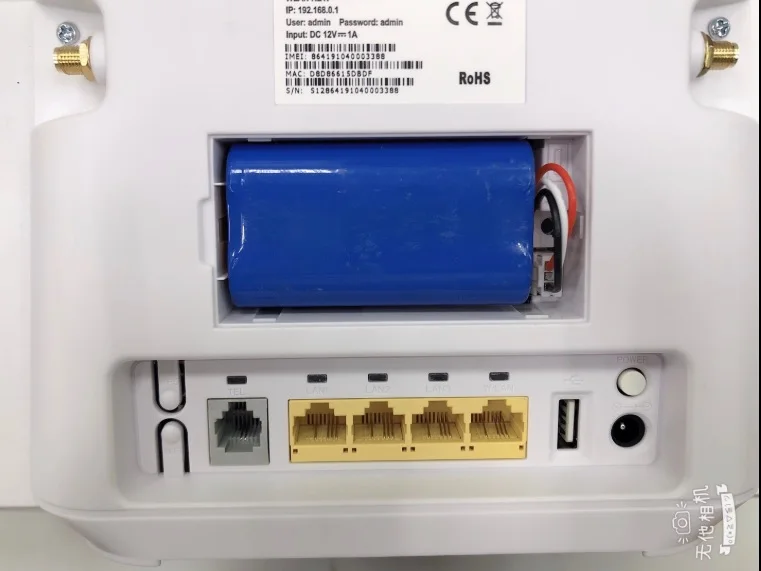

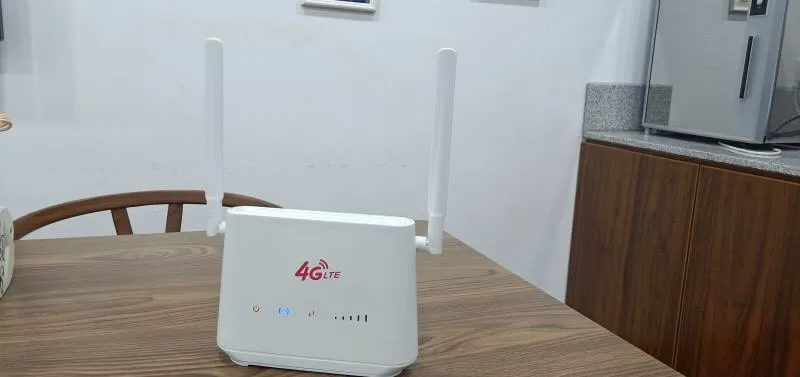

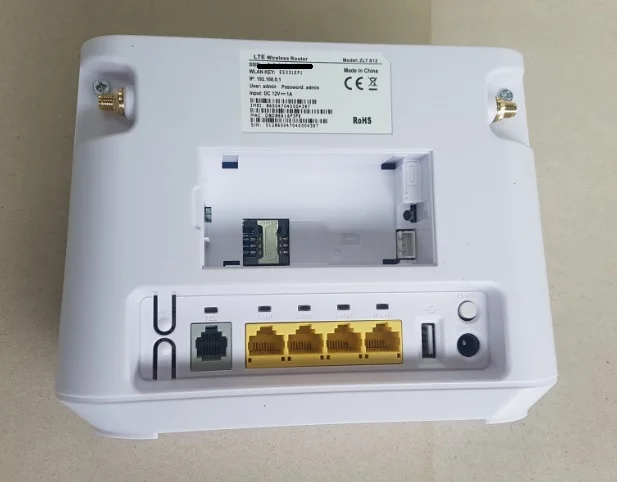

4G LTE VoLTE Indoor CPE Router WIFI ROUTER with Battery with RJ 11 Phone port
- Category: >>>
- Supplier: MAXCOMM CO. LTD.
Share on (62018192255):
Product Overview
Description
4G LTE VoLTE CPE Router 4G WIFI ROUTER with Phone port and Battery , RJ-45 x 4
Physical Size | Description |
Size | 180x132x48(mm) |
Weight | 450g |
No. | Feature | Capability | Comments |
| |||
min | typ | max | units | ||||
1 | Supported Bands | Band1/3/7/8/20/38
|
|
| |||
2 | Channel Band Width | 5/10/15/20 | MHz | Other BW can be supported by SW configuration |
| ||
3 | Channel Step Size | 100 |
|
| kHz |
| |
4 | Output Power optional |
| 23 |
| dBm |
| |
5 | Modulation | UP: QPSK/16QAM DOWN :QPSK/16QAM/64QAM |
|
| |||
6 |
|
| |||||
7 | Antenna Gain |
| >4 |
| dBI |
| |
Product Features
l Support TDD-LTE/FDD-LTE
l Support 3GPP Release 8/9 compliant
l Support 1TX/2RX with TX switched diversity
l Support UE Category 3/4
l Support QoS service flow initiated by CPE
l Built-in web server for web-based configuration
l Password protected access and configuration
l Support IEEE 802.3, IEEE 802.3u ,IEEE 802.11 b/g/n
l USIM Slot
l Support VPN pass-through
l Support VOLTE/CSFB/VOIP
l Support 1*RJ11(Voice)
l Support 4*RJ45(Ethernet)
l Support LED indicators
l Support External Antenna
l Battery 4400mAh
l Support TR069
General Specification
No. | Feature | Description | Comments |
| LTE BB ASIC | ZX297520V3 | Sanechips |
| LTE RF ASIC | ZX234220 |
|
| Flash | GD | |
| SDRAM | 128MB |
|
| WIFI | RTL8192ES | Realtek |
| Ethernet LAN port | 4 RJ-45 port |
|
|
| 10/100 auto-sensing, auto-MDX |
|
| Voice port | 1 RJ11 ports extend from 1 internal voice port | 1 RJ11 ports are connected Inside
|
| LED Indicators | Signal Strength / Power / WLAN / WPS / BAT / TEL / 4G_LTE |
|
| Reset/Reboot button | Press button | In side box |
| Power supply | Input: Universal range 100~240VAC Output: 12V/1A |
|
|
4G LTE VoLTE CPE Router 4G WIFI ROUTER with Phone port and Battery
