Product Overview

Description

BELT TRIPPER CONVEYORS



A belt tripper is used to “trip” the material off the conveyor at specified locations between the terminal pulleys. A belt tripper can either be in a fixed position, or travel continuously at a constant speed for layered stacking.



A belt tripper consists of a structure with two pulley assemblies. As the belt passes over the upper pulley, the material is discharged from the belt into a collection chute. The material is then diverted to one side or both sides of the belt for discharge, or back onto the belt if the desired discharge position is at the end of the conveyor. Several powered drive options and chute configurations are available.



FEATURES

• Four wheel drive


• Heavy-duty Construction


• Custom Design: YingDa belt trippers are designed around your unique requirements and how the material flow should be re-directed. Common options include one, two, or three way discharge chutes with diverter and/or auxillary feeders (screw feeder, reversible belt feeder, etc.).


• Engineered Pulley Loop: The conveyor belting travels through a set of pulleys which create the material “trip,” or discharge point and then redirects the belt back on to the idlers. This “pulley loop” is designed so the conveyor belting will experience a very limited amount of stress, eliminating the opportunity for premature wear and stretching.


• Direct Drive: YingDa belt trippers are equipped with direct mounted motor and gear reducers that are separate from the main conveyor drive components. This allows for the tripper travel to be controlled from either a remote or local location.

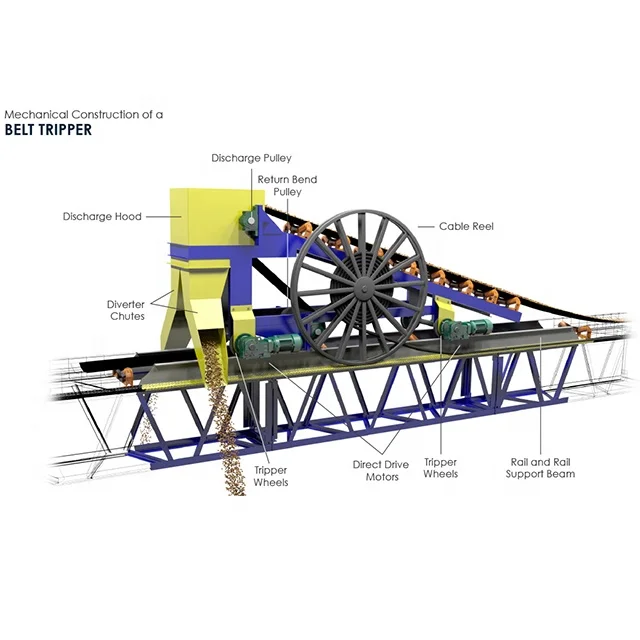

A – Discharge Pulley                    B – Return Bend Pulley                            C – Cable Reel

D – Rail and Rail Support Beam  E – Tripper Wheels                                   F – Direct Drive Motors

G – Tripper Wheels                         H – Diverter Chutes                                 I – Discharge Hood



APPLICATIONS

Biomass materials

Limestone

Gypsum

Potash

Sulfur

Coal

Fertilizers

Wood Chips

Clinker

Aggregates

Petroleum Coke

Other Bulk Solids…







TEHNICAL PARAMETER



Model	Belt Width (mm)	Track Model (KG)	Walking Speed (m/min)	Power	Incremental Length (m)	Max Pressure (KN)	Weight (KG)
TC500	500	15	15.6	3	3	8	2150
TC650	650				3.2	11	2460
TC800	800				3.5	13	2890
TC1000	1000	22	18	5.5	3.5	15	4150
TC1200	1200				4.8	18	5320
TC1400	1400				5.8	24	6410
