High Accuary Static Voltage Intermediate Relay Single Phase Voltage Monitoring

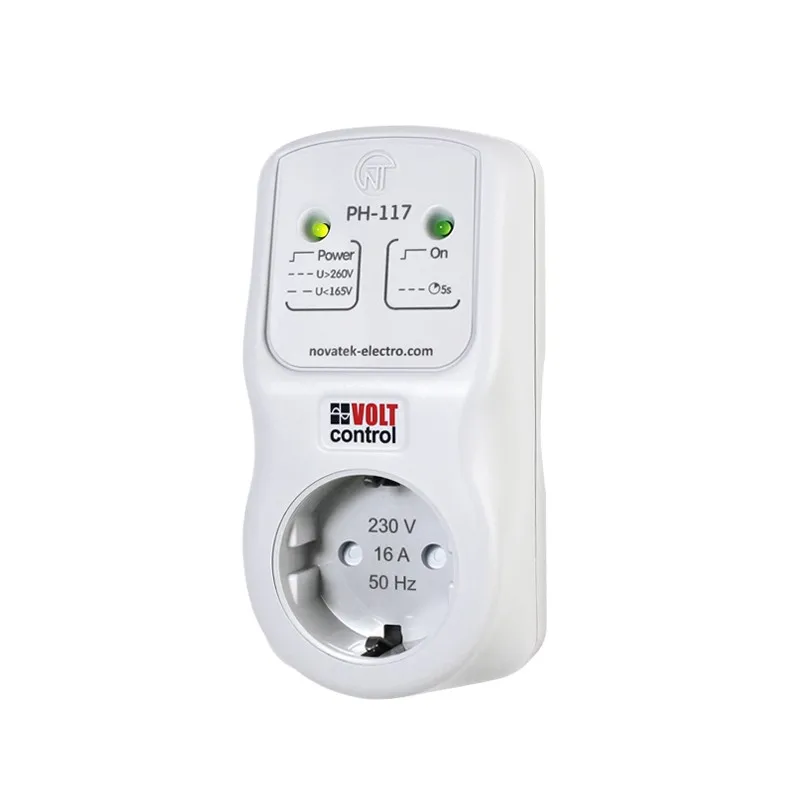

Voltage Relay RN-117 is designed for turning off the 220 V, 50 Hz residential and industrial single-phase load with power of up to 3.5 kW (up to 16 A) at unallowable circuit voltage fluctuation with automatic reset (hereinafter referred to as AR) after circuit parameter recovery. RN-117 indicates the conformity of the electric circuit voltage with the actual standards, fault condition and output relay condition.

Description	Value
Nominal voltage, V	220/230
Network frequency, Hz	47-65
Adjustment range: - reaction at Umin, V - reaction at Umах, V - ARL time, s	160 – 210 230 – 280 5 – 900
The maximum voltage that maintains the health, V	420
Installation (mounting) of the product	DIN-slat 35 mm
Front panel protection degree	IP40
Cleats protection degree	IP10
Class of protection against electric shock	II
Climatic version	NC4
The permissible degree of pollution	II
Overvoltage category	II
Rated insulation voltage, V	450
Rated impulse withstand voltage, kV	2.5
The cross section of wires for connection to cleats, mm2	0.5 – 16.0
The tightening torque of the terminal block screws, N*m	2±0,2
Harmonic (nonsinusoidal) voltage composition	EN 61000-3-2 (IEC 1000-3-2)
Fixed time at Umах, s	1
Fixed trip delay for Umin, s	7
Fixed tripping time delay when a pulsed increase in voltage 420 V and more at a pulse duration of 1.5 ms, not more than	0,02
Fixed tripping time delay when voltage reduction of more than 60 V in the settings for Umin or lowering the voltage below 145 V, s	0,12
Fixed tripping time delay when voltage increase more than 30V from set point by Umах or increasing the voltage above 285 V, s	0,12
Preparation for operation after power-up, s	0.3 – 0.4
The accuracy of voltage threshold determination, not worse, V	3
Hysteresis of reset voltage, V	4 – 5
Current consumption from the network, mA	10
Electrical lifetime output contacts: - electric resource, not less, times - mechanical resource, not less, times	10 000 500 000
Dimensions (three-module S), mm	125 x 58 x 87
Mass, not more, kg	0.170
Housing material self-extinguishing plastic.

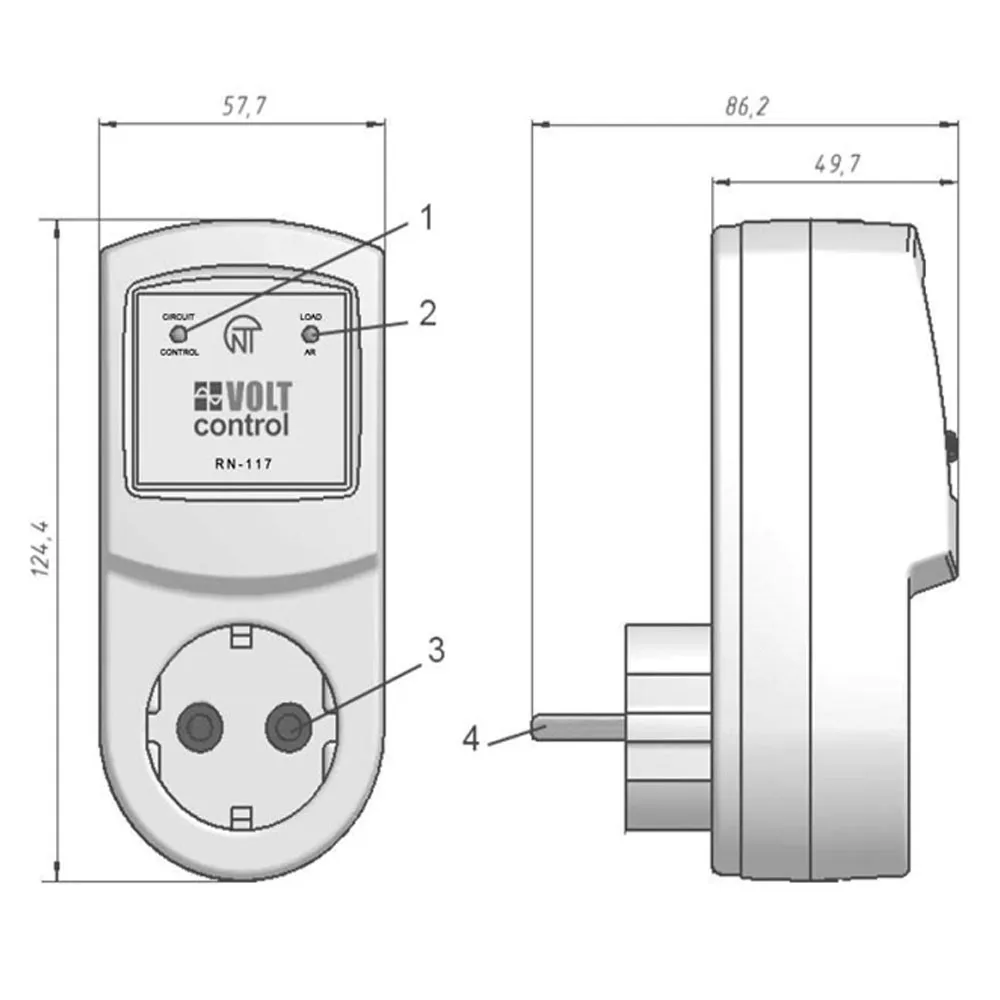

1- CIRCUIT/CONTROL indicator

- glows constantly, if the circuit voltage is within 165V- 260V;

- blinks at high frequency, if the circuit voltage is over 260V;

- blinks at low frequency, if the circuit voltage is less than 165V.

2- LOAD/AR indicator

- glows, if the voltage relay is on;

- blinks, if the voltage relay is off, the circuit voltage is normal, the AR time reading is on;

- does not glow, if the voltage relay is off and the circuit voltage is less or more than normal.

3- output contacts

4 - input contacts

Note – When the voltage relay is turned on, the circuit voltage is supplied to the output terminals of RN117.
