Product Overview

Description

Atlas Copco air compressor xas 137 for sandblasting





ATLAS COPCO portable diesel air compressor technical data

Compressor Data	XAS137 Dd (XAS300Dd)
Free Air Delivery @ Normal Working Pressure	125 L/S  (7.5 m³/min )
Normal Working Pressure	7 bar
Minimum / Maximum Unloading Pressure	4 / 8.5 bar
Compression Stages	1
Air Receiver Capacity	42L
Compressor Oil Capacity	14.5 L
Approximate Air Outlet Temperature	90°C (Standard)
Typical oil content of compressed air	<5 mg/m³
Fuel Tank Capacity	175 L
Outlet Valve Configuration	3 x 3/4” G, 1 x 1.5” G
Nominal working condition	Inlet pressure 1bar,Humidity0%,Temp20 °C
Sound Pressure Level (ISO2125)	73 dB(A) +/- 3
Maximum Ambient Temperature at sea level	50 °C
Maximum Altitude	3000 m
Minimum Starting Temperature	-10 °C / -25 °C (with assist)
Diesel Engine Data	DEUTZ BF4M2011
Horsepower Developed @ Rated Speed	56.5 kW
Cylinders	4 in line
Cooling System	Oil
Engine Coolant Capacity	--
Engine Oil Capacity	11 Liter
Unloaded Speed / Maximum Loaded Speed	1700 / 2300RPM
Fuel Consumption @ 0% Load / 100% Load	6.4 / 11.7 kg/h
Dimensions	Standard Towing Speed 20 km/h
Length	3941 mm ( within towbar )
Width	1716 mm
Height	1661 mm
Weight ( filled with oil & coolant , Initial fuel )	1800 kg



Commited to the harshest environments

3rd stage diesel emissions

A newly developped DongFeng Cummins diesel engine according to the 3rd stage emissions standards.

An efficient Atlas Copco screw compressor element

Fit for the harshest conditions

The high performance, solid chassis results in a compressor fit to withstand any harsh environment.

Optimized ergonomic design for maintenance

C range mobile air compressor

Following the needs of our customers, Atlas Copco designed the new C-Series mobile air compressor range for excellent performance, reliability and durability at a low cost.

C range air compressors

XA(T,H,V) 156 C- 236 C

3rd stage of diesel engine emissions

Reliable and durable

High performance

Atlas Copco's patented screw element design ensures low energy consumption and high performance.

Fit for harsh conditions

High performance chassis design



Enhance the performance of your engine



Heavy-duty oil filters enhance the performance of the engine

Using low quality oil can damage your engine. Our heavy duty fuel filter protects your engine; enhancing its performance and extending the service time.

Extend the lifetime of your compressor

Protect your compressor with the double air filter

All components of the air compressor are protected from the poor circumstances on construction sites thanks to a seperate 2 stage air filtration system.

Technical data

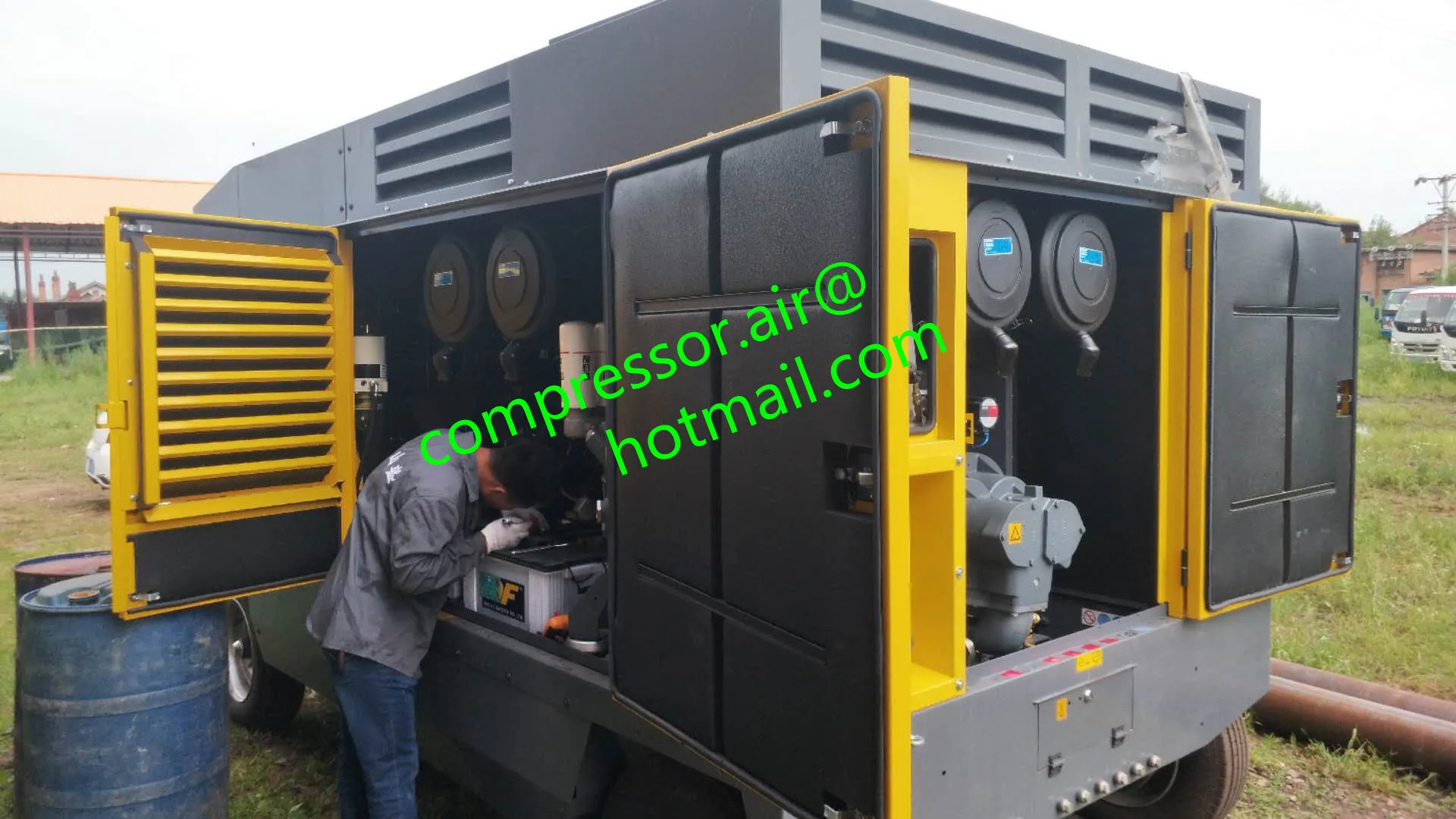

Compressor Data	Y1300
Free Air Delivery @ Normal Working Pressure	1300cfm/min-----1154cfm/min
Normal Working Pressure	15Bar------------35Bar
Air Receiver Capacity	87.8L
Fuel Tank Capacity	876L
Outlet Valve Configuration	1 x 2" G
Nominal working condition	Inlet pressure 1bar,Humidity0%,Temp20 °C
Sound Pressure Level (ISO2125)	109 dB(A)
Maximum Ambient Temperature at sea level	50 °C
Diesel Engine Data	Cummins QSZ13-C550-30
Horsepower Developed @ Rated Speed	410kW
Cylinders	6
Engine Coolant Capacity	69.7L
Engine Oil Capacity	45.5L
Maximum Loaded Speed	1900/1700RPM
Minimum Unloading speed	1300RPM
Dimensions	Standard Towing Speed 20 km/h
Length	5000 mm ( within towbar )
Width	2300 mm
Height	2600 mm
Weight ( filled with oil & coolant , Initial fuel )	7020kg
Cylinders	6
Cooling System	Coolant liquid
Engine Coolant Capacity	52 L
Engine Oil Capacity	58 L
Load Factor	100%
Dimensions	Standard Towing Speed 20 km/h
Length	5000 mm
Width	2250 mm
Height	2510 mm
Weight	7175kg



















XAS37 XAS47 XAHS37 XAS57 XAS67 XATS67 XAS97 XAHS107 XAS137

7BARG 10BARG 12BARG



Small air compressors

Up to 36 kW

ATLAS COPCO XAS37 XAS47 XAHS37 XAS57 XAS67









Atlas Copco Portable Air Compressor Features

1) HardHat

2) Full compliance with 2000/14/EC, the latest European Outdoor Noise Directive

3) Years of experience and ongoing investment

4) Guaranteed free air delivery in accordance with ISO 1217 ed. 3 1996 annex D

5) A combination of a Polyethylene upper body and a chassis with a KTL epoxy layer coating with powder coat paint finish

6) Wide-opening canopy and removable side panels

7) High capacity transparent fuel tank

8) Few moving parts

9) Controls grouped on one panel

10) Engine speed adapts to air demand

11) Compliant with exhaust emission standards 97/68/EC Com III (Europe) & EPA Tier II (U.S.)

12) Long service intervals

13) Complete option list





Mobile air compressors

Compact

Our business name is Portable Energy, so ease of maneuverability is something you can take for granted with our compressor range.

Performance

Innovation should be simple, and customer driven. Our compressors are easy to use, so you might not notice their advanced technology.

Customized

You want your compressor to meet your specific requirements. That is exactly why we allow you to customize your compressor with the widest range of options and features.

Forward thinking for compressed air on the move

The essential companion for companies that need to take the tools to perform their work with them – wherever they go. Towed and transported by vehicles across the globe, our range of air compressors is ready to go, and ready to move – when you are. Developed in conjunction with our customers, you can be assured of the most compact size and balanced design coupled with superior levels of efficiency. Plus, many of our models also come with the legendary HardHat® cover!

Small air compressors: below 36 kW

1.9-7.6 m3/min - 7-12 bar



Middle size air compressors 37 - 195 kW

C range air compressors: XA (T,H,V) 156 - 236 C (11.5-24.2 m3/min / 7-20 bar)



C range mobile air compressor



Size 2 low pressure air compressors



OEM solutions



Booster and drillair

8 - 127 m3/min - 52-346 bar



Electric mobile compressors: 25 m³/min / 900 cfm



Electric compressor china
