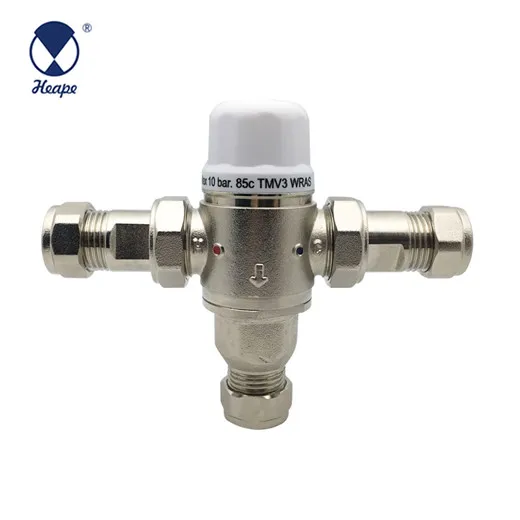

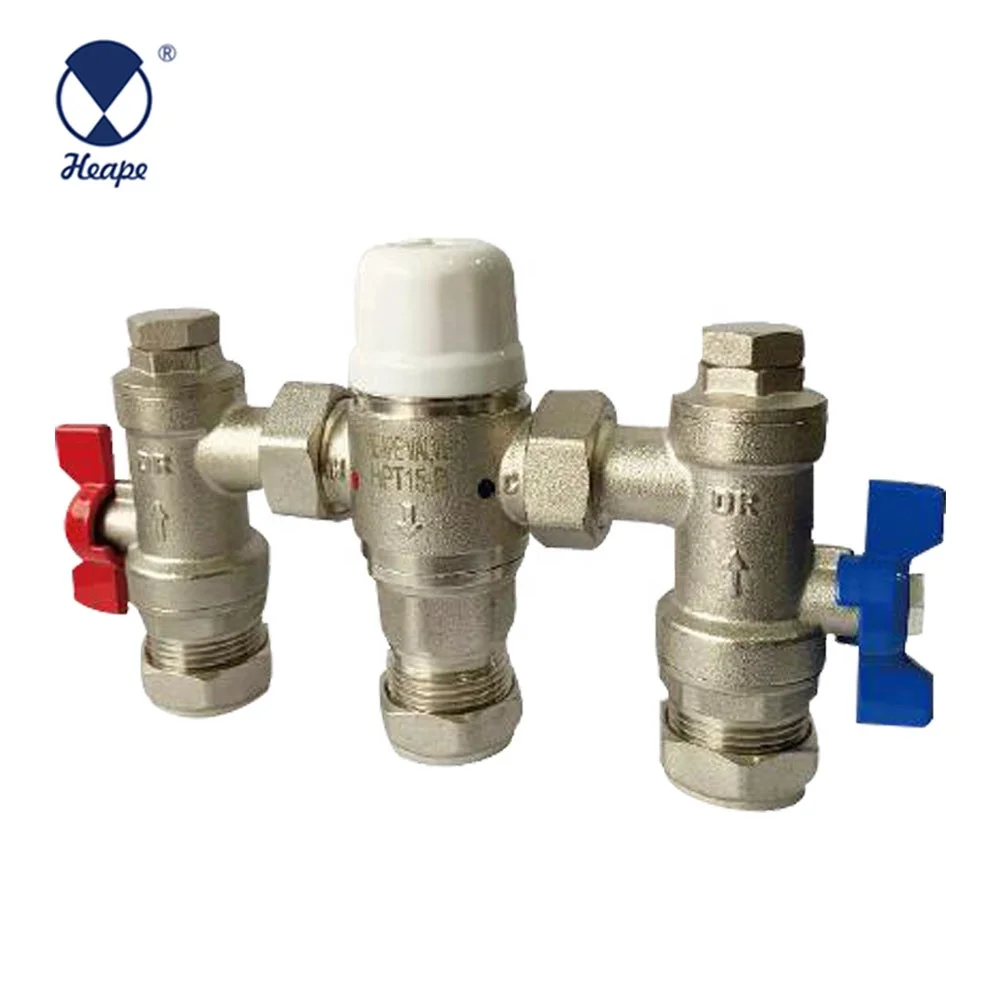

HEAPE New TMV3 Thermostatic Mixing Valve
- Category: Brass Valves >>>
- Supplier: Yuhuan Heape Valve Co. Ltd.
Share on (62018306708):
Product Overview
Description
HEAPE New TMV3 Thermostatic Mixing Valve | |
| Item Number |
HPT15A | |
| Material | |
H59-1 | |
| Thread Size | |
| DN15-DN25,15MM-22MM | |
Tempetature Range | |
38-46℃ or custom | |
Certification | |
| TMV3 WRAS | |
| View This Category | |
Recommended Hot Products Related To Mixing Valve | |||
 |  |  |  |
| Model | HPT15A | ||
| Brand | HEAPE | ||
| Thread Size | DN15-DN25,15mm,22mm or customized | ||
| Specification | Adjust Function: None-adjustable (Accroding client requirement) Factory temperature setting: 38℃ Temperature setting range: 38℃-46℃ Temperature, hot supply: 52-65℃(Max 85℃) Temperature, cold supply: . 5-20℃ Minimum hot to mix differential temperature: 10℃ Temperature stability: +/- 2℃ Working pressure, static: 16 bar maxWorking pressure (high),dynamic: 1.0-5.0 bar Working pressure (low),dynamic: 0.2-1.0 bar Maximum pressure loss ratio:10:1 Flow rate, minimum: 4 lpm | ||
| Color | custom,cap or body accept paint | ||
| specification | Each product test strictly to ensure the quality and safety | ||
LOGO | Casting,laser marking or customized | ||
| Certification | ISO9001:2015,CE,TUV,TMV,WRAS,EN111,BS7942 | ||
Usgae | Home/Industrial | ||
OEM/ODM | Acceptable | ||
Package | color box/carton,bubble pack,ziplock bag | ||
| Payment Way | BY TT (30% for the down payment ,70% against received the cppy of B/L) | ||
| Sample | Acceptable | ||
