SA 56 220v attractive force 12kgf 117.6N stroke 40mm compressor control ac push pull solenoid
- Category: Other Electronic Accessories >>>
- Supplier: Wenzhou Chen Intelligent Technology Co. Ltd.
Share on (62018340599):
Product Overview
Description

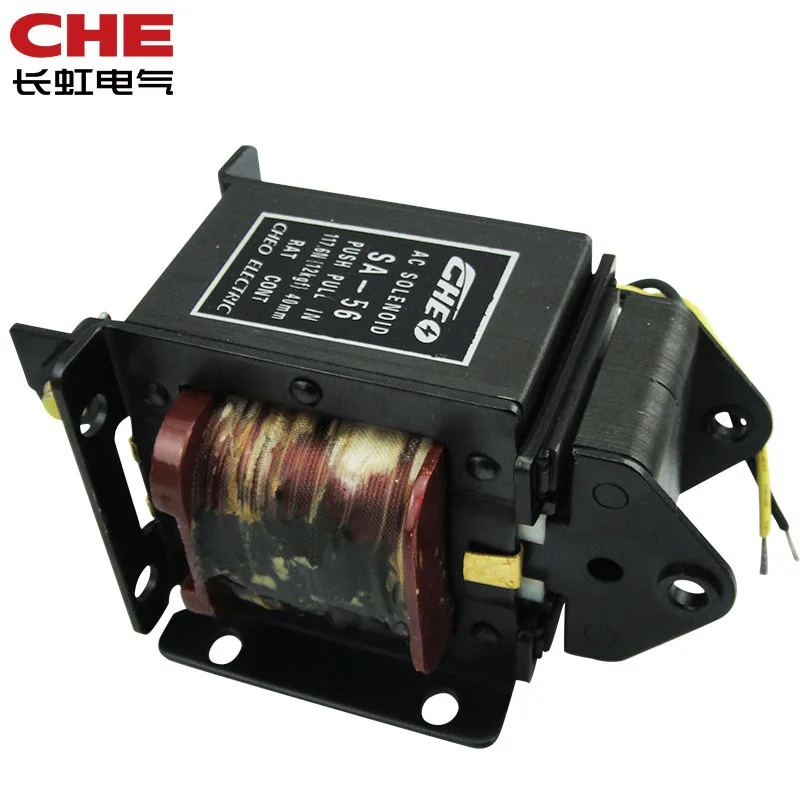

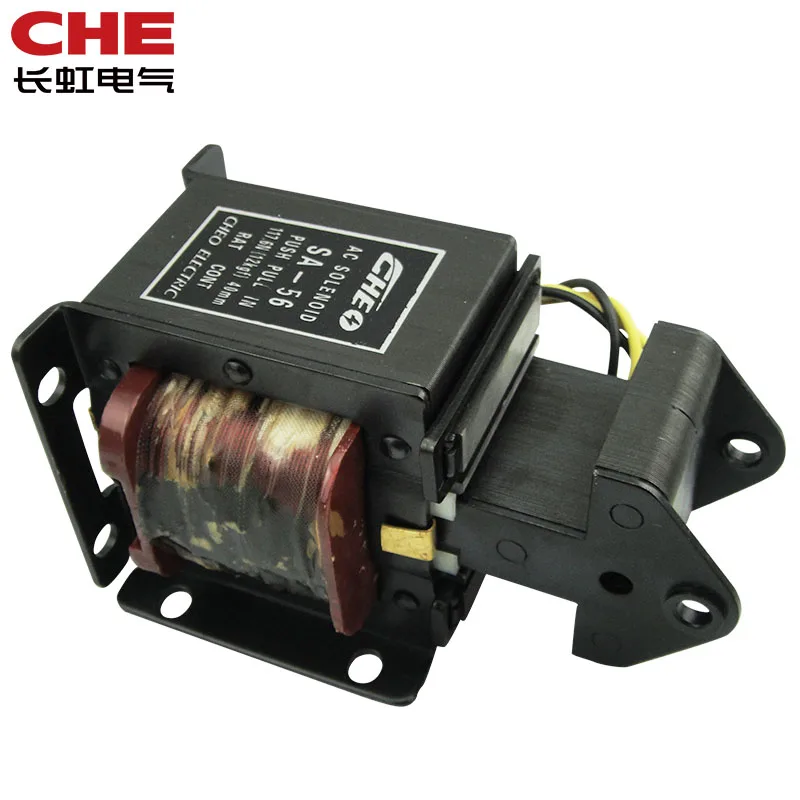

SA-56 220v attractive force 12kgf 117.6N stroke 40mm compressor control ac push pull solenoid
Product Description

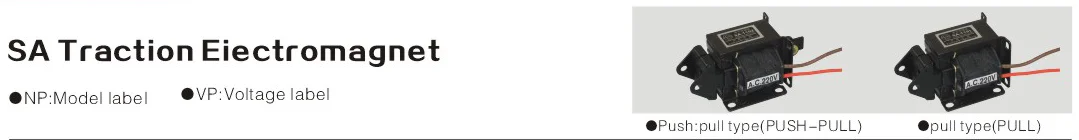

SA series AC electromagnetic, patent No. ZL00251761.1, which is the latest results of high quality AC electromagnetic. As we use superior silicon steel sheet, and cast sealed coil, we improved the insulation capability, safety and reliable, beautiful shape, small size, light weight, with high speed of adsorb and release, save for electric. It is mainly used for circuit of AC 50Hz or 60Hz, rated voltage up to 415V, for the purpose of long and short distance controlling of mechanical equipment automatic system and all kinds of operation mechanism. This product is in line with GB14048.5 standard. C

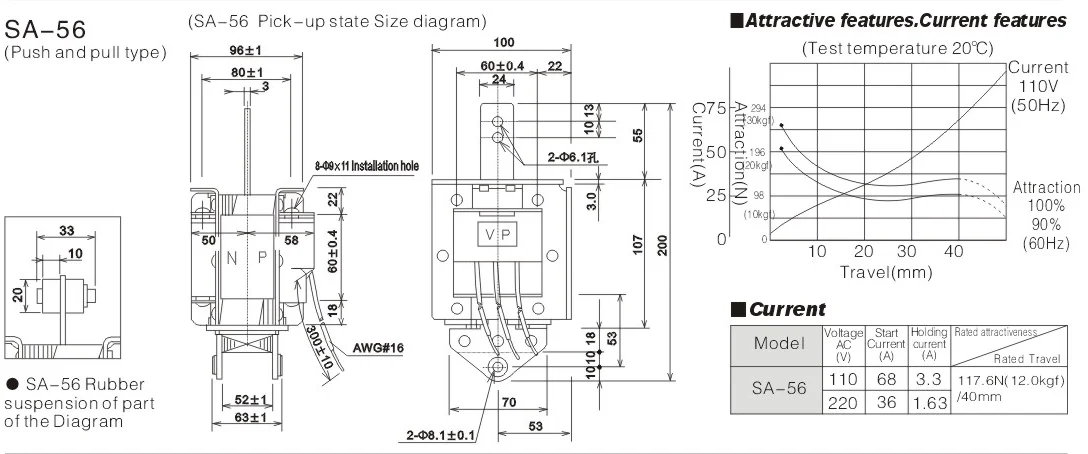

| Model | Action forms | Rated stroke | Rated force | Rated voltage | Rated cycle | Insulation class |
| mm | N(kgf) | V | HZ | |||
| SA-56 | PUSH-PULL | 40 | 117.6(12.0) | AC220orAC110 AC380 AC24 AC36
Non-standard voltages can be customized | 50/60HZ Common (3 leads wire) | A |
| Model | Insulation resistance | Frequency voltage | Temperature rise | Rated operating frequency | Movable iron core weight | Total weight |
| 60% | g | g | ||||
| SA-56 | DC500V 50MΩ
above | AC1500V 1 Minute | Below 85°C | 240 time / hour | 1480 | 5160 |
  |
Company Information
Wenzhou CHEN Intelligent Technology Co., Ltd is a manufacturer of solenoid, timer, kwh meter, fuse base, ac contactor, circuit breaker, sensor, switch and so on with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in automatic control system, industrial automation control, office automation, medical equipment and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
