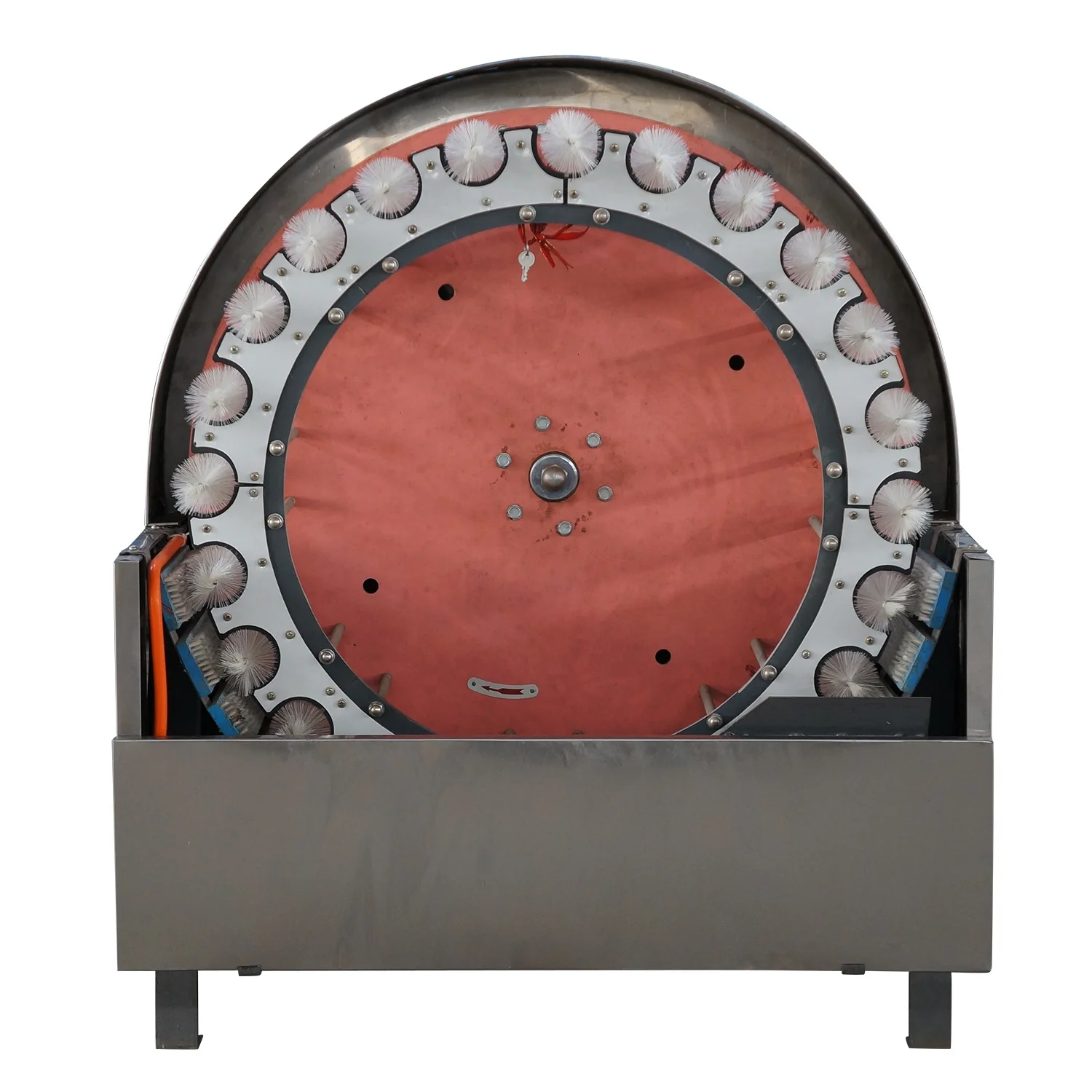

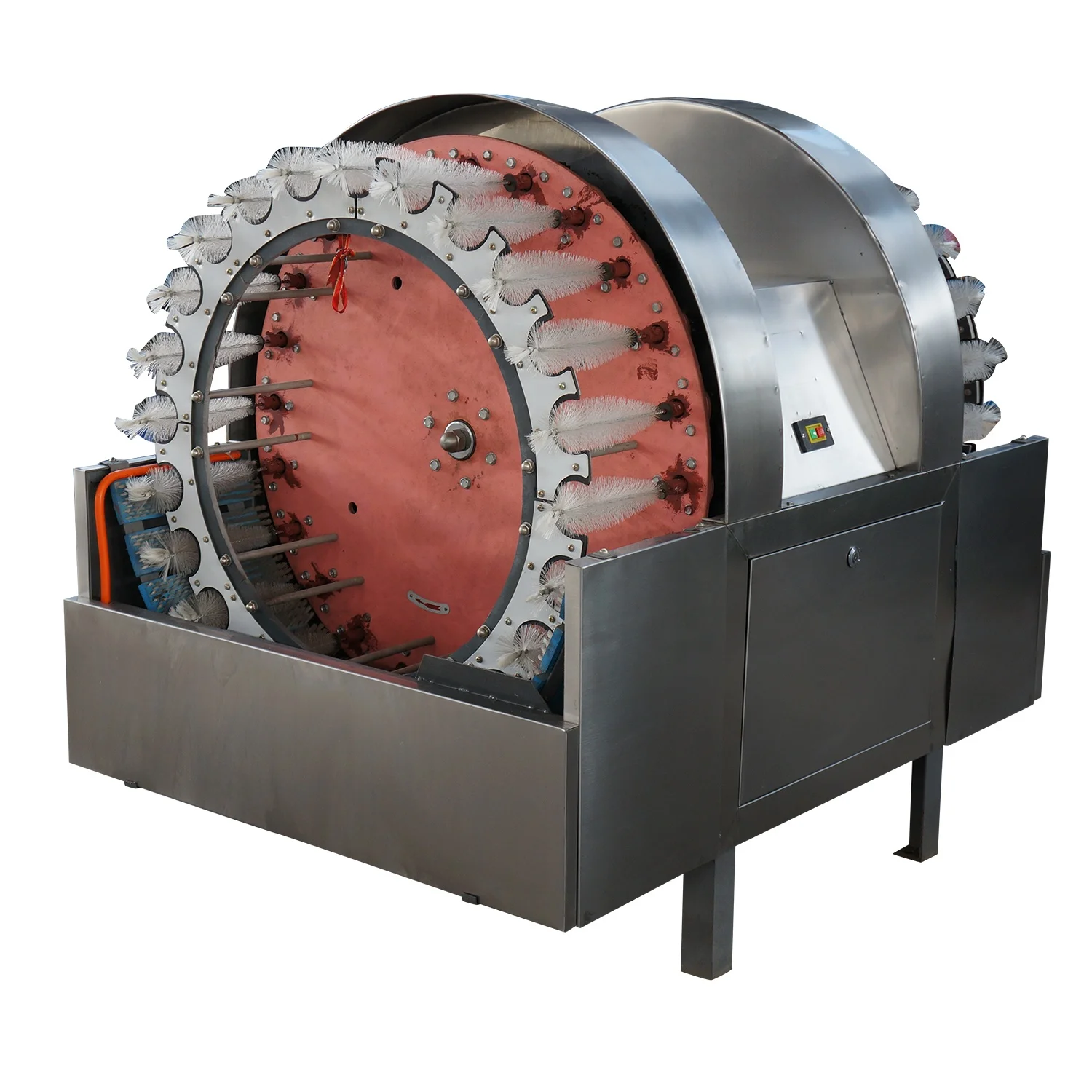

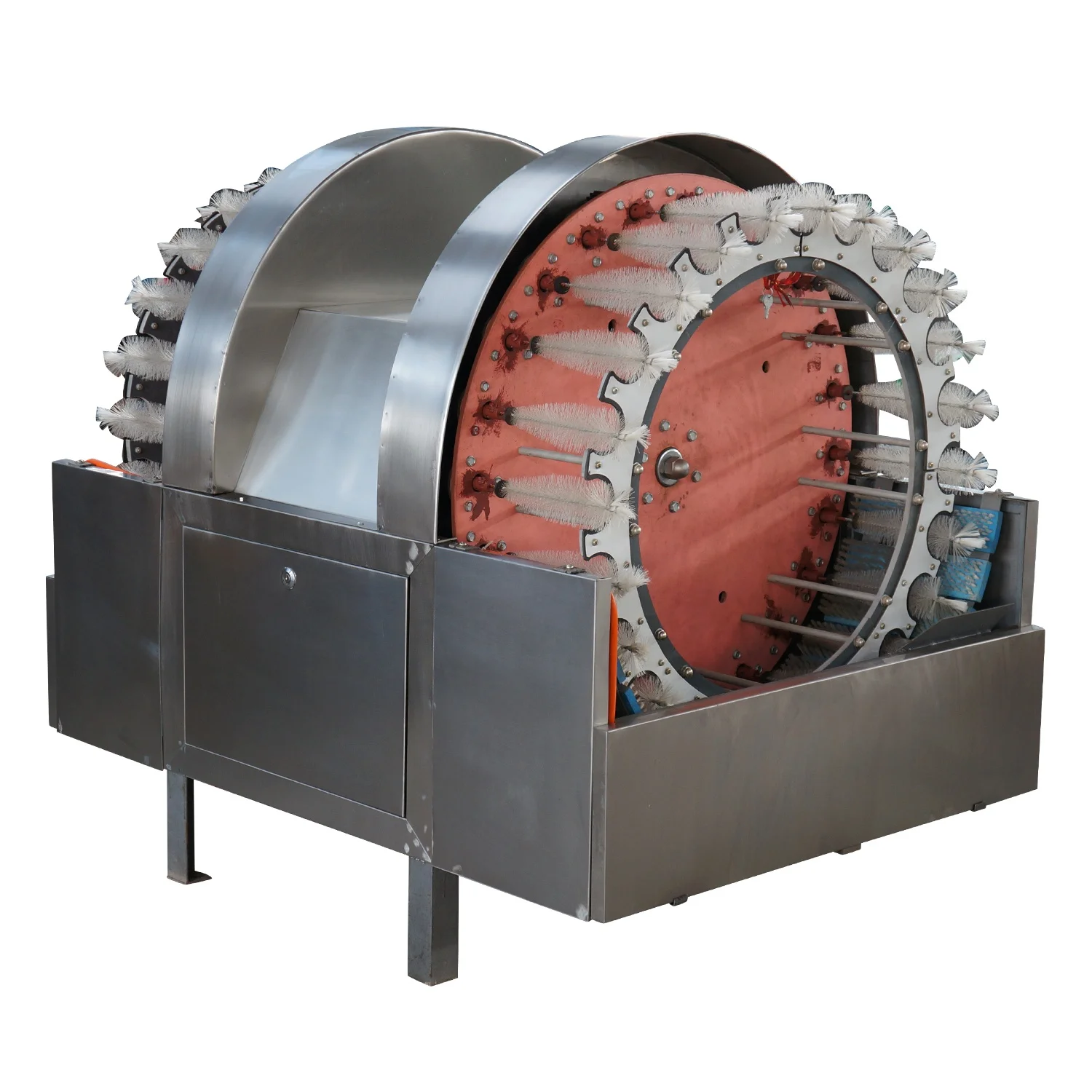

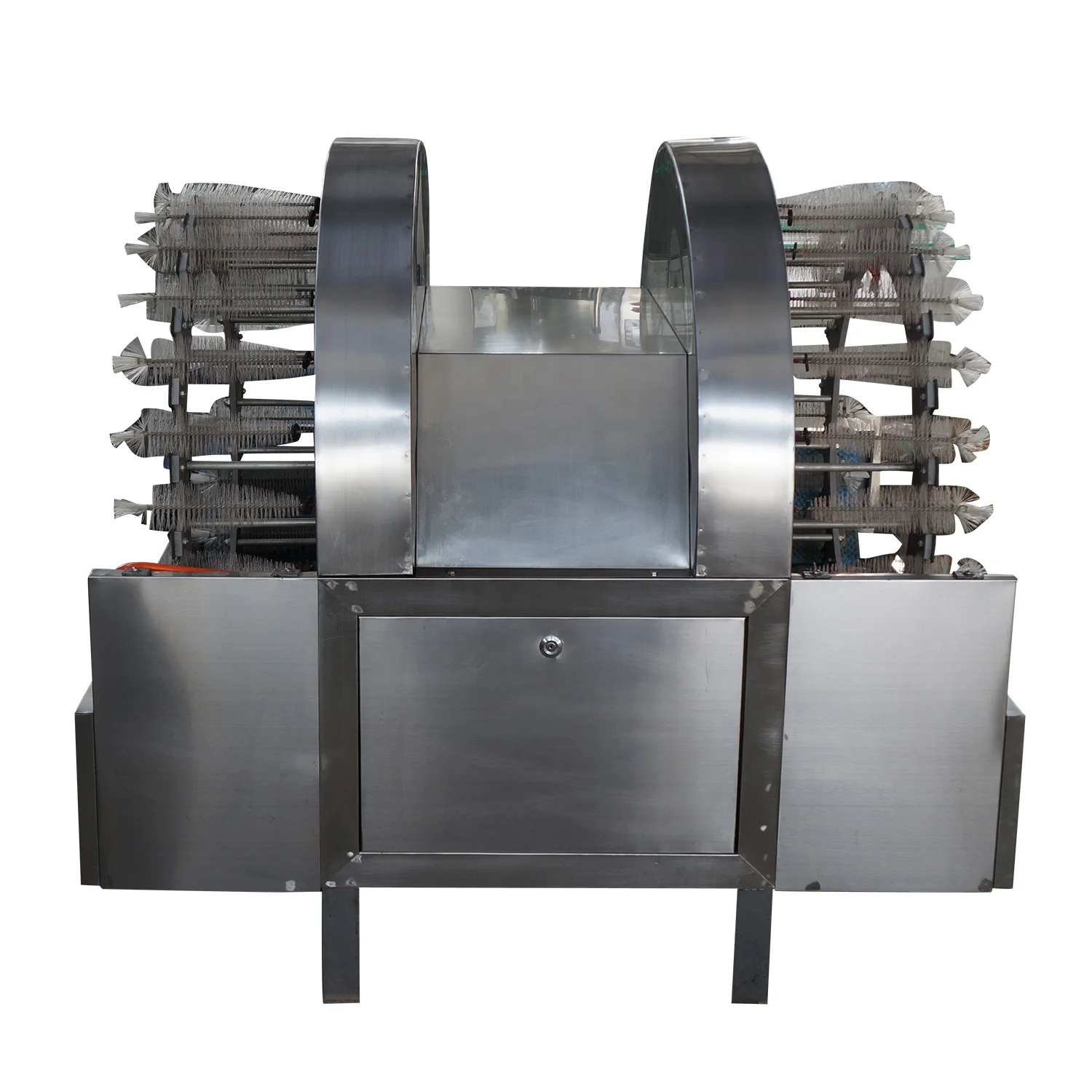

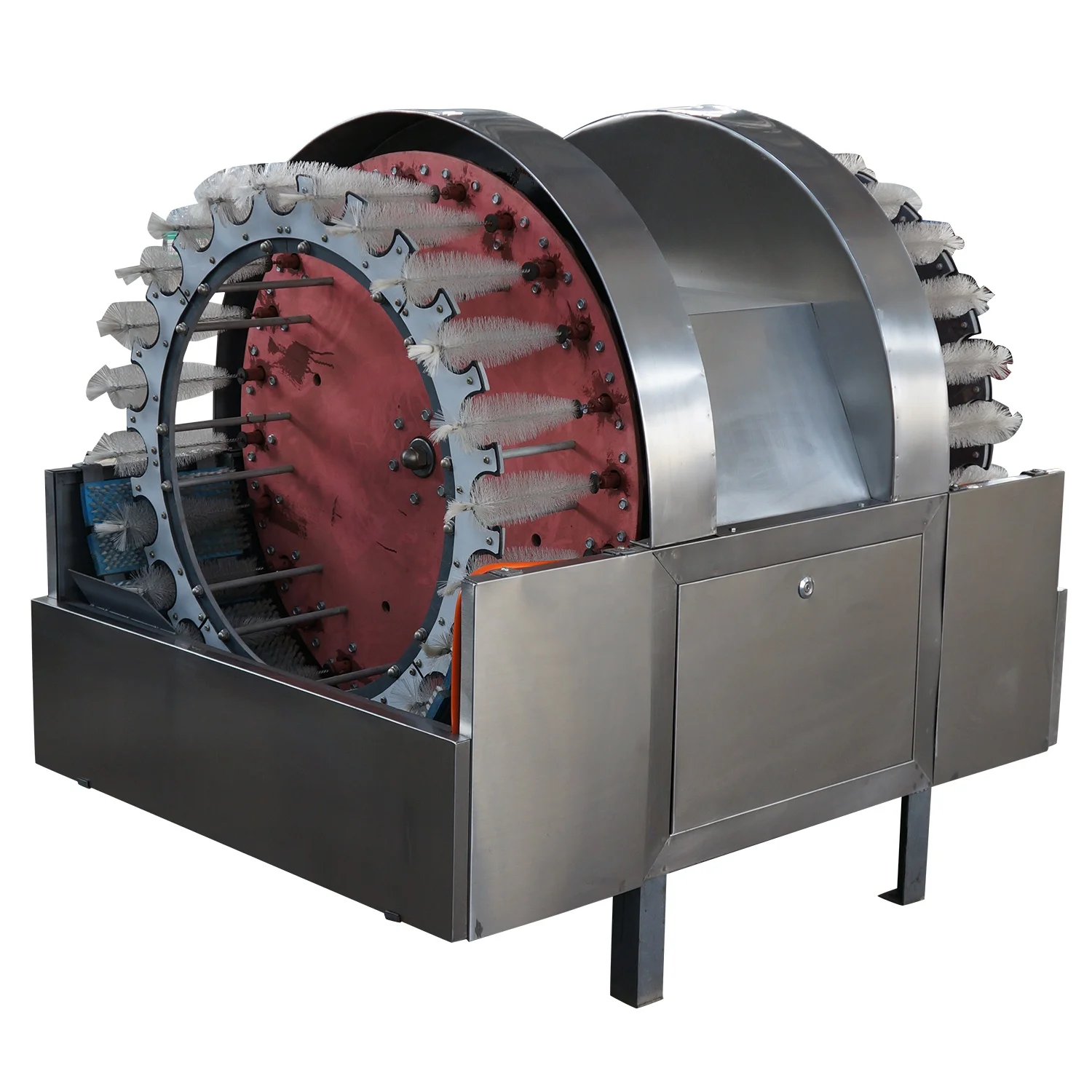

Glass bottle washing machine

This washing machine is especially used for round recycled glass bottles inside and outside brushing, especially for inside brushing. It can be also used to remove easy removing paper label; The bottles should be soaked into the water for some time before washing with the recycled bottles. The bottle should be filled with water, wine, juice or other beverage washing liquid. The material is high quality of stainless steel, meets the requirement of food grade. One machine is suitable for different size bottle when with the same bottle neck. The structure is easy and beautiful. Easy operate and maintenance, good efficiency.

Contact: Kelly Li
WhatsApp:18001564982
WeChat:Kelly2021286246
Email:ms.Kelly@kjxyljx.com

Working process
First place the bottles into water for soak, after a while, get through the water pipe to water source and electric power, workers insert bottles into brush positions, open the switch, bottles will be turned round with the dia plate; The brushes rotates inside bottle will make bottle inside clean; The manual gets off the bottles.

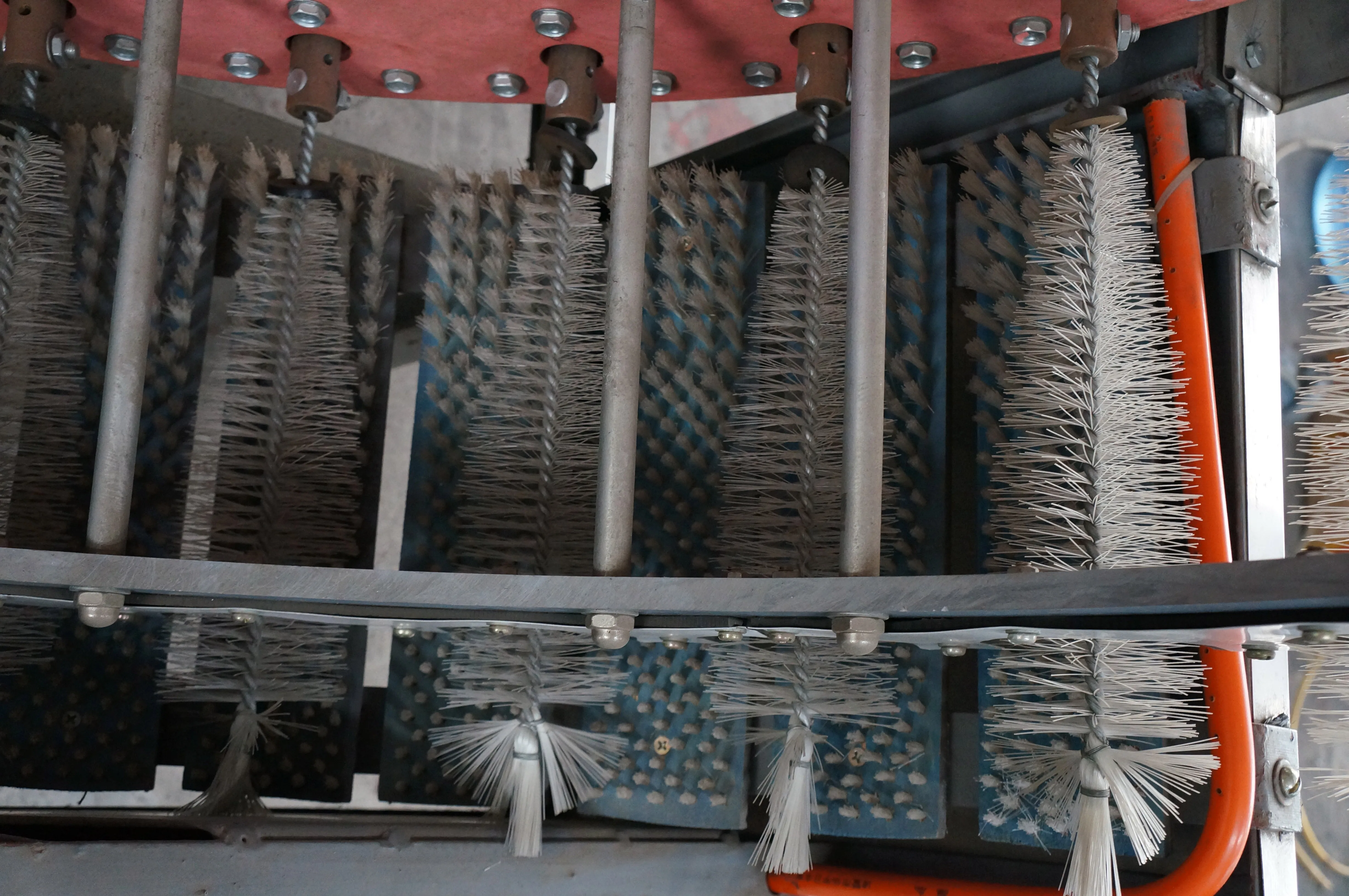

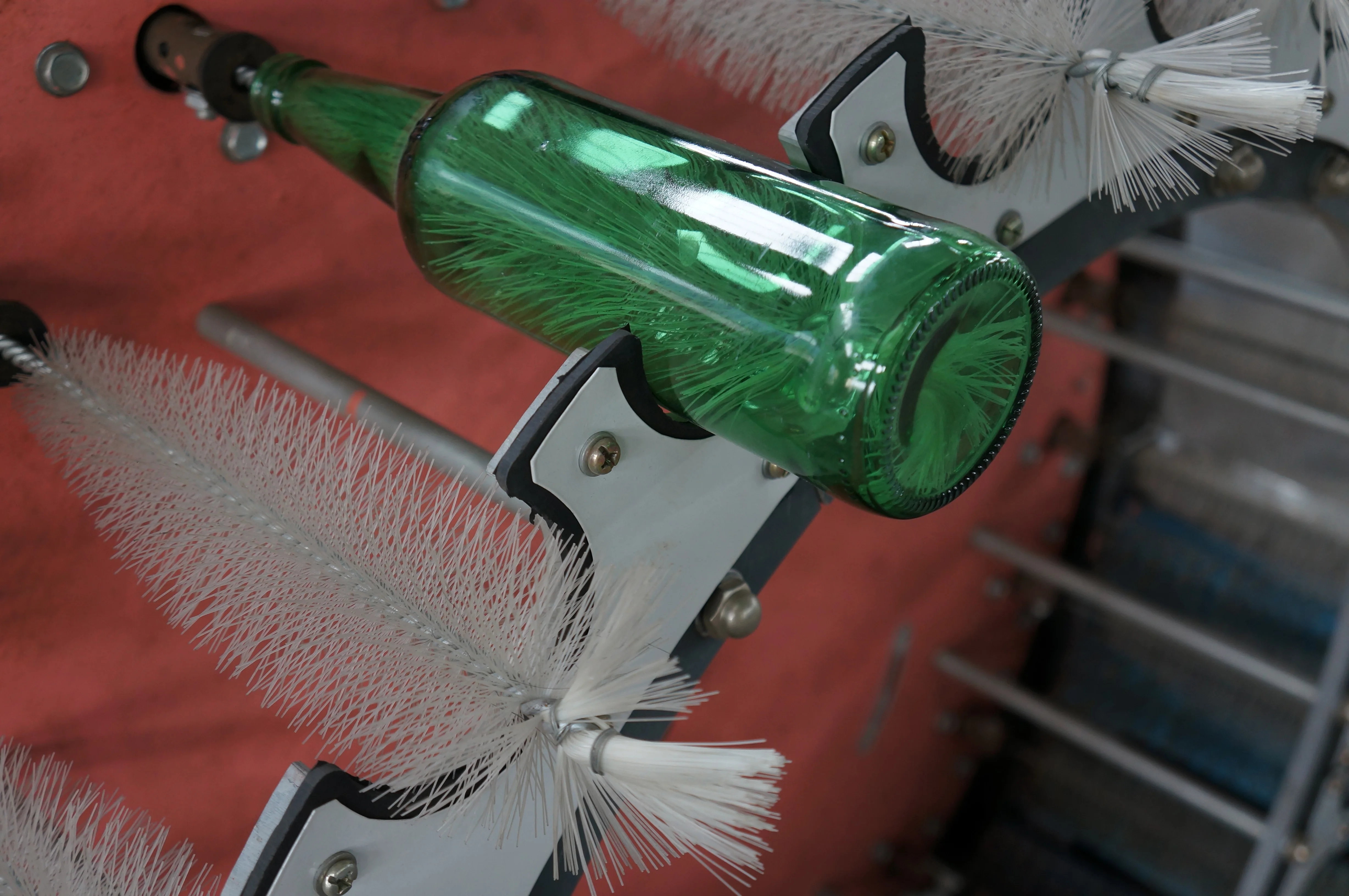

Inside brushing




Polymer brush,Durable,It can effectively remove dirt from the bottle.

Outside brushing(label removed)




Outside brushing for three times,It can effectively remove the label from the bottle.

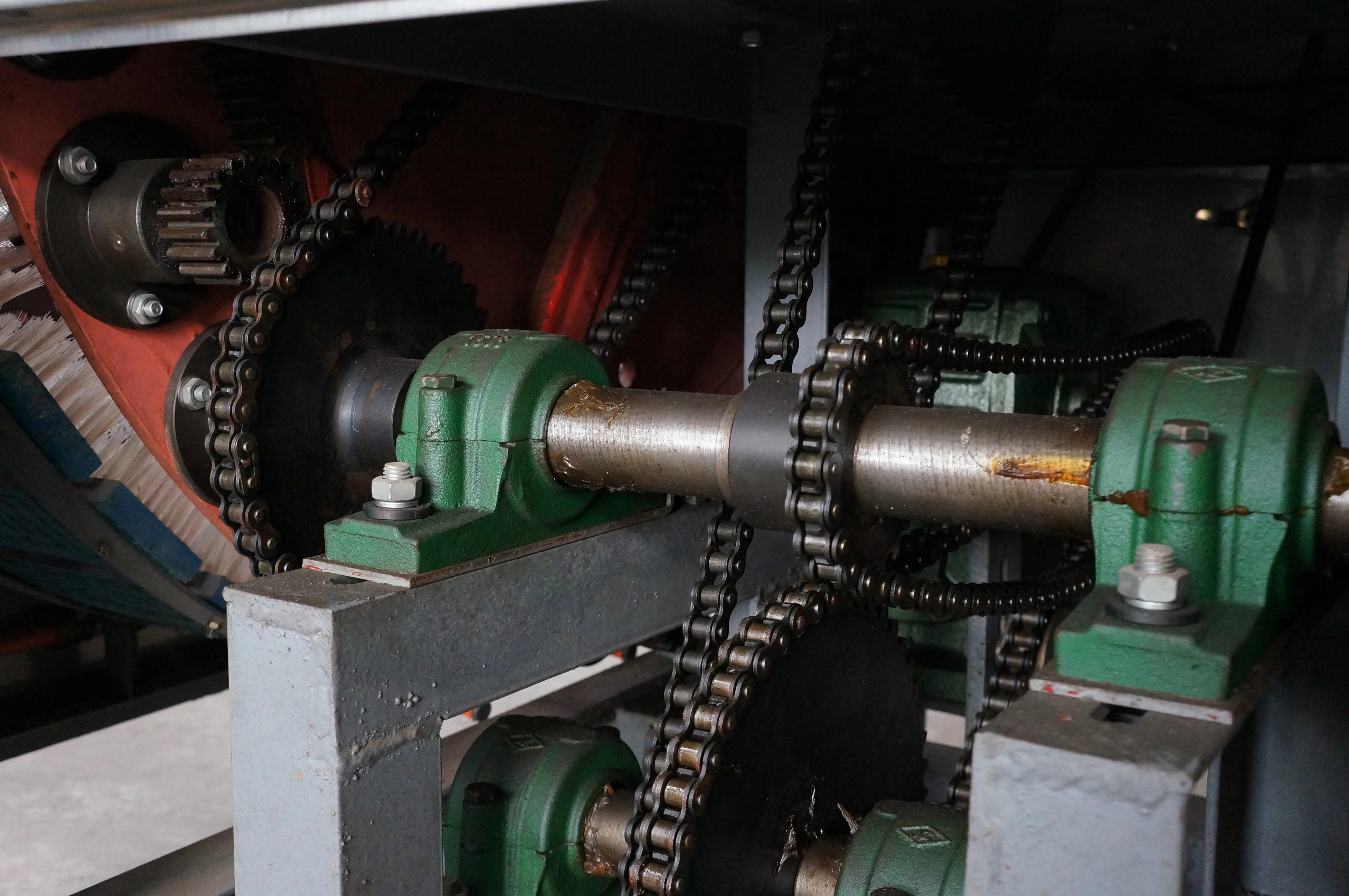

Synchronous chain
Maintenance-free, clean solution for roller chain drive conversion
1.Significantly reduces maintenance costs
2.Equivalent capacity to roller chain drives in the same width
3.Easy rust-free wash-down with Gates Stainless Steel hardware
4.Fast drive conversion payback
5.Quieter than roller chain drives

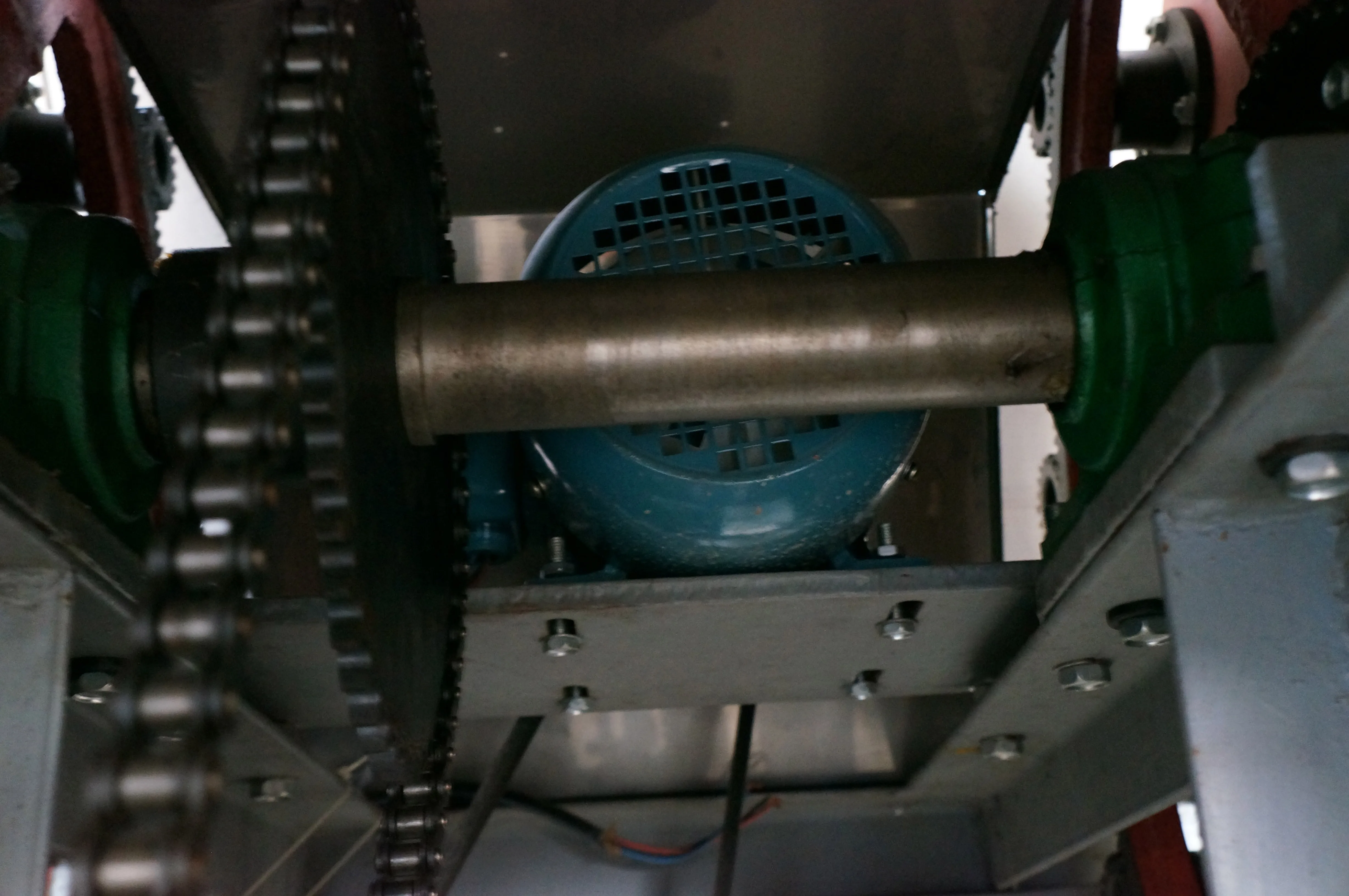

Durable motor



Features:
1. Robust design
2.Optimum performance
3.Long service life

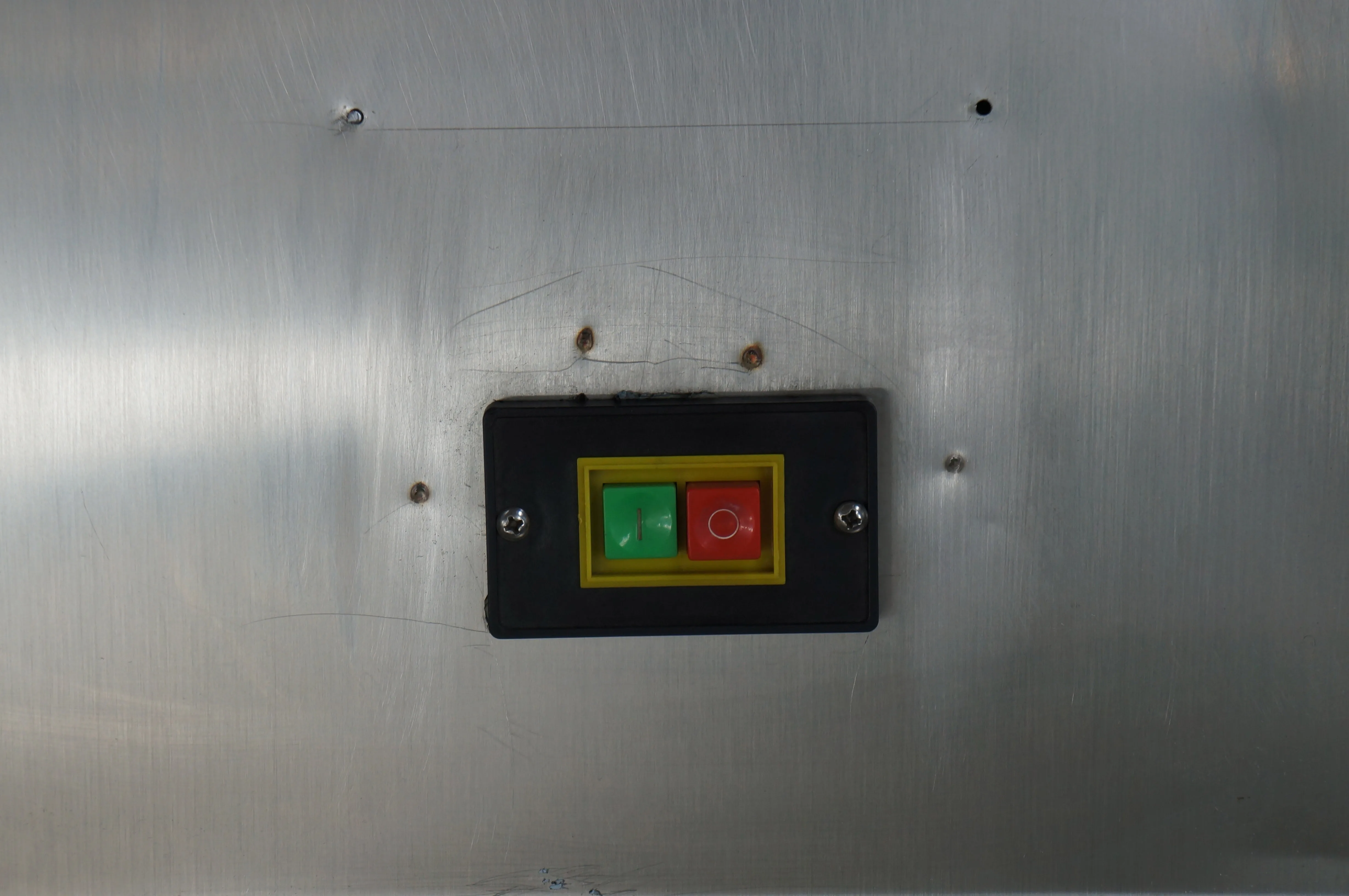

Control buttons




ON/OFF model for easy operation,don't need complicated setting and adjustment.
Specification
Model
XP-24
Capacity
1000-4000 B.P.H
Bottle length range
140-400mm
Bottle mouth diameter
12-60mm
Bottle body diameter
50-100mm
Motor
4kw/380v
Machine size
151.5*112.3*1400 mm
Machine weight
200KG
Work Follow
Packing & Delivery

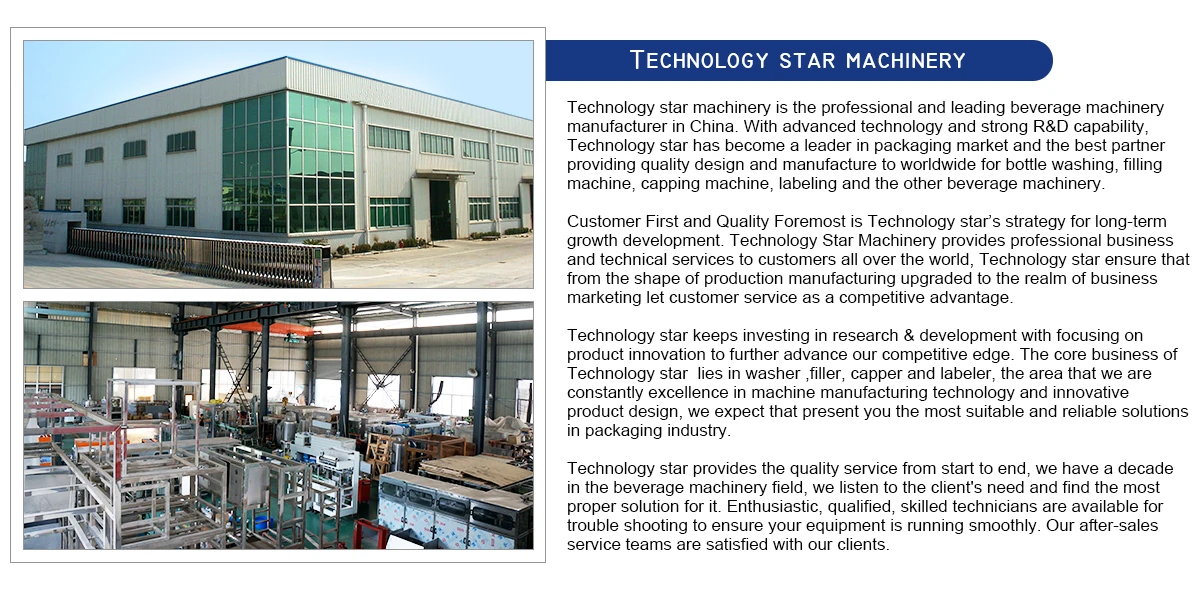

Our Company
