LEAD NEW SMART Series Ultra High Speed Factory CMMs three Coordinate Measuring Machine CMM

Product Overview

Description

Hot Sale SMART Series Ultra High Speed Shop-Floor CMMs 3D Coordinate Measuring Machine

Features: Smart series of super-high -speed CMM have the characteristics of wide temperature range, powerful measuring function, stable performance, high precision, simple operation, fast and efficient, easy maintenance characteristics. It adopts high precision linear guide technology, uses ultra-high speed linear motor drive, with multiple workpieces and environmental temperature sensor, is a super high speed, high precision, no air source CMM used in the condition of wide temperature,Especially suitable for workshop environment, and can also be used as the comprehensive test station of workshop.......



Description

Technology and function description:

1.Wide temperature range, can be used in 10℃ ~ 40℃ environment.

2.Ultra- high speed measurement and acceleration ability is 3 times of ordinary CMM.

3.Turn on and use, no isothermal process is required.

4.Dustproof design, can be used in the production workshop.

5.No air source design, do not need compressed air, power can be used.

6.Support automatic interface to realize intelligent online measurement.

7.Four - way feeding, convenient in automatic production line layout.

8.The integrated design of the whole machine takes up little space and saves precious production line space.

9.Easy to move, use forklift can be easily moved to any position.

10.Simple operation, support drag-and-drop operation, support the workshop special software interface.

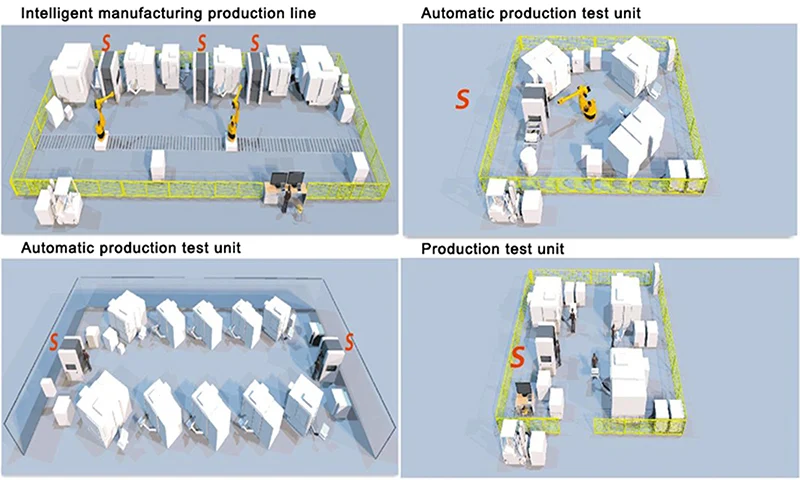

Product Applications Scenarios





workshop special version software



1.Intelligent production line integration.



The software supports connection with external PLC or server to realize automatic online measurement under control. The software supports data interface which can obtain measurement program measurement from the server, or send measurement results to MES system or other data servers.



2.Scan code measurement

The software also supports the use of a scanning gun or RFID scanner to initiate the specified measurement procedure.Measurement software supports a variety of expansion modules, according to customer requirements for selection.



3.manual measurement

Specially designed for use in production site,The operation interface of the software is simple, even without the experience of three-coordinate operation personnel, can still operate the three-coordinate measurement of specific parts.Users only need to add the workpiece to the measured workpiece as required, and then click the measurement engineering icon corresponding to the measured workpiece to complete the automatic measurement of the workpiece. Different users to set the permissions, measuring machine administrator can use advanced permissions, measure programming, and assigned to different users, through their user name and password, ordinary users can only log in your account, use authorized by Administrator surveying engineering, avoid personal operation error measurement procedures.

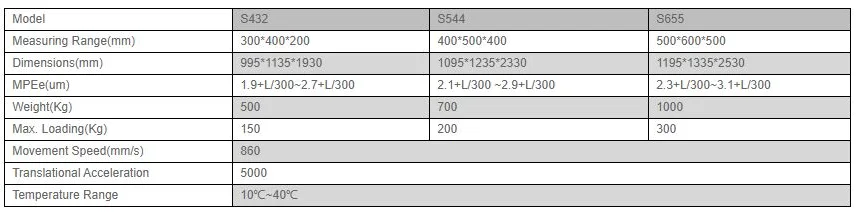

Specification:
