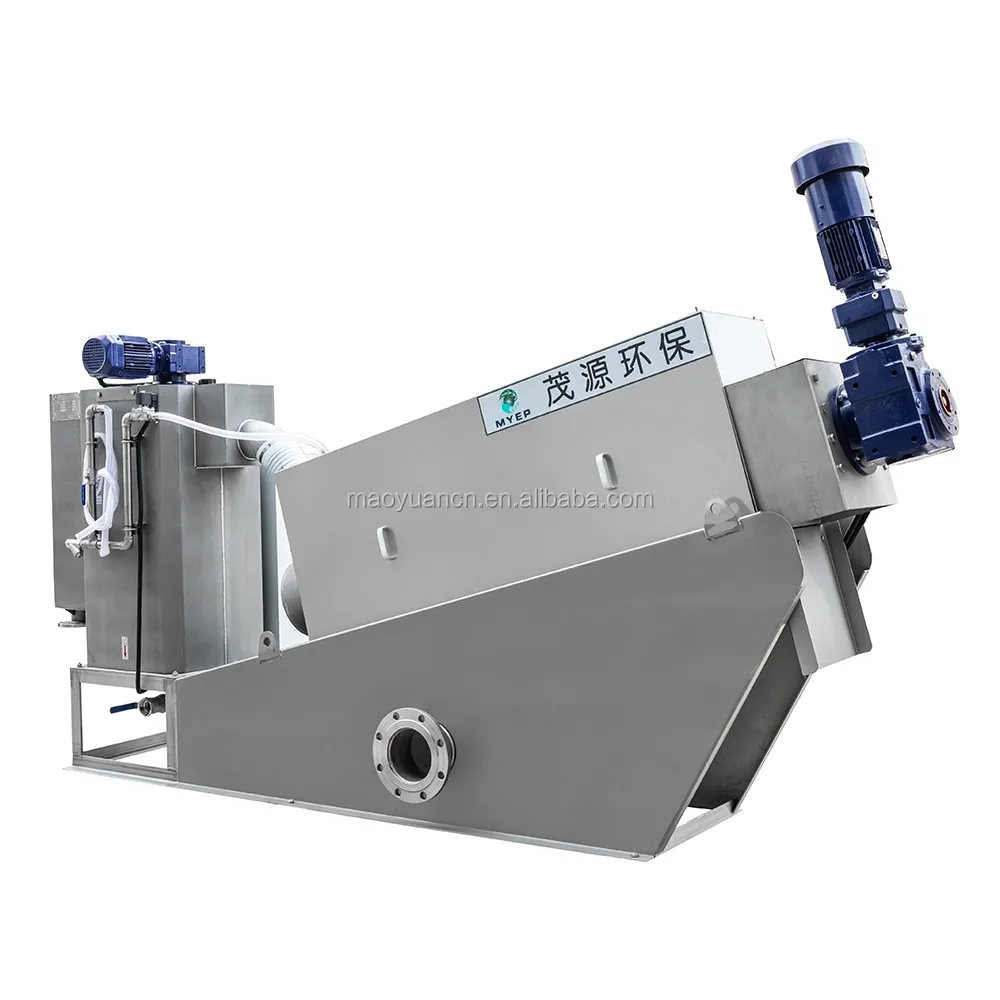

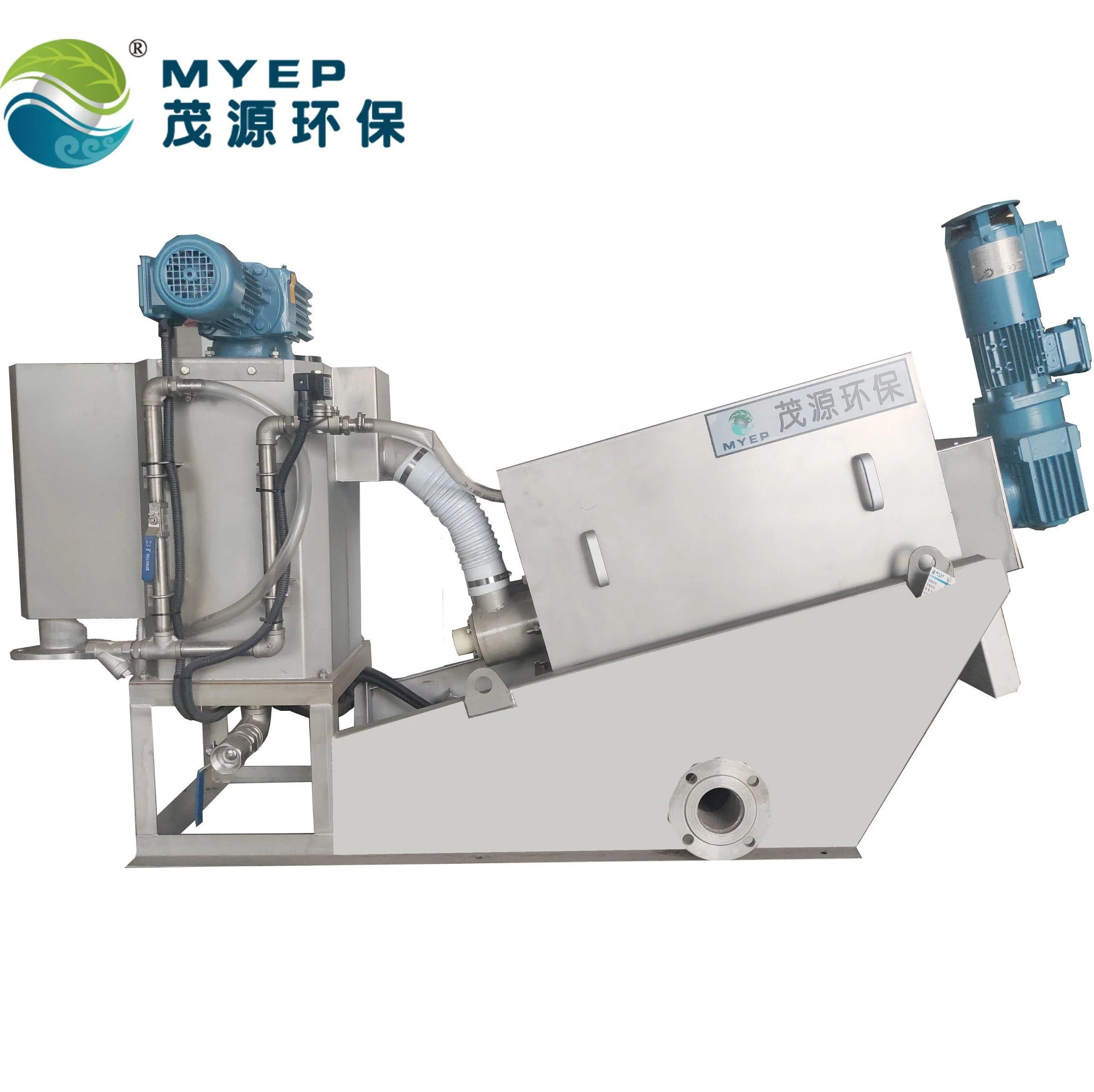

fully automatic screw press stacked machine sludge dewatering
- Category: >>>
- Supplier: Yangzhou Maoyuan Environmental Protection Technology Co. Ltd.
Share on (62018370390):
Product Overview
Description
Product Categories
Related Products
Integrated Polymer Dosing Device
Rotary drum screen
Dissolved air flotation
Product Description

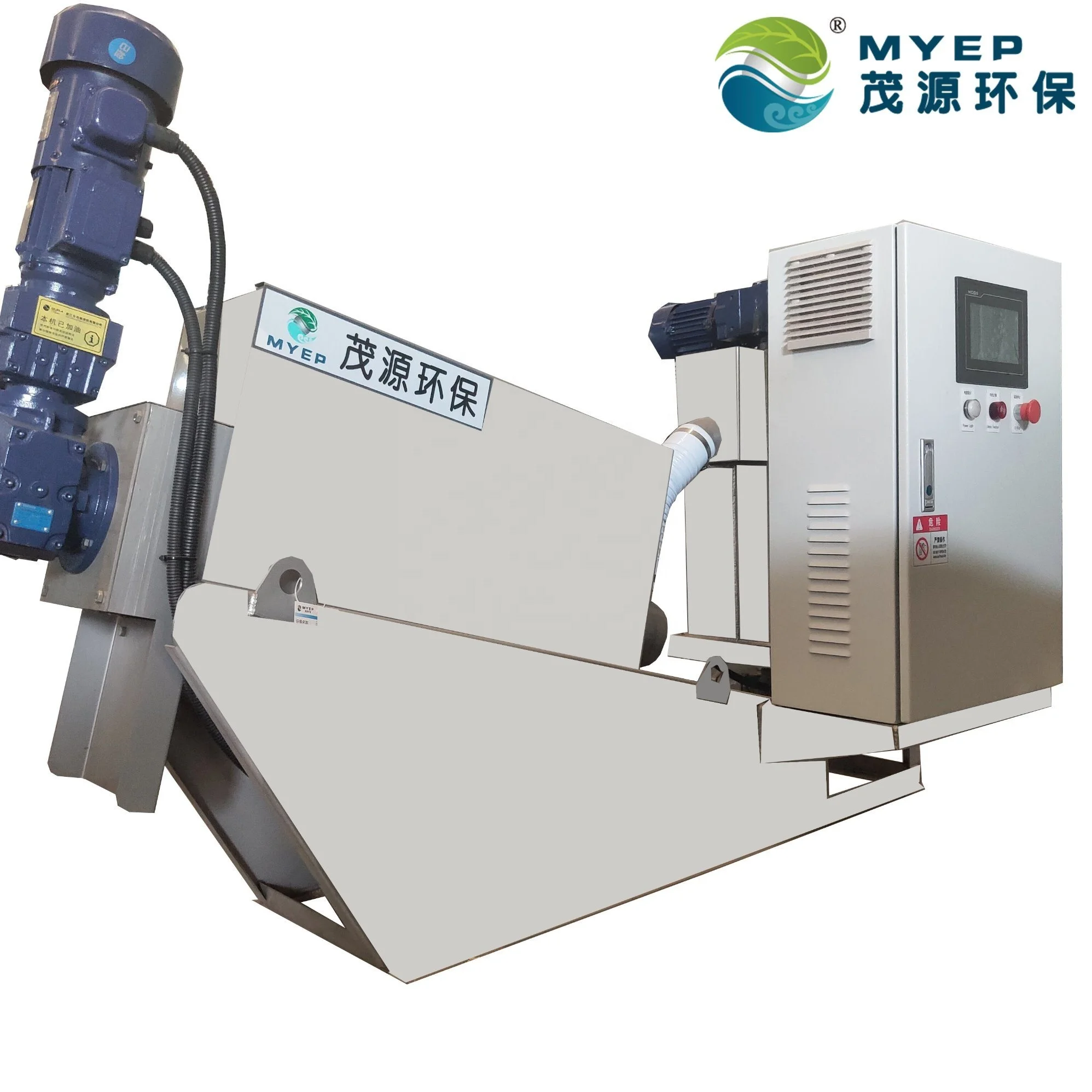

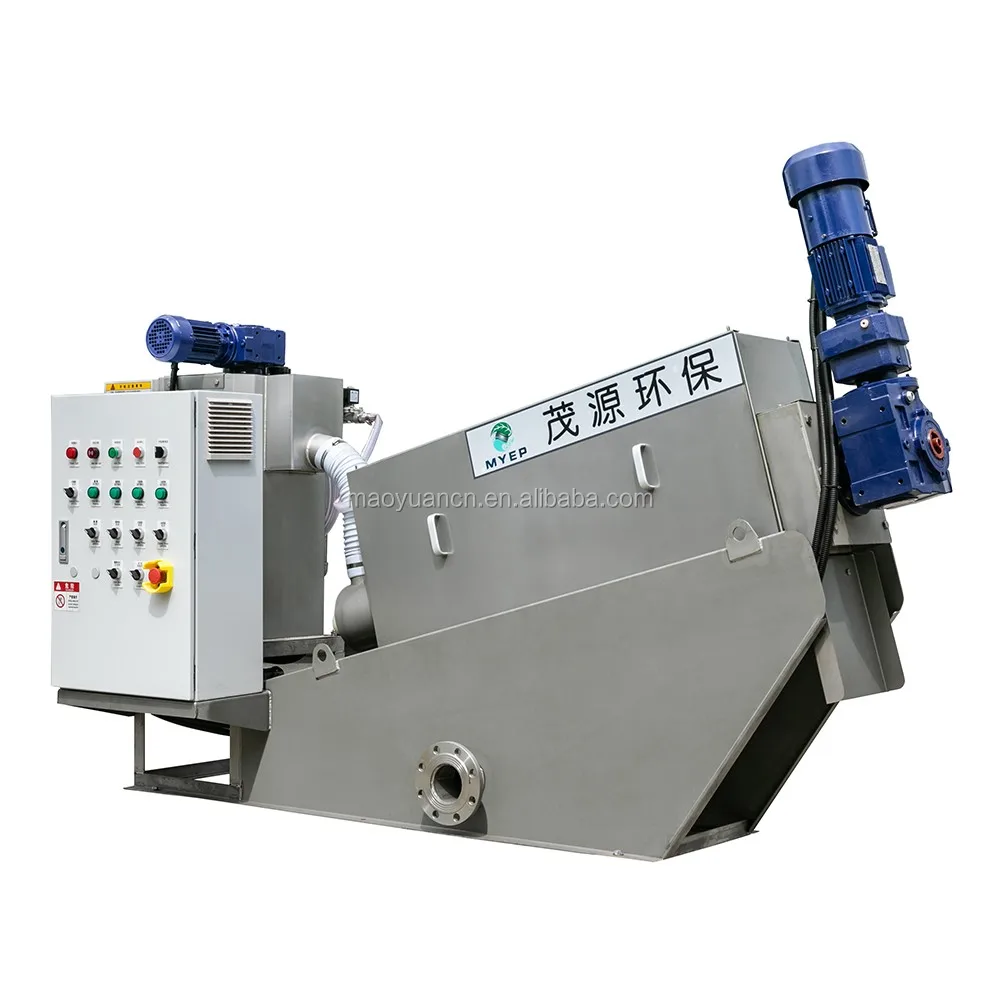

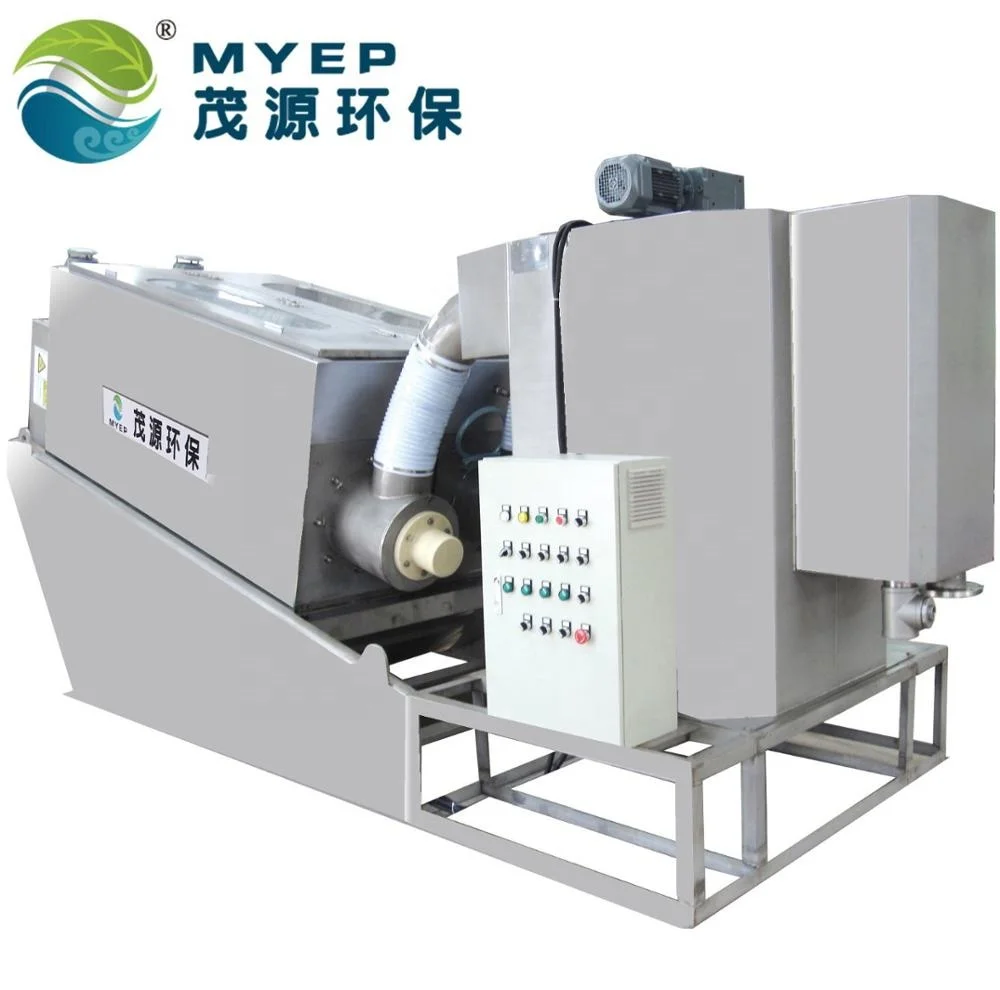

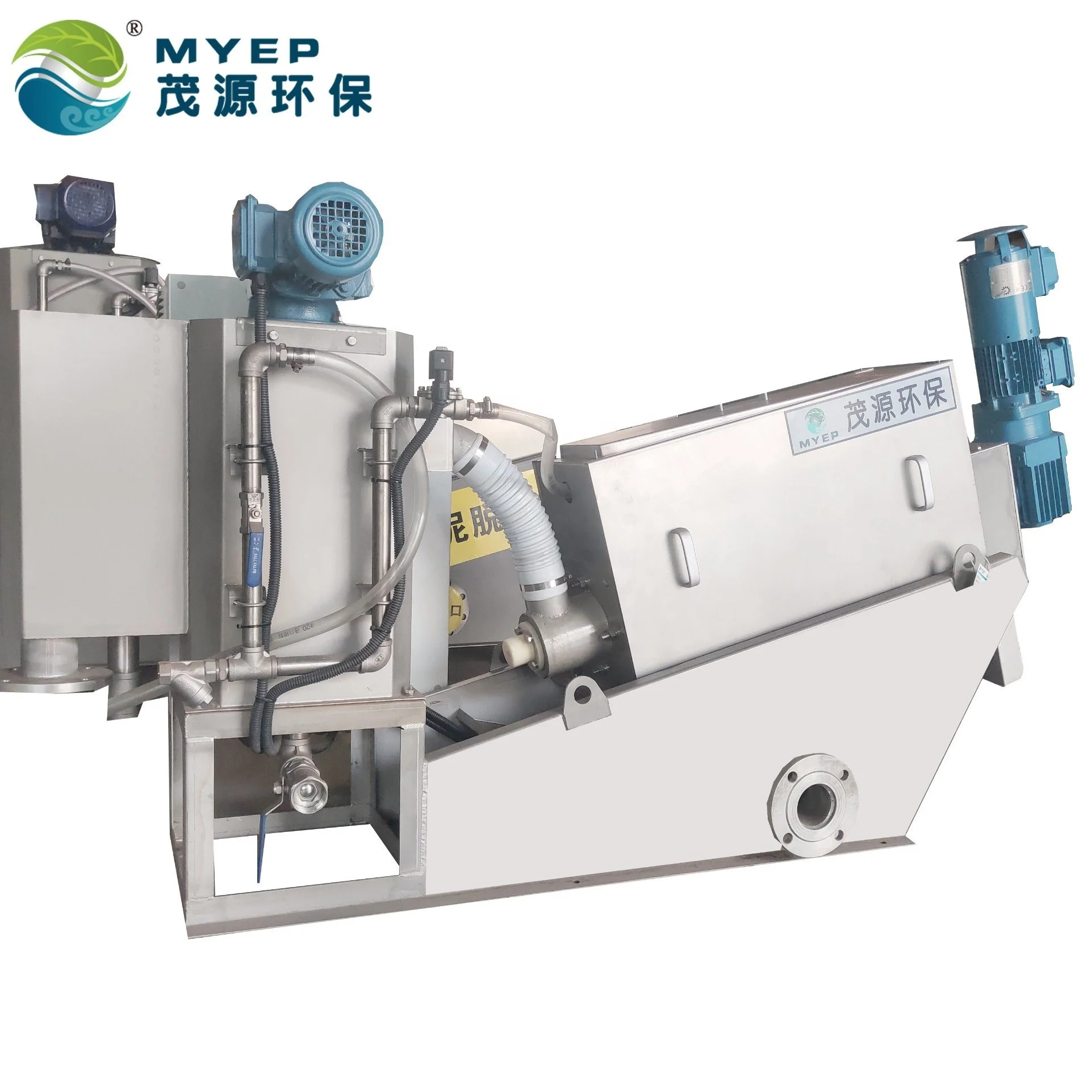

fully automatic screw press stacked machine sludge dewatering
Critical component annular plate
All annular plates cutted by Germany TRUMPF laser cutting machine, can reduce the deformation, improve demensional accuracy and surface finish. Material is SS304.

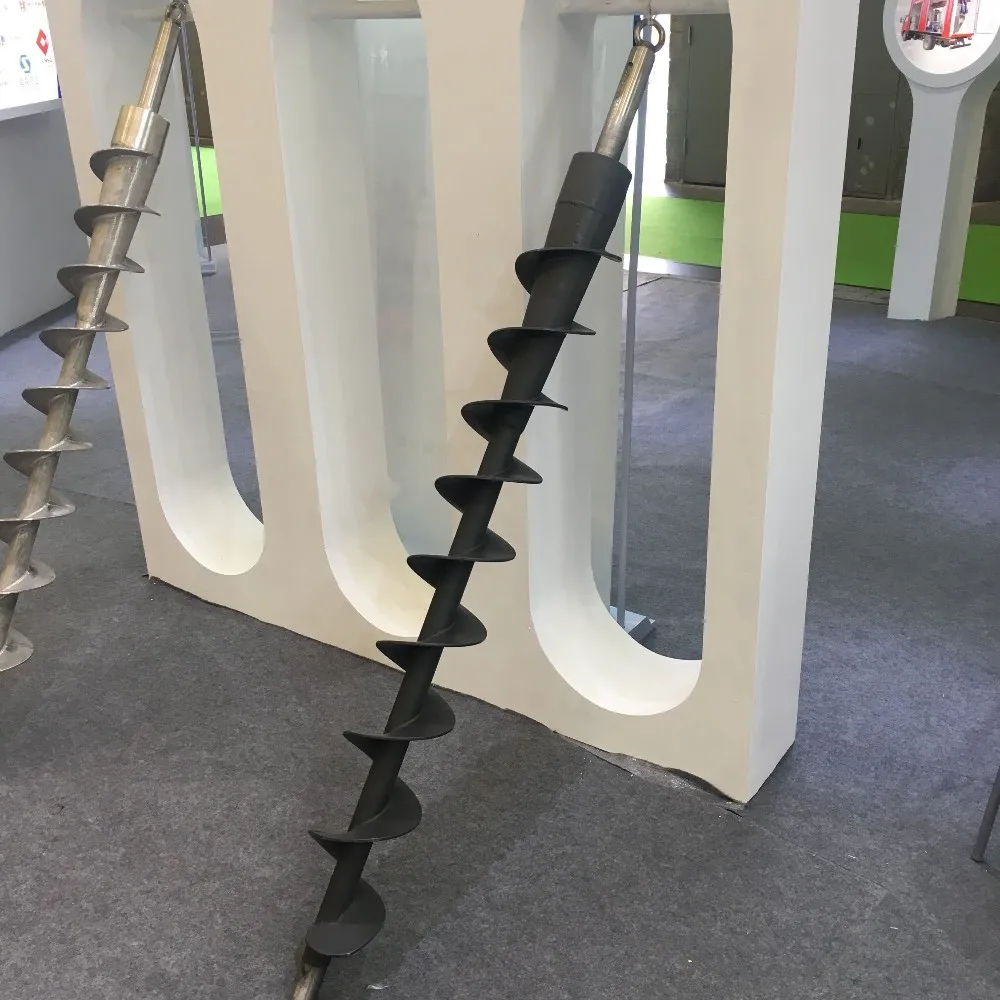

Critical component screw shaft.
HVOF technology of surface treatment of screw shaft. The black special hard material is sprayed on the outer diameter of the screw shaft to achieve the hardness of 1350HV(normal 1200HV), which prolongs the service life of the machine.

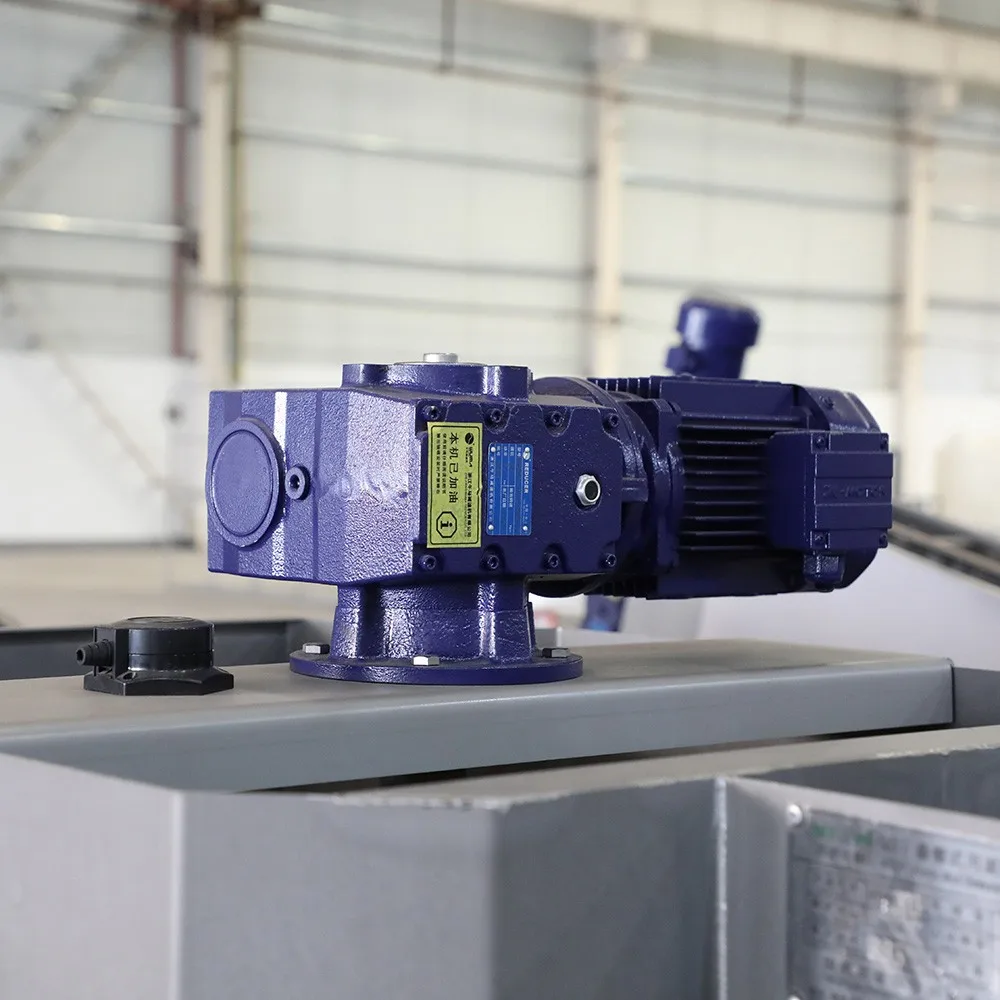

Motor
Using first-class reducers, Nord or SEW are optional due to your actual needs.
Excellent performance to keep the long lifespan.

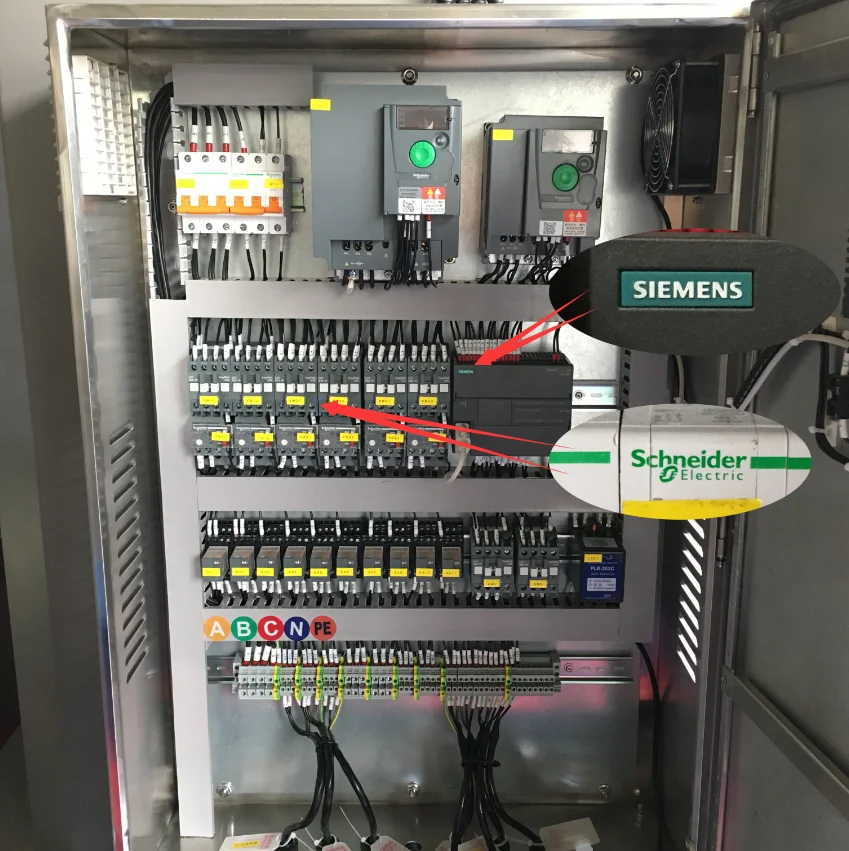

Electric Control Panel
All high quality components.
Realize the switch of full automatic operation and manual operation.
Features | ||||||
1. Automatic continuous operation | ||||||
2. Compact design with flocculation and dewatering | ||||||
3. Low power and water consumption | ||||||
4. Low operation cost | ||||||
5. No filter cloth, no clogging | ||||||
6. No need for sludge thickener | ||||||
7. Easy operation and maintenance | ||||||
8. No vibration and noise | ||||||

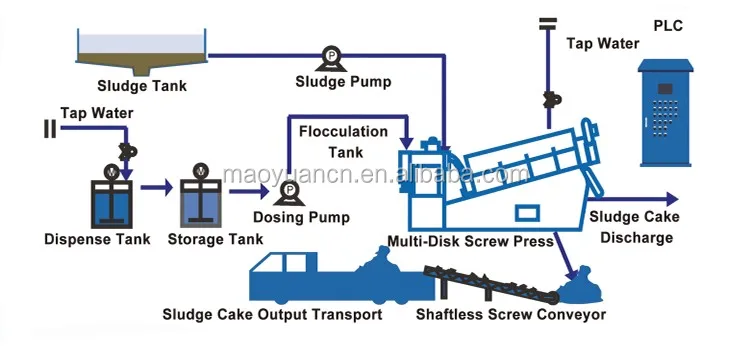

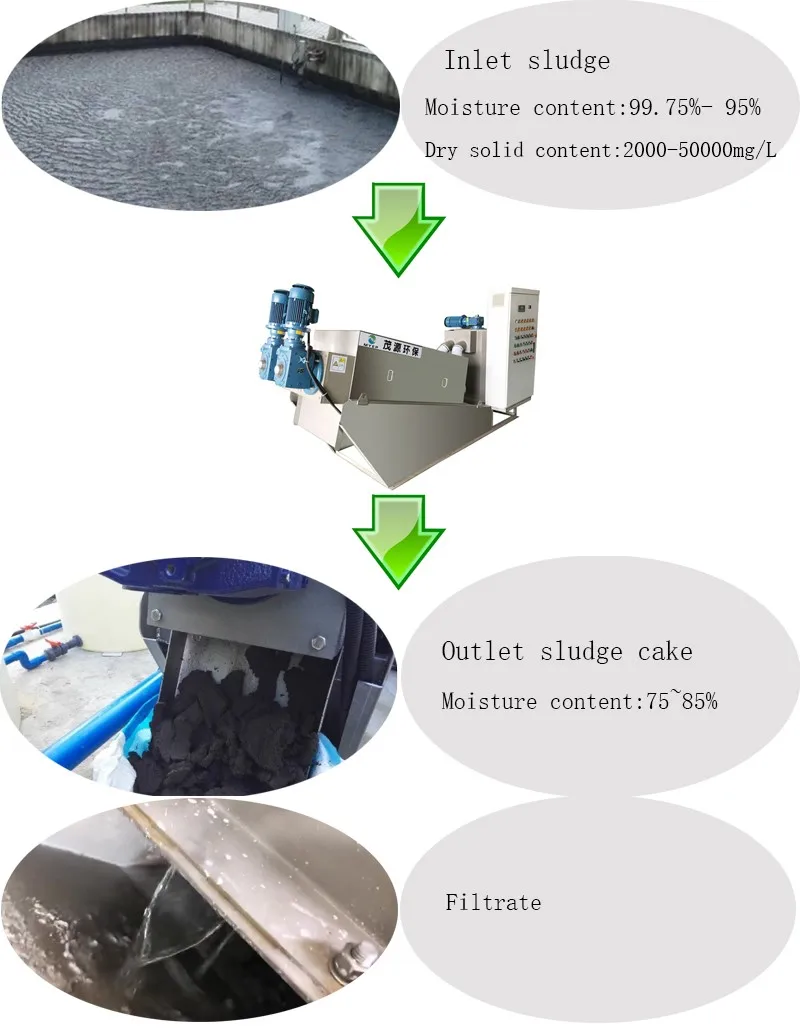

Treatment Process | ||||||

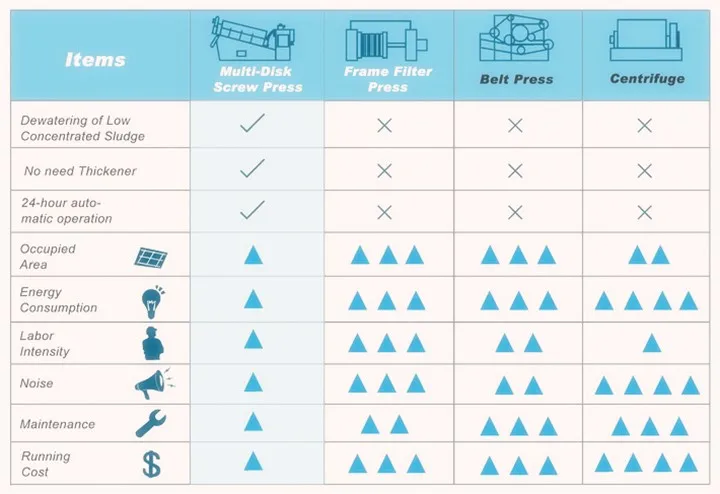

Comparison Chart | ||||||
Application in Various Industry. | ||||||||
Model Selection
How to select a suitable MYEP quality automatic sludge Multi-disc screw press?
1. what is your sludge treatment capacity per hour(m3/hr)?
2. What is your sludge solid content or moisture content(%)?
3. What is the sludge type?
4. What is the character of the your sludge?
Model | Dry sludge treatment capacity | Sludge treatment capacity | ||||||||
10000mg/L | 20000mg/L | 30000mg/L | 40000mg/L | 50000mg/L | ||||||
MYEP131 | 10~14kg/h | 1m³/h | 0.5m³/h | 0.4m³/h | 0.3m³/h | 0.28m³/h | ||||
MYEP201 | 15~20kg/h | 1.5m³/h | 0.75m³/h | 0.6m³/h | 0.5m³/h | 0.4m³/h | ||||
MYEP202 | 30~40kg/h | 3m³/h | 1.5m³/h | 1.2m³/h | 1m³/h | 0.8m³/h | ||||
MYEP203 | 45~60kg/h | 4.5m³/h | 2.25m³/h | 1.8m³/h | 1.5m³/h | 1.2m³/h | ||||
MYEP301 | 50~70kg/h | 5m³/h | 2.5m³/h | 2m³/h | 1.5m³/h | 1.4m³/h | ||||
MYEP302 | 100~140kg/h | 10m³/h | 5m³/h | 4m³/h | 3m³/h | 2.8m³/h | ||||
MYEP303 | 150~210kg/h | 15m³/h | 7.5m³/h | 6m³/h | 4.5m³/h | 4.2m³/h | ||||
MYEP304 | 200~280kg/h | 20m³/h | 10m³/h | 8m³/h | 6m³/h | 5.6m³/h | ||||
MYEP351 | 100~120kg/h | 10m³/h | 5m³/h | 4m³/h | 3m³/h | 2.4m³/h | ||||
MYEP352 | 200~240kg/h | 20m³/h | 10m³/h | 8m³/h | 6m³/h | 4.8m³/h | ||||
MYEP353 | 300~360kg/h | 30m³/h | 15m³/h | 12m³/h | 9m³/h | 7.2m³/h | ||||
MYEP354 | 400~480kg/h | 40m³/h | 20m³/h | 16m³/h | 12m³/h | 9.6m³/h | ||||
MYEP401 | 130~160kg/h | 13m³/h | 6.5m³/h | 5m³/h | 4m³/h | 3.2m³/h | ||||
MYEP402 | 260~320kg/h | 26m³/h | 13m³/h | 10m³/h | 8m³/h | 6.4m³/h | ||||
MYEP403 | 390~480kg/h | 39m³/h | 19.5m³/h | 15m³/h | 12m³/h | 9.6m³/h | ||||
MYEP404 | 520~640kg/h | 52m³/h | 26m³/h | 20m³/h | 16m³/h | 12.8m³/h | ||||
Our Service

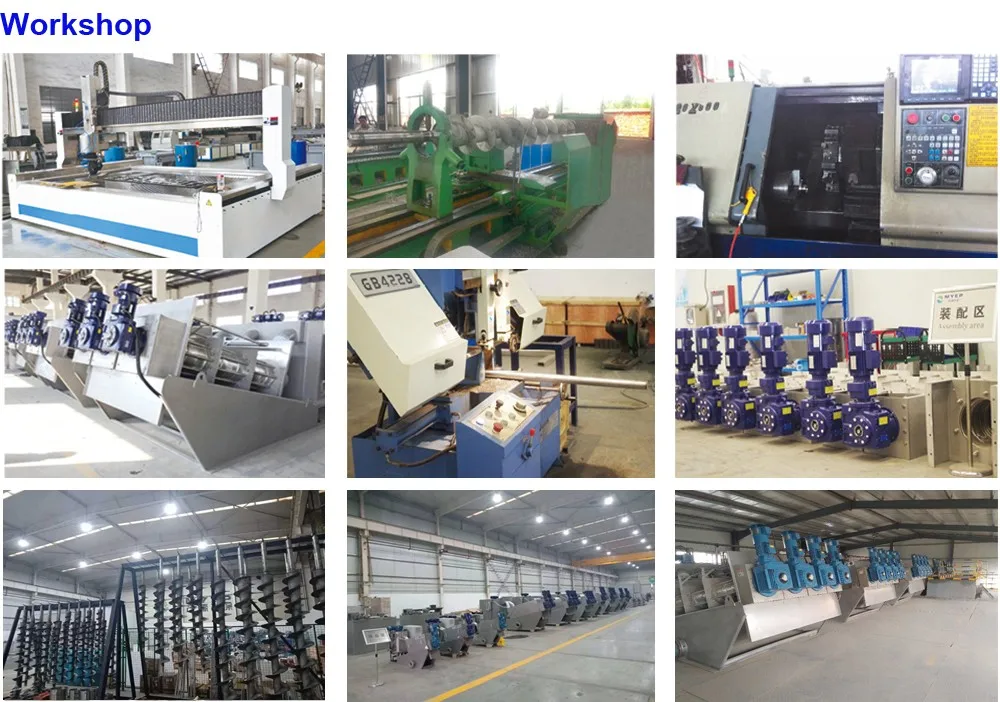

Careful processing to ensure the high quality.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Exhibition

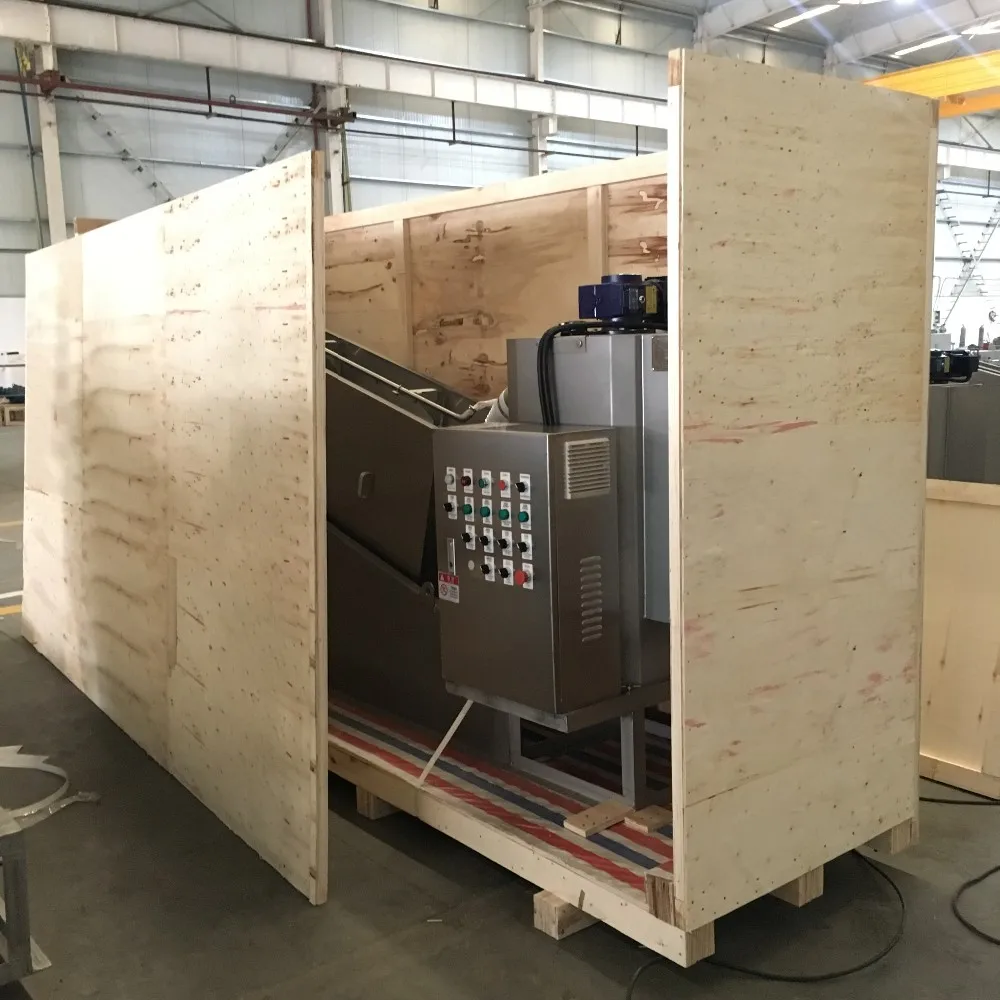

Packing & Delivery
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Delivery time: 3~45 days after confirming order, the detailed delivery date should be decided by the production season and order quantity.
Certifications
Why Choose Us?
SATISFACTORY SERVICE
- Quick Response Time, 7×24 hours Technical Consultation
- Feel Free to consult, customized solution for your application.
- Engineers are available to service machinery overseas.
- Factory audit is welcomed
- Our extinguished clients include BASF, Tialoc and CNPC.
- Train how to install and operate the machine.
- Complete video operation tutorial
ADVANCED DEWATERING TECHNOLOGY
- Design for Dewatering Applications
- R&D Cooperation with Tsinghua University
- Superior Raw Materials
- Laser cutting adopts Trumpf technology and the anti-corrosion materials adopt Starck technology
- First professional screw press production line in China
Below, contact with me if any questions. We will be glad to help you. | ||||||
