4040 Mini Cnc Milling Machine for Metal Cast Iron Milling 3 Axis Machine Milling Machine Working Area Size 1300 X 2500 Mm Mach3
- Category: >>>
- Supplier: Jinan Routerstar CNC Machinery Co. Ltd.
Share on (62018378479):
Product Overview
Description
4040 mini cnc milling machine for metal
China high features Mini brass curving machine 4040 supplier
Product Description
video:
https://youtu.be/F7viLOWI3NI
https://youtube.com/shorts/8soX-4Y1z48?feature=share
1. pictures:

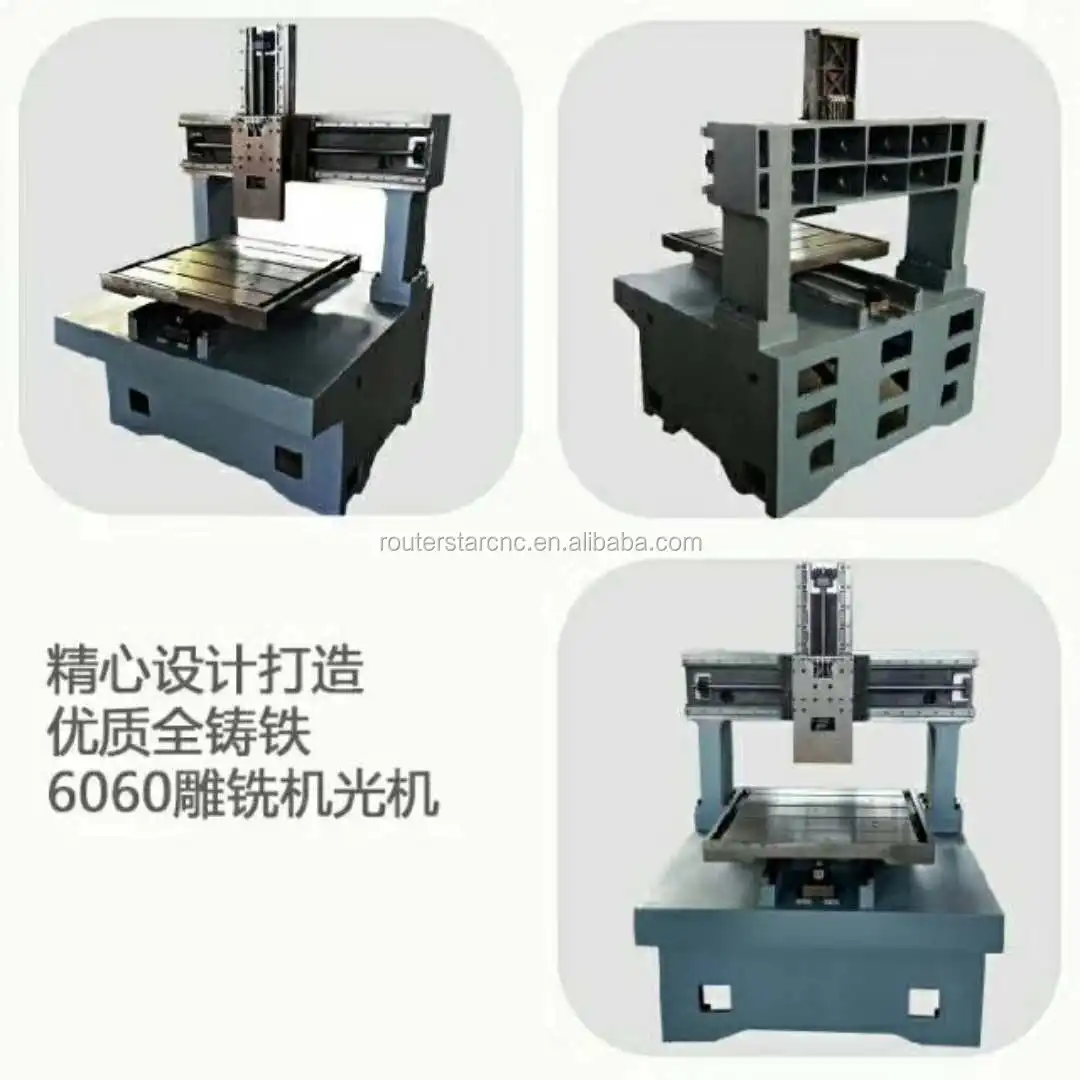

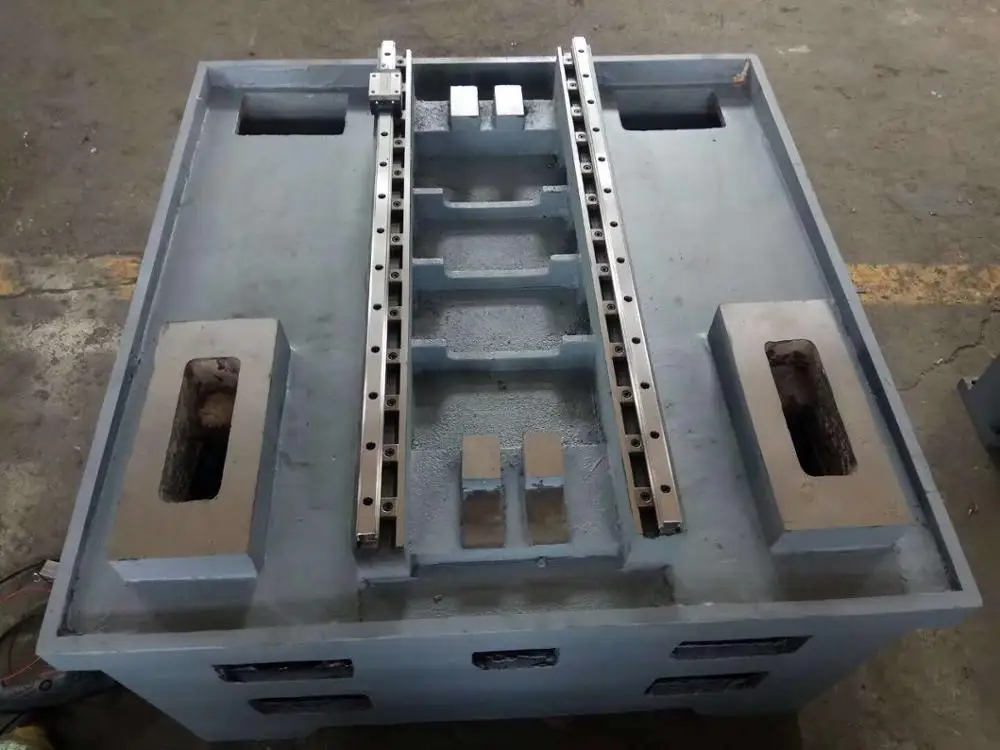

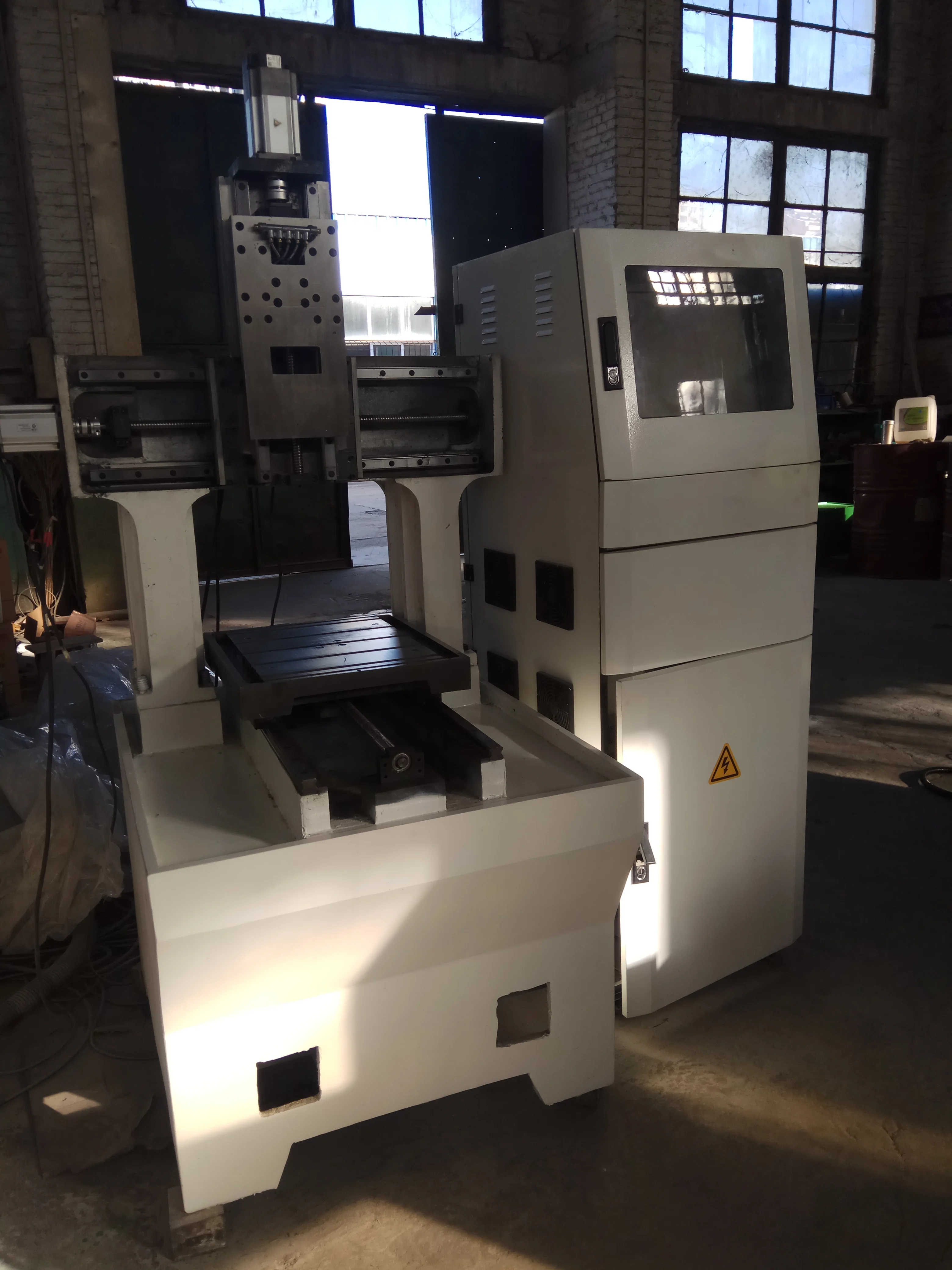

mini cnc milling mould making machine, table moving. whole machine body cast iron, more stable
with light
need computer screen in the control system
higher precision

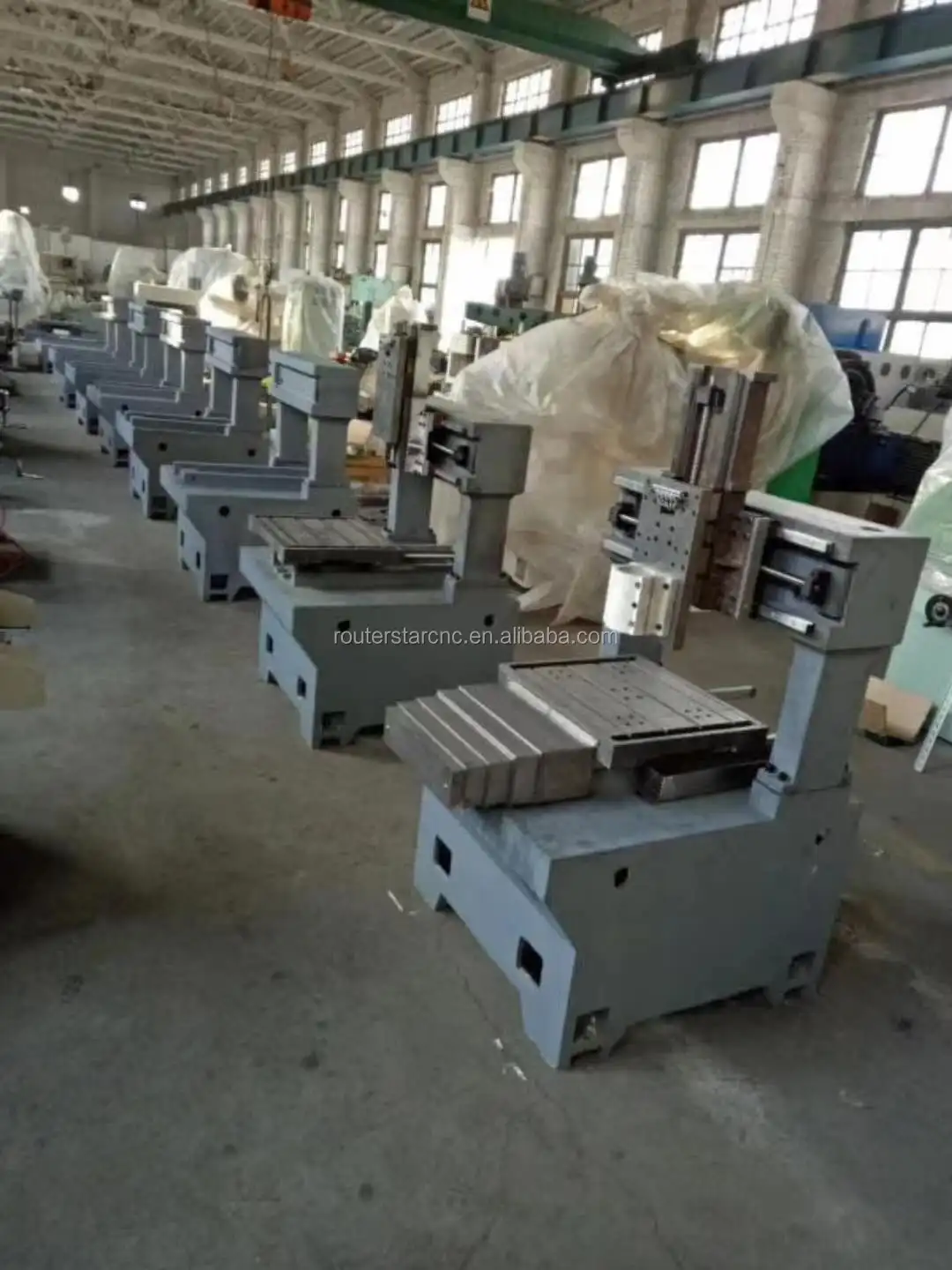

Factory shows:
Parameters:
2. Parameters
Model number | RS4040 | |
Size | Processing length | 400mm |
Processing width | 400mm | |
Z axis | 250mm | |
Package size | 1200*1300*2200mm | |
N. weight | 900kgs | |
G. Weight | 1000kgs | |
configuration | Machine body | Cast iron machine body |
Driving Motor | Japan yaskawa servo motor | |
Driver | Yaskawa servo driver | |
Transmission way | XYZ axis adopt Taiwan TBI ballscrew | |
Orbit | Original Taiwan square orbit | |
Control system | DSP control system (NC studio control as optional) | |
Carving spindle | 2.2kw water cooling (1.5/3/4.5kw as optional) constant torque | |
Dust collector | Without (if add need extra charge $160) | |
Parameter | Processing accuracy | 0.01mm |
Max carving speed | 5000mm/min | |
Max moving speed | 15000mm/min | |
Reposition accuracy | 0.03mm | |
Suitable voltage | AC220V 50/60HZ | |

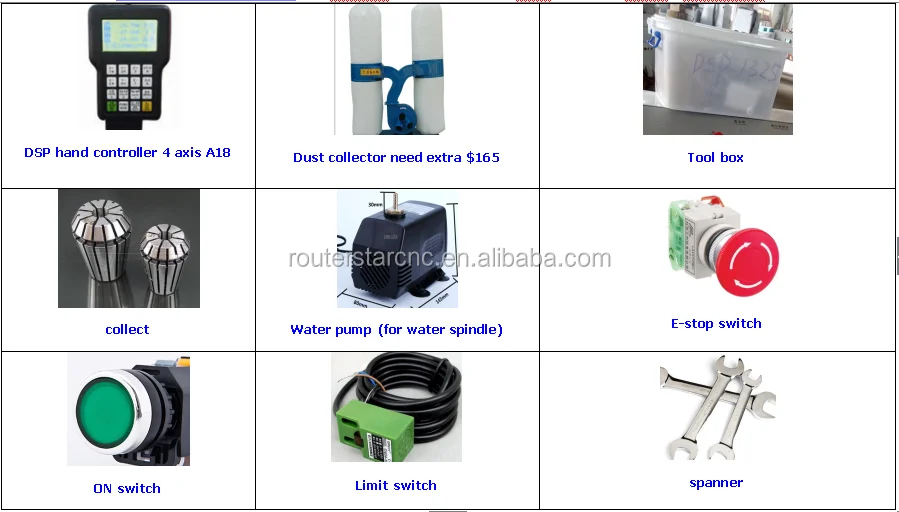

Control box | Advertising cutter | 1 case |
Pressure plate |
| |
Limit switch | 1 pcs | |
E emergency switch | 1 pcs | |
ON/OFF switch | 1 pcs | |
Water pump | 1 pcs | |
collect | 2 pcs | |
Application
3.Application
RS4040 mini moulding making router machine
Mainly for the moulding industry, metal parts manufacture industry
material: stone, marble, steel, stainless steel, iron carving

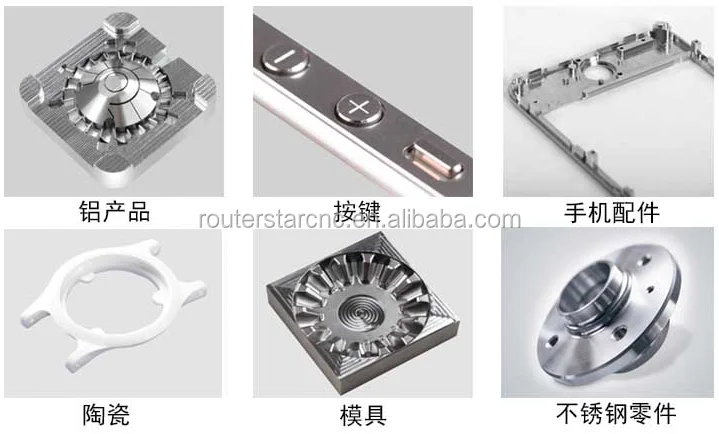

Working sample
4.working samples:
aluminuim products
metal press key
phone parts
ceramic
moulding metal
stainless steel parts

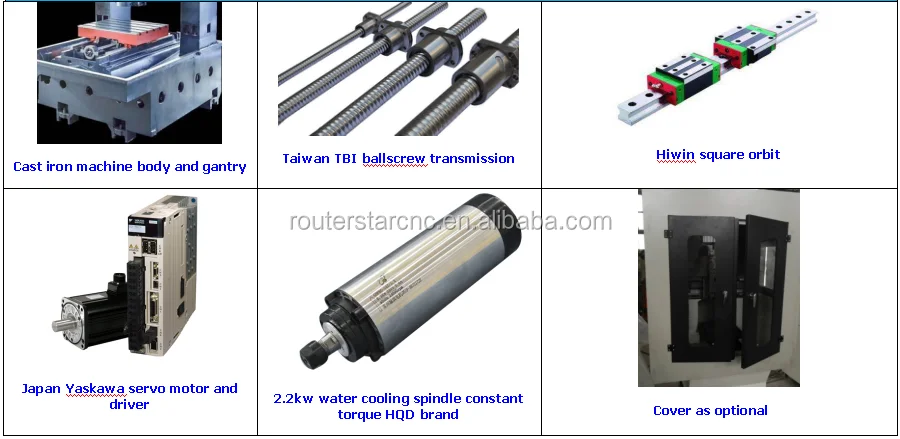

Machine details part
#working area: 400*400*250mm. Whole machine cast iron
#AC220V 50/60HZ 1Phase
#original NC studio control system
#Origianl Taiwan orbit for XYZ
#TBI ballscrew for XYZaxis
#Japan yaskawa servo motor and driver
#China water cooling spindle2.2kw constant torque(HQD brand)
#Delta inverter
#Wooden case package
#Package size: 1.2*1.3*2.2m
#Weight:1000kgs

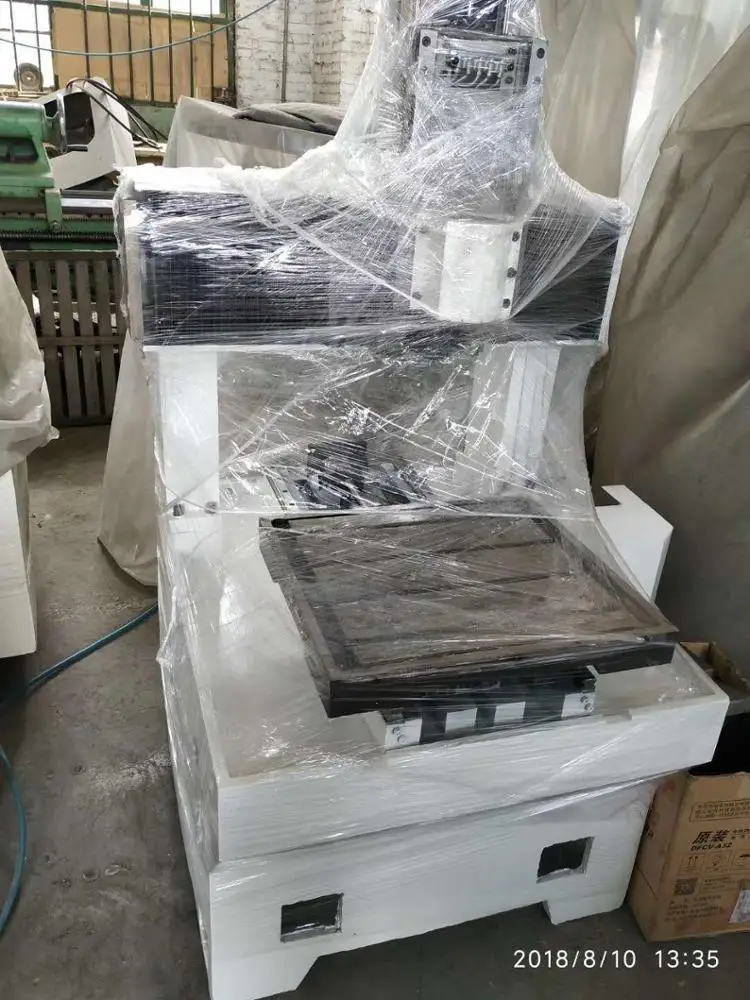

Packaging & Shipping
Our Services
1. All detailed consulting service before sale.
2. 12 month quality guarantee time after sale, the machine main parts(excluding the consumable parts) broken which is not caused by manmade, we will send you a new one for free during the guarantee term(but need you help return back the old part).
3. Free training at our factory.
4. will supply you parts at cost price.
5. 24 hours on line service each day, free technique support all lifespan.
our staff can come to your place for training or adjust
