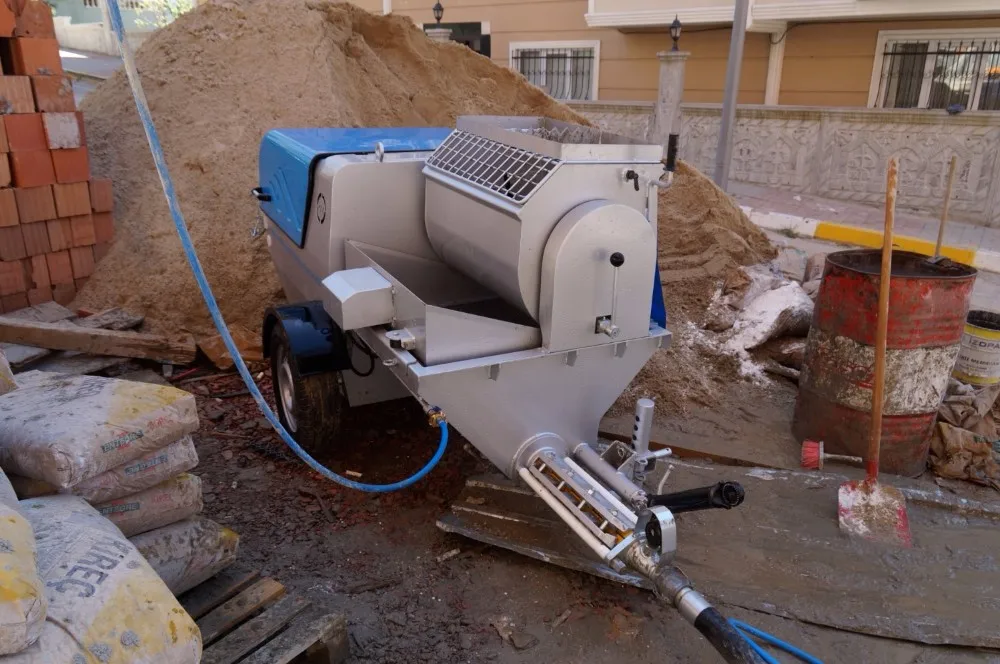

Mortar Pump MM DT20

Product Overview

Description

APPLICATION



√ Pumping Concrete (upto 12 mm)
√ Flowscreed
√ Shotcrete

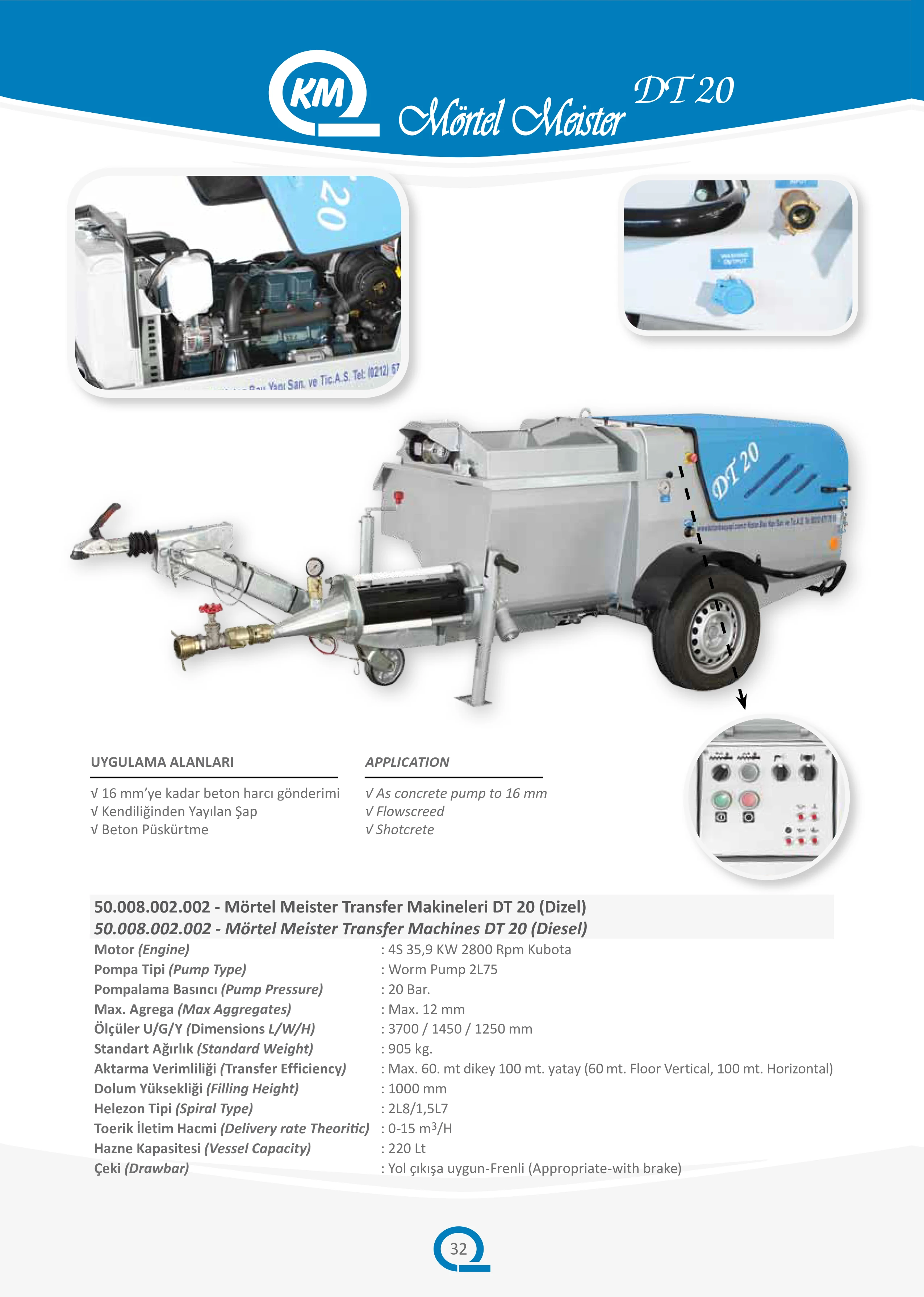

Mortel Meister Transfer Machines DT 20 (Diesel)



Engine : 4S 35,9 KW 2800 Rpm Kubota
Pump Type : Worm Pump 2L75
Pump Pressure : 20 Bar.
Max Aggregates : Max. 12 mm
Dimensions L/W/H : 3700 / 1450 / 1250 mm
Standard Weight : 905 kg.
Transfer Efficiency : 60 mt. Vertical, 100 mt. Horizontal
Loading Height : 1000 mm
Spiral Type : 2L8/1,5L7
Delivery rate Theoritic : 0-15 m3/H
Vessel Capacity : 220 Lt

Drawbar : Suitable for Road Nagivation - with brakes
