AEON mira laser engraving machine for yeti cups with laser wood
- Category: >>>
- Supplier: Shanghai Pomelo Laser Technology Co. Ltd.
Share on (62018422691):
Product Overview
Description
Product Description
AEON Laser Engraving and Cutting Machines
Model: Mira 9060(Class 1 laser)
Features of MIRA9:
1. 5G Acceleration speed,1200mm/sec Scan speed,same as MIRA(5030) and MIRA Plus(7045)
2. Same Clean pack design for dust proof purpose
3. Fully Enclosed Class 1 laser products, with safety lock for each window of the machine,with shield plate on back of every window, key switch for the whole machine.
4. Use tempered Glass for the lid instead of PC, fire resistance grade highly enhanced,
5. Built-in compressor type Chiller, with temperature display, control temperature much more easy, allow to install up to 130W laser tube.
6. Honeycomb and Blade double worktable, cutting and engraving professionally.
7. Rotary installed inside of the machine, connecting more easy.
8. 330W Turbo Blower for top and bottom exhaust, 105W air pump, more powerful exhaust and air.

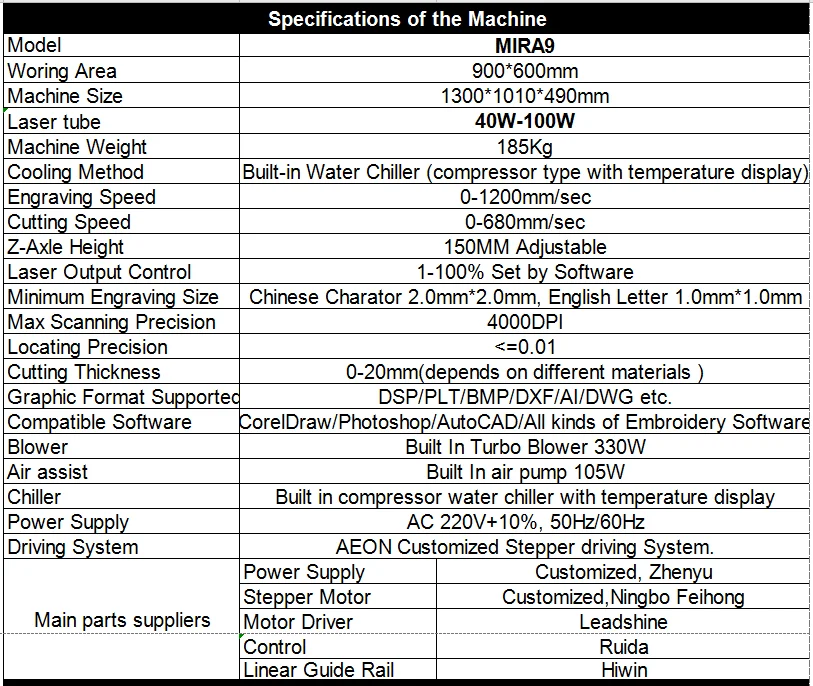

Specifications:
Main Features:
1. All-in-one as all Mira series machines, with exhaust fan,air pump, chiller built inside (Chiller 5000)
2. With double lifting working table,lifting height 100mm;
3. Class 1 laser product--fully sealed,safty locks..
4. With bend tempered glass cover, add Hydraulic supporter to the cover.
5. With Machine power switch key --more suitable for education field
6. Built-in Chiller with visiable water level and temperature contorl panel.
7. Double exhaust fan built in, working table with up/down double side air exhaust.
2. With double lifting working table,lifting height 100mm;
3. Class 1 laser product--fully sealed,safty locks..
4. With bend tempered glass cover, add Hydraulic supporter to the cover.
5. With Machine power switch key --more suitable for education field
6. Built-in Chiller with visiable water level and temperature contorl panel.
7. Double exhaust fan built in, working table with up/down double side air exhaust.
8. Designed built-in air filter--can built in Machine support stands.
9.Clean pack design, protect the linear guide rail from dust,reduce maintainenance frequency effectively
10.5G accelerated Speed, engraving speed upto 1.2meter/Second
11.Ball screw electric up&down table
12.red beam combiner,combine the laser beam with red dot pointer
13.Built in Wifi,connect computer wirelessly
14.Newly designed Autofocus,with installation adjustable
15.Beatiful LED ilumination,offer bright light in dark working environment
10.5G accelerated Speed, engraving speed upto 1.2meter/Second
11.Ball screw electric up&down table
12.red beam combiner,combine the laser beam with red dot pointer
13.Built in Wifi,connect computer wirelessly
14.Newly designed Autofocus,with installation adjustable
15.Beatiful LED ilumination,offer bright light in dark working environment
c02 engraving machine laser 500x300mm for laser engraving machine price
shanghai Aeon c02 engraving machine laser 500x300mm
MIRA SERIES: MIRA5030 / MIRA6040
NOVA SERIES : NOVA7/ NOVA10 / NOVA14 with ball screw motorized up down platform 200mm
VEGA SERIES: VEGA10/VEGA15 /VEGA16X2 double laserhead/VEGA18x2 Feeder NO up down
FLAT SERIES: FLAT 13/ FLAT 15
Normal Red Dot Pointer(free)
Red light beam combination positioning for optional
Ultrasonic Auto Focusing for optional
<<<<<& 24 Hours Online Service & 24 Month Warranty >>>>>
Brief Introduction for laser engraving machine price
AEON Laser Mode adopt the aviation light path system,Special Dustproof Linear Modeule,Its Zero-maintenance for fully optical path,guarantee the smoothness of the light knife moving and high enraving precision.Realize compuer drawing(effect drawing),make all kinds of drawings,characters,graphics context,plenty and normative,cooperate with laser engraving software and make the effect of graphics context perfectly.Large format visual working window,Large processing area,high speed,high precision,smooth cutting edges,narrow cutting slot,easy working procedure,and easy to perate.The laser machine adopts high quality stepper motor,LED lighting for work area,red light positioning function,private patent inside structure.It's compact,layout reasonal,performance stable,and can continuous working for a longtime;Special Dustproof Linear Modeule,X,Y axis of whole machine running speed is very fast,Whole Machine empty travel speed also can reach 90000mm/Min.the light knife moving along

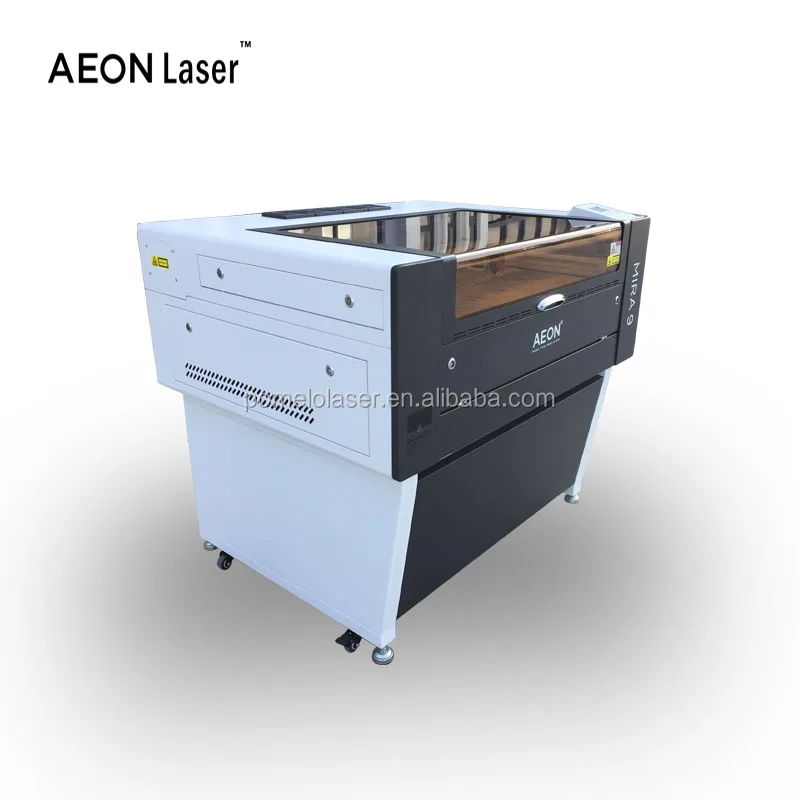

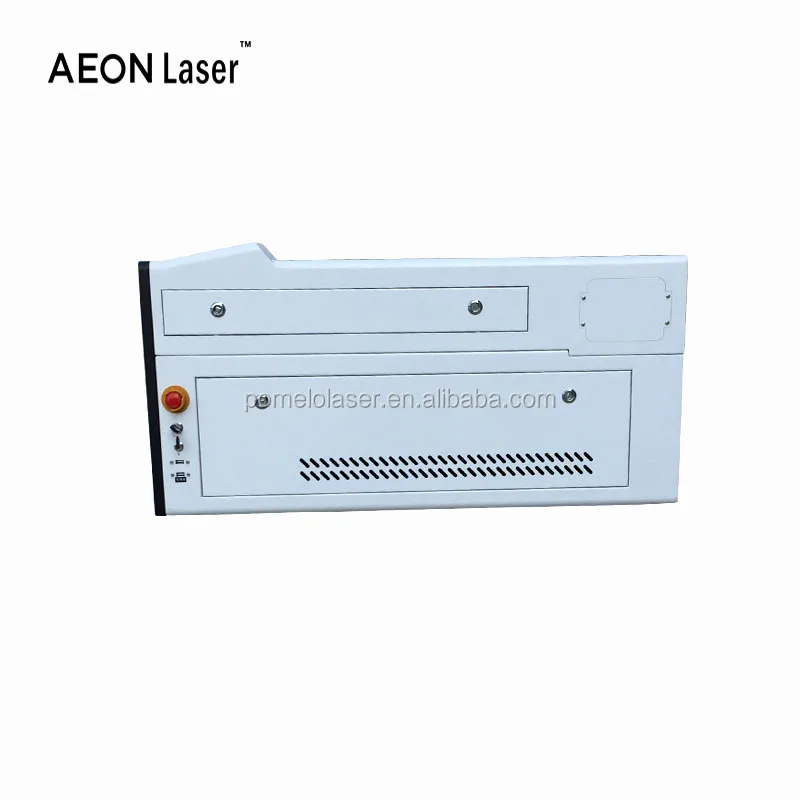

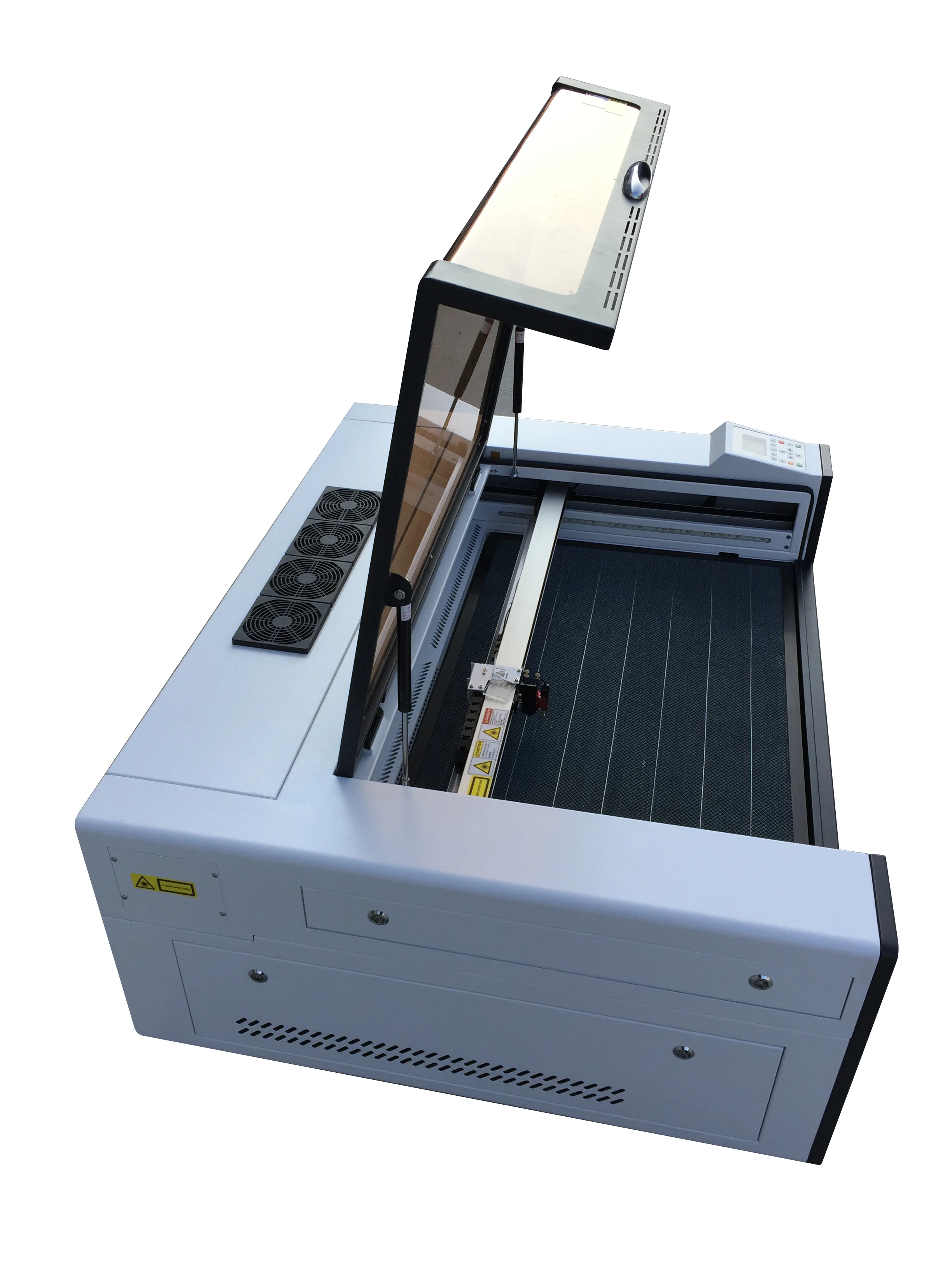

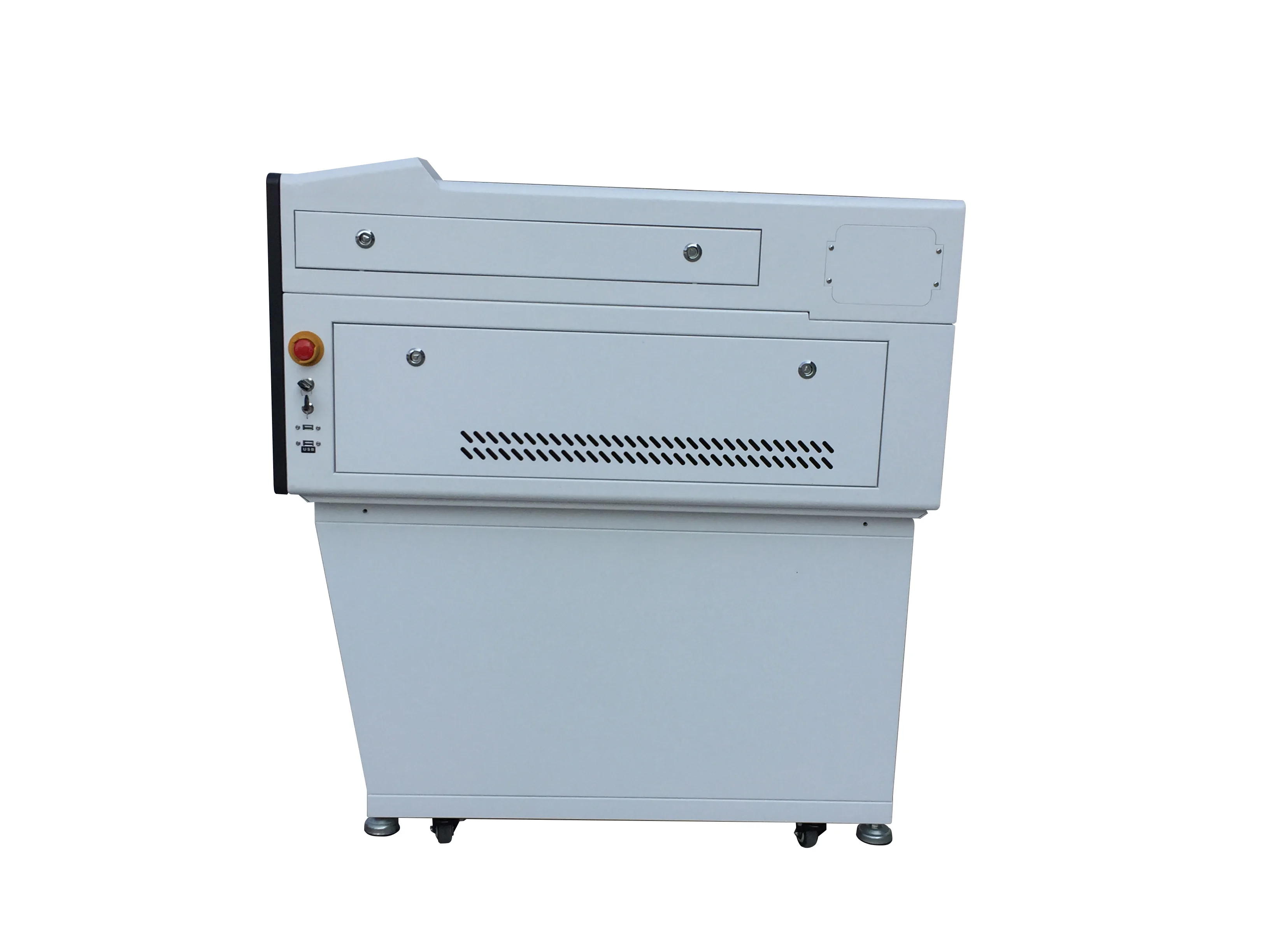

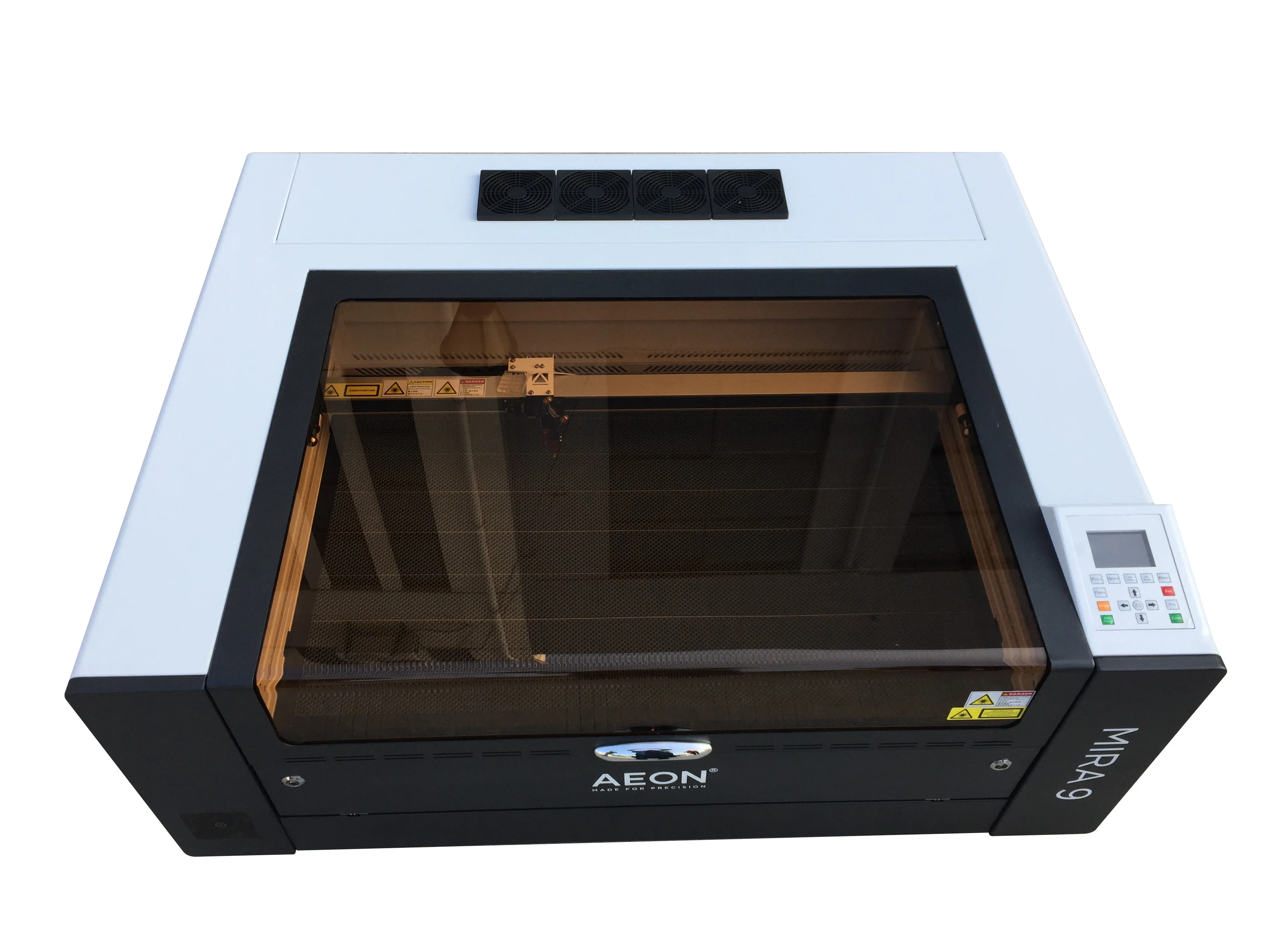

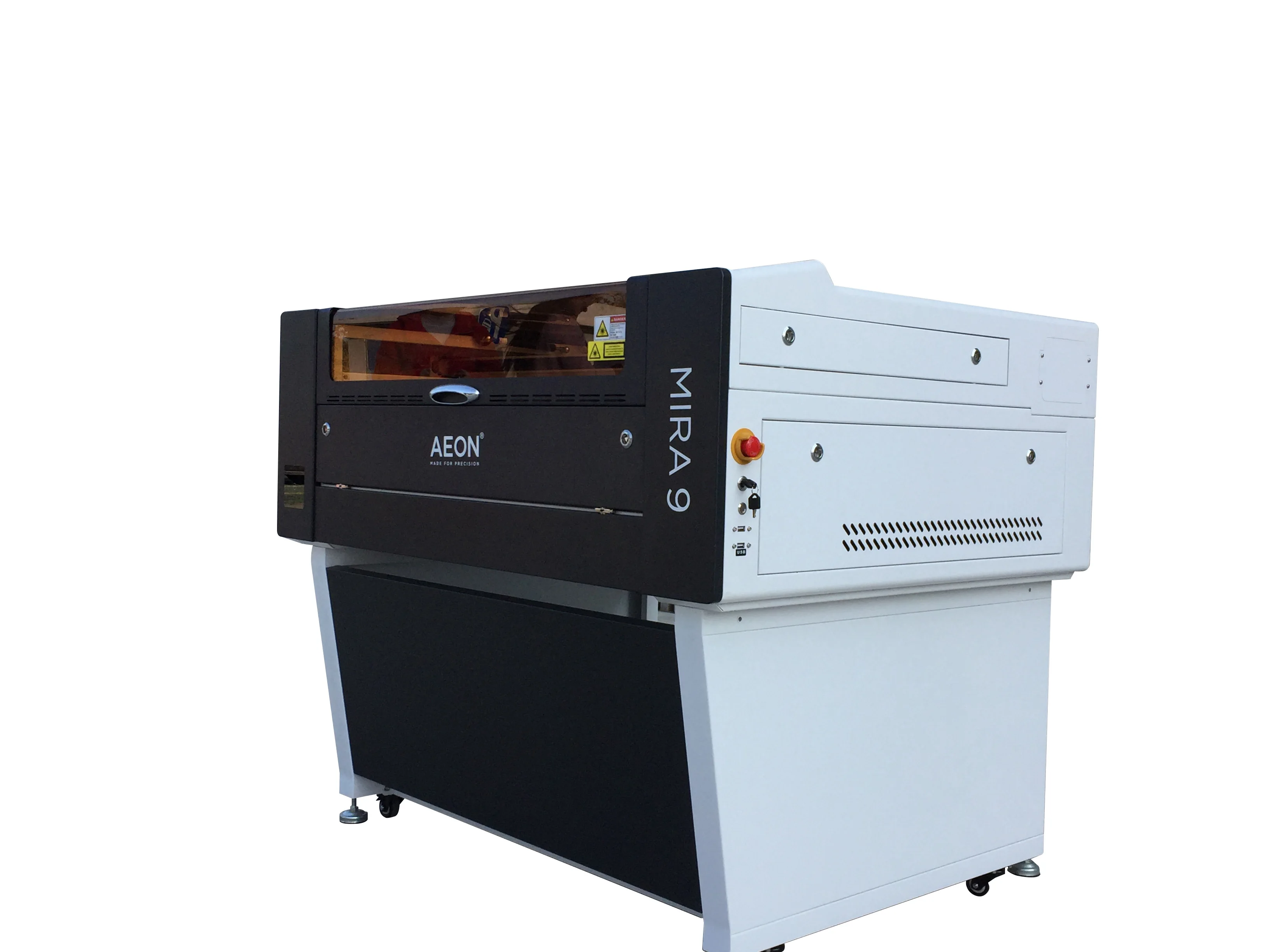

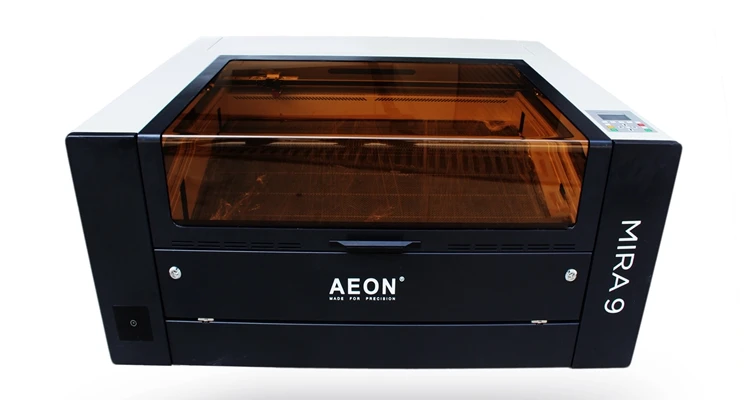

Detailed Images
Application
| Ⅱ.Application Materials for die board laser cutting machine |
Exact materials can be used by Laser Cutter/ CO2 laser engraving and cutting machine / High Quality laser cutting machine / laser engraving machine price / glass engraving tools for hand engravingmachine
c02 engraving machine laser 500x300mm for laser engraving machine price is suitable for Fabric,garment,leather MDF Wood Acrylic and other nonmetal materials'cutting /Engraving/hollowing
| laser engraving machine price available materials | Cut | Engrave |
Acrylic | Plexiglass | PMMA | Perspex | Organic board | Double color plate | √ | √ |
Wood | Plywood | Veneer | MDF | Balsa wood | Bamboo | √ | √ |
Plastic | PP | PET | PC | PS | PES | PA | Plastic Foils&Films | √ | √ |
Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather | √ | √ |
Fabric | Cloth | Textile | √ | √ |
Carpet | Mat | Rug | Wool felt | √ | √ |
Paper | Cardboard | Chipboard | Press board | √ | √ |
Foam&Filter | Mats Polyester (PES) | Polyethylene (PE) | √ | √ |
Stone | Ceramic | Granite | Marble | Natural stone | Pebble stone | Slate | √ | √ |
Rubber stamps | Synthetic & Silicone Rubber | Natural rubber | √ | √ |
Glass | Pressed glass | Float glass | Crystal glass | Mirror glass |
| √ |
laser engraving machinehas been widely used for engraving & cutting on wood, acrylic, PVC plastic, plexiglass, architectural models, rubber plates, bamboo products. For cutting and carving on plexiglass products, acrylic art & crafts panel, wood cutting & carving, advertising materials, easel, packing boxes, models, toys and furniture, etc.
| IV.Technical Specification |
| Model | MIRA | NOVA7 | NOVA10 | NOVA14 | VEGA10 | VEGA15 | VEGA16X2 Doublehead | VEGA18X2Feeder doublehead | FLAT13 | FLAT15 |
| Laser Type | CO2 glass sealed laser tube or RF metal sealed laser tube optional | |||||||||
| Laser Power | 50w / 60w / 80w | 80W/100W/120W/150W/240w/400w | ||||||||
Work platform Size | 50x30cm | 100x70cm | 140x80cm | 100x70cm | 150x80cm | 160x100cm | 160x120cm | 180x120cm | 130x250cm | 150x300 |
| CO2 Laser Engraving Speed | 0~120000mm/min | 0~90000mm/min | ||||||||
| Co2 Laser Cutting Speed | 0~70000mm/min | |||||||||
| Co2 Laser Cutting Thickness | 0-30mm (depends on different materials) | |||||||||
| Worktable | honey-comb | honey-comb + Alumnium Knife Slatted platform | Rolling feeding table | Alumnium Knife Slatted platform | ||||||
| motorized up down table | 120mm | 200mm | 200mm | 200mm | None | |||||
| Precision positioning | ≤±0.025mm | |||||||||
| Graphic format | The Files which CorelDraw, Photoshop, AutoCAD can identif,(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT, CLK,DEX, CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) | |||||||||
| Working temperature | 0 - 45°C | |||||||||
| Motor type | Stepper Motor | |||||||||
| Working voltage | AC110- 220V±10%, 50-60Hz | |||||||||
| Water Cooling | built-in water cooling and blower
| Industry Water chiller | ||||||||
| System Environment | Windows 2000 | Windows XP | Windows Vista | Windows 7| Windows 8 | |||||||||
G.W | 30kgs | 280kgs | 380kgs | 420kgs | 380kgs | 450kgs | 480kgs | 550kgs | 800kgs | 800kgs |
Optional Spare Parts | 1.Auxiliary Rotary Device 2.Red light beam combination positioning for optional 3.Ultrasonic Auto Focusing for optional 4. Servo Motor 5.Precision Ball Screw Motorized up and down platform 6.Industrial ChillerCW3000/CW5000/CW5200 7. Industrial CCD Camera 8. Rolling feeding table 9.5000hrs Ordinary Co2 Laser Tube for 100w/130w/150w 10000hrs Reci Longlife Co2 laser Tube for 100w/130w/150w RF metal tube | |||||||||
CO2 laser cutting machine
Youtube Channel Link: https://www.youtube.com/channel/UCH4ZCffagnAgR11tazqga4A/
| V.Standard Accessories/Packing List |
♦ 1× laser engraving machine price |
♦ 1× Honeycomb table + Aluminum knife blades worktable (Double work table) |
♦ 1× Ordinary 80w Co2 Sealed Laser Tube For SpanLife 4000hrs |
♦ Red Dot Pointer Function (free) |
♦ 1× Air compressor + 1× Exhaust blower + 1×Smoke pipe + 1× Water pump + 1× Water pipe |
♦ 1× USB cable (Connecting pc and machine) |
♦ 1× CD (Including PHCAD operating software, user-friendly instruction manual, some guiding videos.) |
♦ 1× Power cable |
♦ 1× Tool box (Wrench) |
♦ 1× Aeon Laser User Manual for c02 engraving machine laser 500x300mm |
| VI.Optional Accessories |
Ultrasonic Auto Focusing for optional -- adjust the working platform and workpiece to a suitable space automatically
Z axis-(up down working table)-suitable for thickness of workpiece 's processing
Rolling feeding table --(For long fabric or leather rolls, Suit for fabric/leather/ Flexible material )
Industrial CCD Camera-- ( for automatic fabric/logo cutting)
Water Chiller--- (make laser tube longer lifetime)
| ♦Ultrasonic Auto Focusing |
| ♦Industry CCD Camera |
| ♦Ball Screw Motorized up and down platform |
| ♦Rotary device |
| ♦Water Chiller CW3000/CW5000/CW5200 |
| ♦ Servo Motor |
| ♦ 10000hrs Reci Longlife Co2 laser Tube for 100w/130w/150w |
| ♦ 5000hrs Ordinary Co2 Laser Tube for 100w/130w/150w |
| ♦ RF metal tube |
| ♦ Rolling Feeding Table (For long fabric or leather rolls) |
FAQ
Packaging & Shipping
After-Sales Service
Warranty and After sale service for laser engraving machine price
Installation of your products.
- Unlimited support for trained persons via telephone, email and fax.
- Full operator training.
- Routine machine maintenance training.
- Full training on the supplied laser software.
- 12 or 24 months warranty, depending on your machine.
we seek distributors of c02 engraving machine laser 500x300mm
1) 2 years warranty for laser machine.
2) 3 years warranty for linear Module.
3) Engineers available to service machinery overseas
4) Free installation and test before sending and free training for operators.
5) Advice the best solutions for customers requirements.
6) Free training and sample provided.
7) 24 hours technical support by phone,e-mail,or video
8) All process should be supervised under inspection department,the finished machine should be adapted to best station before packed.
9) (Use-friendly English software,user manual and guiding Video )in DVD delivered with the machine.
| VIII.Why choose Aeon Laser? |
Why choose Shanghai AEON laser engraving machine price ?
| 1) Unique simple beautiful-looking appearance,Strong Frame Structure,Large format visual working window. |
2) Unique H class Totally Closed Dustproof Optical Linear Module,High precision and high speed. we keep warranty 3years for this linear Module. |
| 3) X,Y axis of whole machine running speed is very fast,Whole Machine empty travel speed also can reach 90000mm/Min. |
4) Laser cutting surface is smooth and beautiful, and even can be used as a machining process, without machining, the parts can be used directly. |
5) As non-contact processing, after laser machine cutting, heat-affected zone is very small, and the deformation of the work piece, high precision, and greatly improved the quality of the product. |
| 6) Friendly environment, low noise and low pollution. |
| 7) R&D department has 8 years in laser industry, we are able to provide deft design machines. |
| 8) We are manufacturer capable of providing after-sale services. Send us inquiry to get a equipment service clause. |
| 9) We are CE approved factory who can supply quality products. |
| 10) We can deliver the machinery to your place. All you need is providing us your address in the inquiry. |
11) Various models for your selection working area with 300*500mm 700*500mm/1000*700mm /1400*900mm/1500*800mm/1300*2500mm, 40w/50w/60w/80w100w/130w/150w/200w/400w,RF Metal tube |
Company Information
We always pay more attention to the working quality of our laser engraving machine price ,if you want samples,welcome to send to us to test,and welcome to visit our factory in Shanghai China.
