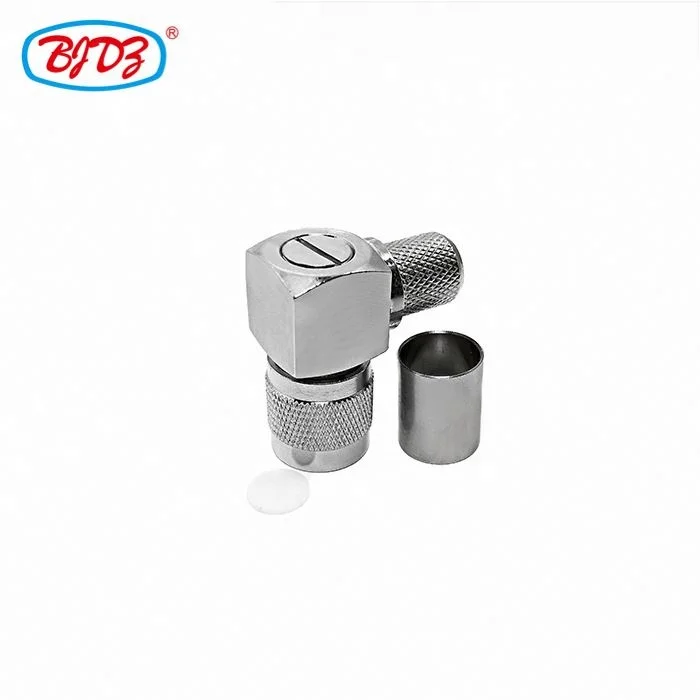

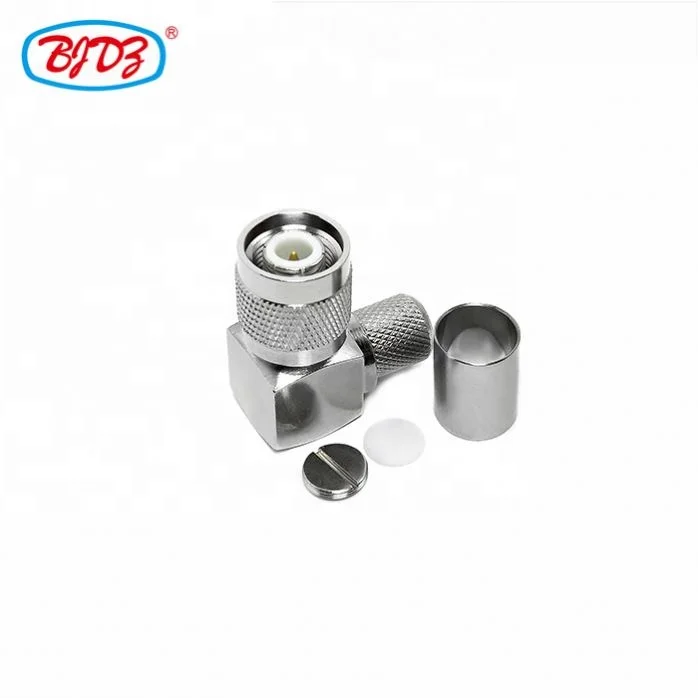

Manufacturer supply Wholesale TNC Male 90 degree crimp TNC plug male connector for LMR400 RG8 RG8 RF Coax Coaxial connector
- Category: >>>
- Supplier: Zhenjiang Binjiang Electronic Co. Ltd.
Share on (62018487125):
Product Overview
Description
Product Description
high quality crimp right angle elbow TNC plug male connector for LMR400 RG8 RG8
1. We focus on the manufacturing of rf connectors, adaptors, cables since 1991
2. Low VSWR up to high frequency
3. Waterproof and air proof
4. Mating with many applications
5. Low price and high quality
6. Various kinds, can meet your diversified purchase need
7. We keep developing new models, if our present products are not suitable for you, we can also customize for you!
Electric parameter
high quality crimp right angle elbow TNC plug male connector for LMR400 RG8 RG8 | ||
Temperature Range | -55~+155°C (PE Cable -40~+85°C) | |
Impedance | 75Ω | |
Frequency Range | DC-11GHz | |
Insertion Loss | less than or equal to 0.24dB/6GHz | |
Withstanding Voltage | 1500V r.m.s at sea level | |
Working Voltage | 500Vr.m.s at sea level | |
Insulation Resistance | ≥ 5000 MΩ | |
Durability | ||
Contact resistance: | CenterContact ≤ 10mΩ | |
Outer Contact ≤ 2.5mΩ | ||
Voltage Standing Wave Ratio: | Straight | ≤ 1.22/3GHz |
Right angle | ≤ 1.30/3GHz | |
Material & Plating
Body | Brass | Nickel plated / Alloy plated |
Inner Pin | Brass | Gold plated |
Resilient Contact | Beryllium Copper | Gold plated |
Socket Contact | Beryllium or tin bronze | Gold plated |
Insulator | PTFE | |
Crimp Ferrule | Copper alloy | Nickel / Gold plated |
O-ring sealing | Silicone Rubber | |

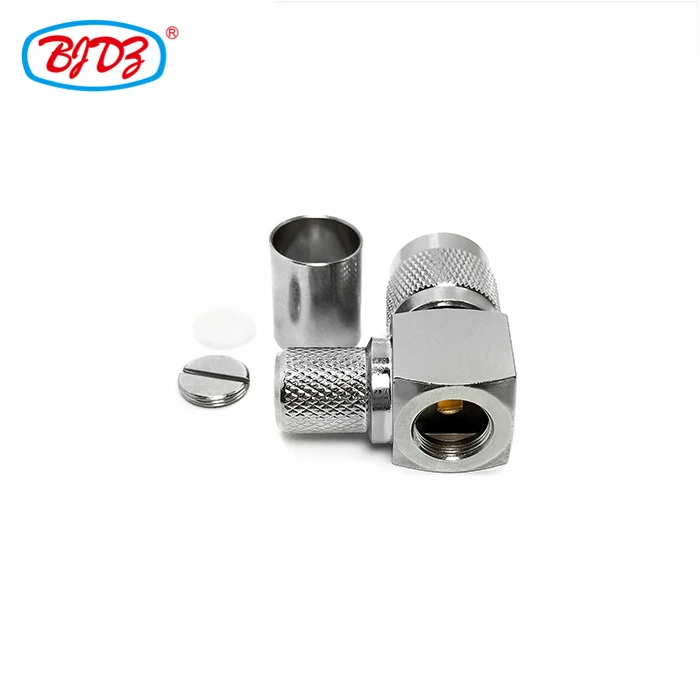

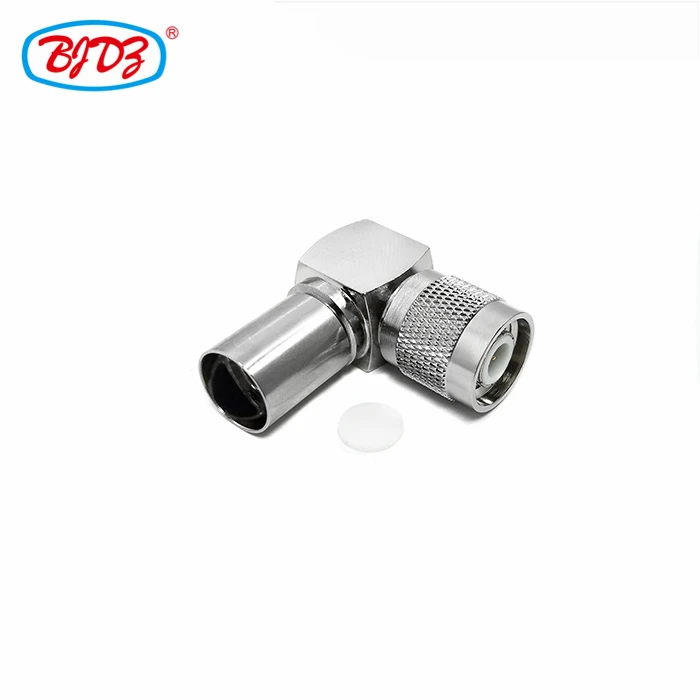

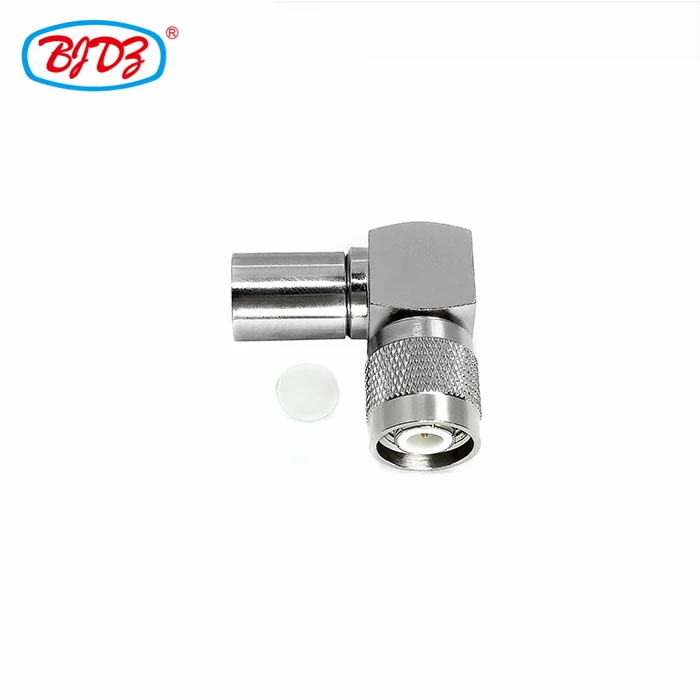

high quality crimp right angle elbow TNC plug male connector for LMR400 RG8 RG8
TNC Male crimp rf connector for LMR 400
TNC male crimp connector for cable LMR400
connector TNC male for LMR400
1. Are you factory or trading company?
Minna: Factory! We focused on manufacturing rf connectors since 1991!
2. How long is your delivery?
Minna: If we have stock, we can ship out immediately. Otherwise, we need 3-7days to produce depend on your quantity.
3. What's your MOQ?
Minna: Our stock product no need MOQ, if have to produce, our MOQ is 100PCS.
4. Can you send sample for us to test?
Minna: YES! Why not?
5. What payment term can you accept?
Minna: Paypal, western union, alipay, T/T, etc.
6. Can you customize for us?
Minna: Yes, we can do ODM / OEM. Just talk with us !
high quality crimp right angle elbow TNC plug male connector for LMR400 RG8 RG8
