CTGRAIN 50TPD Fully Automatic Atta Chakki flour mill

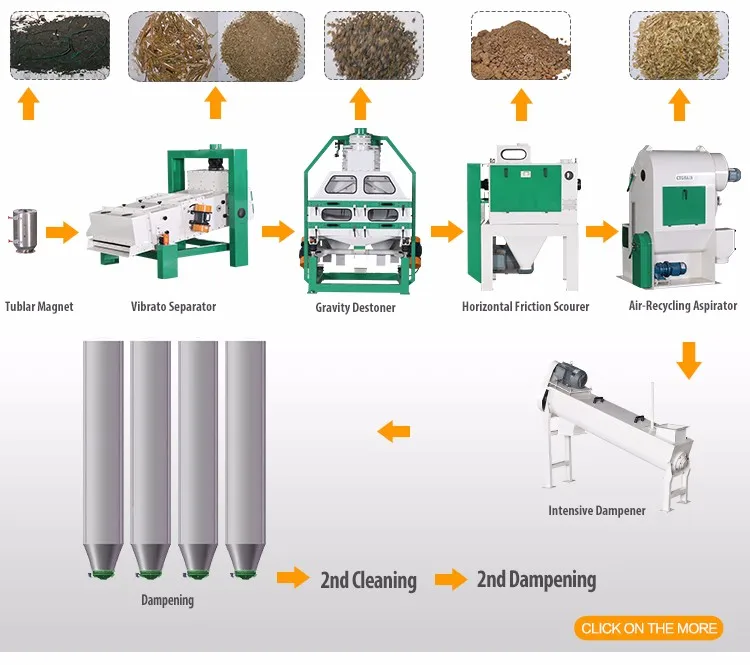

CLEANING SECTION

In the cleaning section, we adopt drying type cleaning technology. It normally includes 2 times sifting, 2 times scouring, 2 times de-stoning, one time purifying, 4 times aspiration, 1 to 2 times dampening, 3 times magnetic separation and so on. In the cleaning section, there are several aspiration systems which can reduce the dust spray-out from the machine and keep a good working environment.This is a complicated thorough flow sheet which can remove most of the coarse offal, middle size offal and fine offal in the wheat. The cleaning section is not only suitable for wheat imported with lower moisture and but also suitable dirty wheat from local customers.

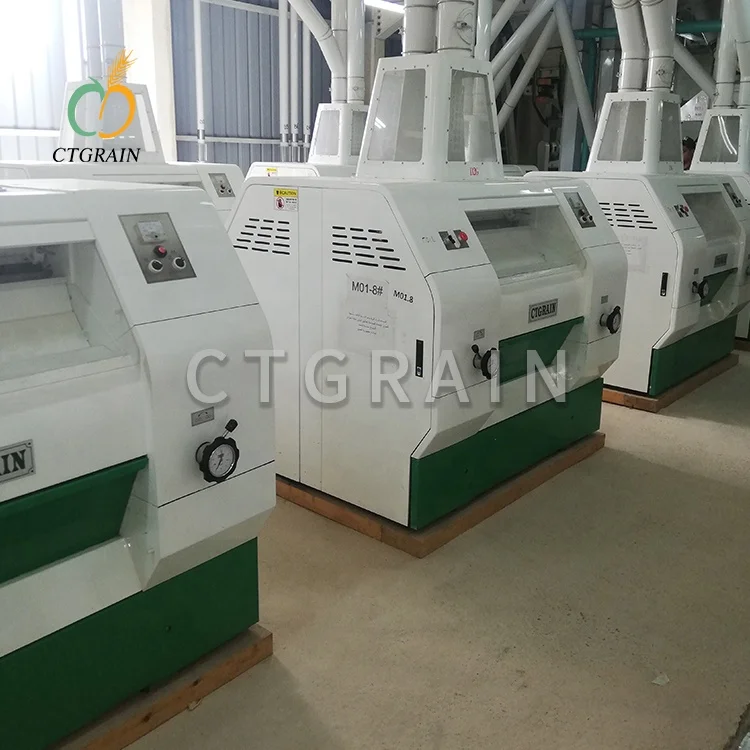

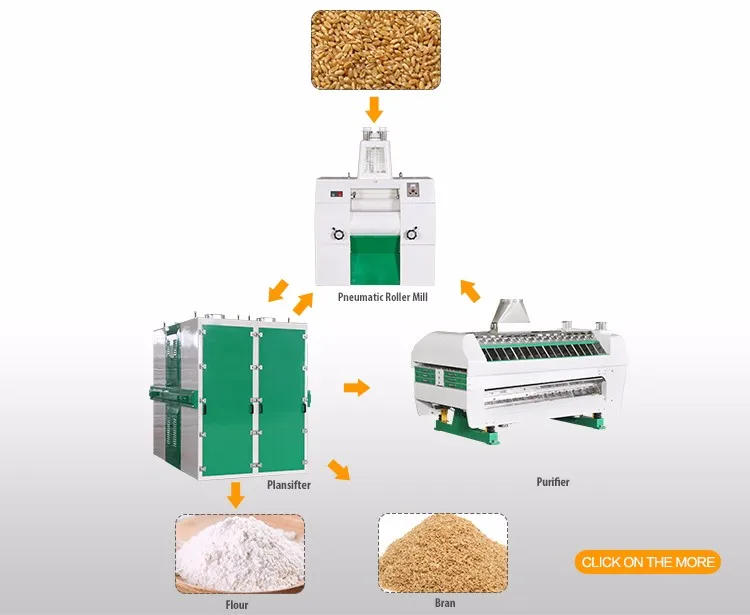

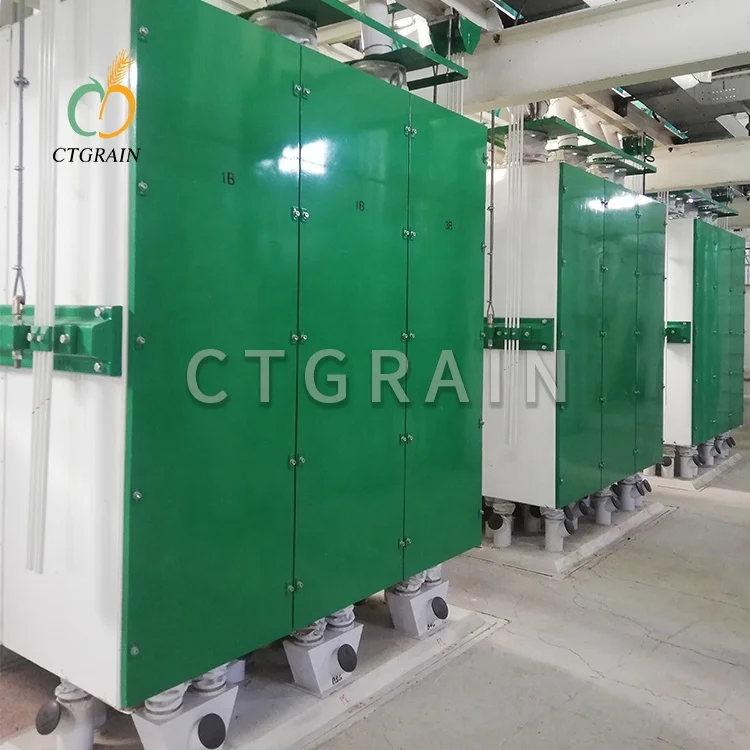

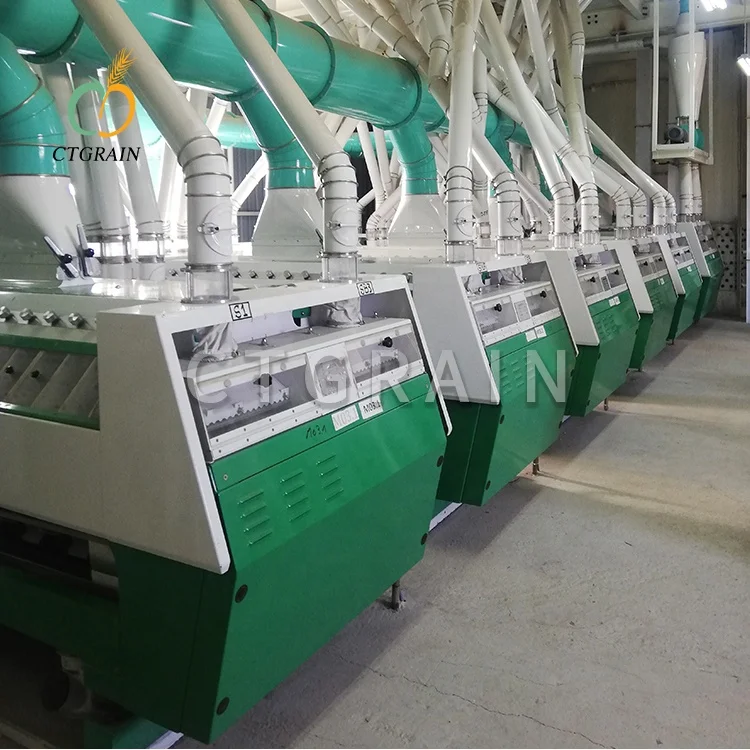

MILLING SECTION

In the milling section, there are four types of systems to mill the wheat to flour. They are 4-Break system, 7-Reduction system,1-Semolina system and 1-Tail system. Purifiers are specially designed to get more pure semolina sent to the Reduction which improves the flour quality by a large margin. The rollers for Reduction, Semolina, and Tail systems are smooth rollers which are well blasted. The whole design will insure less bran mixed into the bran and the flour yield is maximized.  Because the well designed pneumatic lifting system, the whole mill material is transferred by High pressure fan. The milling room will be clean and sanitary for aspiration adoption.

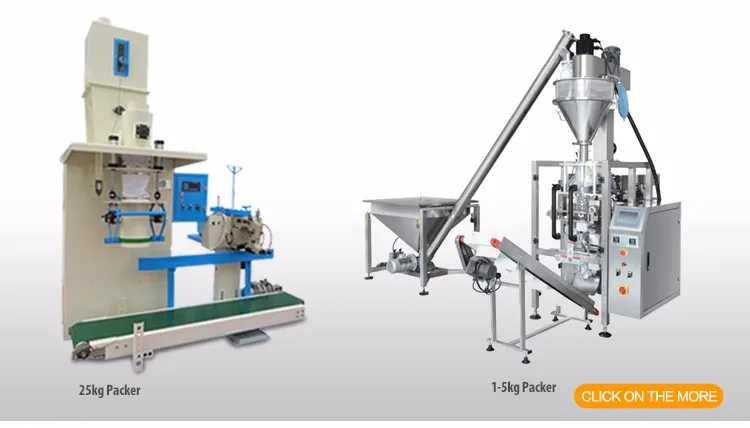

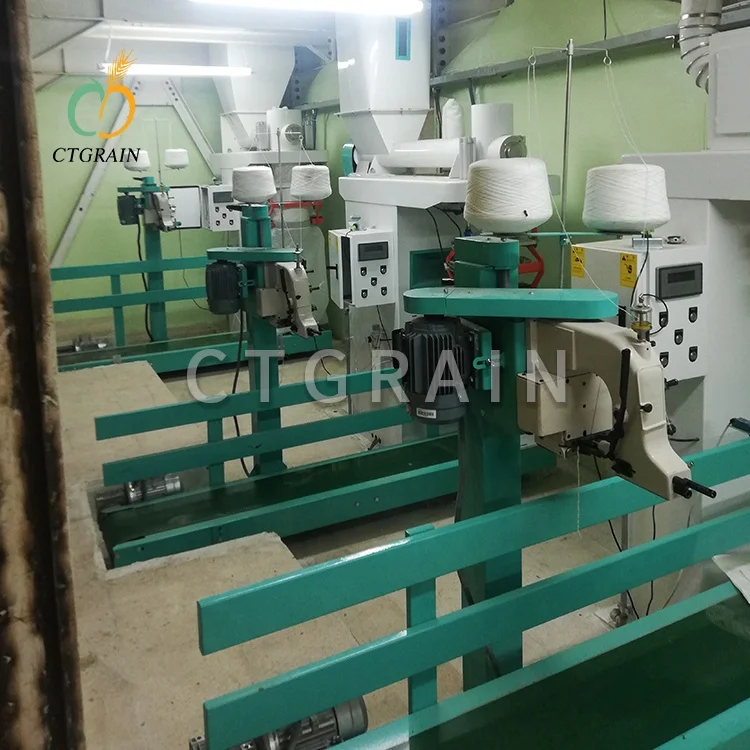

Packing Section

All the packing machines are automatic.The  packing machine has features of high measuring accuracy, fast packing speed, reliable and stable working. It can weigh and count automatically, and it can accumulate weight. The packing machine has  function of fault self-diagnosis. Itssewing machine has automatic

sewing and cutting function. The packing machine is with sealed type bag-clamping mechanism, whih can \\prevent material from leaking out.The packing specification includes 1-5kg,2.5-10kg,20-25kg,30-50kg.The clients  can choose  different  packing specification according to requirements.

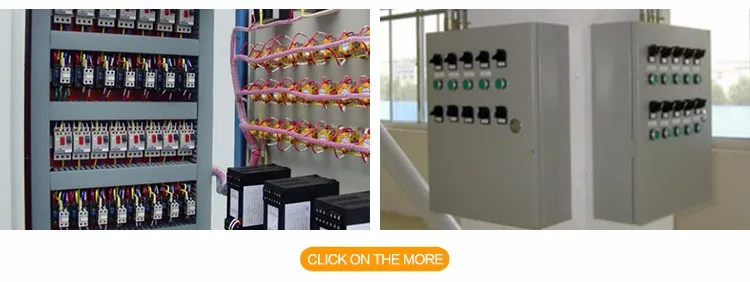

Electrical control and management

In this part, we will supply electrical control cabinet, signal cable, cable trays and cable ladders, and other electrical installation parts. The substation and motor power cable is not included except customer specially required.PLC control system is an optional choice for customer. In PLC control system, all the machinery is controlled by Programmed Logical Controller which can insure the machinery running stably and fluently. The system will make some judgments and do reaction accordingly when any machine is in fault or stopped abnormally. In the same time it will alarm and remind the operator to settle the faults.Schneider series electrical parts are used in out electrical cabinet. The PLC brand will be Siemens, Omron, Mitsubishi and other International Brand. The combination of a good designing and reliable electrical parts insures the whole mill running smoothly.

Project installation: we have professional electrical and mechanical project installation team. The display of the equipment is neat, reasonable, beautiful, generous, and easy maintenance. The commissioning is carried out under the guidance of experienced experts and professors on the spot. The test can be successful by one time commissioning, and can totally meet or exceed the design specifications and requirements.

Our machinery are widely used in many domestic users. And our turn-key projects and single equipment were exported to Thailand, Burma, Australia, Sri Lanka, Italy, Germany, Chile, Argentina, Brazil, Ukraine and other more than 20 countries and regions. Many clients around the world have visited our company on business.We warmly welcome clients and supplied excellent solutions with best quality equipment and technical services, and we received high recognition from them.

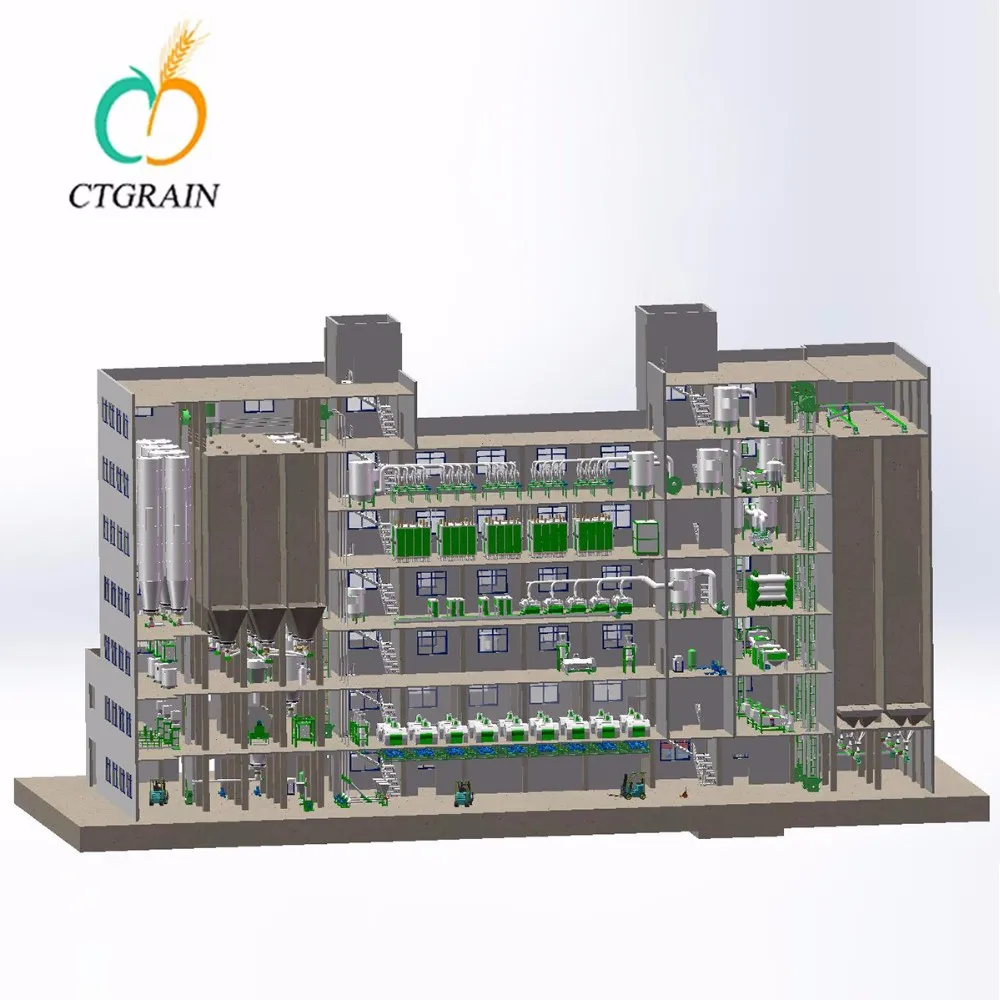

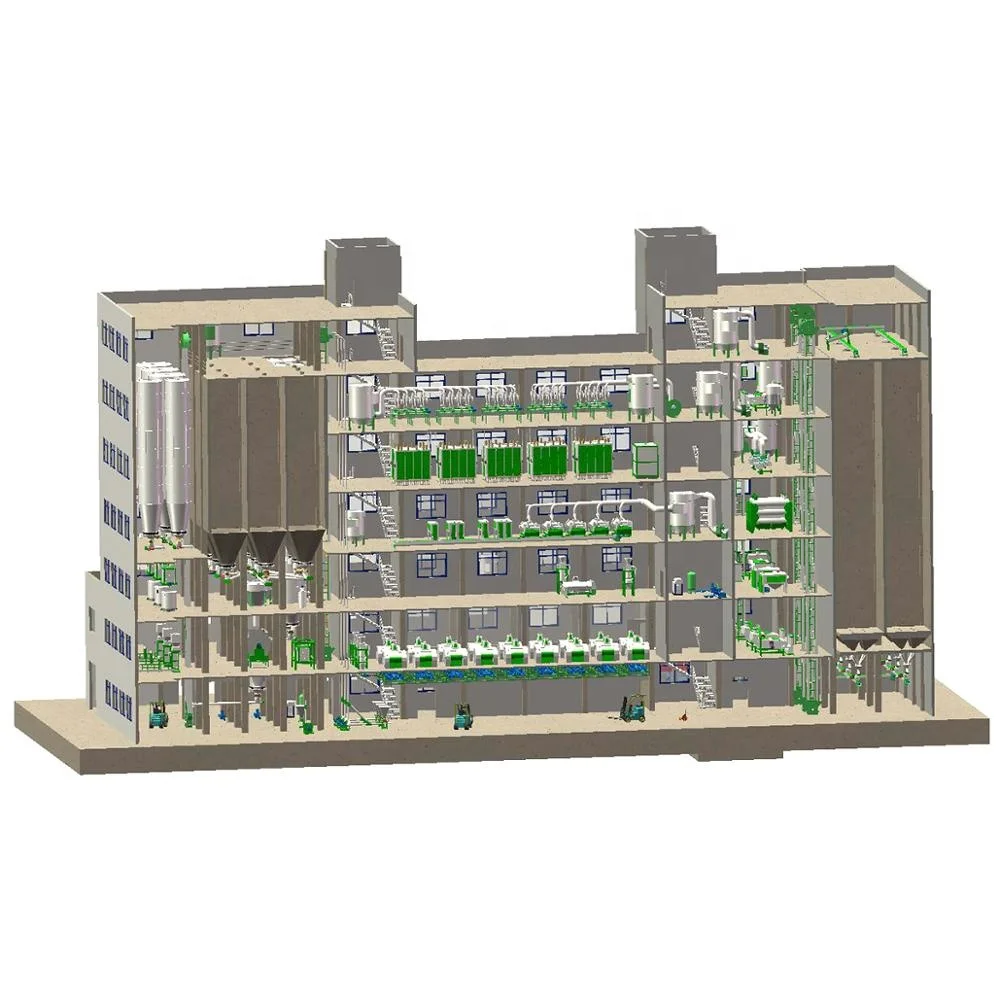

The company has a strong technical force, with more than 20 engineers and technicians who are specialized in flour, electric, automatic control computer and so on.The products have passed ISO9001:2000 international quality manage-ment system, European Union CE quality certification and other international quality management system certification.It also has obtained Henan Province Science and Technology Type Sme Certification , National High-tech Enterprise Certification and 7 national invention patent certificates.The company can provide a turn-key project design, including the flowchart drawing design, electrical and automatic control design, architectural planning a.These designs all get CAD computer aided design. Detailed drawing materials, advanced tool and rapid design can supply the client the best choice.

1.Q: Are you the manufacturer?
A :Yes, We are a professional flour milling machine manufacturers.
2.Q :Will you help to install the machines?
A :Yes, our engineers can indicate installation,test running, and training local operators. Engineers available to service machinery overseas after-sales Service
3.Q : Do you accept small order?
A : Yes,We accept small order , the MOQ is 1.
4.Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer) and L/C to finish the payment.
5.Q: What's the warranty time?
A: Our warranty time is 12 months, so you can trust us and the quality of our machine.
