New geosynthetic material of compound geocloth

Share on (62018527372):


Price:$2.04 - $2.06

Quantity:


Product Overview

Description


Product Description

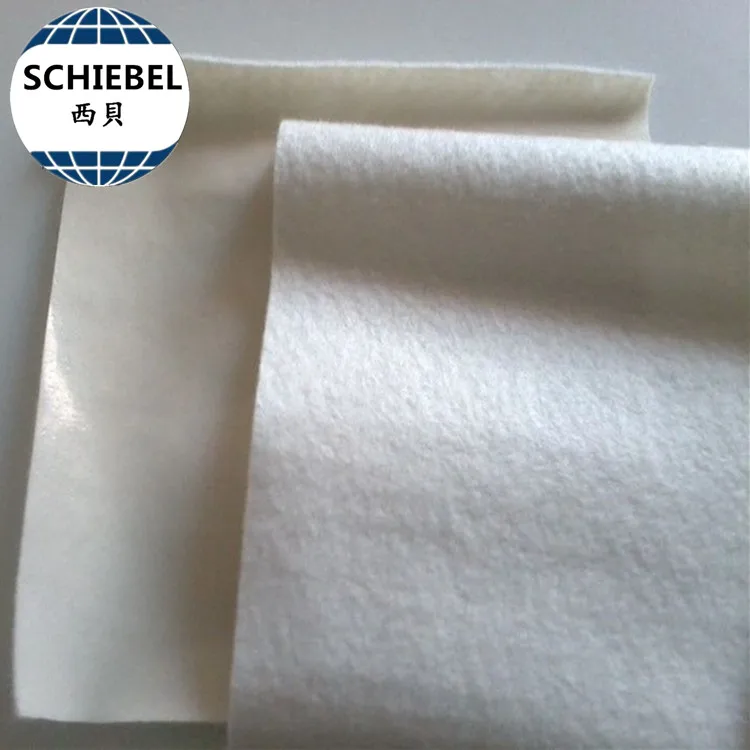

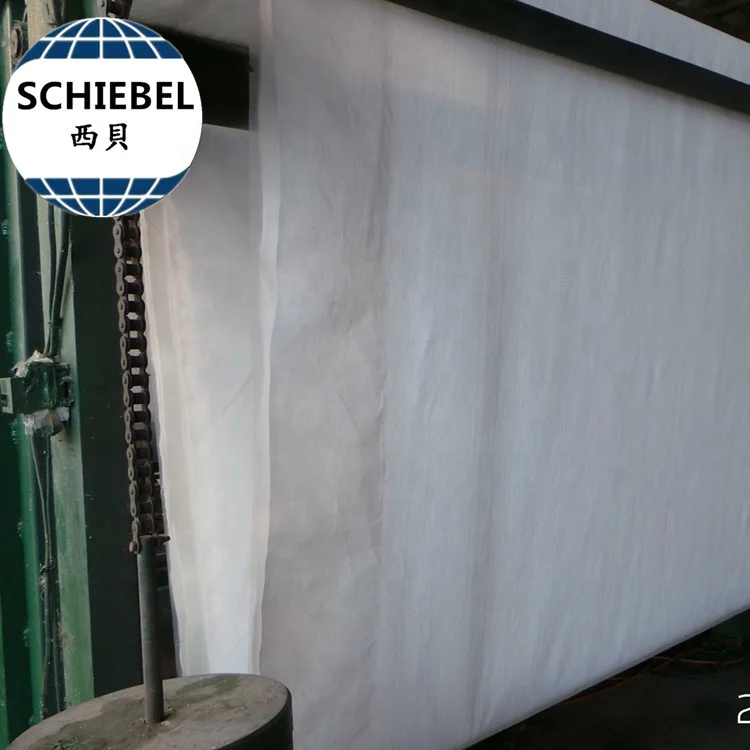

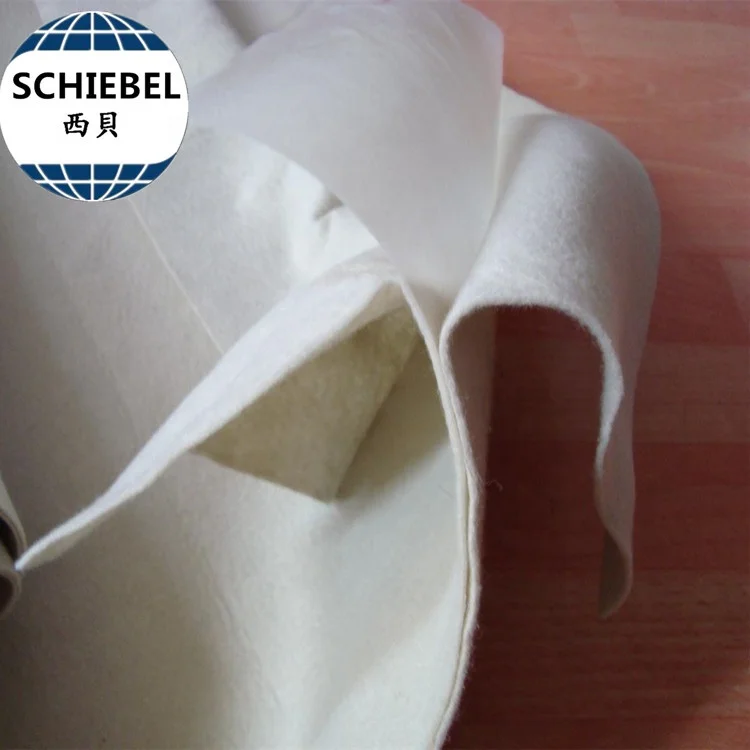

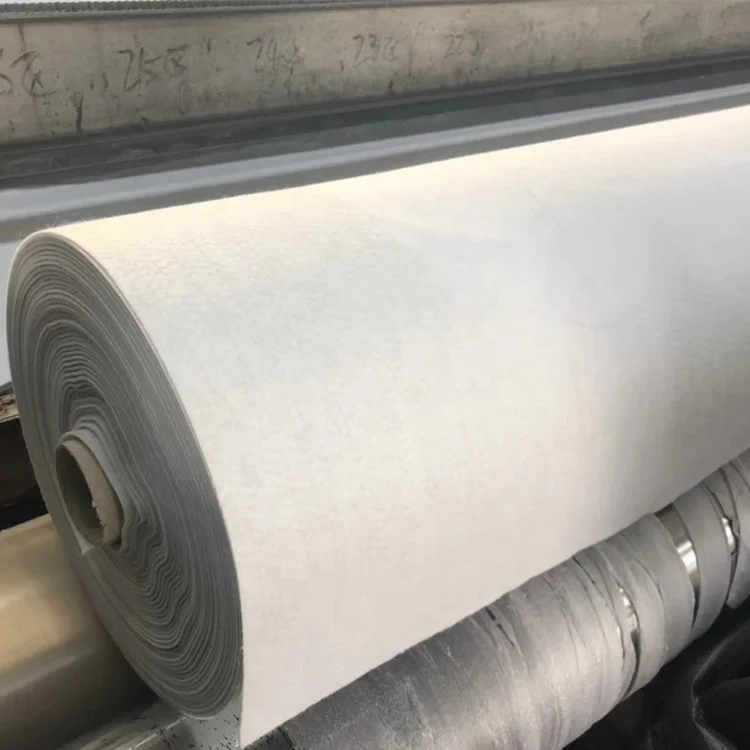

Compound Geomembrane is made of geotextile and geomembrane composed of impermeable material, which is mainly used for seepage control, composite geomembrane is divided into a geotextile a film, a film and two geotextile.other physical and mechanical properties of high indicators, to meet the water conservancy, municipal, construction, transportation, subway, tunnel and other civil engineering needs. Because of its choice of polymer materials and the production process to add anti-aging agent, it can be used in non-conventional temperature environment.
Compound Geomembrane Specification:
(1).Width: 4m~6m, length is at your request.
(2).Mass per unit area: 400g/m2~1200g/m2
(3). Color: white and black
Compound Geomembrane Property:
(1).Good flexibility
(2).Separation, reinforcement and protection
(3).Waterproofing
Compound Geomembrane Application:
Commonly used in the dam, drainage ditch of the anti-seepage treatment, and waste field anti-fouling treatment.

P.S.: As the protective layer of the geomembrane, the geotextile protects the impermeable layer from damage.In order to reduce the ultraviolet radiation and increase the anti-aging performance, it is better to adopt embedding method.

\t
                                                             Technical Parameters of compound geomembrane
\t
  Product weight, G/M2
\t
400
\t
500
\t
600
\t
700
\t
800
\t
900
\t
1000
\t




SPEC
\t
1 layer geotextile+1 layer membrane
\t

150/0.25
\t

200/0.3
\t

300/0.3
\t

300/0.4
\t

300/0.5
\t

400/0.5
\t

400/0.6
\t
2 layer geotextile+1 layer membrane
\t

100/0.2/100
\t

100/0.3/
100
\t

150/0.3/
150
\t

200/0.3/200
\t

200/0.4/200
\t

200/0.5/200
\t

250/0.5/250
\t
Breaking strength,kN/m
\t
5.0
\t
7.5
\t
10.0
\t
12.0
\t
14.0
\t
16.0
\t
18.0
\t
Elongation at break,%
\t
                                                            300~100
\t
CBR Mullen burst strength , KN
\t
1.1
\t
1.5
\t
1.9
\t
2.2
\t
2.5
\t
2.8
\t
3.0
\t
Vertical permeability coefficient, CM/S
\t
                                                               K*10-11~13
\t
Hydraulic pressure, MPa
\t
                   0.4~0.6
\t
                   0.6~1.0

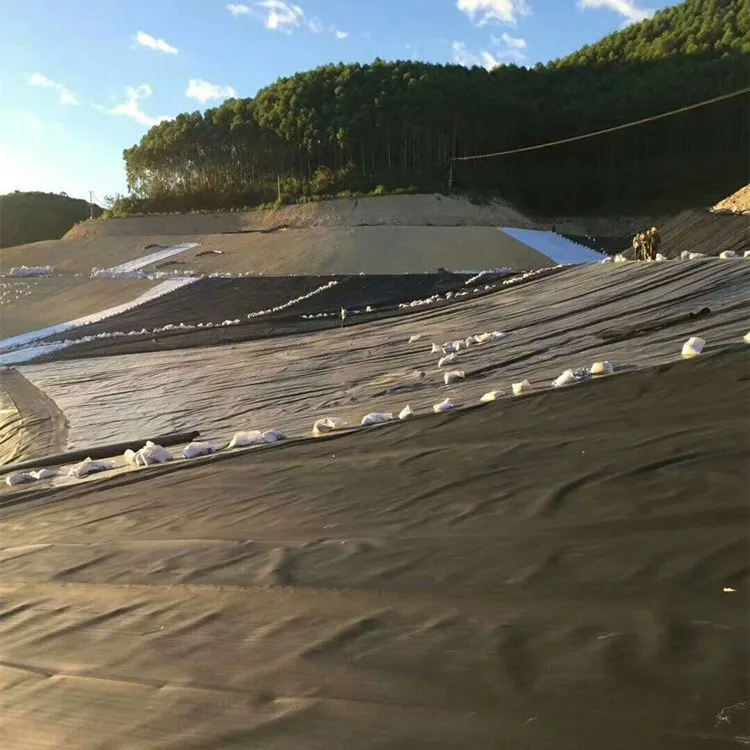

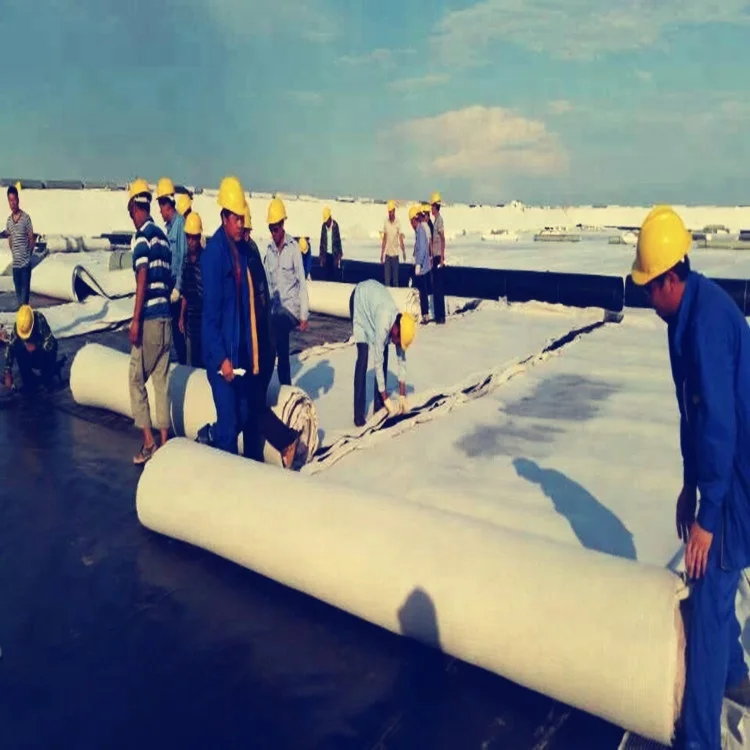

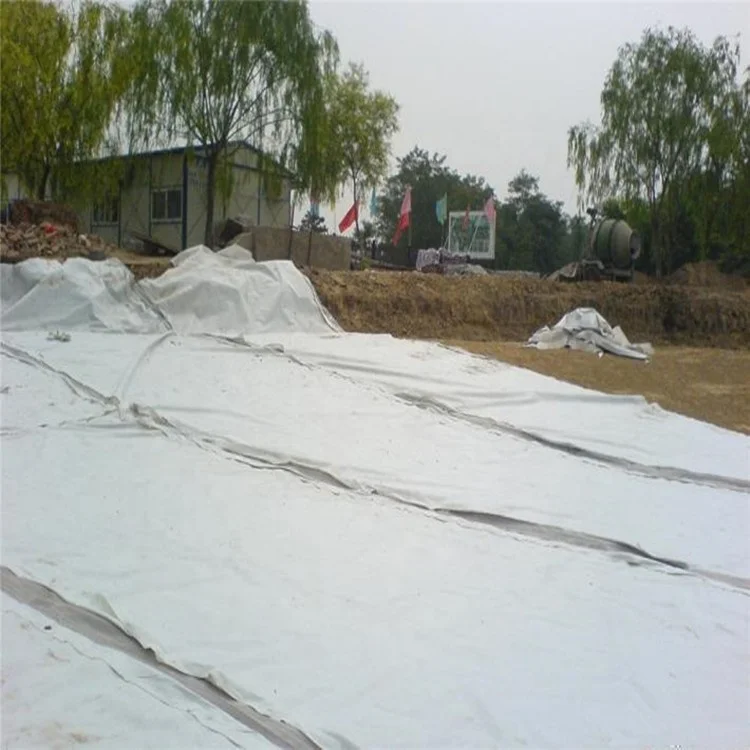

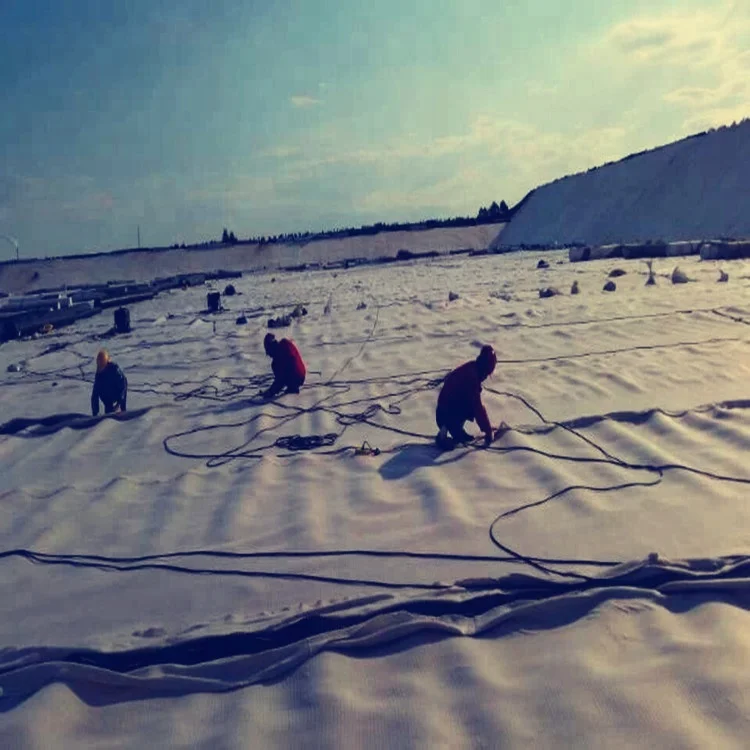

Application

      Artifical lake


         The lotus pool


   Refuse landfill

Packing & Delivery
