2MP 1/2 inch Image Sensor 1080P60 HD MI Video Microscope For Industrial Inspection Industrial Camera VMS2M35 MW B101B
- Category: >>>
- Supplier: Shenzhen Raysmart Technology Co. Ltd.
Share on (62018619176):
Product Overview
Description

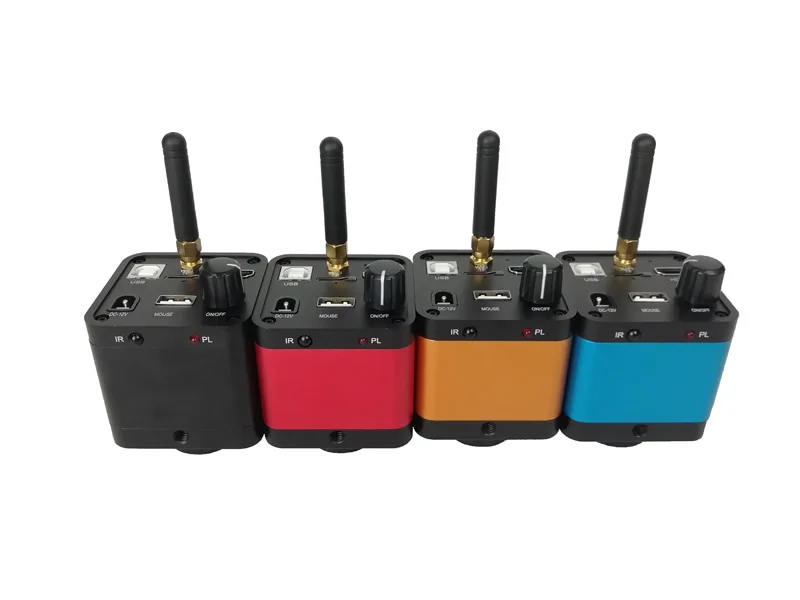

2MP 1/2 inch Image Sensor 1080P60 HD MI Video Microscope For Industrial Inspection Industrial Camera VMS2M35-MW+B101B
Specifications

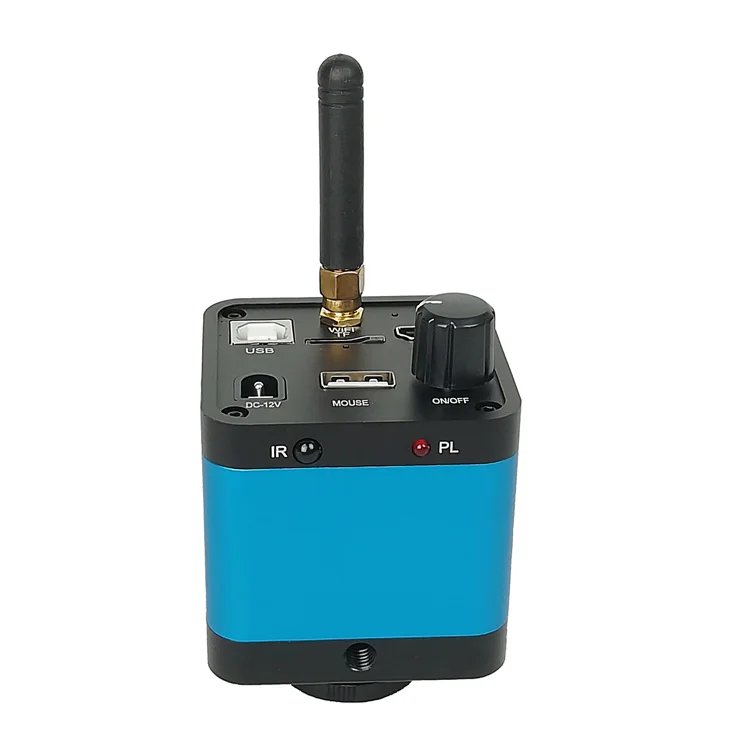

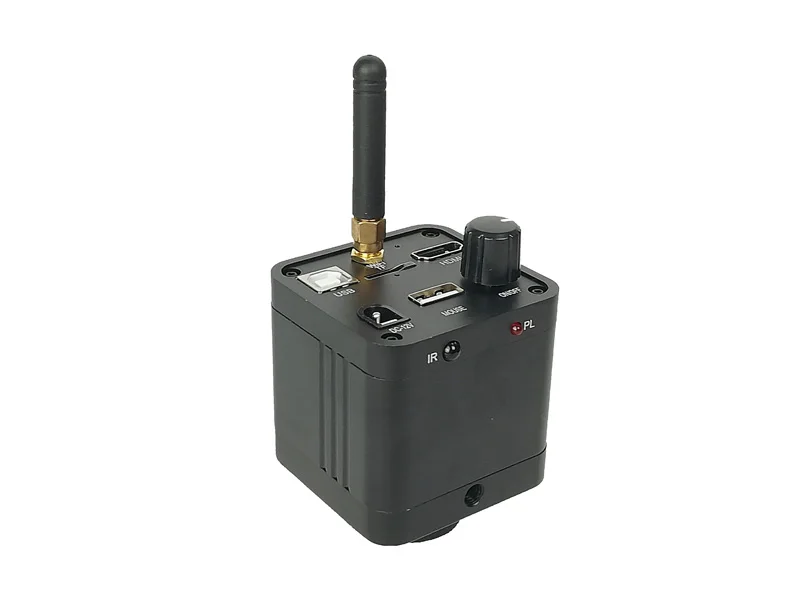

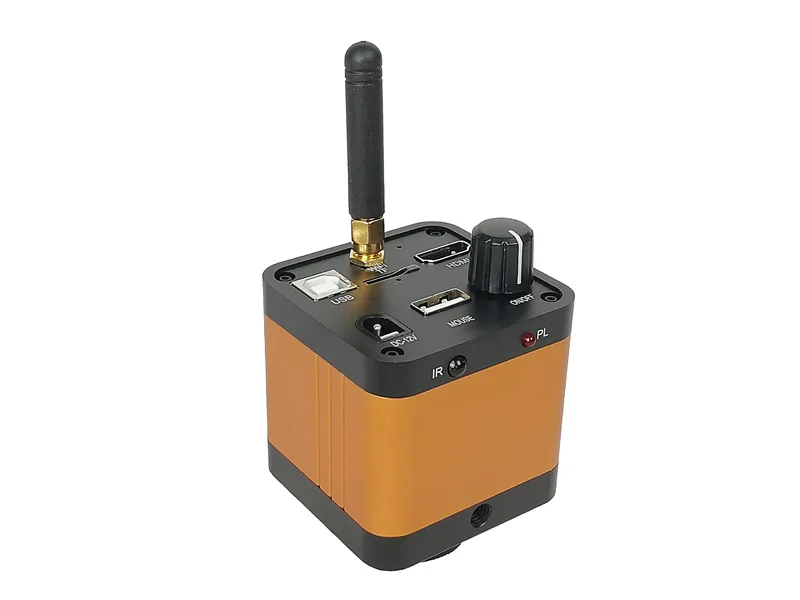

For Video Microscope:
| Image sensor | 2MP Sony 1/2 inch |
| Pixel size | 3.75um x 3.75um |
| Image resolution | 1920x1080(16:9),1440x1080(4:3) |
| Video resolution | 4KP25(Clear),1080P60(Smooth),720P120(High speed) |
| HD MI resolution | 1080P60 |
| USB resolution | 1080P30,720P30,WVGAP60 |
| WIFI output | 960x540@30fps, Support Andriod / iOS(optional) |
| Zoom | 1X~16X Infinite magnification |
| Exposure control | AE lock, exposure compensation (10 levels adjustable) |
| White balance | Automatic, manual (R, G, B 10 levels adjustable), calibration cooperation |
| Image control | contrast, saturation, resolution 10 levels for option |
| Screen freeze | full screen, left and right, up and down, 1/4. |
| Grid | 8 groups, position, color, thickness adjustable |
| Measurement | point, line, circle, angle (Optional) |
| Language | English, Simplified Chinese, Traditional Chinese |
| Mouse interface | TYPE-A USB2.0, recommend to use the original mouse (Optional) |
| IR Remote | Max 5 meters |
| WIFI antenna | SMA(Optional), max 10 meters |
| HDMI port | TYPE-A |
| USB port | TYPE-B USB2.0 |
| Memory card | Max support 64G TF card |
| Lens | Suitable for C mount or or CS mount |
| Microscope dimension | L56 * W54 * H78 (mm) |
| Microscope | 185g(With WIFI) / 175g(Without WIFI) (Wifi Antenna height is not included) |

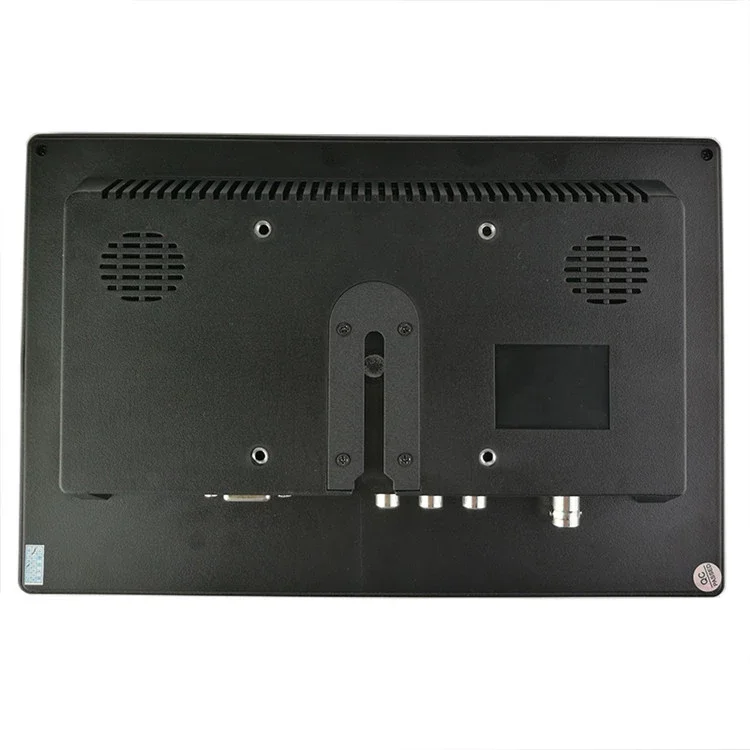

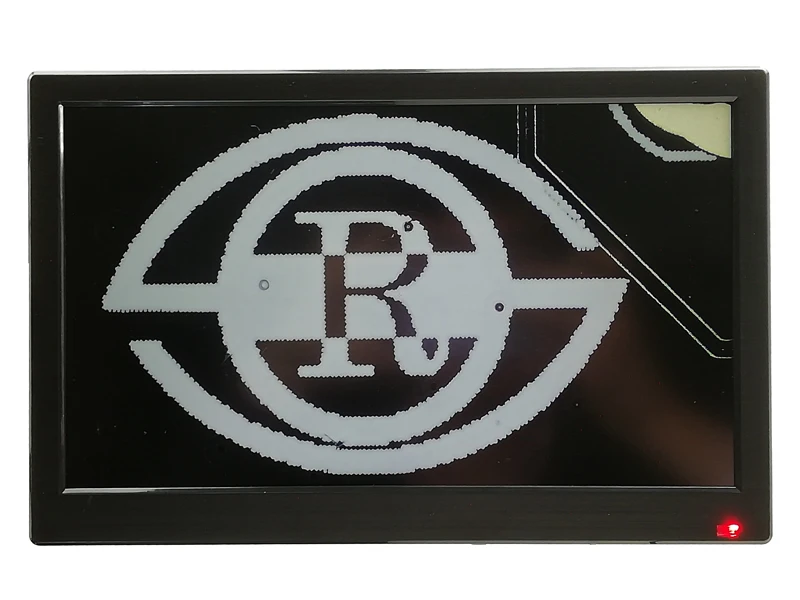

For Display:
| Model | B101B |
| Size | 10.1 Inch |
| Panel Type | TFT-LED |
| Point distance | 0.0565×0.1695 mm |
| Resolution | 1024*600 |
| Display scale | 16:9 |
| Contrast | 800:1 |
| Brightness | 250cd/square meter |
| View angle(H / V) | 160°/160° |
| Response time | 6ms |
| Display color | 16.7M |
| Working temperature | 0~50℃ |
| Storage temperature | -10~60℃ |
| Video input/output | VGA + AV + BNC + HDMI |
| Audio input/output | N / A |
| Touchpad | No |
| Material | Plastic |
| Power | DC 12V |
| Control | OSD Control |
| Product size | 253 * 166 * 35 mm |
| Net weight | 0.94KGS |
Product Description
- Adopt professional image processing DSP,3D de-noise, and restore colors and details really;
- Support picture, video record and playback function;
- Support HD MI + USB(UVC) +WiFi ( Android + iOS ) output display;
- Support 1X~16X infinite magnification, clear and smooth;
- Support full screen freezing, left and right, up and down, 1/4 PIP comparison;
- Support 8 groups of grid, and position , color , thickness are adjustable;
- Support AE lock, exposure compensation function;
- Support auto, manual and calibration white balance;
- Support WDR, contrast, saturation, sharpness are adjustable;
- Support image horizontal mirror and vertical flip;
- Support IR remoter, voice record, and buzzer prompt;
- Support 4GB ~64GB TF card;
Accessories
1 PCS * Video Microscope
1 PCS * Adaptor
1 PCS * User Manual
1 PCS * HD MI Cable
1 PCS * Mouse
1 PCS * WiFI Antenna
1 PCS * IR Remote
1 PCS * Cleaning cloth

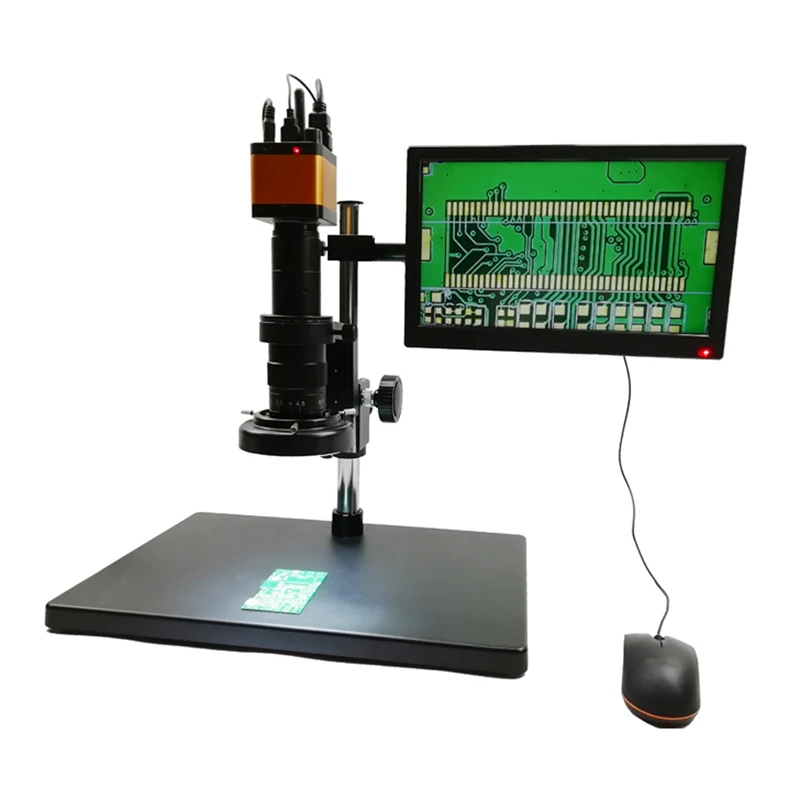

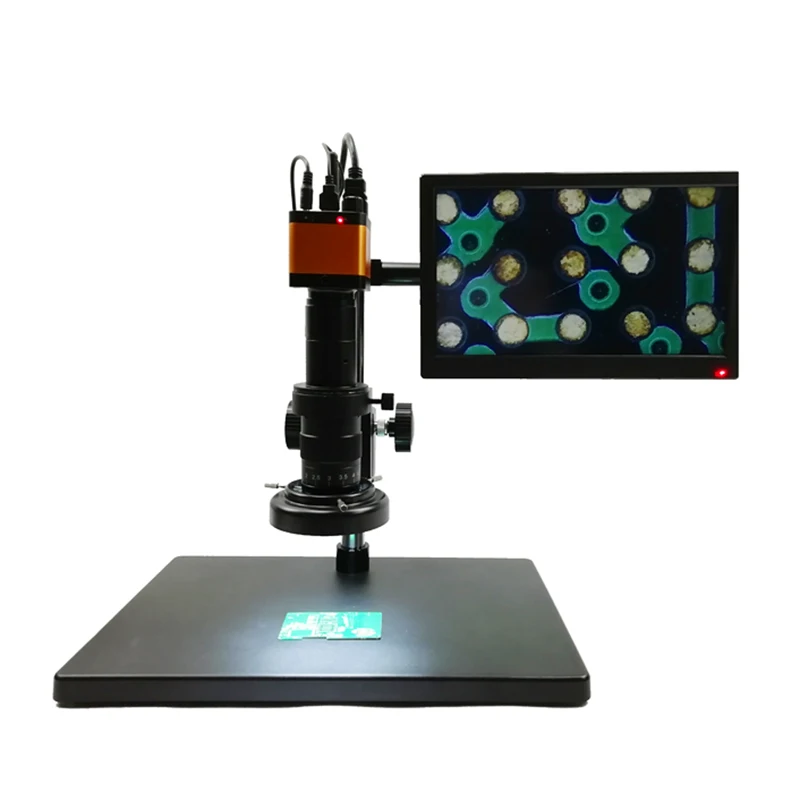

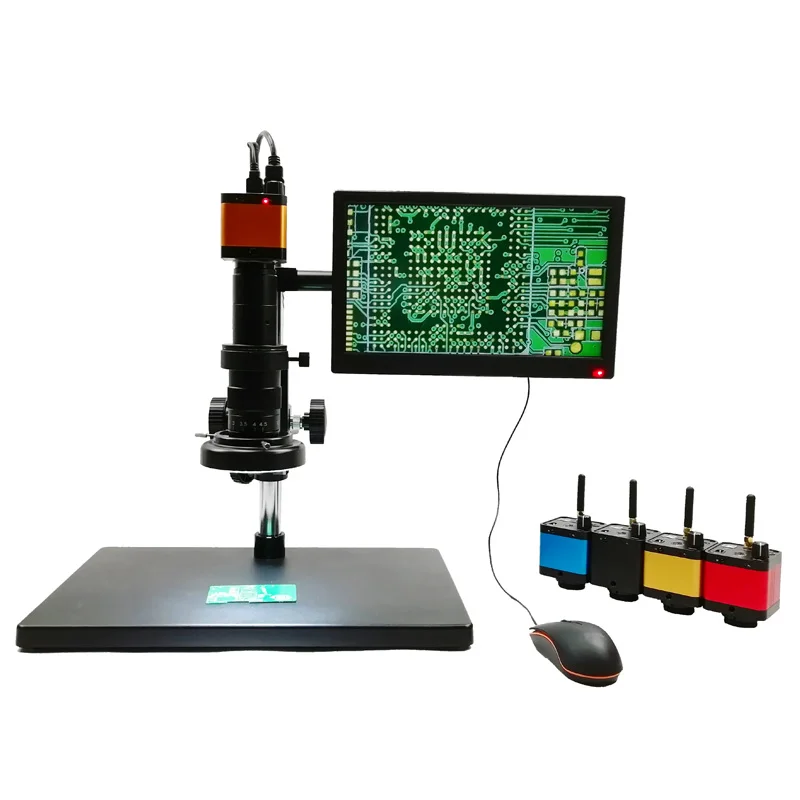

Product Images

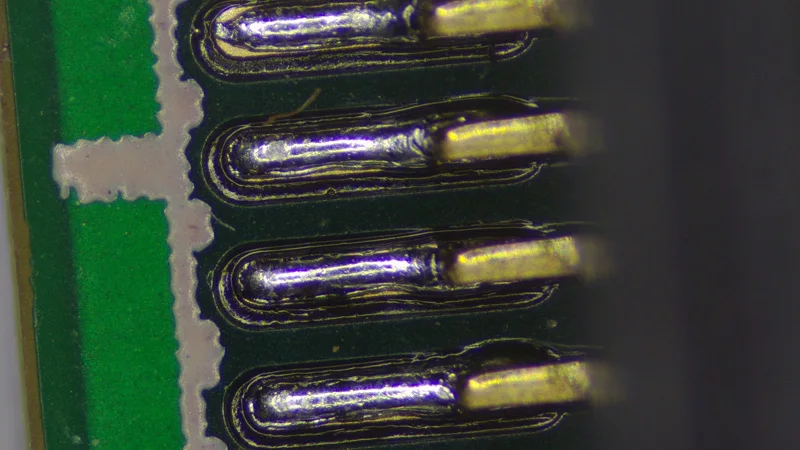

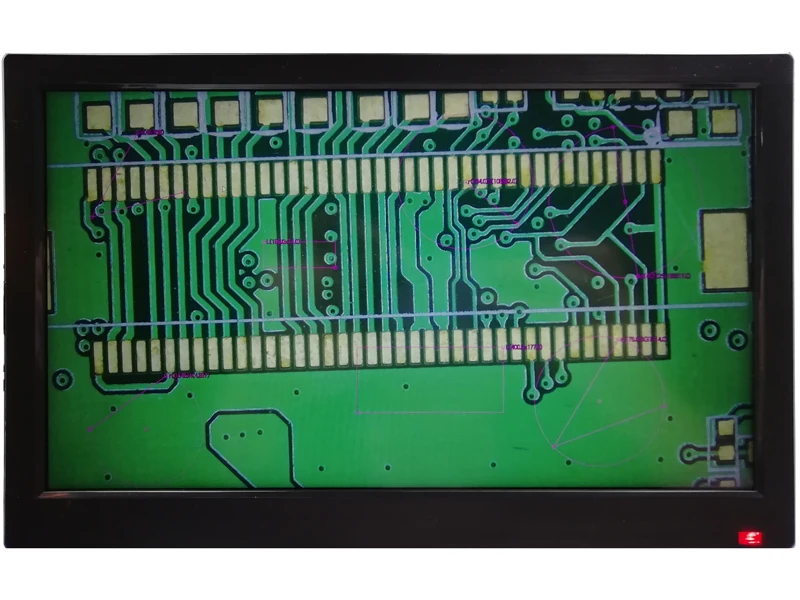

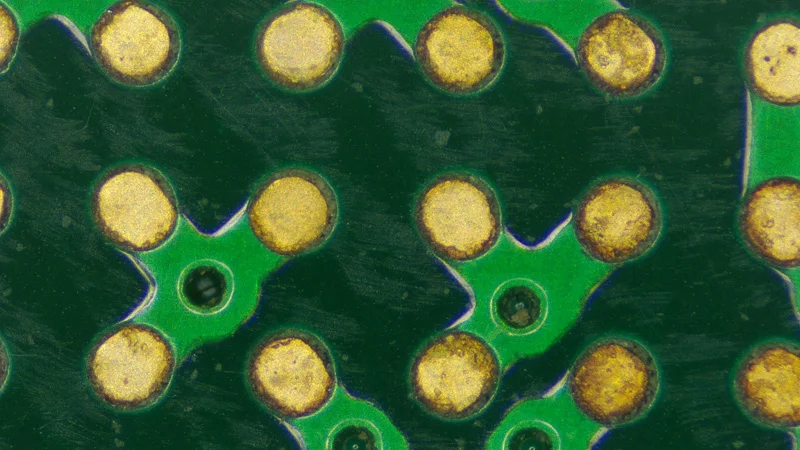

Photos from the camera:
