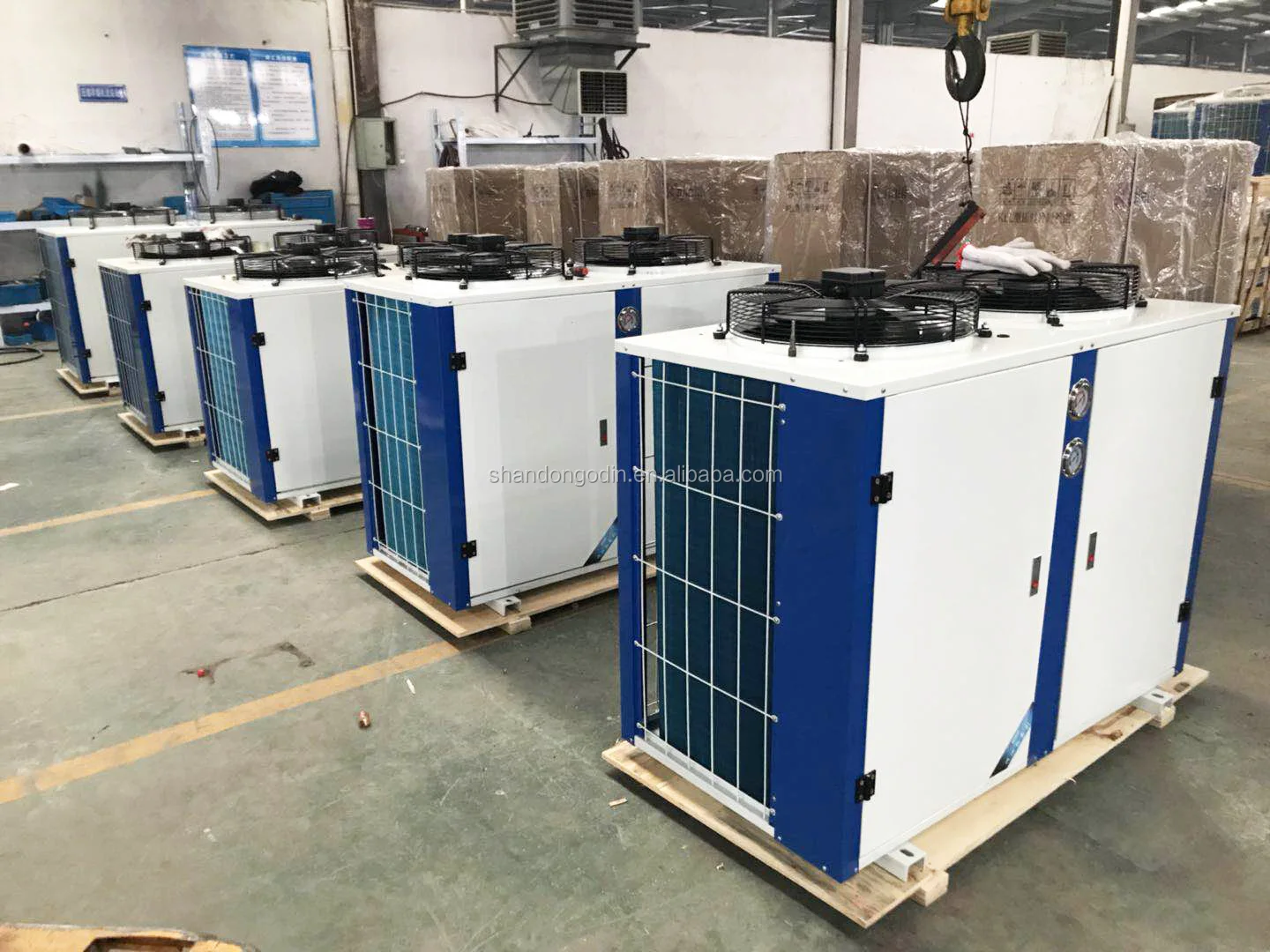

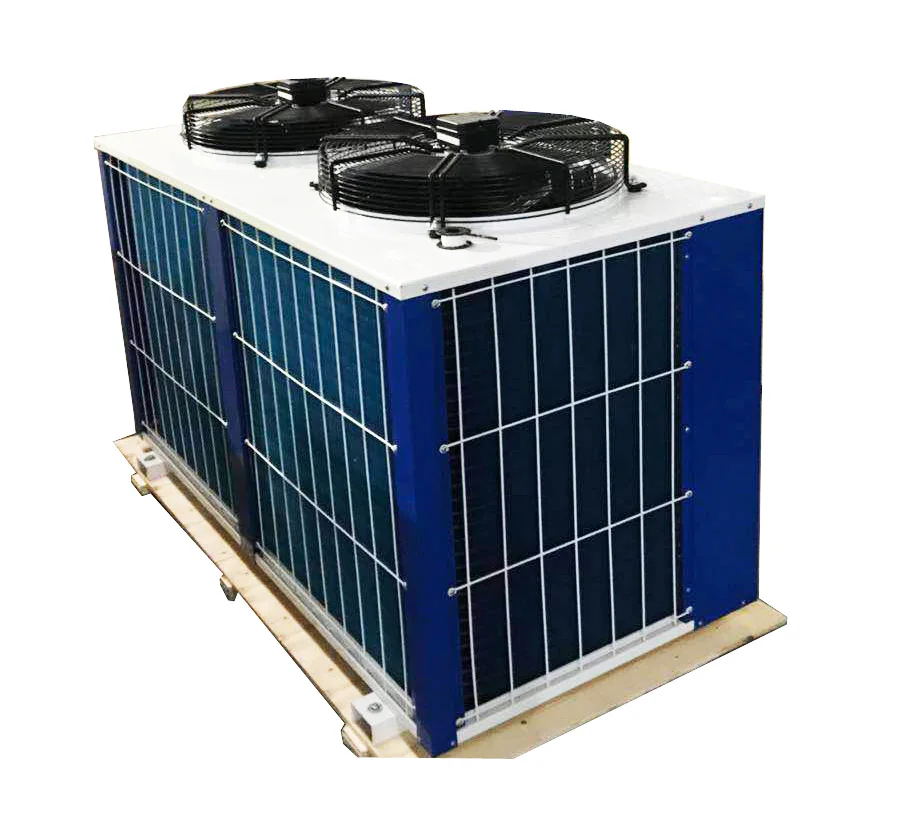

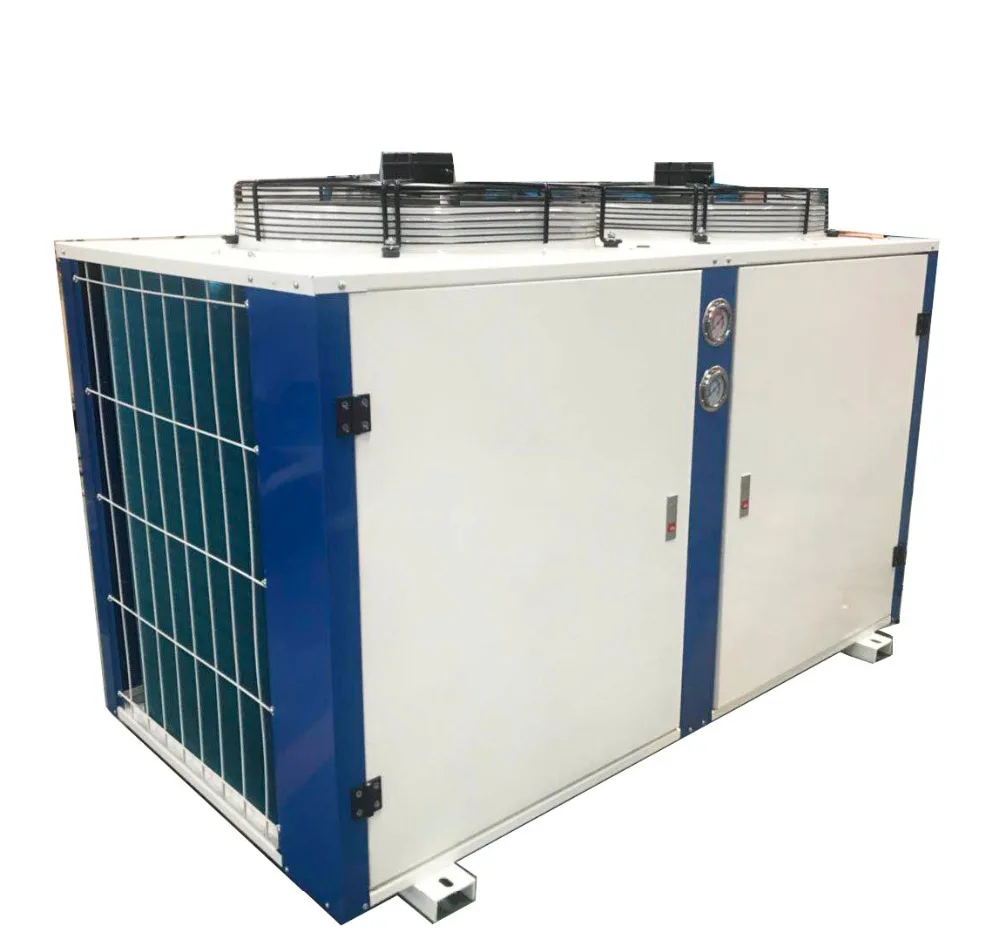

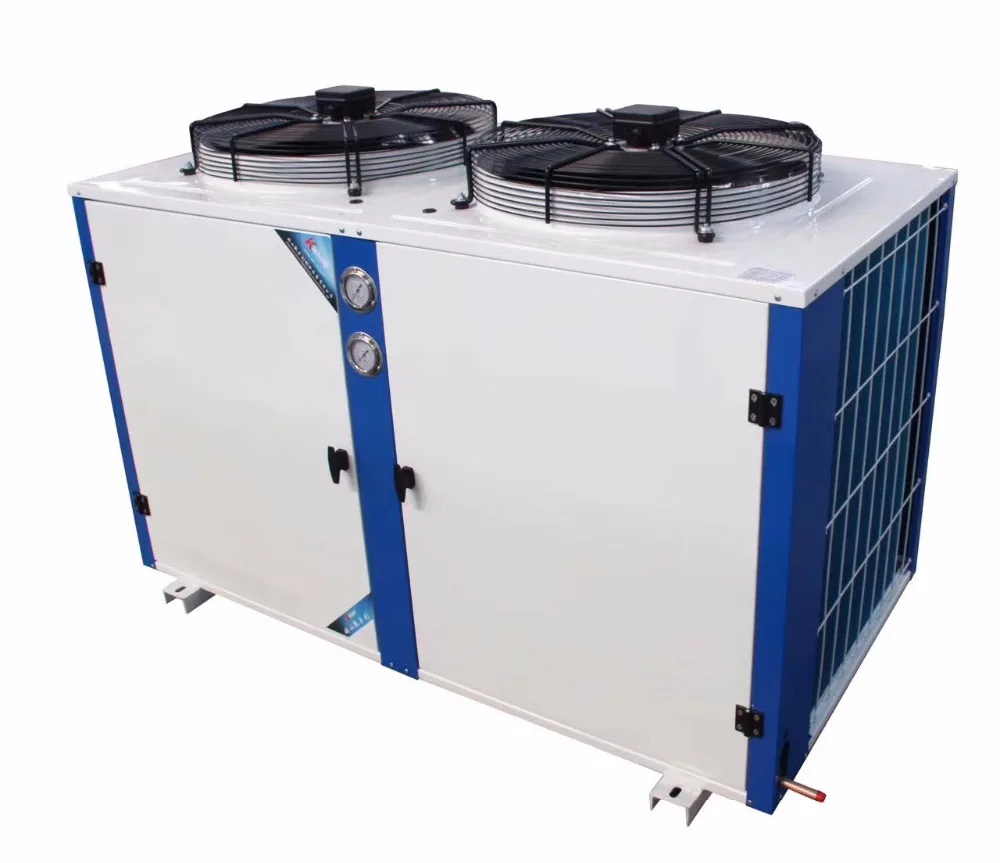

6hp air cooled refrigeration box type condensing unit for cold room
- Category: >>>
- Supplier: Shandong ODIN Electrical and Mechanical Equipment Co. Ltd.
Share on (62018623914):
Product Overview
Description
Product Description
Advantage:
Motor coil protection devices: motor provided with a protective steel, high speed steel must be approved by the gaseous refrigerant flows through the stator and slow diffusion.
No liquid impingement concern: Closed crankcase and suction side high design, motor and compressor as a whole combination of design, the compressor housing as a gas-liquid separator to ensure the compressor from liquid reflux Loss
Low noise operation: compressor with exceptionally strong spring installed in the special thick of the cabinet, to ensure that reduce vibration.
Reflux hundred percent air cooling: As the motor by 100 percent reflux, cooled, so a temperature lower than the same compressor 20 ℃, to ensure its long life.
No external cooling: due to motor and compressor cooling gas by 100 percent reflux, it can operate in high temperature environments without the need for external cooling.
Very high compression ratio of 13 7. -40 ℃ time: 1: Patents of valve units, plus a large bearing, the minimum clearance volume and other fine design, so that the compressor at a high compression ratio, high efficiency of work to do.
high quality motor: motor with Class F insulation, good design so that it can also can smooth start at a low current, low voltage conditions, efficient energy-saving, large displacement.

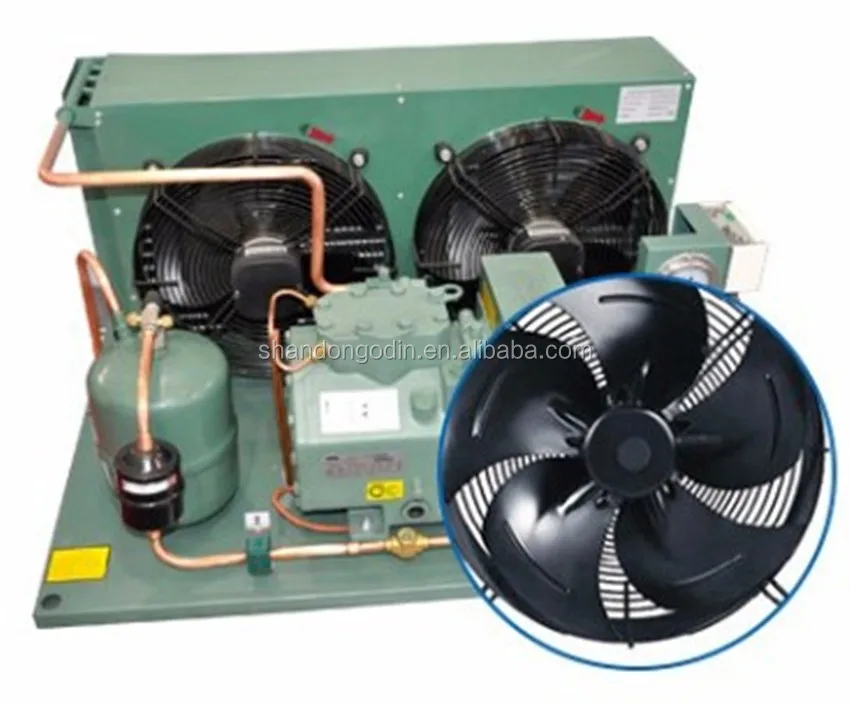

bitzer semi-hermetic compressor Condensing Unit Features:
1. Bitzer semi-hermetic compressor horse power from 1hp-50hp.
2. Classification Temperature:-40°C to +20 °C
Ø 0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room,Packing Room
Ø -5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
Ø -10 °C ~ -20 °C: Freezer Storage
Ø -25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
Ø -35 °C ~ -50 °C: Blast Freezer, Quick-Freeze
3. The copper tube of air cooled Condensing units get through the 2.6Mpa pressure test, meet the request of normal work.
4. Every part of air cooled condensing units is bested in corrosion protection before shipment.
5. Air cooled condensing unit refrigerating capacity ranks from 0.2KW to 29KW.evaporating temperature:-40°C-+20°C, run steady under the ambient temperature +43°C.
6. Proper structure, accurate and reliable operating system for the air cooled condensing unit.
7. Use the high efficiency and large air volume axial fan, with low noise and energy saving.
8.The air cooled condensing units power and structure can OEM as your drawing and request
9.Refrigerant: R22 or R404A
10.Cooling system:air-cooling or water-cooling.
11.Standard configuration:Compressor,Condenser,Oil &gass separator,Liquid receiver,Filter,Solenoid valve,High/Low pressure gauge,Pressure controller,Liquid level disply.Electric control box. Others are optional.
12. All our Bitzer compressor are origin, if you need copy one, please ask others, thanks.
Certifications
Detailed Images
FAQ
Q1: Are you a factory or a trading company?
A1: We have a factory
Q2: Where is your factory located?
A2: Our factory is located in Yantai, Shandong province.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, Palestine, Turk, Africa and so on.
Welcome to contact us for more details!
