Doppler phascan TOFD ultrasonic phased array flaw detector:

PHASCAN portable ultrasonic phased array flaw detector is a new-generation phased array inspection equipment developed by Doppler. PHASCAN has a powerful detection capability, can achieve a variety of scanning mode and focus mode, which greatly improves the detection reliability. Universal and friendly user-interface, simple operation, together with self-devoloped phased array probes , we can help solving a variety of complex problems and saving testing costs.

Features:

(1) Dual independent channels for high-performance TOFD detection, 32/128 pulser/receiverchannels for phased array.
(2) Embedded focal law calculator, which can realize:
With four kinds of scanning methods namely linear, sectorial, depth and static.
True Depth, sound path, projection, and focal plane four kinds of focus types available.
Optional display mode of A / S / B / C, etc.
(3) Calibration is more convenient to implement and can be calibrated for each beam.
(4) Multiple group for parallel scanning, equivalent of more than one instrument working simultaneously.
(5) Negative square-wave emission, with resolution up to 2.5ns, PRF up to 20KHz.
(6) 10.4'' TFT LCD color touch screen, resolution 800*600 pixel.

Technical Parameter

Doppler phascan TOFD ultrasonic phased array flaw detector:

\t
\t
Item
\t
PA MODULE
\t
Conventional UT
\t
  Config.
\t
Receiver / Pulser
\t
16/64
\t
2/4
\t
\t
Range
\t
9900μs
\t
9900μs
\t
\t
Velocity
\t
635~15240m/s
\t
635~15240m/s
\t
\t
Focal Law
\t
1024
\t

\t
Pulser
\t
Test Mode
\t
PE/PC
\t
PE/PC/TT/TOFD
\t
\t
Voltage
\t
50V/100V
\t
100V/200V/400V
\t
\t
Pulse Shape
\t
Negative Square Wave
\t
Negative Square Wave
\t
\t
Pulse Width
\t
30~500ns
\t
30~500ns
\t
\t
Rise Time
\t
<8ns
\t
<8ns
\t
\t
PRF
\t
20KHz
\t
20KHz
\t
\t
Delay
\t
10μs/2.5ns
\t
10μs/2.5ns
\t
\t
Damping
\t
NA
\t
50Ω/500Ω
\t
Receiver
\t
Gain
\t
0~80dB
\t
0~80dB
\t
\t
Bandwidth
\t
0.5~15MHz
\t
0.5~15MHz
\t
\t
Input Impendance
\t
200Ω
\t
200Ω
\t
\t
Input Capacitance
\t
60pF
\t
60pF
\t
\t
Delay
\t
10μs/2.5ns
\t
10μs/2.5ns
\t
Scan/Display
\t
Type
\t
Linear/Sectorial/Static/Depth
\t
NA
\t
\t
Display Mode
\t
A/B/C/S
\t
A/B/TOFD
\t

\t
Unit
\t
mm/inch
\t
mm/inch
\t
DAC
\t
Points
\t
16
\t
\t
TCG
\t
Points
\t
40dB
\t
\t

\t
Max Gain Slope
\t
40dB/μs
\t
\t
Gate
\t
Gates
\t
A/B/I
\t
\t

\t
Threshold
\t
0~98%
\t
\t

\t
Trig Mode
\t
Peak / Edge
\t
\t
Report
\t

\t
HTML
\t
\t
Data Storage
\t
Storage Devices
\t
USB Devices / SD Card
\t
\t
Display Screen
\t
Size
\t
10.4 inch
\t
\t

\t
Resolution
\t
800*600 pixel
\t
\t

\t
Type
\t
TFT LCD Touch Screen
\t
\t
I/O Port
\t
USB
\t
3
\t
\t

\t
Internet
\t
10/100M
\t
\t

\t
Video Output
\t
DVI / VGA Compatible
\t
\t

\t
Encoder
\t
Applicable
\t
\t
Language
\t

\t
English / Chinese
\t
\t
Power Supply
\t
Power Supply
\t
15V DC 4A
\t
\t

\t
Battery
\t
Lithiumlon Battery
\t
\t

\t
Charging
\t
Operatable While Charging
\t
\t

\t
Battery Life
\t
6h
\t
\t
Housing
\t
Dimensions
\t
325mm*230mm*130mm
\t
\t

\t
Weight
\t
4.5Kg (without battery)
\t

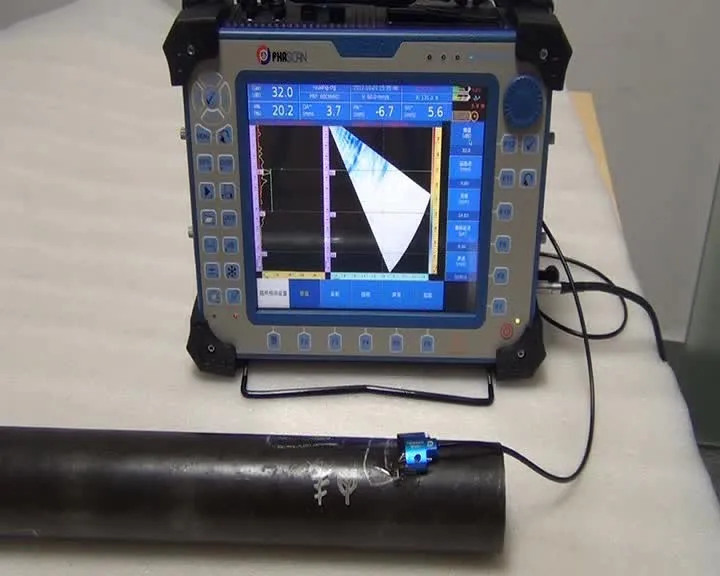

Detailed Images
Our company

     Our company was founded in 1988,which is one of the well known companies specialized in Non-dectructive testing(NDT)equipments. After 20 years' development,we have accumulated abundant technical force and established a wealth of design and practical experience.We are a manufacturer and trading company. .Our main products are industrial X-ray machines. We have portable X-ray machines and stationary X-ray machines.

     Our products are finely developed and manufactured by adopting high technologies of many countries and manufacturers.They can be widely used in many fields such as mechanism,electron,petroleum,chemical industry,electric power,bridges,boats and ships,vehicles.aviation,heating power,boilers,pressure vessels and war industries.

      Our sales network covers the whole world and we maintain good business relationship with more than 200 customers.
      We will serve the first-class technology,first-class products and first-class service for you.

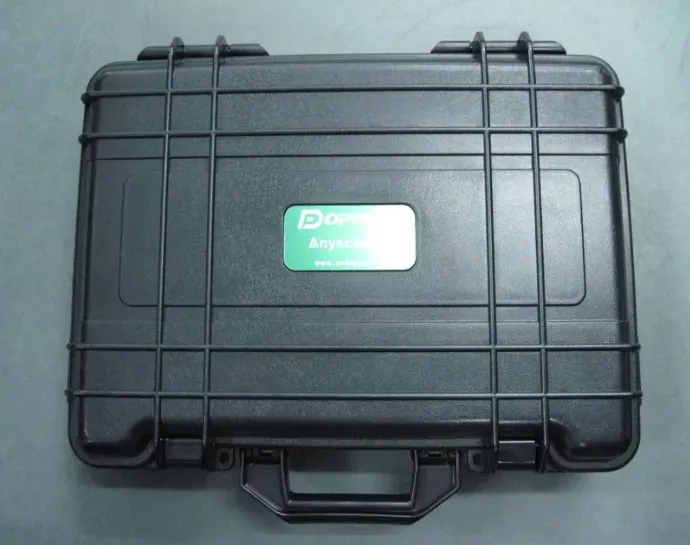

Packing & Delivery
