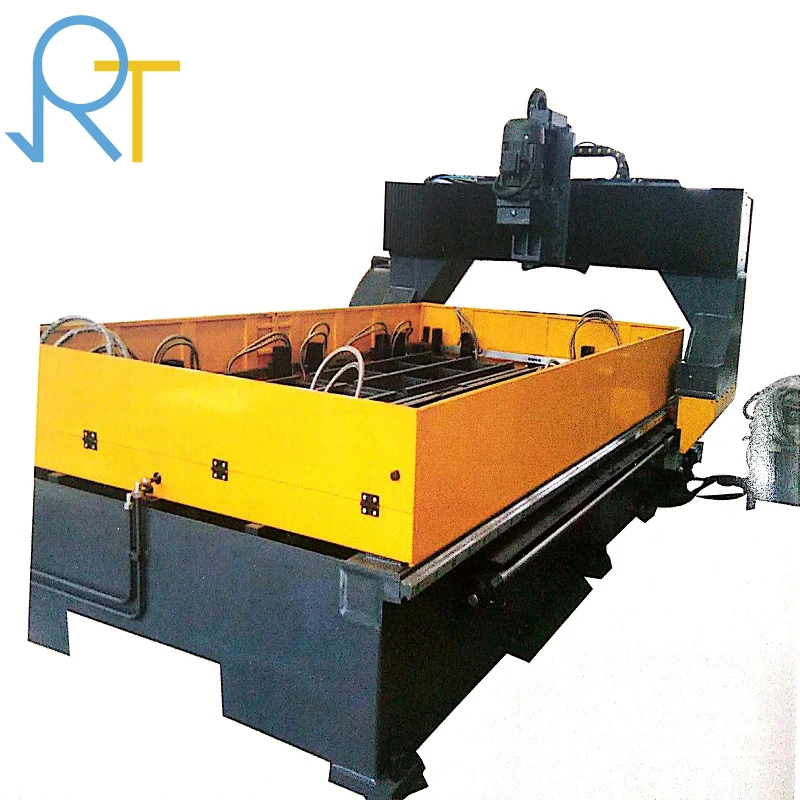

CNC drilling , tapping and milling machine Ladder hole driller

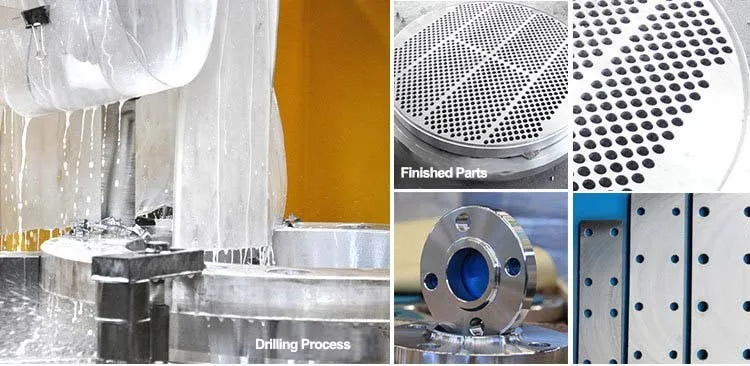

PHD series drilling machine mainly used for the drilling and milling process of the plates which used in construction, bridge,steel tower, steel structure industries,and also can be used for the tube plates, baffle plates, and round flanges in  connection boards and base plates of steel structure, tower, bridge and other industries.

1. CNC slider and drilling unit head, can control depth of holes, with function of drilling blind hole, reaming, chamfer

angle.
2. Can automatically find holes to drill at X.Y axis.
3. Four processing position, 12 rapid hydraulic clamps, capable of clamping four sets of work pieces, and downloading work pieces when drilling simultaneously.

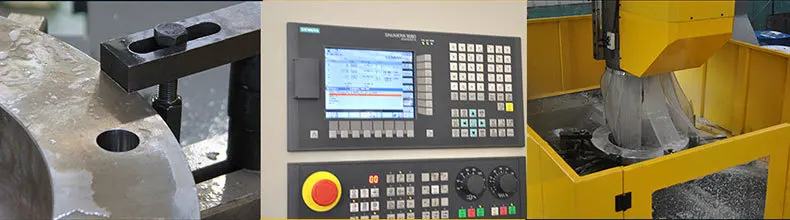

4. CNC, PLC systems, CRT display.
5. Programming software based on WINDOWS platform with CAD connection, fast and convenient programming, and visual previewing.

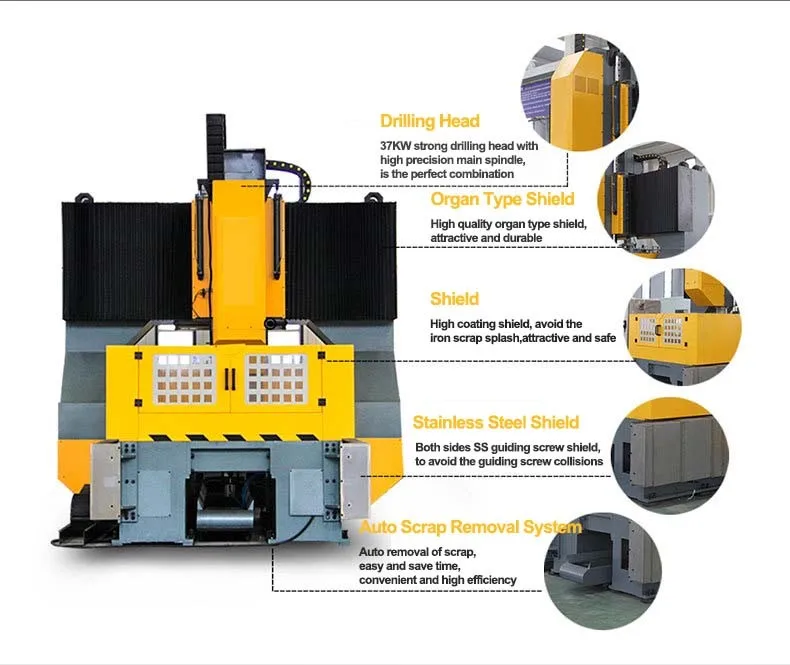

6. Automatic chip removal, coolant circulation cooling.
7. Key machinery, hydraulic pressure, electric components are chose from famous cooperation domestic and abroad.
8. Optimized integration design for complete machine, no foundation requirements.
