DLG1000X1740 rotocure Rubber Flooring Making Machine with CE certification

Product Overview

Description

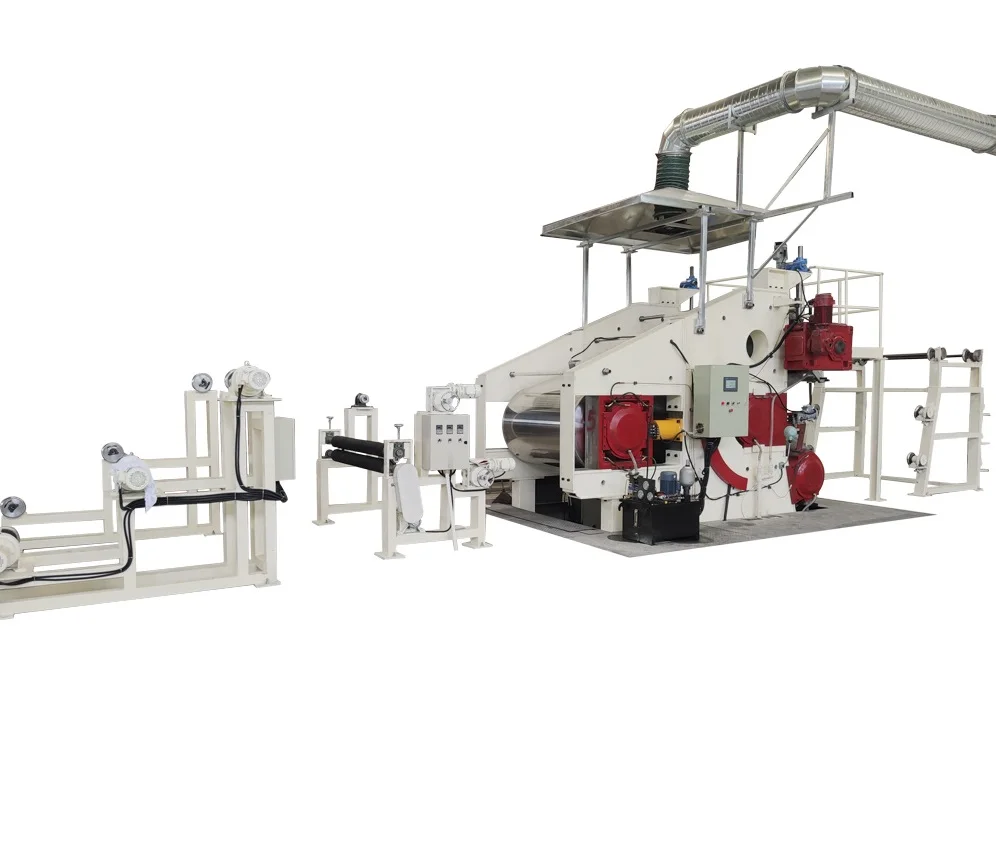

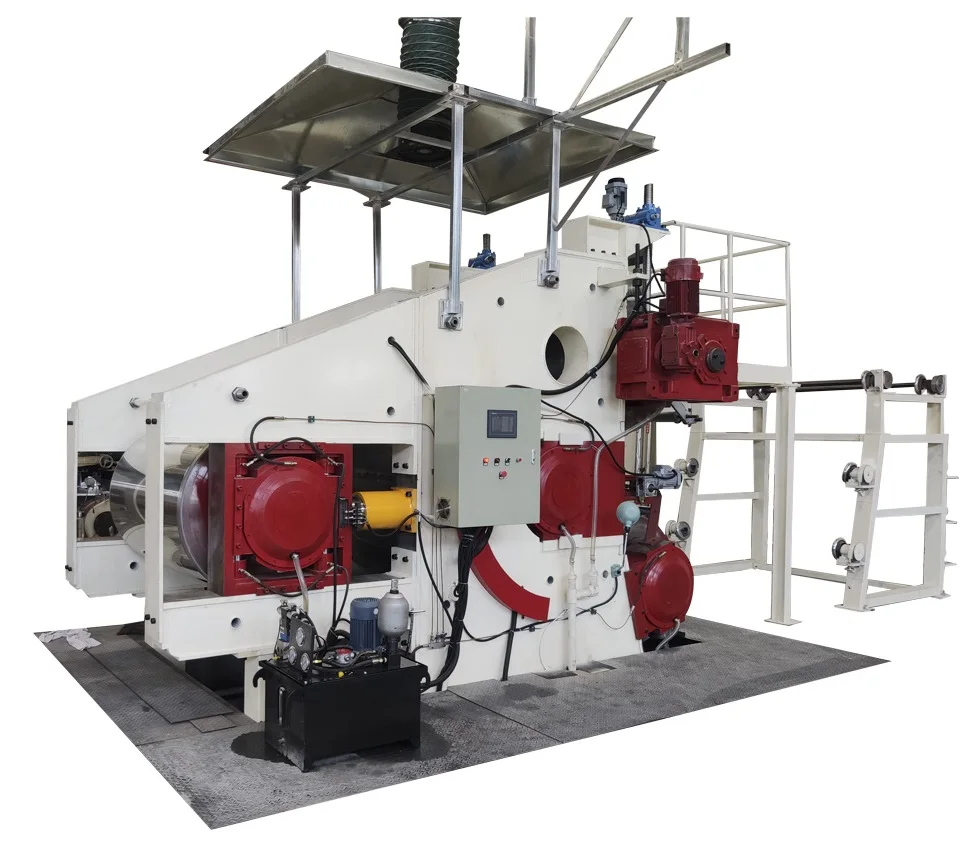

DLG1000X1740 rotocure Rubber Flooring Making Machine with CE certification Certificate  (Rubber Products Production Line) is suitable for continuous vulcanization of various kinds of silicone sheet, silicone coating, rubber sheet,rubber blanket, light conveyer belt (circular belt) , printing blanket, rubber and plastic blanket, etc.

Specification	DLG800X1440	DLG1000X1640	DLG1500X1440	DLG1500X2000
Max products width                   (mm)	1200	1500	1200	1900
Max products thickness            (mm)	10	10	12	15
Curing roll dia.                          (mm)	800	1000	1500	1500
Curing roll length                      (mm)	1440	1440	1440	2000
Auxiliary roll dia.                       (mm)	550	550	1000	1000
Steel belt width                         (mm)	1580	1580	1650	1950
Steel belt length                        (mm)	7700	7700	9800	15450
Steel belt thickness                   (mm)	1.2	1.2	1.9	1.9
Steel belt pressure                  (MPa)	10	18	25	25
Vulcanization pressure            (MPa)	≤1	≤1	≤1	≤1
Vulcanization time                     (min)	1-80	1-80	1-80	1-80
Curing roll line velocity          (m/min)	0.06-1.5	0.06-1.8	0.06-2.6	0.06-3.5
Vulcanization interval length       (m)	1.89	2.36	3.53	3.53
Main motor power                       (kw)	1.5	2.2	5	7.5
