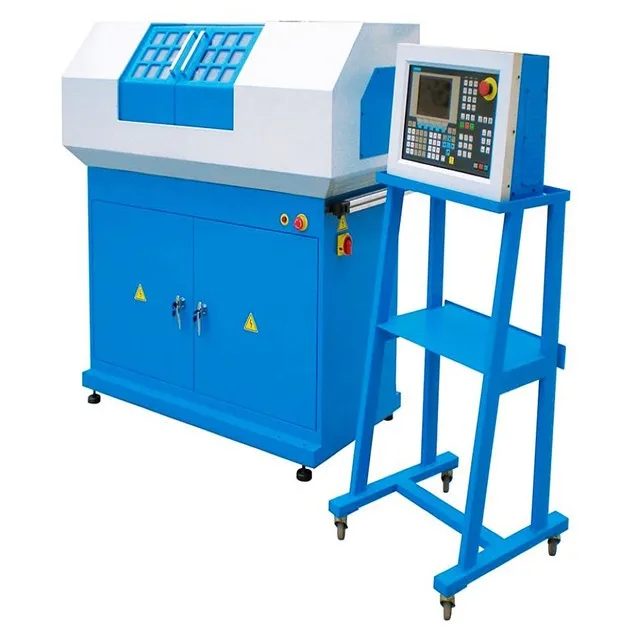

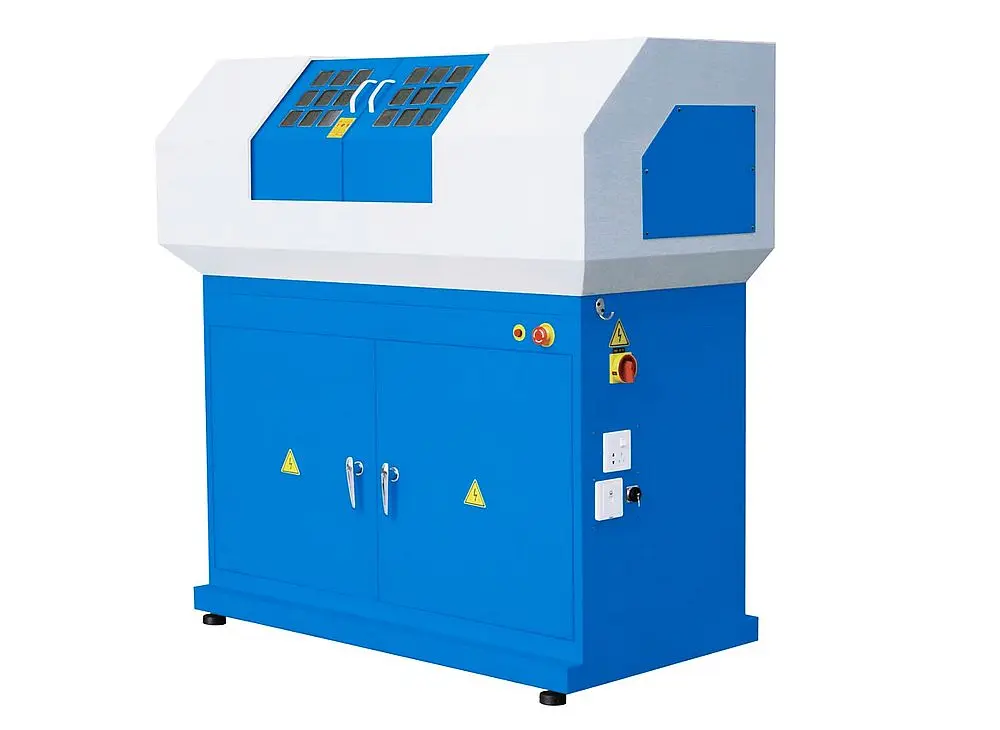

New Lathe Machine Bar Feeder Automatic Feeding chinese cnc lathe

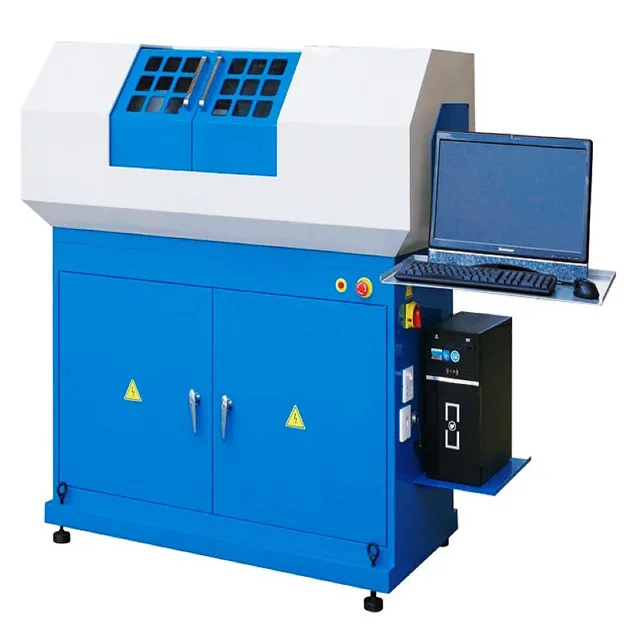

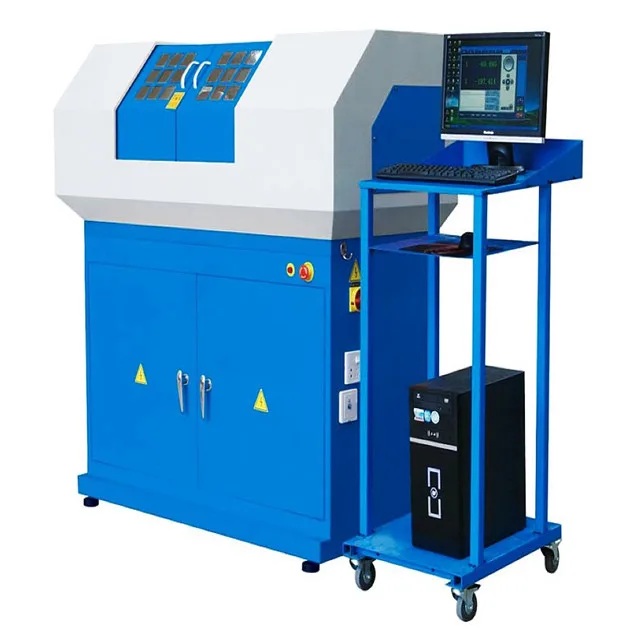

KC6S-SIEG( Independent R &D)

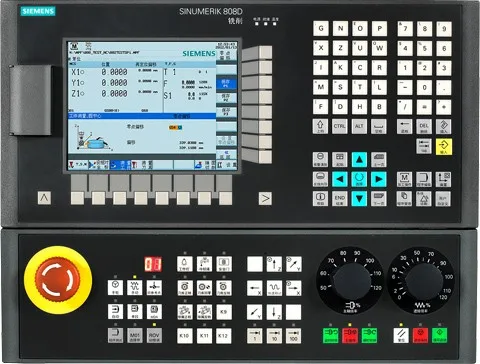

KC6S-SIEMENS

Spindle speed:         100-3000r/min

Weight(NW/GW):     360/410KGS

Overall size:             1460*760*1450mm


Packing size:           1630*10700*1685mm

New Lathe Machine Bar Feeder Automatic Feeding chinese cnc lathe

Detailed Images

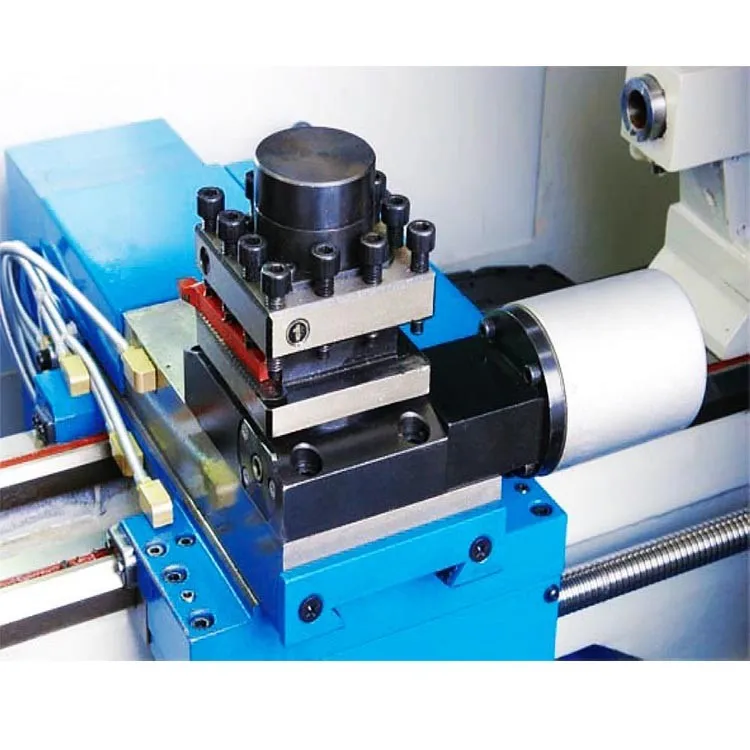

4 position auto control tool post

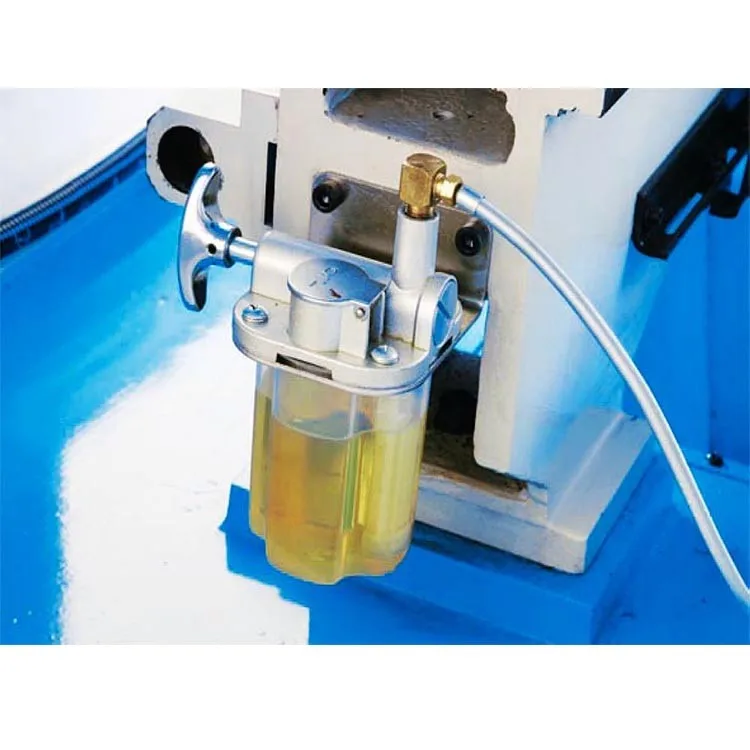

One shot oil lubrication pump

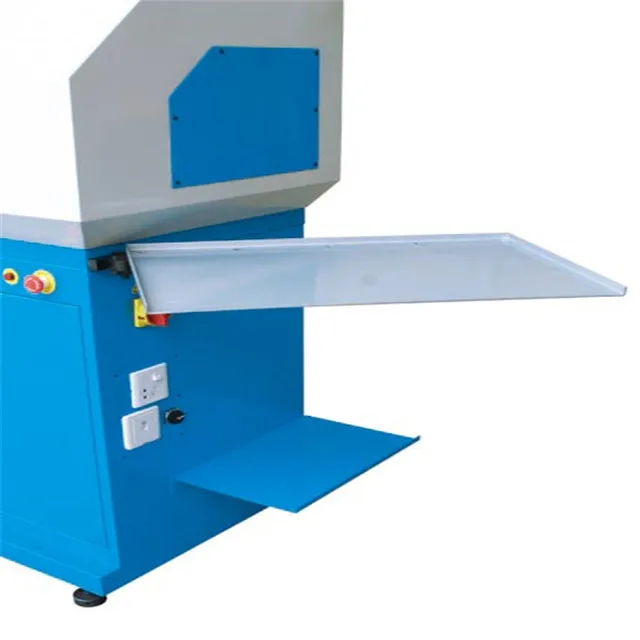

Optional accessory

Hand wheel
S/N 10186

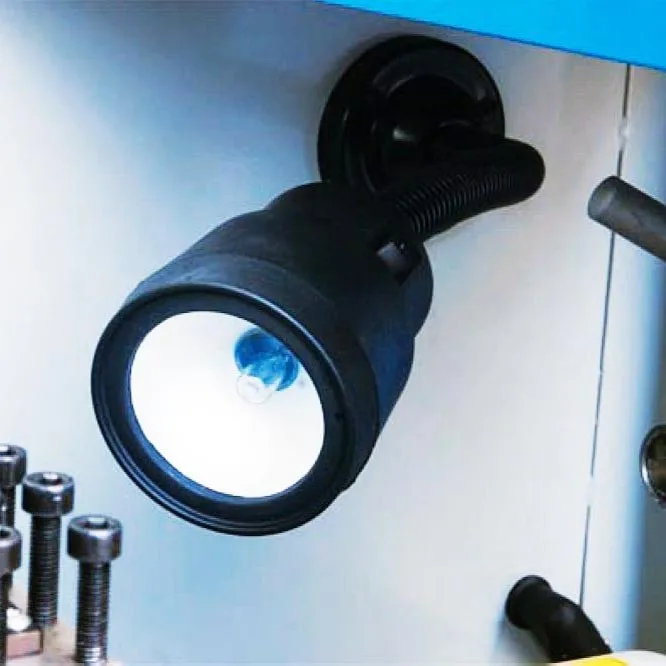

LED working light

\t

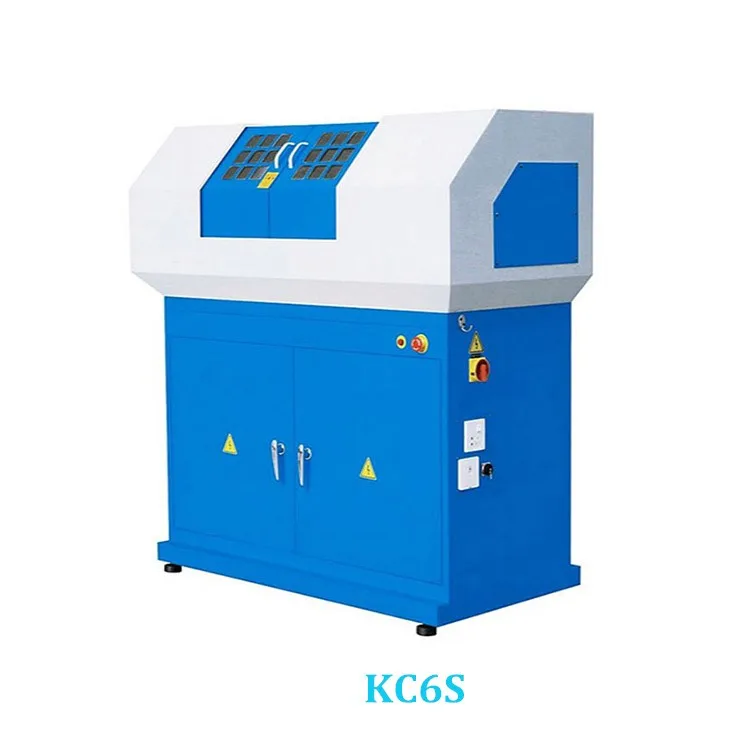

CNC machine parameters of KC6S
\t

WORKING AREA
\t
Turning diameter over bed(max)
\t
250mm
\t
travel across slide
\t
110mm
\t
Center width
\t
450mm
\t



SPINDLE
\t
Chuck diameter
\t
125mm
\t
Spindle speed
\t
100-3000r/min
\t
Spindle through-hole
\t
20mm
\t
Spindle mount
\t
MT3
\t
Spindle motor power
\t
1000W
\t



FEED(STEPPER)
\t
X travel
\t
180mm
\t
Z travel
\t
320mm
\t
The max moving speed
\t
2000mm/min
\t
The max feeding speed
\t
500mm/min
\t
Motor
\t
4Nm
\t

FEED(SERVO)
\t
The max moving speed
\t
5000mm/min
\t
The max feeding speed
\t
1000mm/min
\t
Motor
\t
400W
\t

TOOL REST
\t
Tool position
\t
4
\t
Tool dimension
\t
10×10mm
\t


TAILSTOCK
\t
Tailstock taper
\t
MT2
\t
Tailstock sleeve diameter
\t
17mm
\t
Travel of tailstock
\t
50mm
\t

ACCURACY
\t
Positioning accuracy
\t
0.015mm
\t
Repeatability accuracy
\t
0.01mm
\t


OTHERS
\t
Power
\t
230/120V
\t
Weight(NW/GW)
\t
360/410kg
\t
Overall dimension
\t
1460×760×1450mm
\t
Packing size
\t
1630×1070×1685mm
