| Easy operation Smart spectrophotometer Incompable Accurancy Color Test Machine |
| Company info. : |
 | Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field. Our Certificates:
ISO9001:2008; CE; FCC; ROHS; TUV. The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers. |
| Brief Introduction : |
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3060 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.. |
| Application : |
Application Industry Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
|
| Features : |
A.Perfect combination of beautiful appearance and the human body mechanics structural design; B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil C.Use long life and low power consumption combined LED light source, including UV D.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission; E.High electronic hardware configuration: 7-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor; F.USB/Bluetooth 2.1, dual mode, widely useful; G.Super stain-resistant and stable standard white calibration plate; H.Large capacity storage space, over 20,000 measurement data; I.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement; J.Camera Locating Function, better position; K.PC software has a powerful function extension. |
| Specification : |
Model | YS6060 | Illumination/observation system | Reflective:d/8 degree; Transmissive: d/0 degree | Integrating sphere Size | Φ48mm | SCE / SCI | Reflective: SCE&SCI; SPIN & SPEX Transmissive: SCE&SCI; SPIN & SPEX | Light Source Device | Combined led lamp & UV lamp | Wavelength range | 360~780nm | Wavelength pitch | 10nm | Reflectance range | 0~200% | Measuring Aperture | Reflective:Φ30mm/Φ25.4mm; Φ18mm/Φ15mm; Φ10mm/8mm; 6mm. Transmissive: Φ30mm/Φ25mm | Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB | Color difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter),Musell,s-RGB, Hunter Lab etc. | Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, Gardner Index, Pt-co Index,555 index | Spectral Device | Concave Grating | Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 | Display Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset | Measurement Time | 1.5s | Repeatability | ΔE<= 0.01 | Inter Instrument Agreement | Within DeltaE*ab 0.12 (Average for 12 BCRA Series II color tiles) | Dimension | L*W*H=370*300*200mm | Weight | 16kg | Battery | Li-ion battery. 5000 times within 8 hours. | Lamp Life | 5 years, more than 1.6 million measurements | Display Screen | TFT 7 inch, Capacitive Touch Screen | Interface | USB/RS-232 | Data Memory | Standard 2000 Pcs, Sample 20000 Pcs | Operating Temperature | 0~40℃(32~104°F) | Storage temperature | -20~50℃(-4~122°F) | Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Board, Dust Cover,Checking Green Board,Sample Holder,Φ25.4mm & Φ15mm Aperture. | Optional Accessory | Micro Printer, Powder Test Box,Transmissive Test Component | Language | Chinese, English, Spanish |
|

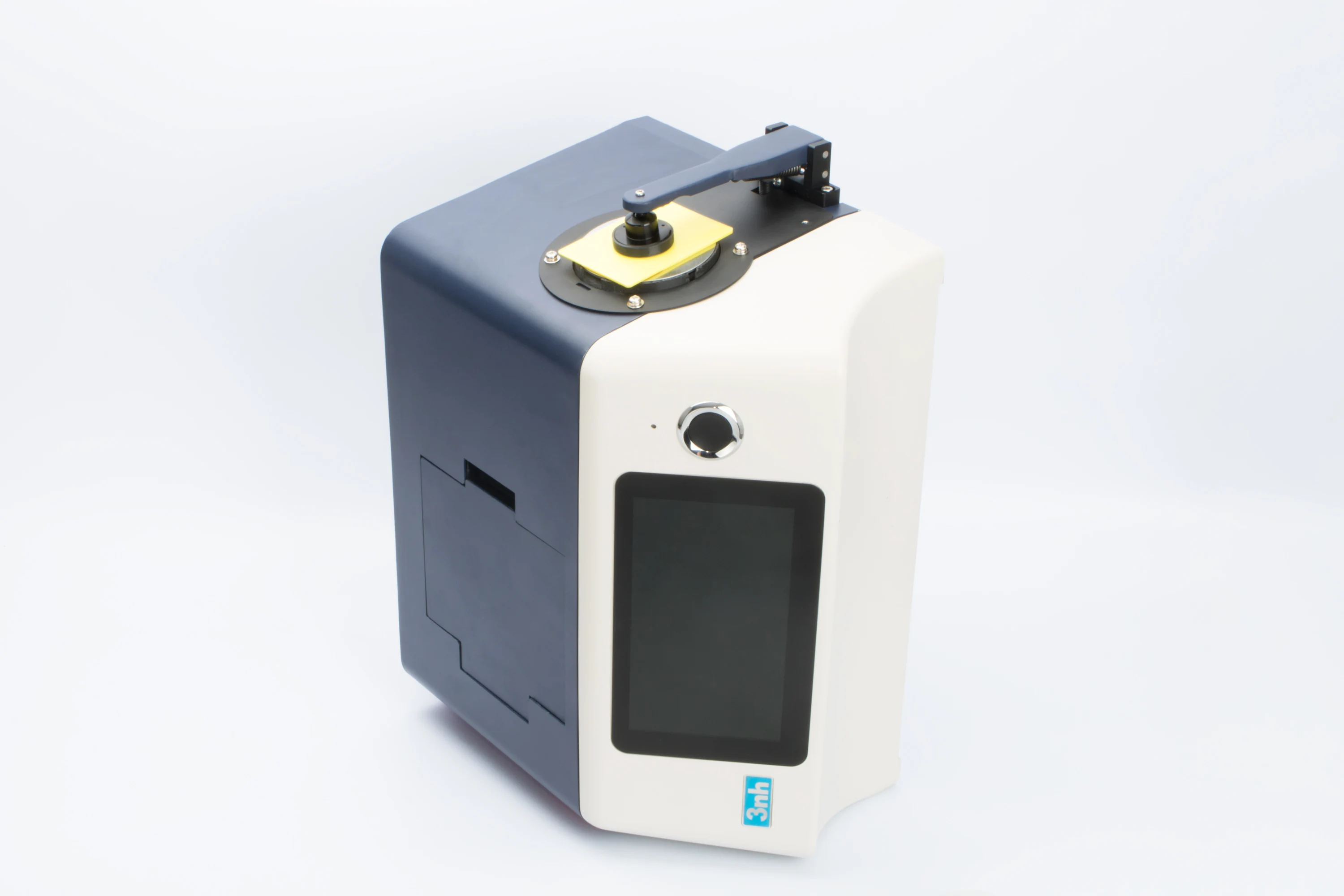

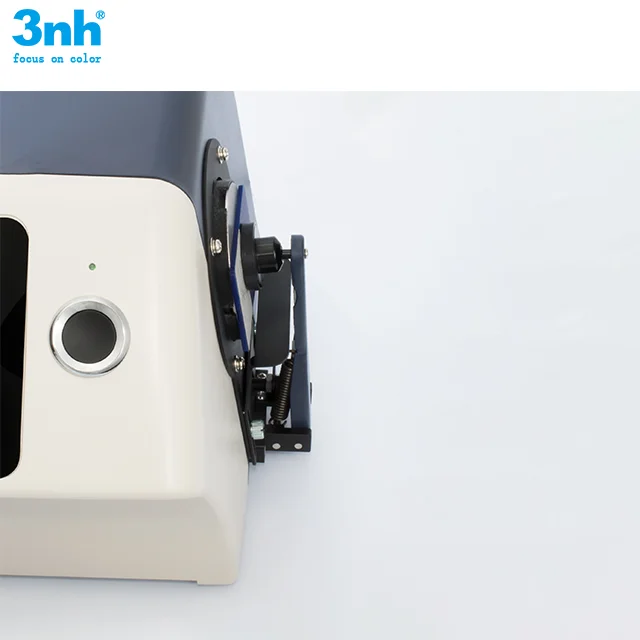

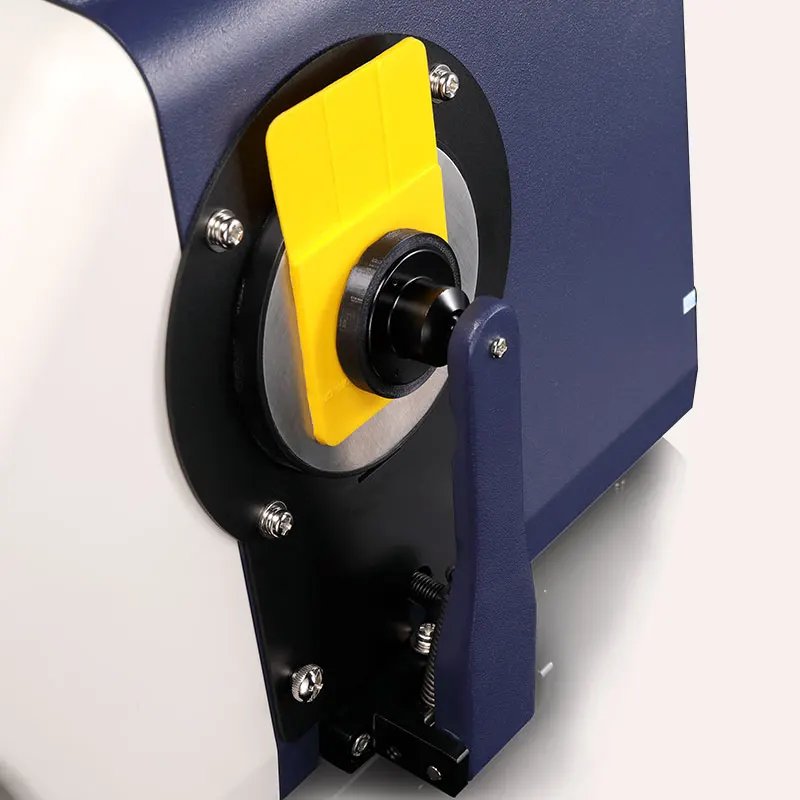

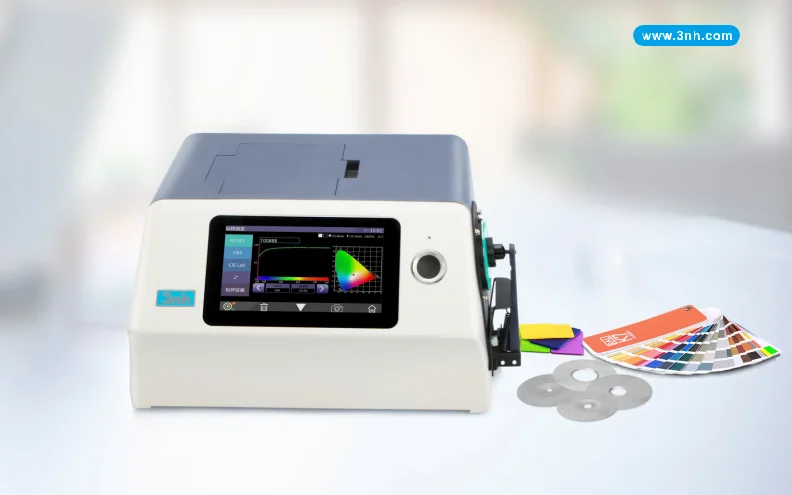

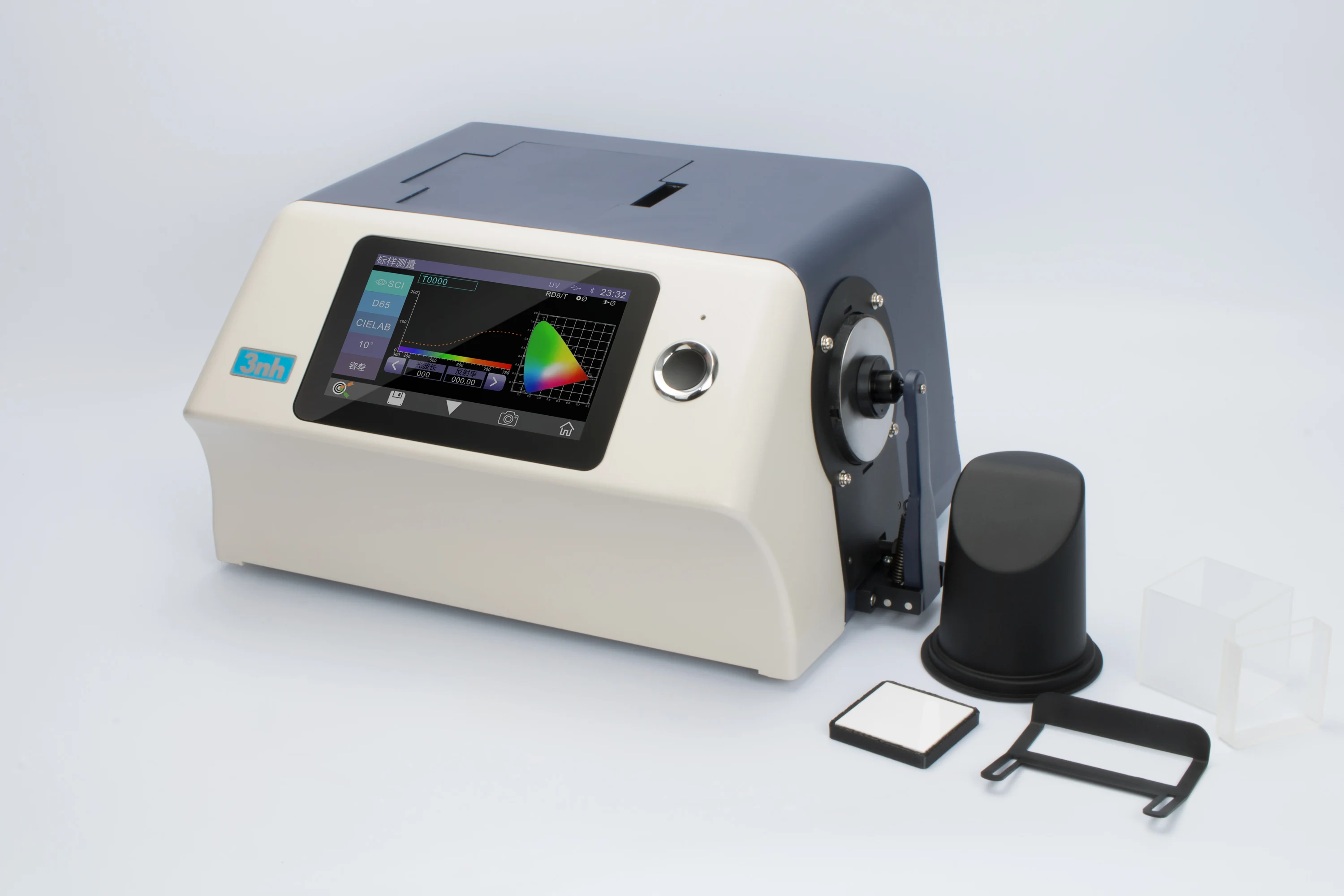

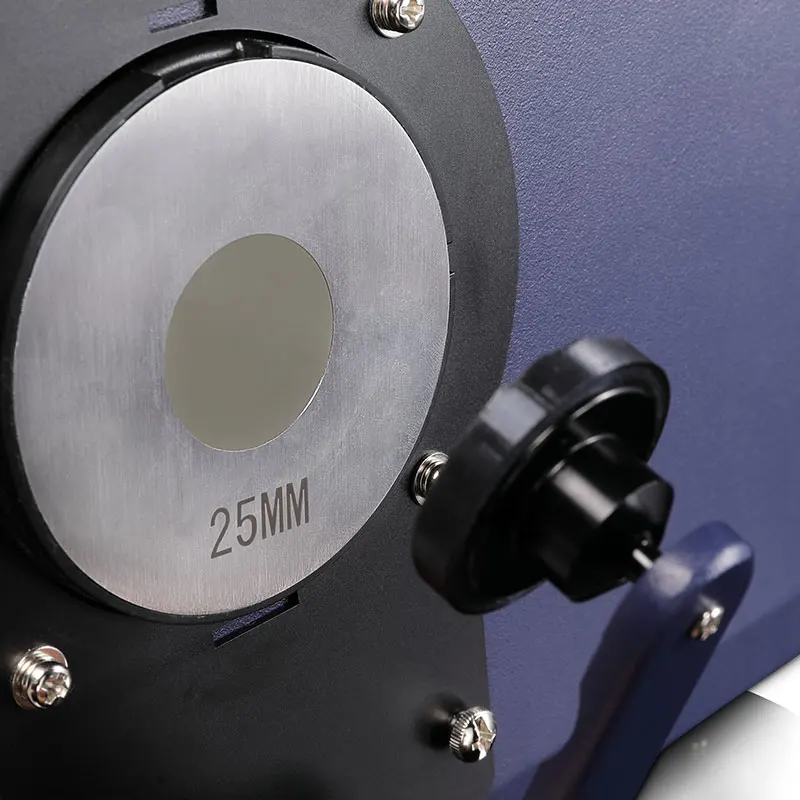

| Product Image : |
 |

|
| |
|
 |  |
|  |
| Customer confirmation : |
 |
| Contact Info. : |
 |
| Waiting for your inquiry, any more questions I will reply you within 24 hours |
