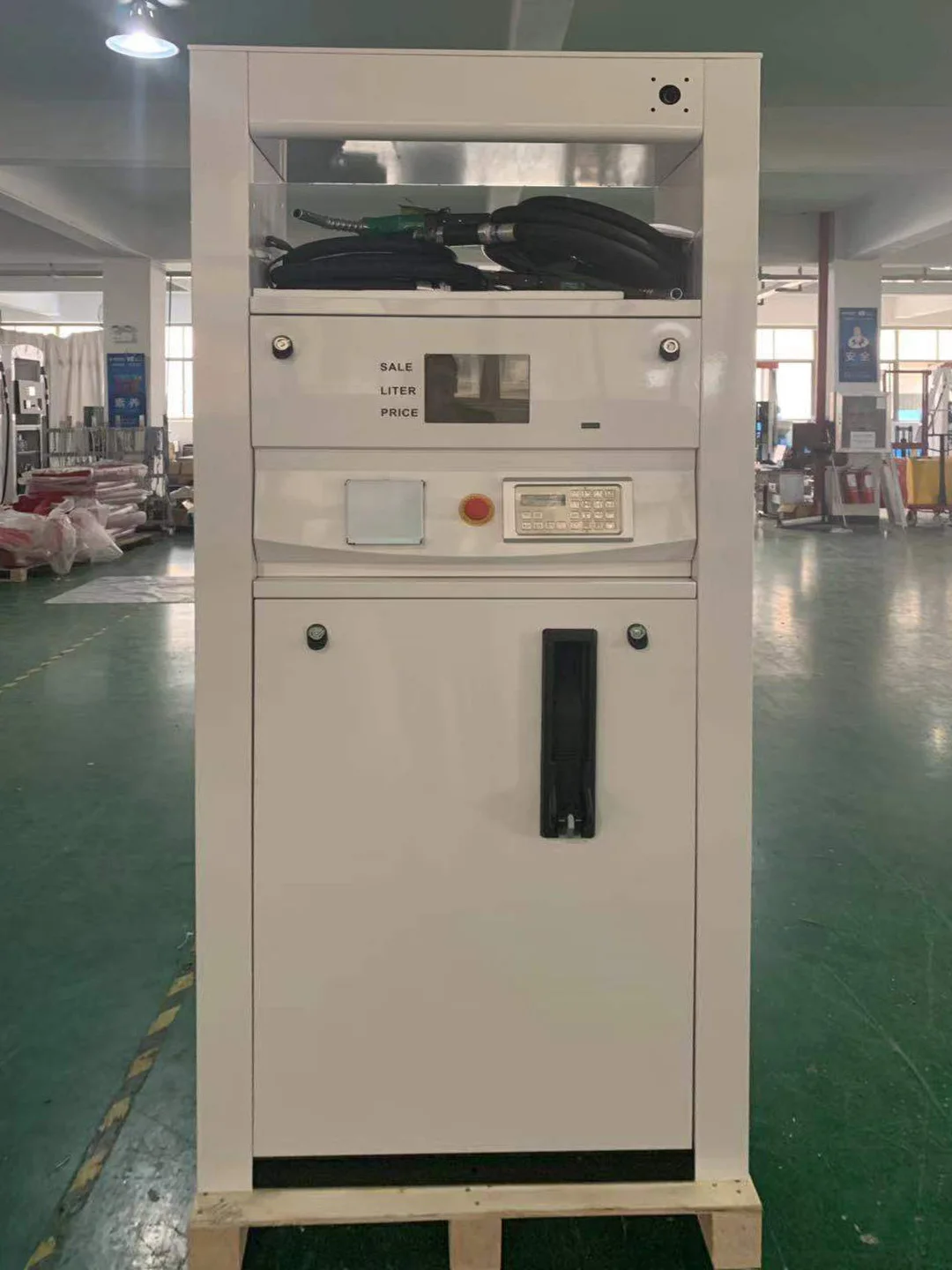

Single Nozzle Tatsuno Type Suction Fuel Dispenser With Printer and Emergency Stop
- Category: >>>
- Supplier: Wenzhou Bluesky Energy Technology Co. Ltd.Wenzhou Ltd.
Share on (62018947784):
Product Overview
Description
Mirror Stainless Body Fuel Dispenser With Tokheim Spare Parts
Product Description
Model available for Single Nozzle and Double Nozzle
Tatsuno type Pump / Tokheim type Pump / Bennett type Pump
Both suction and submersible
- 100% tested before shipping
- One year warranty and guarantee
- Certificate with MID,PCEC,etc
- Hot selling in Africa, South East ,Asia
- Factory direct selling
Single Nozzle Fuel Dispenser. Can Be Designed according the customers' requirement.
Can be with :Tatsuno type pump and flowmeter / Tokheim type pump and flowmeter /Bennett type pump and flowmeter

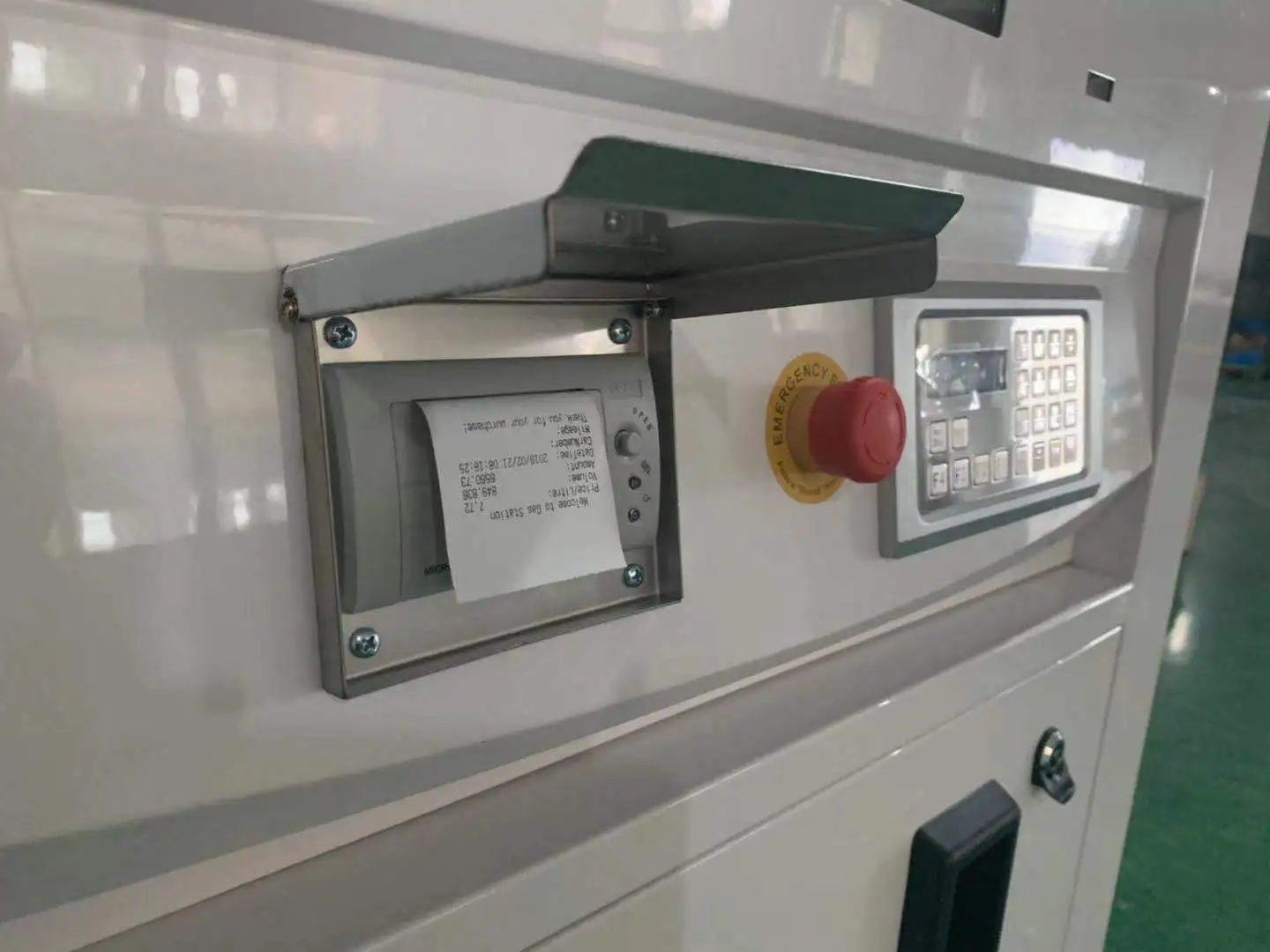

The printer can show the Date;Amount;Volume and so on
Detailed Images

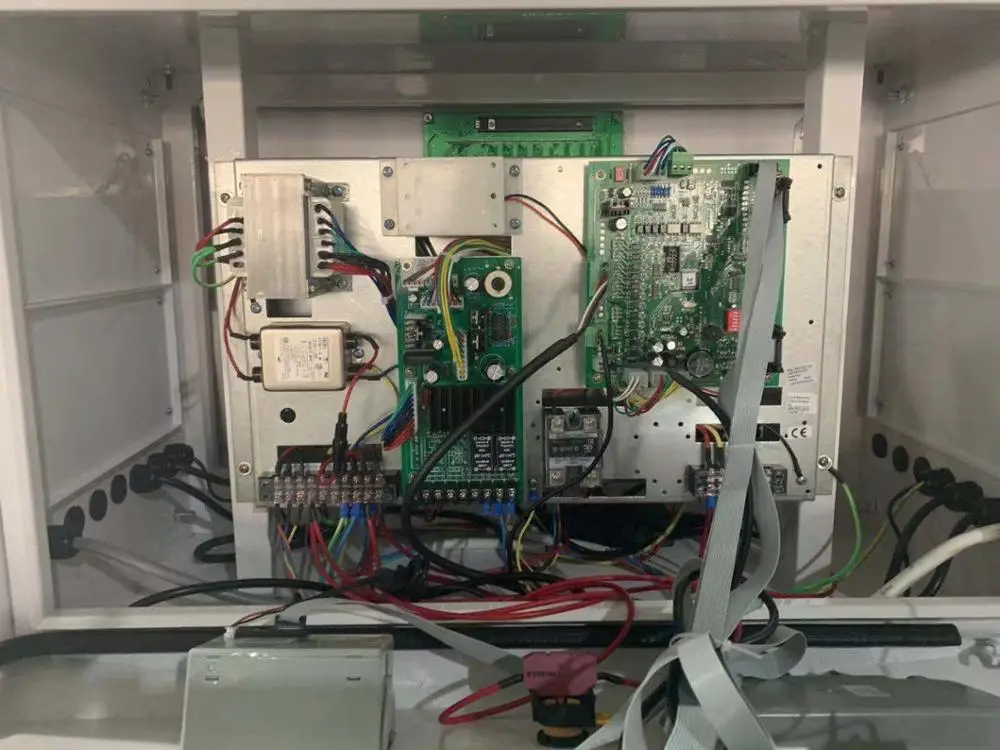

MPD controller LT-B PRO 112
One controller control Double nozzle, support remote upgrading, available with Tatsuno POS, Postec POS and ITL POS
Flow Meter And Unit Pump
Technical Parameter
Accuracy | ±0.30% | ||
Repeating Accuracy | ≤0.10% | ||
Flow range | (5~55) L/min | ||
Maximum head | 5m | ||
Inlet Vacuum | ≥54kPa | ||
Outlet Vacuum | ≤0.3MPa | ||
Work pressure | <300 kPa | ||
Noise | ≤70dB(A class) | ||
Unit price range | 0~9999, 0~999999 (changeable) | ||
| Single range | 1~9999.99,1~999999.99 (changeable) | ||
| Accumulative range | 0~9999999999.99 | ||
| Input hose diameter | 38mm | ||
| Oil hose diameter | 19mm | ||
| Explosin-Proof motor power | 750W(or 1000W) | ||
| Ambient Temperature | -35℃~+55℃ | ||
| Humidity | ≤95% | ||
| Atmospheric Pressure | 86kPa~106kPa | ||
| Power(optional) | AC110V±20%, AC220V±20% , AC380V±20% (50Hz) | ||
Company Information
Certifications
Our Services
Packaging & Shipping
FAQ
1- Are you Factory ? Yes
2- Can you use my logo and brand? Yes
3- Can we visit your factory? Yes
4- Do you have after sale service? Yes
