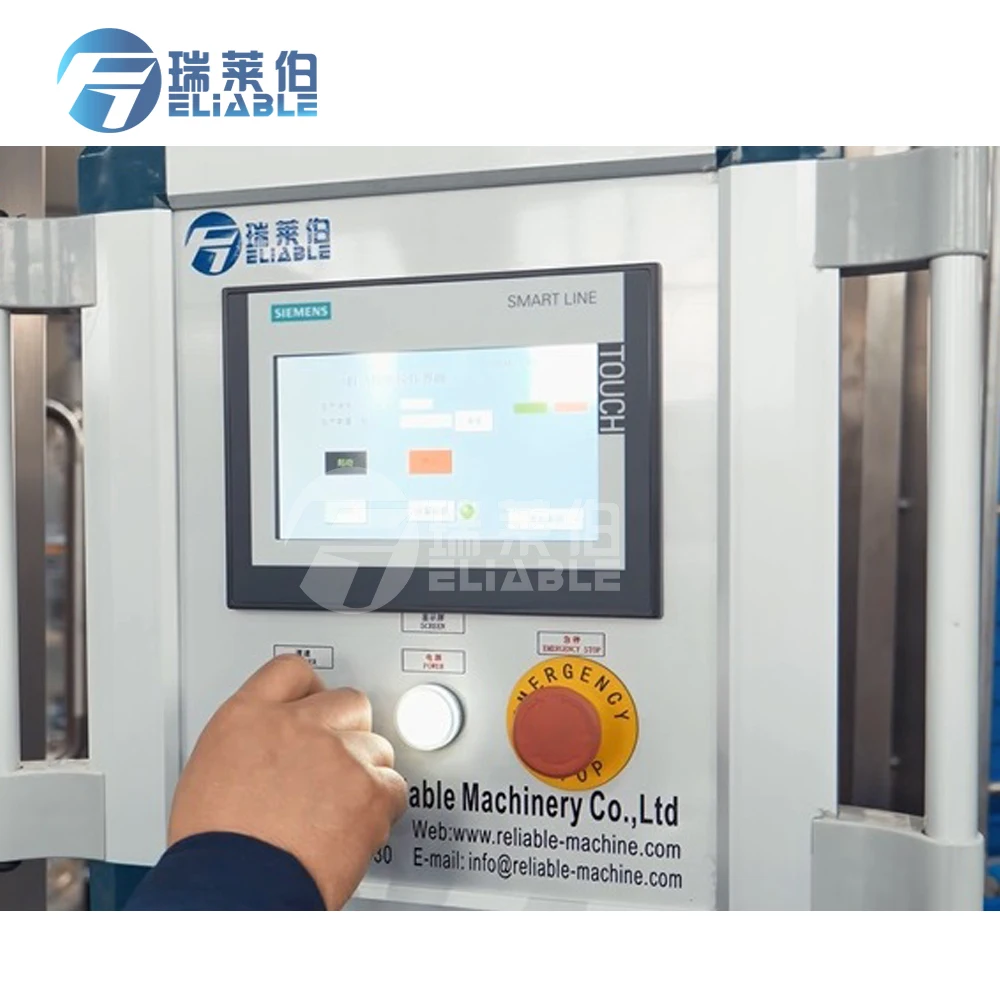

This kind of complete set of machine combines washing, filling, and rotary capping functions in one unit, it is a fully automatic and high efficiency liquid packing equipment. It is suitable for packing beverage containing gas. Its performance is as following: all parts, for instance, filling valve, filling tank , which directly contact medium are made of stainless steel. So it conforms to the requirements of Food Sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilize the whole machine at high temperature. Using programmable controller to realize fully automatic control from bottles entering to finishing packing. Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting balanced pressure filling principle and spring valves in order to assure beverage quality. Using advanced magnetic couple to regulate cap-screwing torque, in order to assure capping.
Technology Parameter
Model
CGFD8-8-3
CGFD12-12-6
CGFD18-18-6
CGFD24-24-8
CGFD32-32-8
CGFD40-40-10
CGFD50-50-12
Washing No
8
12
18
24
32
40
50
Filling No
8
12
18
24
32
40
50
Capping No
3
6
6
8
8
10
12
Capacity(500ml)
1500BPH
3000BPH
5000BPH
8000BPH
12000BPH
15000BPH
18000BPH
Installed Capacity
2kw
3.5kw
4kw
4.8kw
7.6kw
8.3kw
9.6kw
Overallsize(mm)
2000*1600*2400
2450*1800*2400
2650*1900*2400
2900*2100*2400
4100*2400*2400
4550*2650*2400
5450*3210*2400
Filling Machine Equipment
Name
Quantity
1. Stainless Steel Washing Nozzles
18pcs
2. Stainless Steel Filling Nozzles
18pcs
3. Stainless Steel Capping Nozzles
6pcs
4. Empty Bottle Air Conveyor With Fan
2m for free
5. Filled Bottle Flat Conveyor With Motor
2m for free
6. Bottle Exchange Part For Different Bottle Size
3 sets for free
7. Stable Cap Loader
1set
Detailed Images

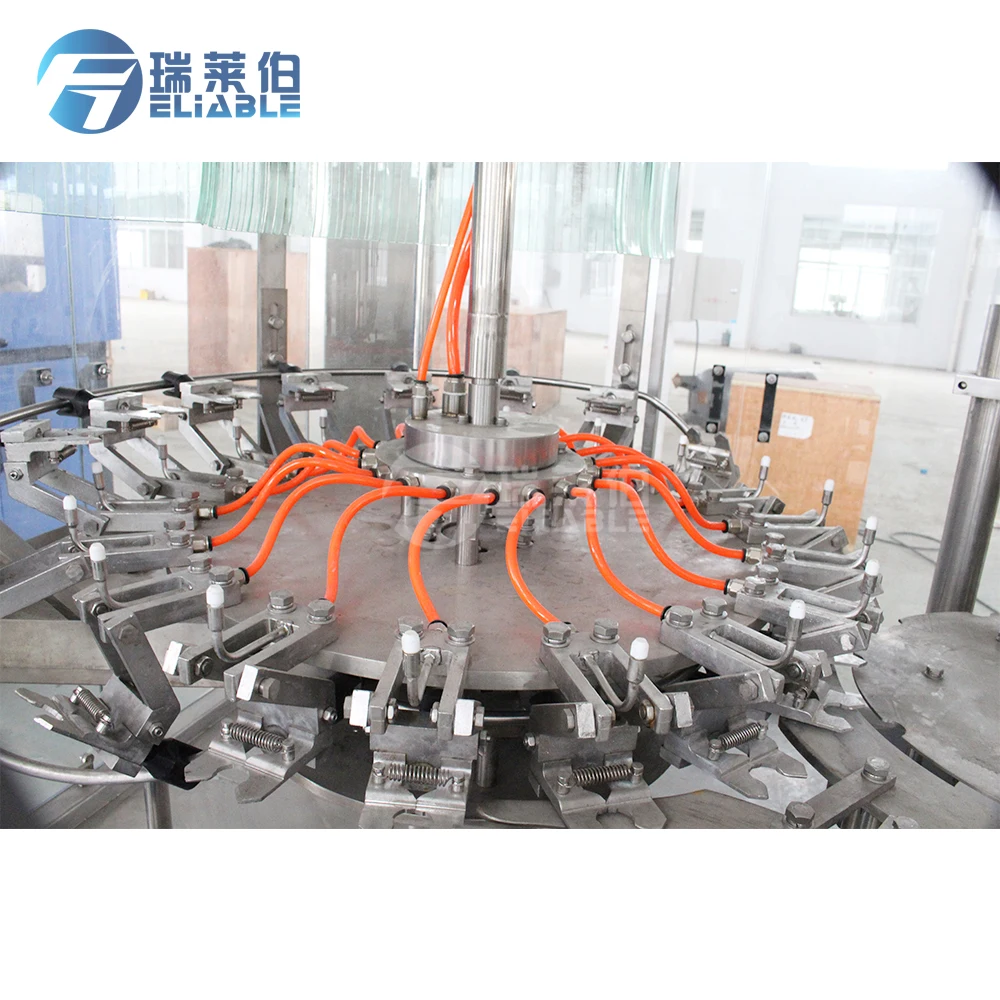

⬅Washing Part
1.All 304 stainless steel rinser heads, water spray style inject design, save water consumption & more clean
2. 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
3. 304 stainless steel washing pump

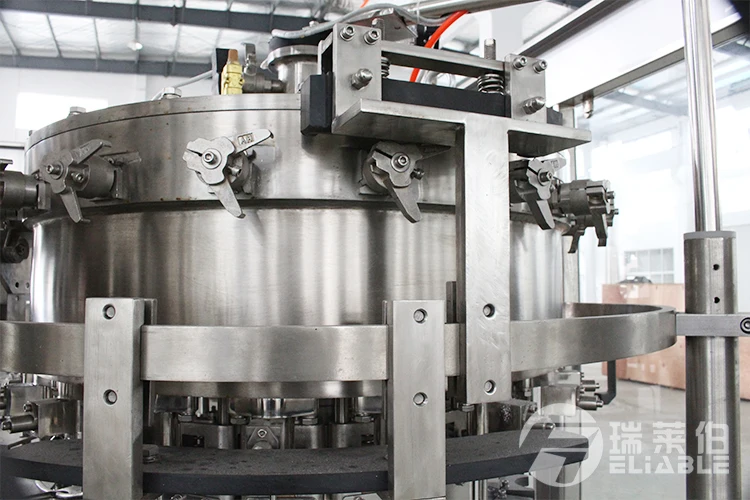

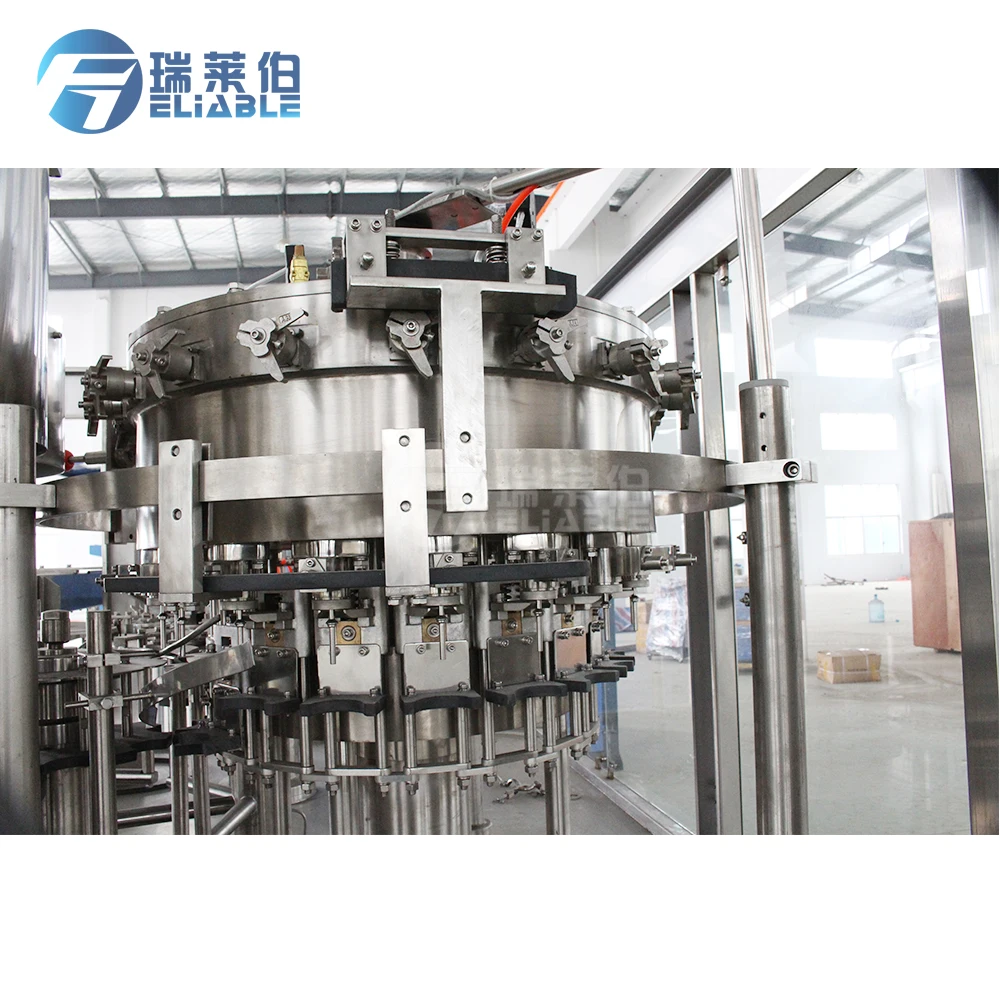

Filling Part➡
1.High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily
2.Filling volume adjustable in fine rank, same liquid level after filling 3. All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

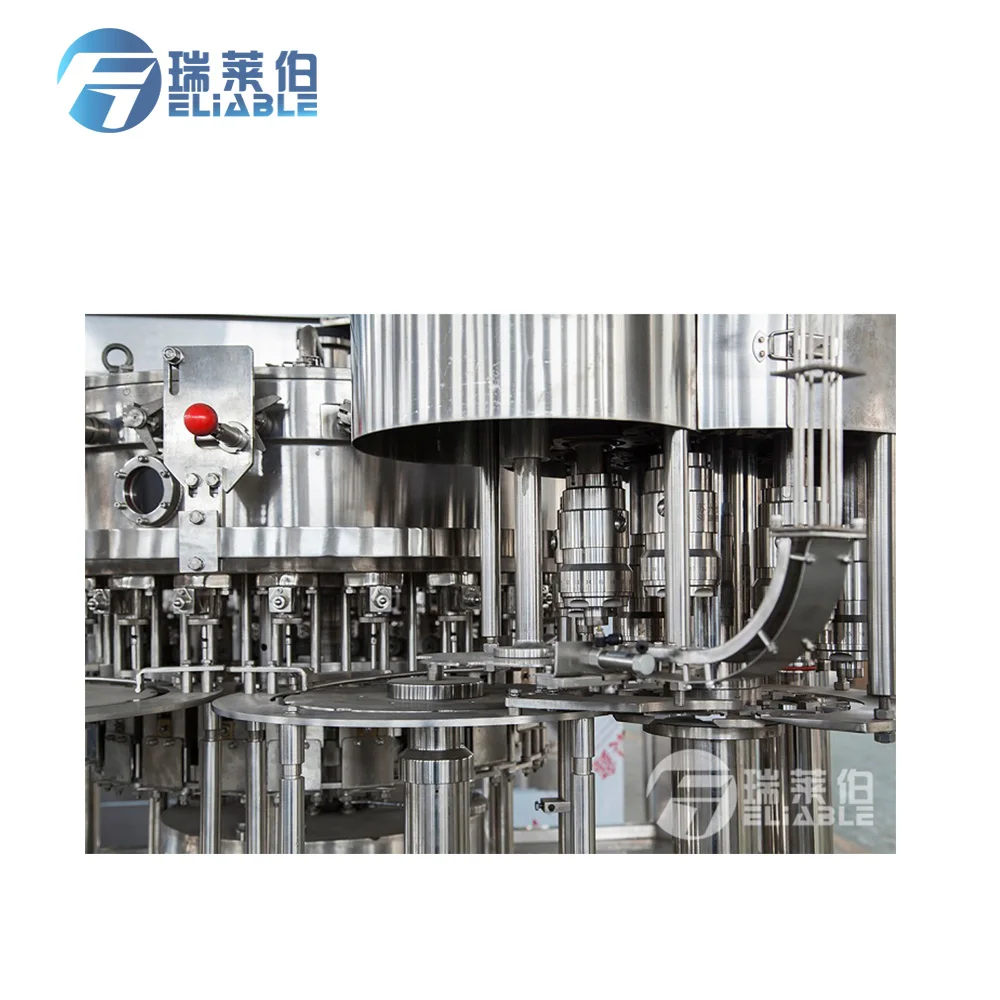

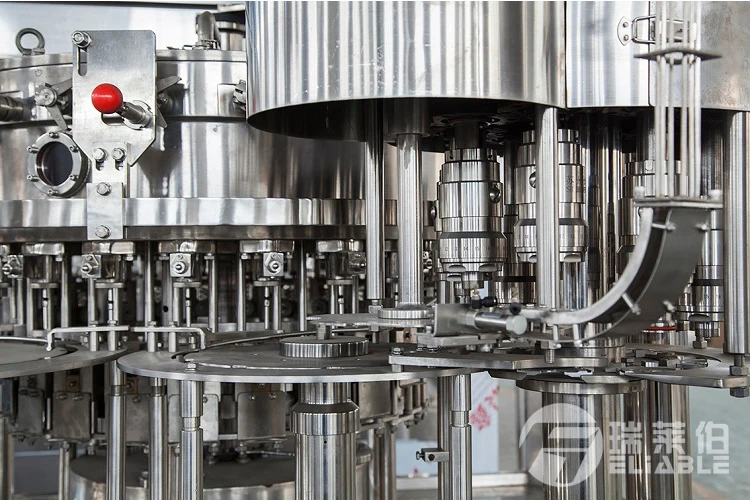

⬅Capping Part
1.Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2. All 304 stainless steel construction
3.No bottle no capping,
4.Automatic stop when lack of bottle
Air Conveyor➡
1.Air conveyor is fixed on the floor, with fan installed on the top.
2.Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
3.All are made of stainless steel SUS 304 /316.

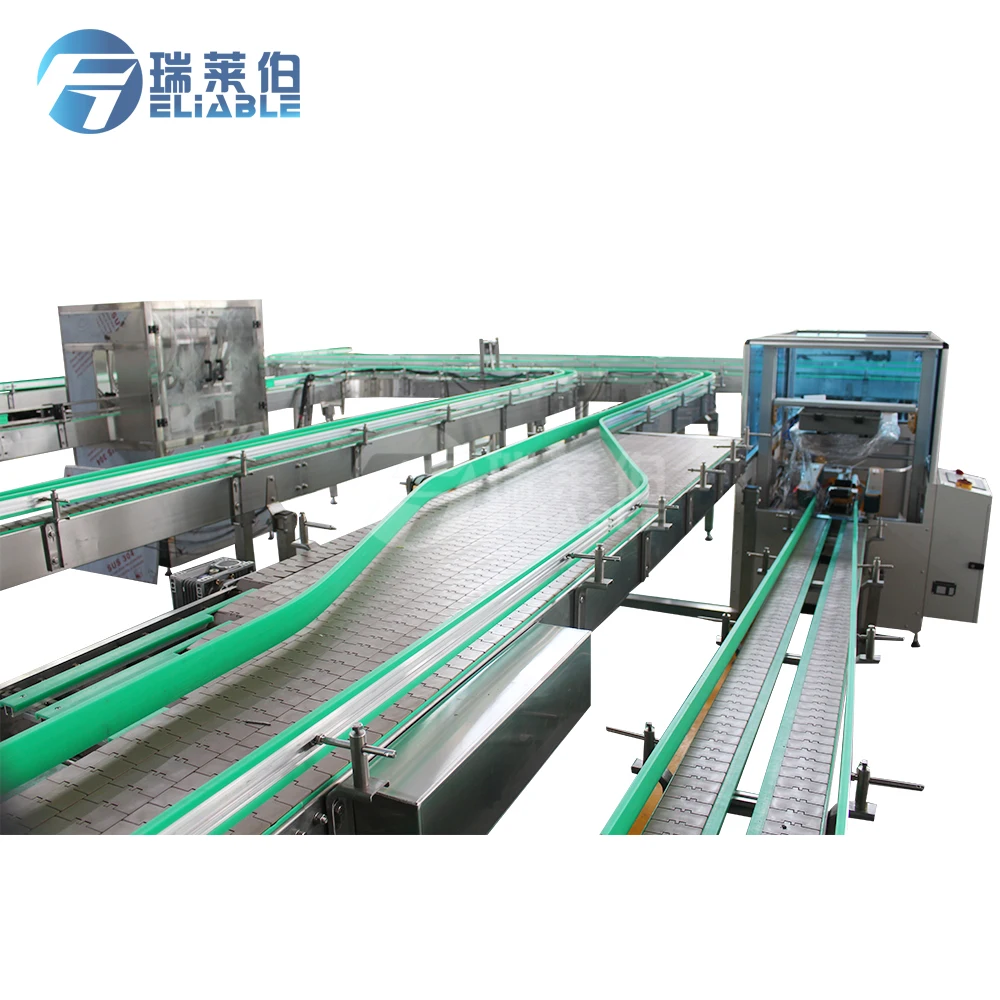

⬅Flat Conveyor
1.Energy saving. High efficient. Adapt to customer factory layout
2.Special lubrication system, keep products clean, health, safety
3.Extended service life
4.Electric eyes design keep whole line running safety and quickly
5.Overload protection mechanism to effectively ensure the safety of the machine
It’s a complete system used to produce carbonated drinks. It contains sugar melting tank, syrup filter, cooling tank, carbonated beverage mixer, water chiller and so on. Depend on your different formulations, customized machines are available.
