Travel Mobil Impact Metal Sprinkler Water Rain Gun Irrig Equip System For Agriculture Irrig On Sale

Share on (62018961944):


Price:$148.00 - $179.00

Quantity:


Product Overview

Description


Why Choose Us


Product Description

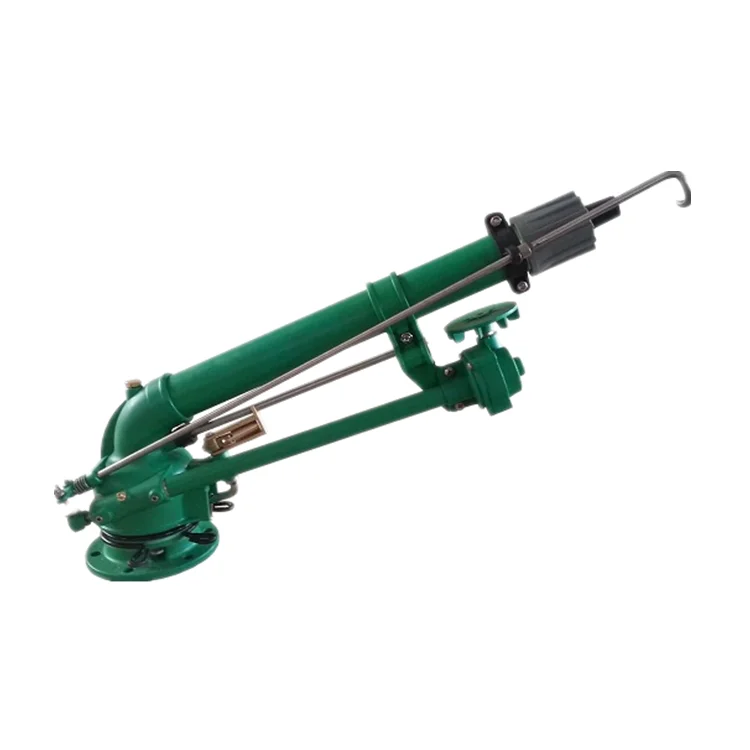

 The DLW-50 turbo vortex spray gun adopts a turbine vortex type transmission, which acts on different positions of the impeller through the water flow to realize the rotation in the forward and reverse directions, thereby realizing the continuous spraying mode in which both the forward and reverse directions can be sprayed normally. The spray gun has a long injection distance and can rotate at a uniform speed in a full circle or a partial circle. The rotation angle of the spray gun can be adjusted freely from 0° to 360°, and the spray is completely automatic, uniform and smooth during the injection process without manual intervention. The spray gun is equipped with a variety of nozzles of different specifications, and the adjustable water breaker can produce small and uniform water particles. Moreover, the DLW-50 turbo vortex gun can achieve excellent spray atomization at low water pressure, thus greatly reducing energy costs. The products are mainly used for agricultural irrigation, industrial and agricultural drainage, grassland irrigation, landscaping, large and medium-sized winch sprinklers and large-scale pointer sprinkler tail guns, large-area irrigation projects, dumping water and dust removal, stadium and ranch sprinkler irrigation, etc. Its pressure resistance performance, sealing performance and uniform operation, stability and reliability can meet the requirements of spraying, and will not cause the loss of water, soil and fertilizer, which is conducive to the growth of crops, improve automation, and promote the development of agricultural production to mechanization and industry.

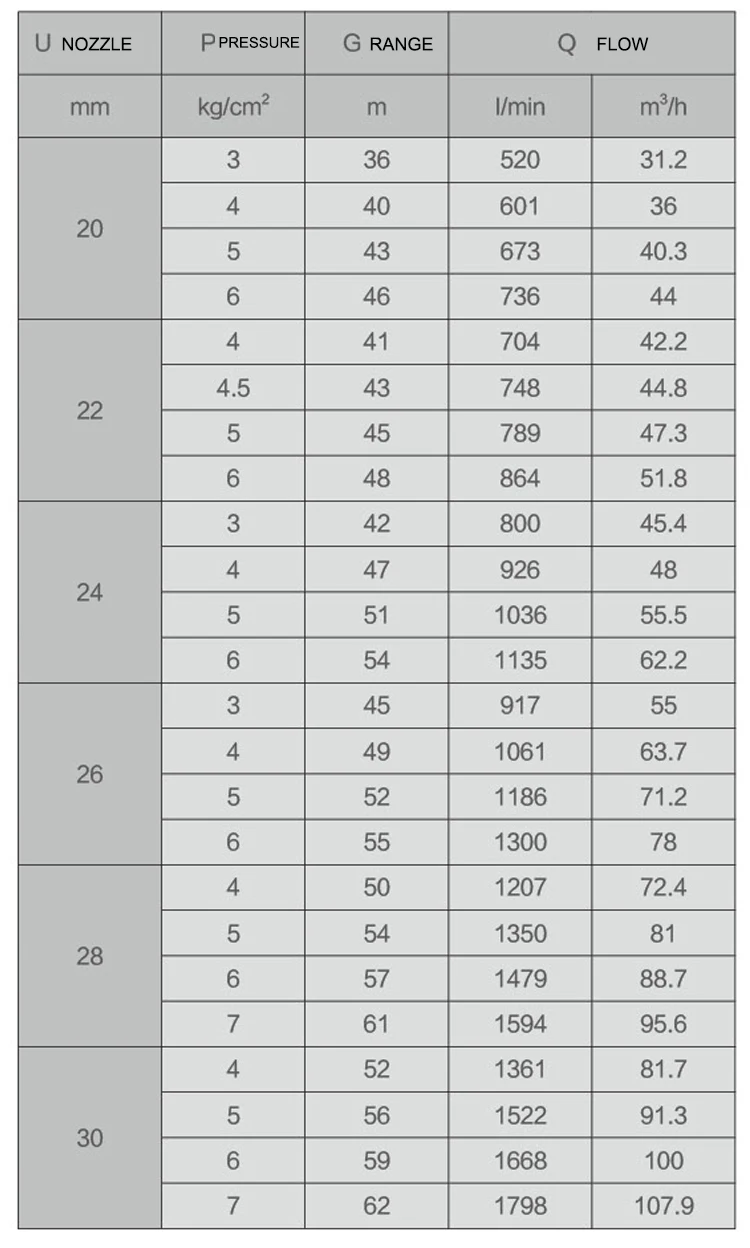

The performance parameters
Inlet nominal diameter50mm
Nozzle diameter14mm-30mm
Working pressure2-8bar
Flow21m3/h-107.9m3/h
Range28-62m
Interface modeflange connection
Nozzle angle23°
Product weight8kg
Product Specifications80*22*30mm


Hot Recommend

Company Profile


Shanghai TU-POLY Industrial Co., Ltd, as a subsidiary of Changzhou Hongtu Group with Stock Code:836295 mainly products: pipes fittings & thermostat valves, integrated water treatment integrated device as well as irrigation system.



Widely used in pipeline system such as civil, swimming pool, etc. as well as hydraulic work system, sewage disposal system, gas pipeline system, irrigation system, road administration, sanitary, heating, cooling, electricity, building, Ground Resource heat pump, etc., our products are sold to Europe, America, southeastern Asia, Middle East etc.



Headquarter is located in Changzhou, our main production base of pipes and pipe fittings. Meanwhile, we have many investments in production lines from USA, Germany with rich experience in developing and research as well as excellent team. All products are under ISO 9001 quality management system. We are engaged in practice in related fields. Thus, weve gathered quite a lot experience in problem solving for our clients and providing the most cost-efficient solutions for our domestic and oversea clients.



Our group has advantages in low cost on raw material. We develop and produce biggest PVC Pipe equipment in china, which can produce 2000MM pipes. Meanwhile, we have purchased the biggest and most advanced molding machines with 6800T, n the world, which can develop largest pipelines, pipe fittings, and plastic manholes in China. The year plastic processing capacity of 200000 tons, the existing staff of more than 1700 people. The specifications occupy the leading position in domestic market.



We always adhere to our principal: honesty, equality, mutual benefits and win-win.



Certificate Display


Shipment And Payment


FAQ


1.How can I get a quotation from you ?

You can leave us message, and we will reply every message in time. And you can also find our contact information on contact page.



2.Can I get samples before order ?

Yes, of course. Usually our samples are free.



3.What is your delivery time ?

The time of delivery is usually around 1 month(1*40FT as usual). We can send out in 7 days, if it has stock.



4.What is your payment terms?

Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble



5.How can you garantee what I got will be good ?

We are factory with 100% predelivery inspection which garantee the quality.
