Two Post Lift VTL 4T & Made in Korea One Cylinder Hydraulic Lift Ce

Product Overview

Description

Two Post Lift VTL-4T



Features:

With a hefty 4 ton lifting capacity, our symmetrical VTL-4T is a popular choice with workshops regularly working on small to medium sized commercial vehicles, and who require more free space.



An overhead brace connects the two posts providing strong rigid support and the balance cables also ensure perfect synchronisationbetween the carriages, whatever the load distribution.



• Top brace security stop bar
• Symmetrical post arrangement for extra working space
• Low, three stage lifting arms
• Arms can be used with quick drop-in height extensions
• Adjustable screw pads (min. height 95mm)
• Automatic arm locking mechanism
• Automatic hydraulic safety check valve
• Additional mechanical lock safety system
• Dead man controls

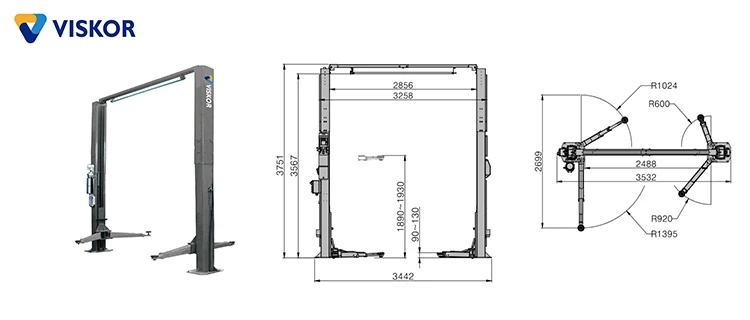

Technical data:

Model	VTL-4T
Load capacity	4,000kg
Lifting height	1,890-1,930mm
Min. height	90-130 mm
Lifting speed	40-60 sec
Motor	3PH, 3HP x 4P
Voltage	220V/380V, 50/60Hz
Control device	Control panel & wire remote controller
Dimension	2,832 x 3,751 x 3,442 mm
