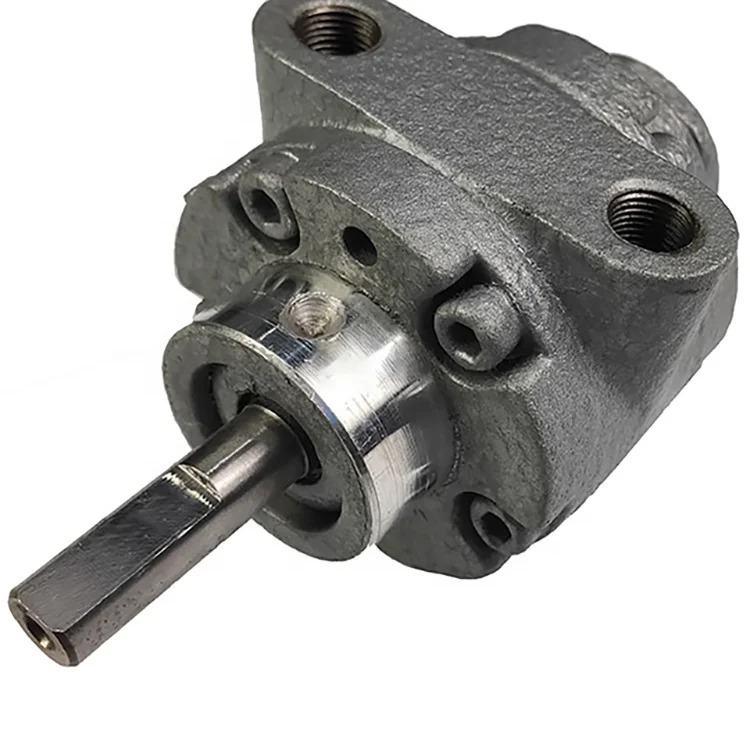

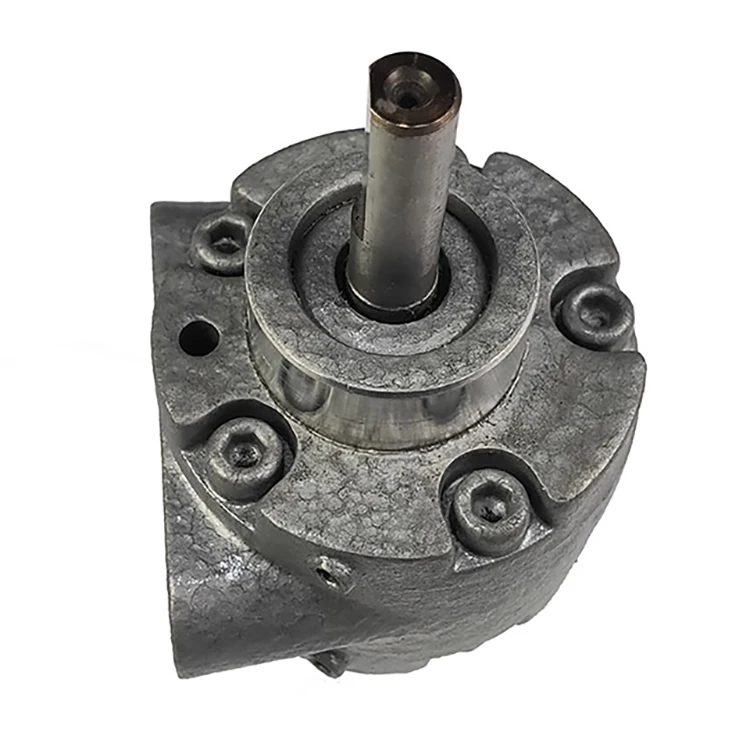

Small air motor HX1AM NCC 95 vane air motor
- Category: >>>
- Supplier: Rudong Hongxin Machinery Co. Ltd.
Share on (62019177671):
Product Overview
Description
Our Company
Product Description
Product Application
With compressed air as medium and make use of expansion function of it,blade air motor converts pressure energy into mechanical energy.It can be operated in tough environment which is damp,high temperature,excessive dust or other poor working environment. So it is widely used as power in mine rock drilling or loading machinery and more popular in many fields,e.g. ship,offshore platform,metallurgy,papermaking and petrochemical industries,etc.

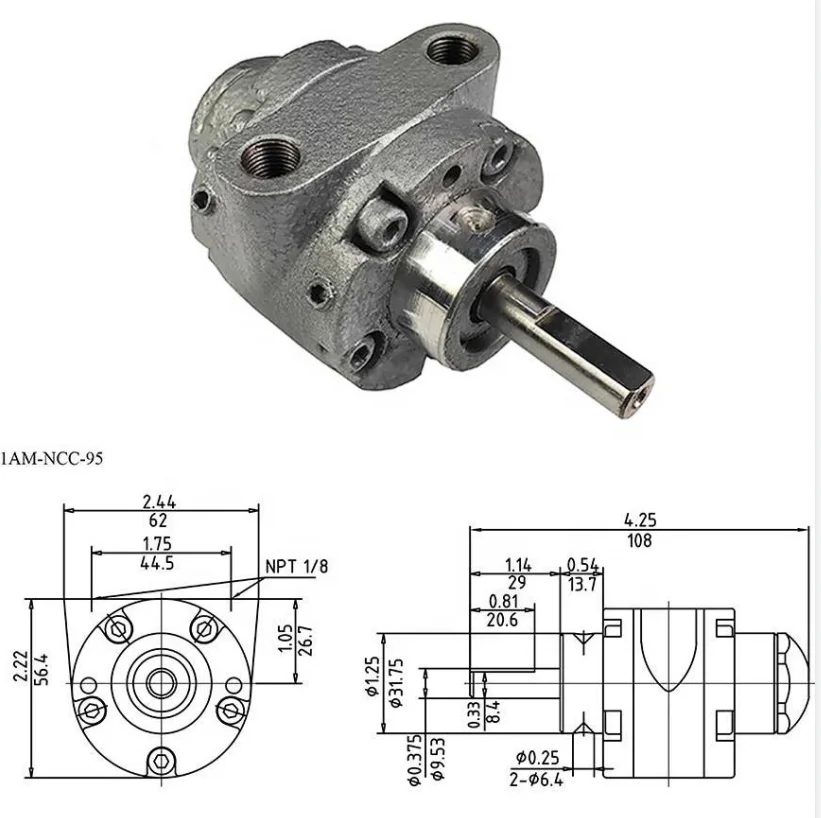

1AM-NCC-95 | ||||||
Operation Data | Power | hp | 0.45 | |||
kW | 0.33 | |||||
Torque | Nm | 0.31 | ||||
Ib.in | 2.75 | |||||
Rotate Speed | rpm | 10000 | ||||
Air Consumption | cfm | 20.5 | ||||
Maximum Torque | Rotate Speed | rpm | 650 | |||
Torque | Nm/Ib.in | 0.65/5.60 | ||||
Main Features
Variable speed.
•Nonelectrical sparking.
•Instantly reversible.
•Cool running.
•Compact and portable.
•Minimum maintenance.
•Will not burn out.
•Low price.
•Operate in all positions.
•Low-shock starts.
•Self-sealing vanes.
•Long-life accessories.
•Wide range of applications
Certifications
Detailed Images

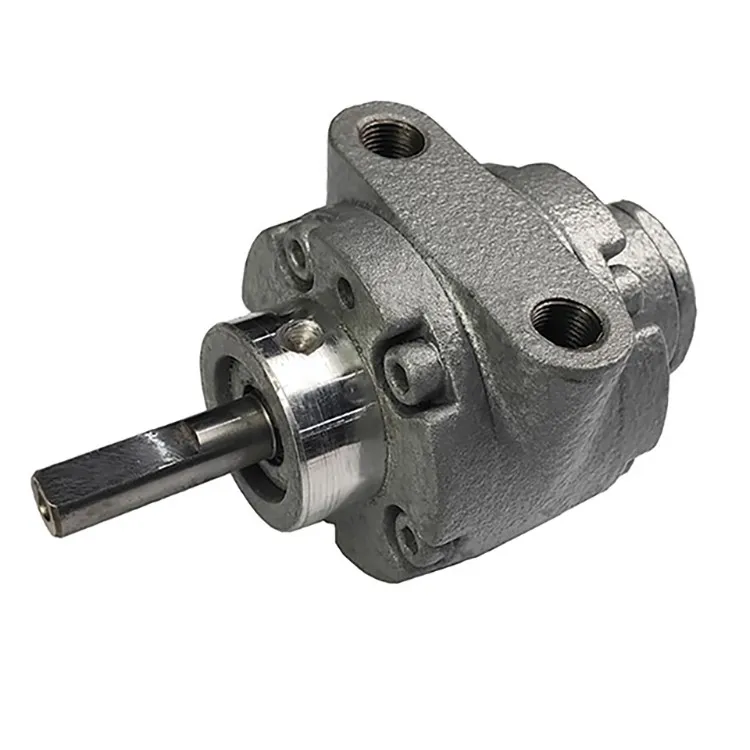

Output shaft
Name: Output shaft
Brand:HONGXIN
Original: CHINA

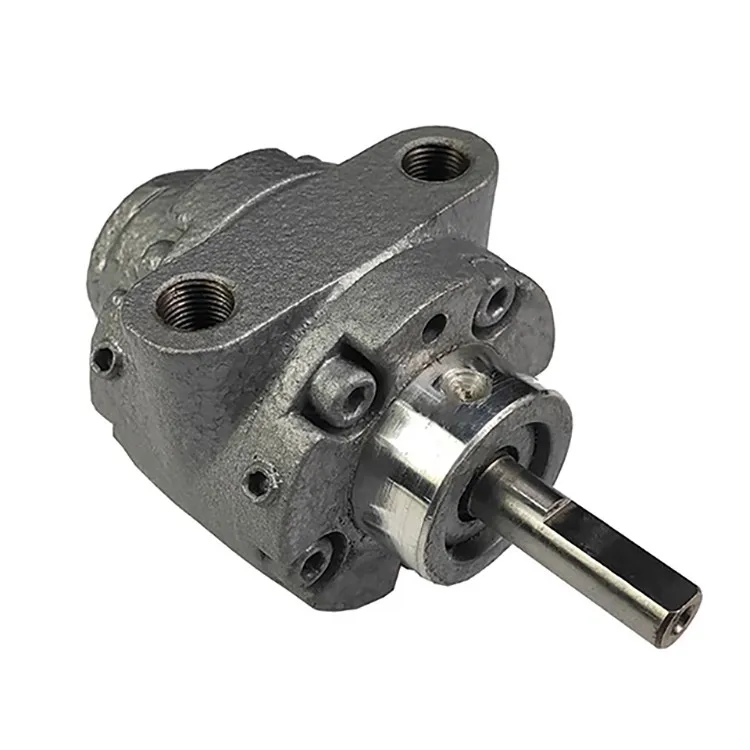

Air intake and Air outtake
Name:Air intake and Air outtake
Brand:HONGXIN
Original: CHINA

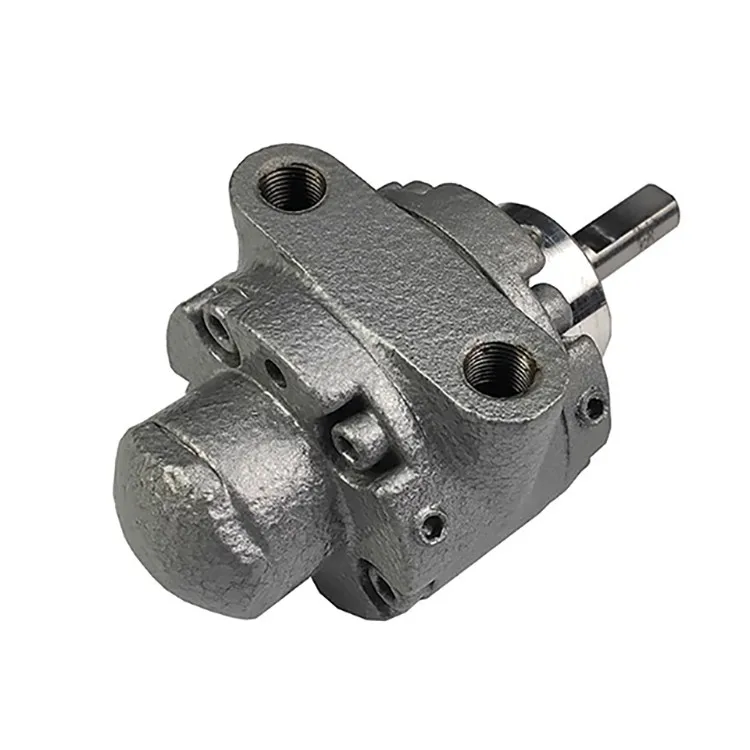

END CAP
Name: END CAP
Brand:HONGXIN
Original: CHINA

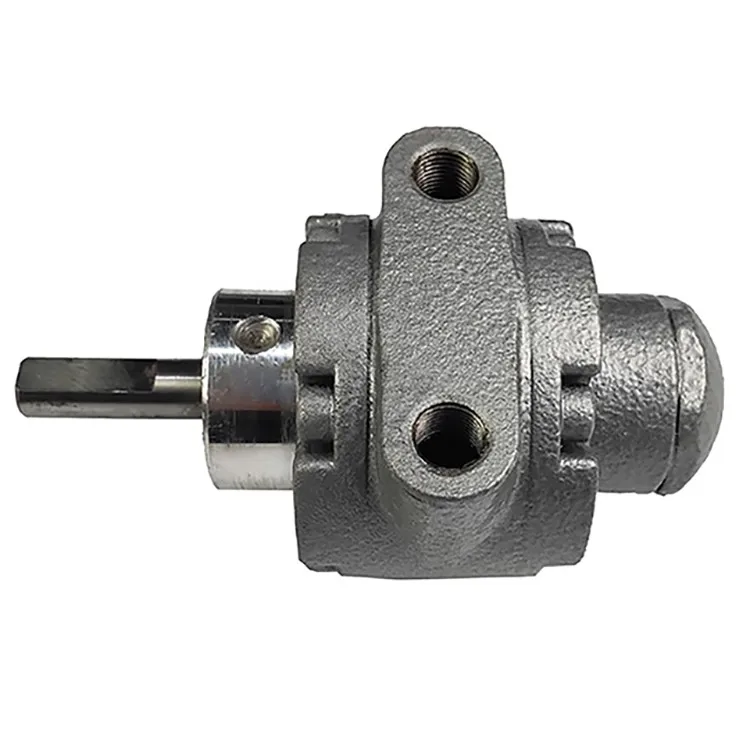

NPT1/8
Name: NPT1/8
Brand:HONGXIN
Original: CHINA
Our Service
Strong R&D capability
* Since 2002
* Sample testing support.
* professional R&D
Thoughtful After-Sales Service
* 24 hours online service
* Lifetime quality warranty
* provide installation guide
Packing & Delivery
Packaging | ||
Size | 110 (L) * 64 (W) * 59 (D) | |
Weight | 0.6kg | |
Packaging Details | 1 plywood case per set. 2 If container is too tigher,we will pack itaccording to customers special request | |
Packaging | ||
Size | 110 (L) * 64 (W) * 59 (D) | |
Weight | 0.6kg | |
Packaging Details | 1 plywood/paper case per set. 2 If container is too tigher,we will pack it according to customers special request | |
FAQ
1. Are you a factory or a trading company?
We are a factory and has been built for 17 years.
2. Is there a MOQ (minimum order quantity)?
No, small batch or sample orders are also available.
3. Is it possible to OEM?
Yes, but please provide a brand authorization.
4. Frequently asked questions about specific products:
air motor, normal working pressure, lifetime, whether muffler is included, 4 blades or 8 blades are optional, CW ,CCW or reversible..
