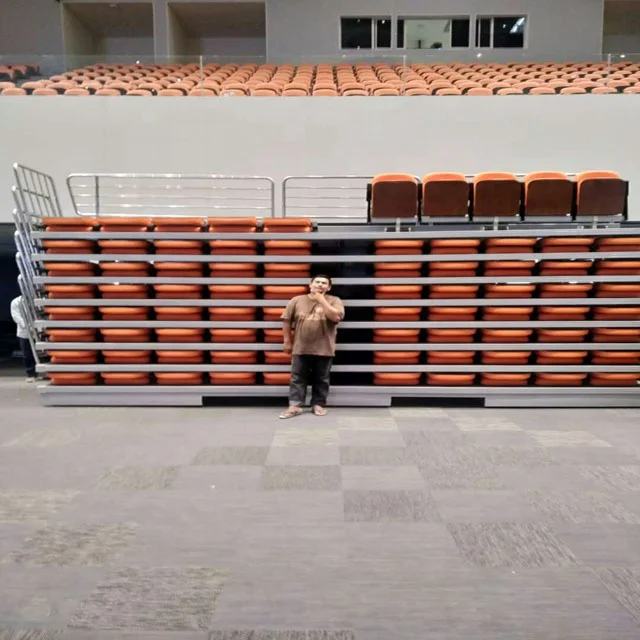

Movable indoor electric telescopic grandstand with soft armchair

Share on (62019180398):


Price:$120.00 - $135.00

Quantity:


Product Overview

Description


Product Description

Product Application

Movable electric telescopic grandstand with soft armchairs , is a kind of automatic stretchable seating system used in small floor space.

When grandstands or bleachers are stretched out, the outstretched chairs on the steps enable spectators to sit on comfortably and enjoy a visual feast. As the bleacher system is contracted as a drawer, it saves space for you to plan other activities. Retractable bleachers makes most of the limited room and satisfy various seating needs under different situations.


Movable electric telescopic grandstand also can be moved to other place to store or use by pallet trucks.It can be in used in different places.

\t
SPECIFICATIONS
\t
Product Type
\t
Retractable bleacher
\t
Material
\t
Carbon Steel Q235B,Q235,Q195 etc.
\t
Length and width
\t
According to customer site to design
\t
Surface treatment
\t
Hot galanized or powder coating
\t
Seat size
\t
465mm- 520mm
\t
Loading capacity
\t
can load 200kg-400kg/ seat
\t
Aisle
\t
800mm-1000mm or customized
\t
Each level width
\t
700mm-1000mm or customized

Main Features

1. Easy operation and control
2. Strong and stable understructure
3. Unique design
4. Comfortable and pratical seat
5.Flexible seats configuration
6. Elegant appearance

Certifications
Detailed Images

Bleacher front part

Material: Carbon steel Q235,Q235B,Q195,aluminum plate and plywood plate

Operative method:Manual or power operation

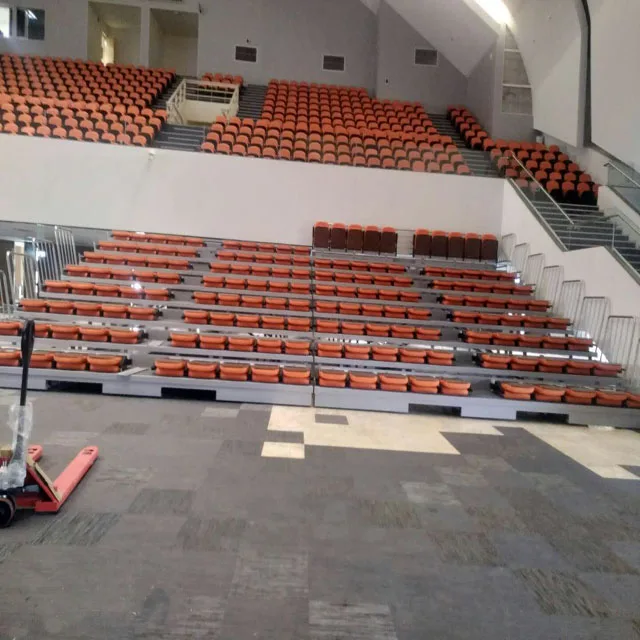

Electric telescopic grandstand also can be moved to other place to store or use by two pallet trucks.It can be in used in different places.

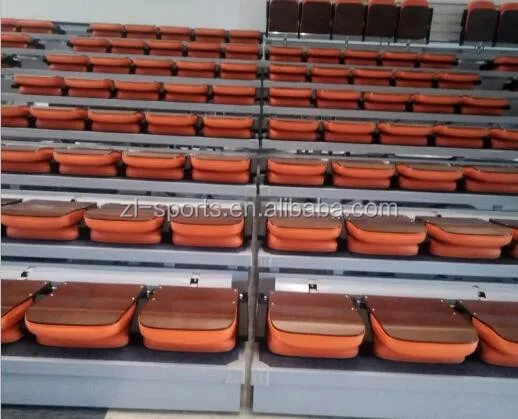

Soft armchair

Upholstery:Leather / Fabric

Each chair's bottom cover feet-pressed folding sytem.Semi-automatically folding system.

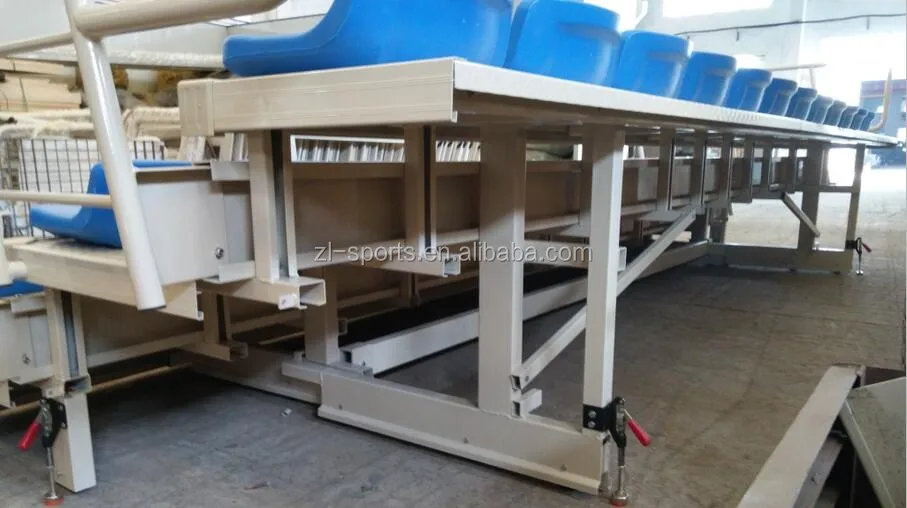

Bleacher back part

Lock system: each bleacher has four lock system

After bleacher move to using place, fixing bleacher by lock system.

Our Service

Production equipment

* View our Factory.

Installation site

* Engineers available to help customer to finish installation overseas.

Packing & Delivery
\t
Packaging
\t



Packaging Details
\t
If grandstand is small, we will finish installation,then load it into container.

If grandstand dimension is over container size,seats will be package with plastic bags then put into wooven bags or carton. Granstand structure will packed with plastic film.
