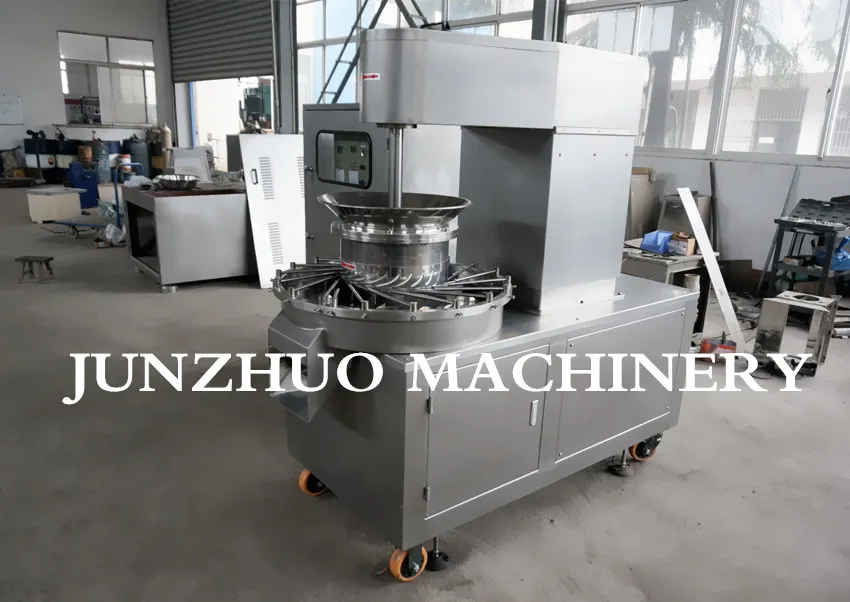

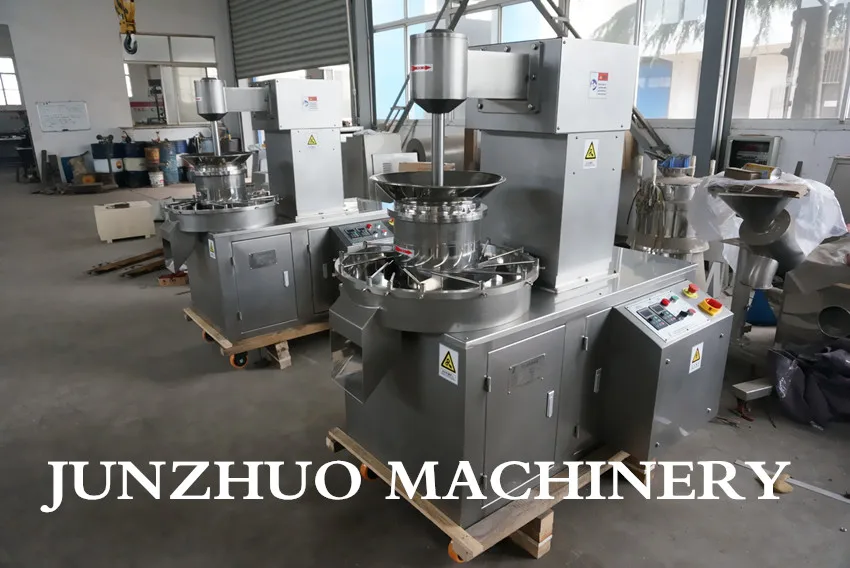

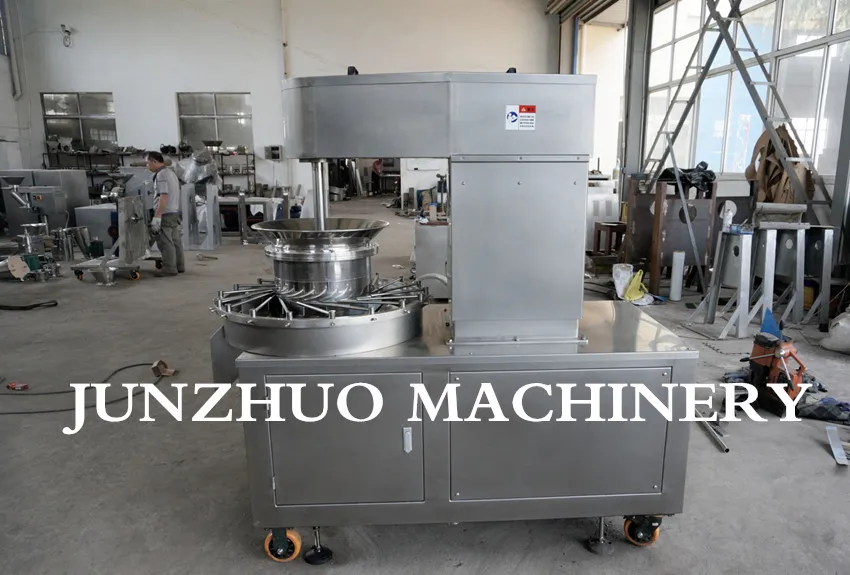

XZK 300 Pesticide extruding granulator of WDG production line
- Category: >>>
- Supplier: Jiangyin Junzhuo Machinery Manufacturing Co. Ltd.
Share on (62019303147):
Product Overview
Description
Product Description

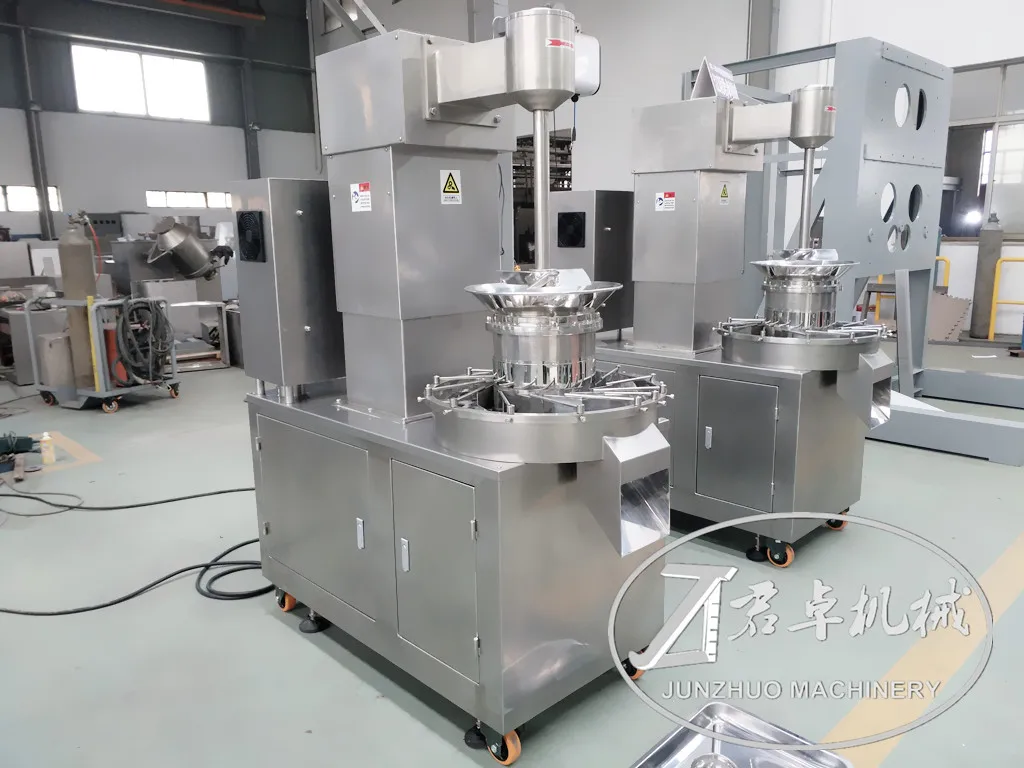

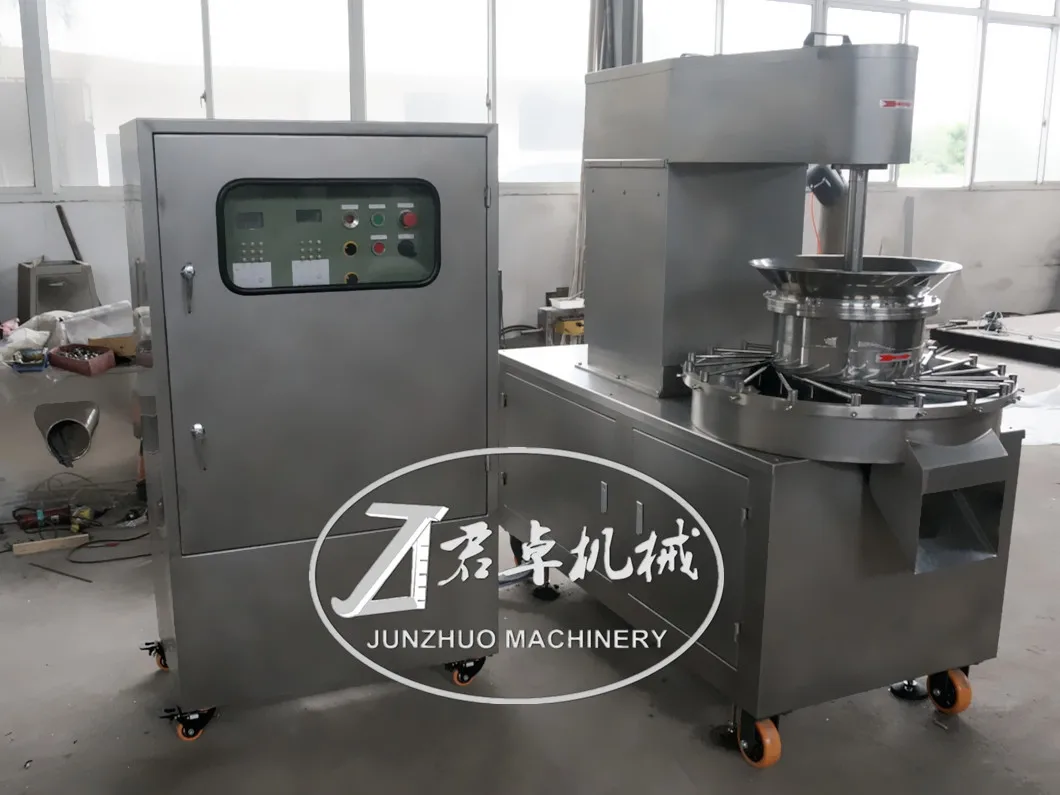

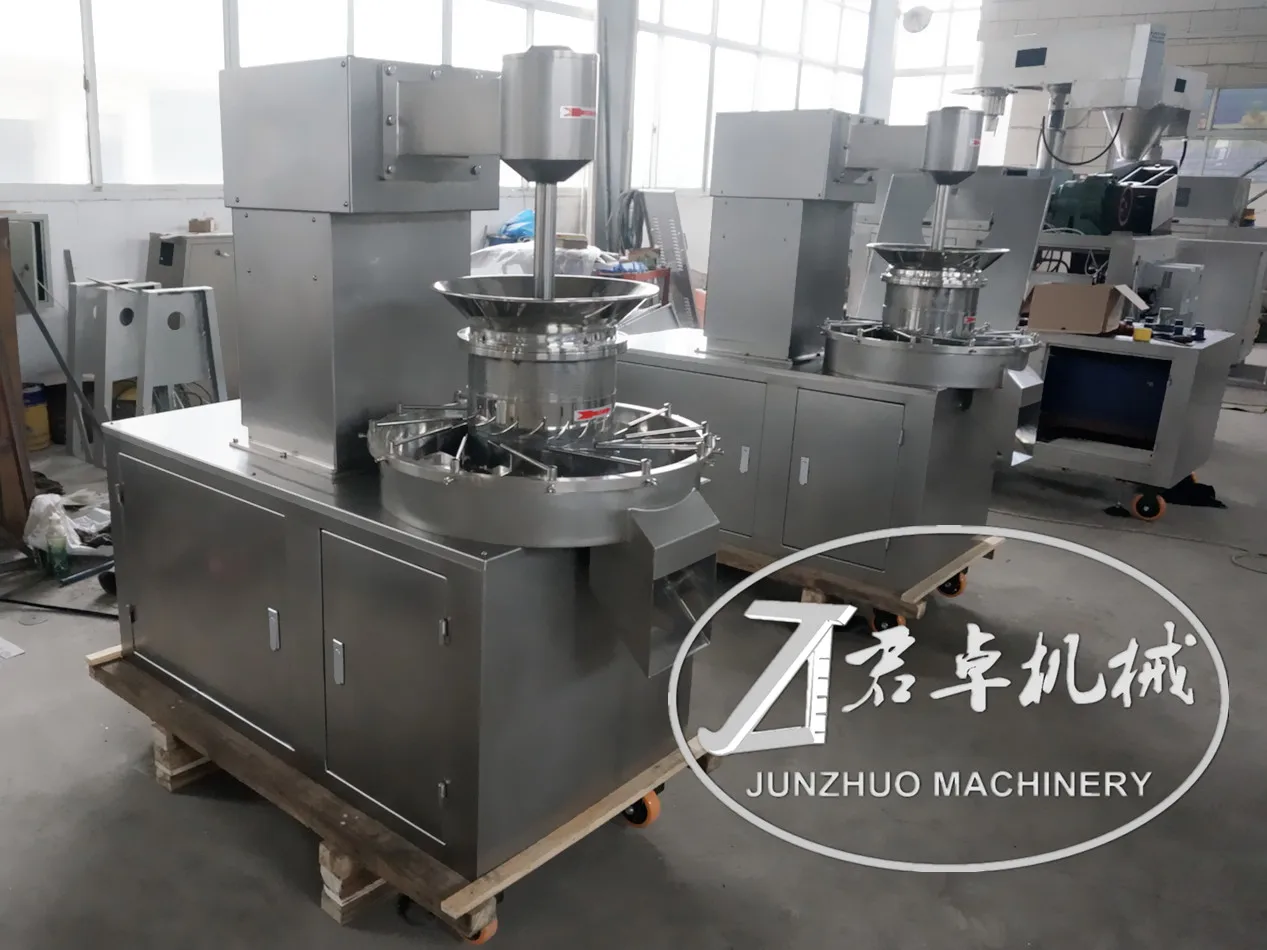

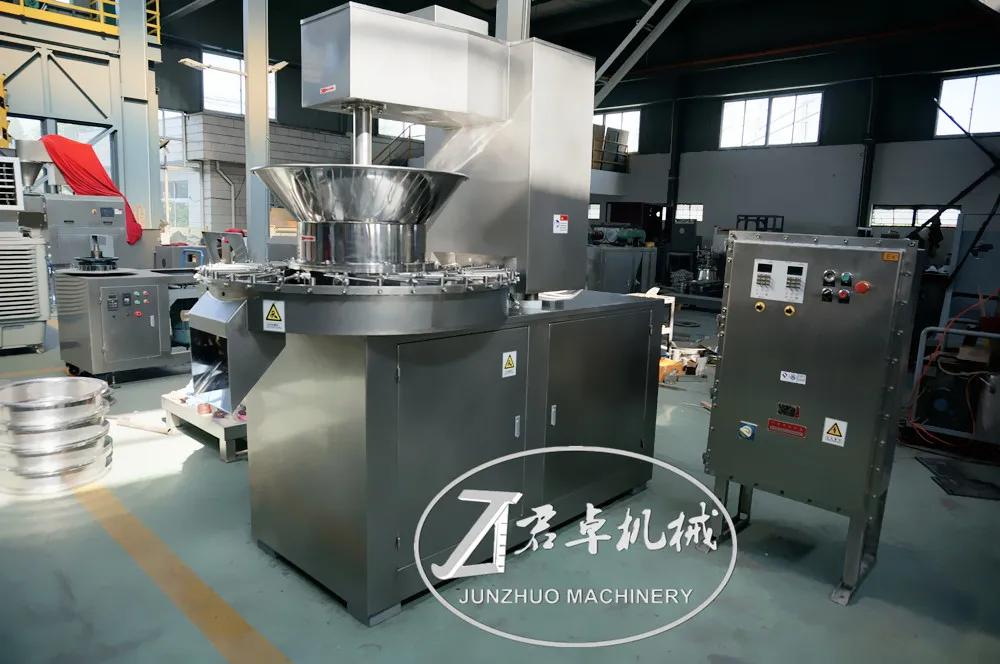

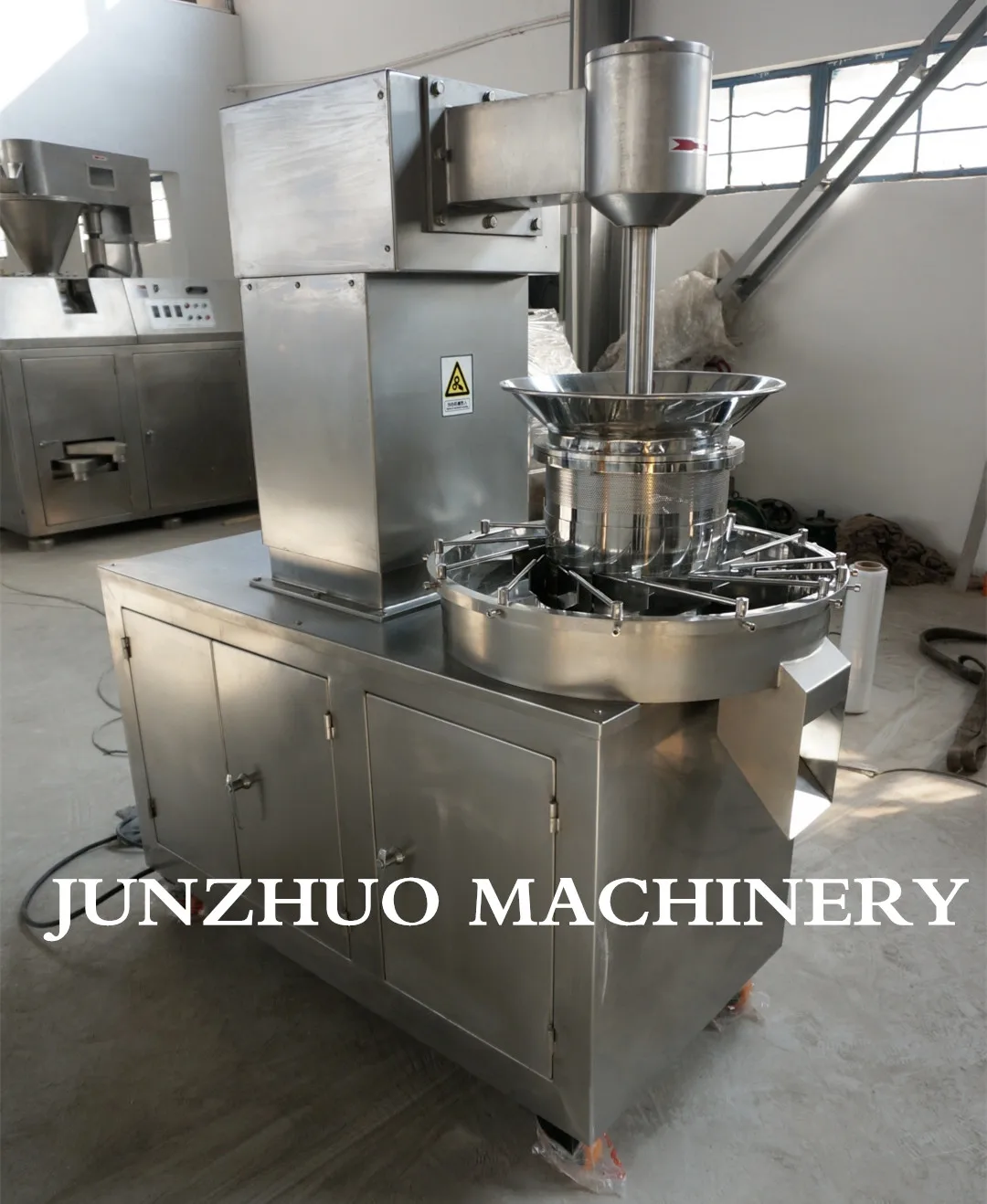

XZK-300 Revolving pelletizer
Main Application:
This machine is used in pharmaceutical, food, chemical, solid beverage and other industries.
Features:
These granulators are constructed with quality stainless steel to meet GMP standard. The driving mechanism is totally enclosed in the machine body and its lubrication system improves the lifetime of the mechanical components. A water cooling system is available.
The compression and granulation device is independent.A frequency gear motor, through the spiral bevel gear drive to the pressure knife.With high reliability, this structure is novel and durable. Variable frequency stepless speed is an outstanding advantage of this high performance equipment.
Technical Parameter
Model | XZK-300 | XZK-350 |
Paddle Diametereer | 268mm | 348mm |
Screen Mesh Diameter | 1.2-4mm | 1.2-4mm |
Screen Installation Diameter | 270mm | 350mm |
Main Motor Power | 7.5KW | 11KW |
Assistant Motor Power | 0.75KW | 1.5 KW |
Lift motor power | 0.37KW | 0.55 KW |
Paddle Rotation Speed | 45r/min | 42 r/min |
Pressure Knife Rotation Speed | 55r/min | 50 r/min |
•Overall Dimension | 1350*700*1470mm | 1800*780*1700 mm |
Capacity | 100-350kg/h | 200--600kg/h |
Approx. Weight | 900kg | 1100kg |
Working Principle
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
Product packaging
Spare Parts
It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.
