Product Overview

Description

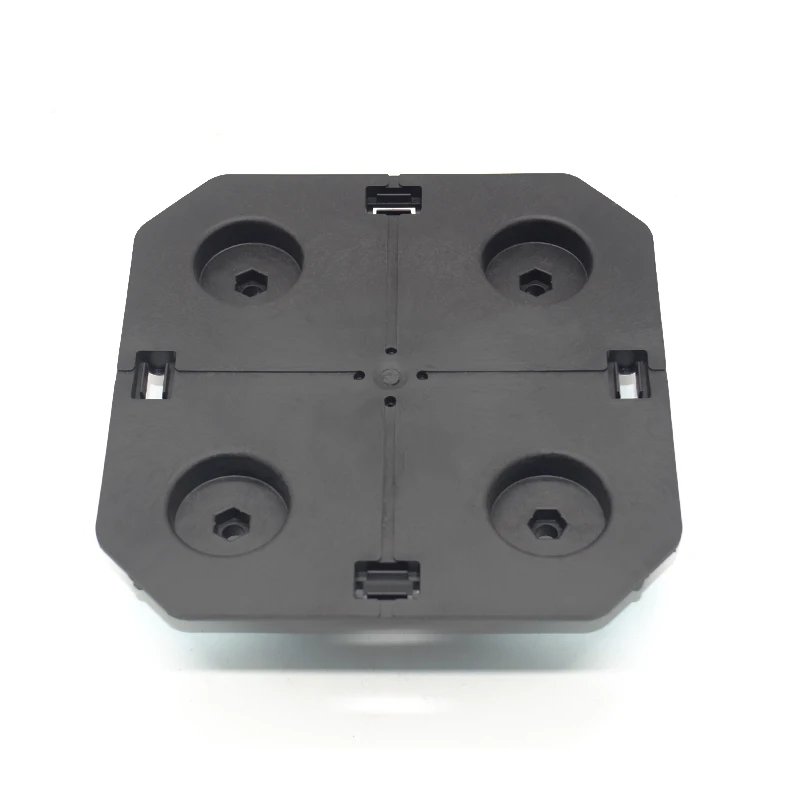

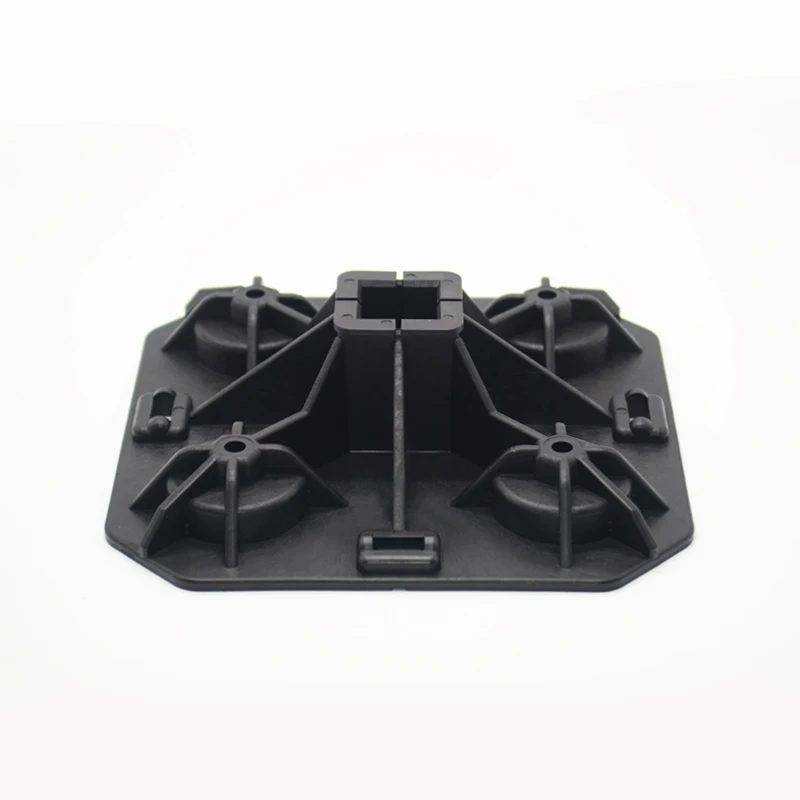

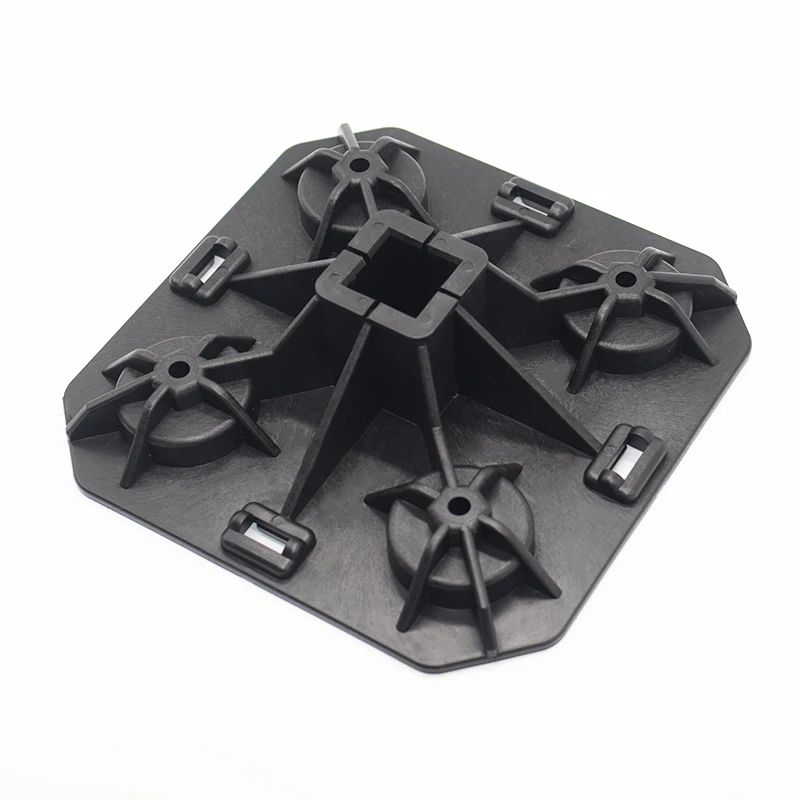

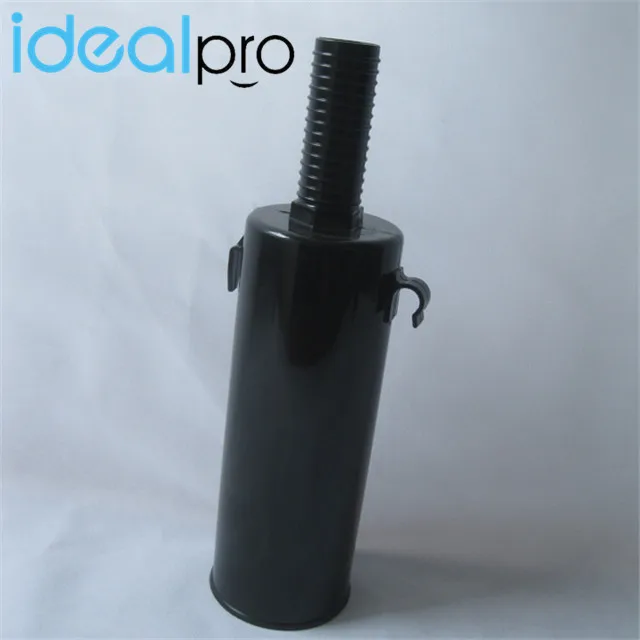

ABS Vaccum Form Moulding for Threaded Fire Applicators Nozzle Sprinkler Sprayer for vehicle parts accessories



1)Material:AS,ABS,PC,PS,PP,PVC,PBT,HDPE,PMMA or custom materials
2)Mould Cavity:Single or multi-cavities
3)Mould material:Steel1045,P20,Cr12,DC53,H13
4)Surface finish:chrome plating,silk-printing,texture,color painting
5)Injection machine production ability:from 0.1g to 6000
6)The product in the pictures are our customers'OEM products,it's only for reference
	We can make the colors according to your requirements
	We provide products from tiny pcs to the big ones
	We specialize in high performance polymer processing
	Complex angles and shapes are not a problem for us



It is a hand drain valve for industrial water treatment system, made of pp+gf, based on use and function, we choose this material for better performance.

Besides, it is a complex assembly set for a development project we have used on other products .



The Introduction of Mould
Mould material	P20 steel, 718, 2738, H13, NAK80, 2344, 2343, S136, etc .
Mould type	Injection plastic mould
Product material	ABS,PA,PA66+GF,POM,PC,PP,PET,TPE,PVC,HDPE,etc
Mould base	HASCO, DME, MISUMI, JIS, LKM, etc.
Mould runner	Hot/Cold Runner
Mould tooling equipment	Lathe,Milling,Grinder,Drill,CNC,EDM,Wire cut machine,Punch machine
De-mould Type	Automatic Ejector
Maximum mould size	1500*1500 mm
Gate	Side Gate, Sub Gate, Direct Gate, Hook Gate, Pin Point Gate, etc.
Cavity	Single or Multi cavities
Mould Life	45#:300,000 to 500,000 shots
	P20:600,000 shots
	718: 800,000shots
Lead time	About 3-4 weeks
Package	Wooden packing box or as customer's requirements

Q: Why choose DEAR?



Q: How to deal with your project/order?

Q: What type of plastic is best for my design/product?
A. Materials selection depends on the application of your design and the environment in which it will function. We will be happy to discuss the alternatives and suggest the best material.



Q. What type of mould tool do I need?
A. Mould tools can be either single cavity (one part at a time) or multi-cavity (2,4, 8 or 16 parts at a time). Single cavity tools are generally used for small quantities, up to 10,000 parts per year whereas multi-cavity tools are for larger quantities. We can look at your projected annual requirements and recommend which would be best for you.



Q. I've decided to go ahead with my project. How long will it take to get my parts?
A. It can take 3-5 weeks to have the mould tool manufactured depending on the part's complexity and the number of impressions (single or multi). After we have received final approval by you of the new tool, you can expect delivery of parts within 3-5 days.
