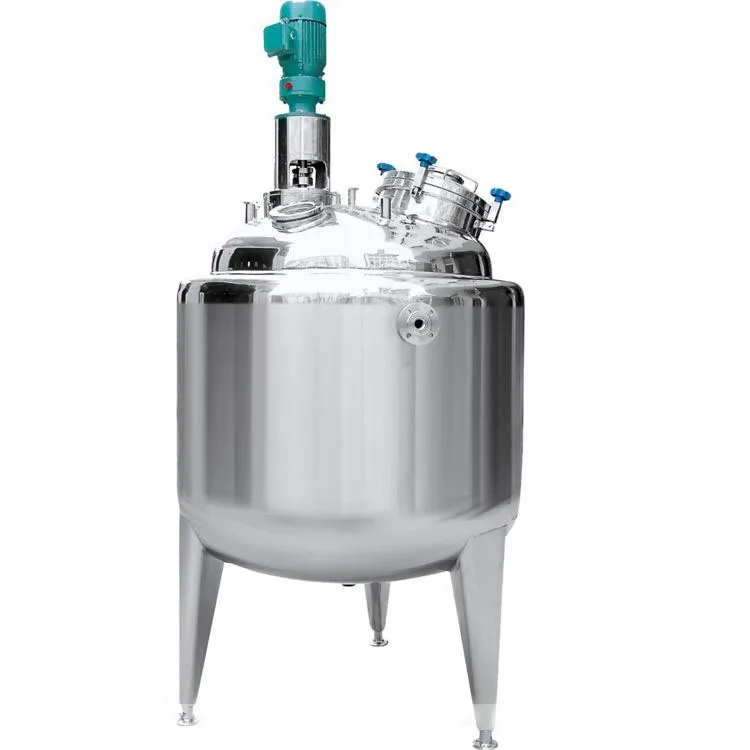

Best Price of ASME Certificated small lab emulsifier mixer/ high shear emulsifier
Advantages
Our delivery period is 15% (approximately) EARLIER than others
We use advanced welding industry, fine workmanship.
We have comprehensive qualifications and certificates to meet your diverse needs.
emulsifier high shear emulsifier mixer small lab emulsifier mixer

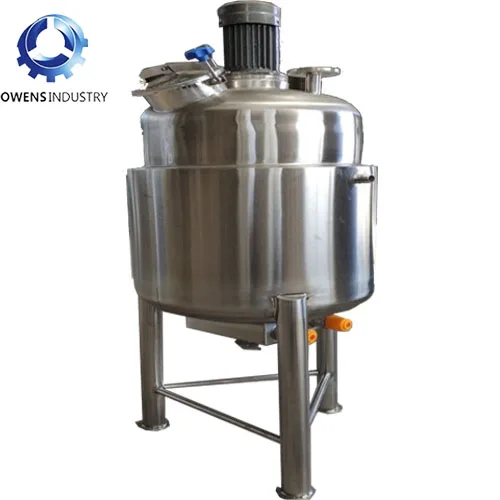

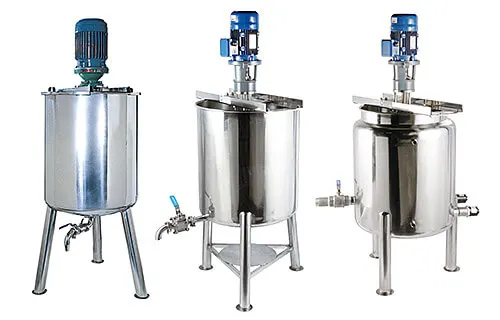

1. The product overview:
emulsifier high shear emulsifier mixer small lab emulsifier mixer
High-speed emulsification equipment is the most advanced emulsification equipment in China. It has reasonable structure, reliable quality, light weight, strong production capacity, convenient cleaning, convenient operation and beautiful appearance of equipment. The equipment is suitable for dairy products and pharmaceuticals. Industry, and the necessary equipment for mixing and processing with liquids.
emulsifier high shear emulsifier mixer small lab emulsifier mixer
2. Classification and structure:
The equipment has the advantages of fast mixing, mixing and emulsification, good emulsification effect and stable mechanical transmission.

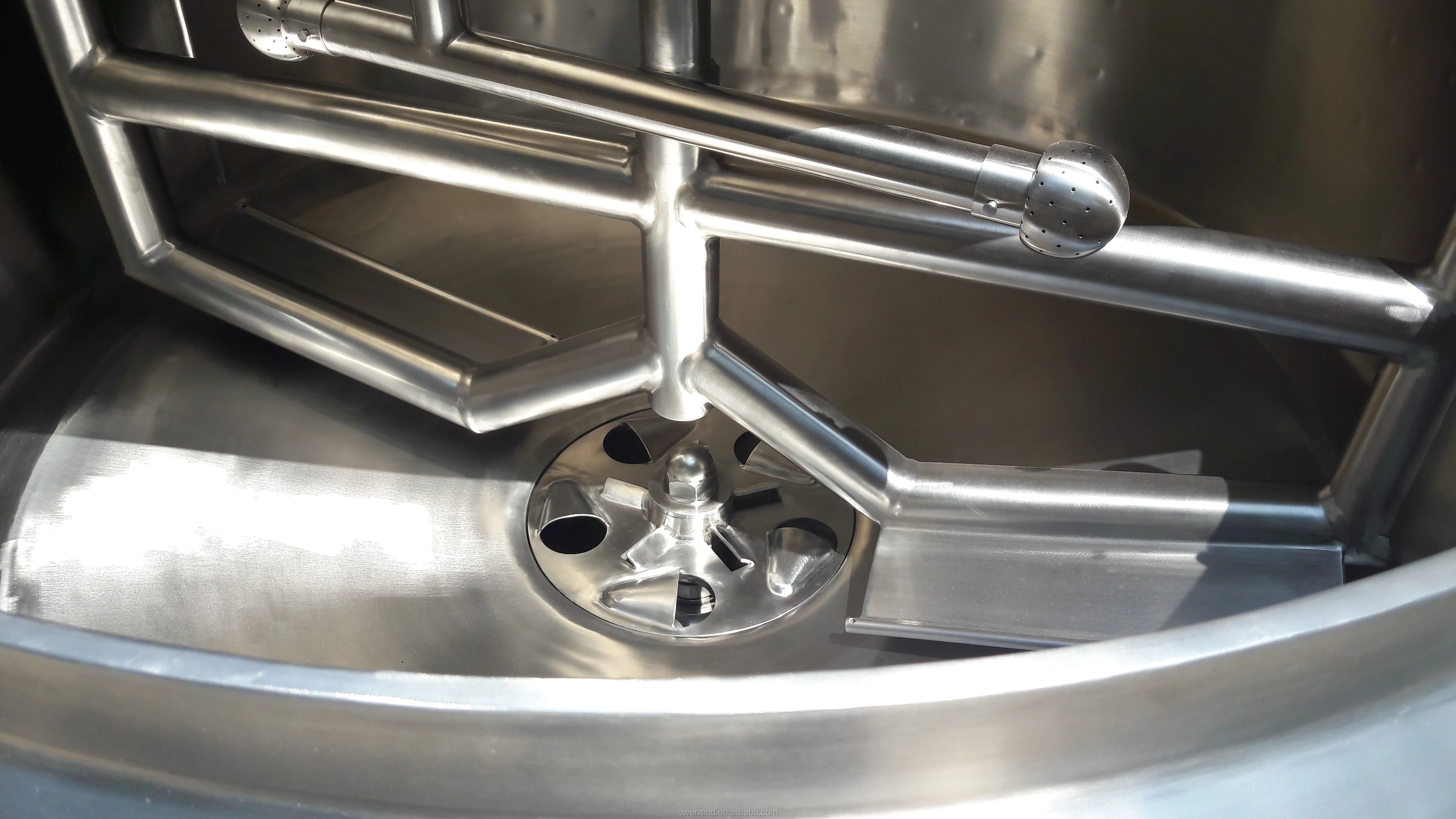

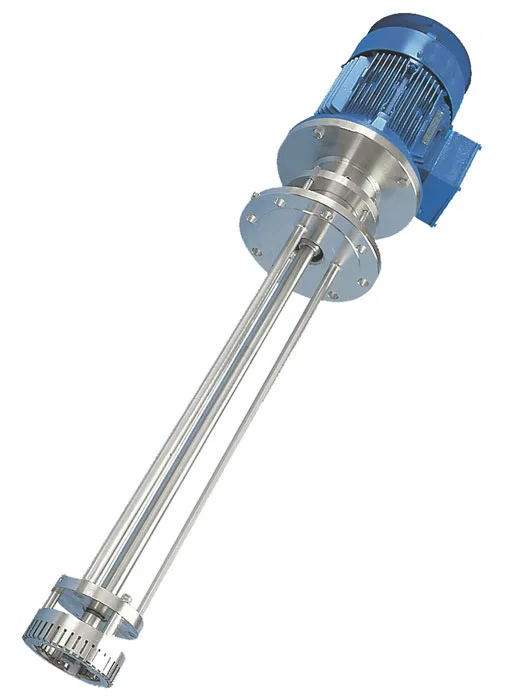

The equipment is composed of a cylinder block, a stator, a rotor, a mechanical seal, an emulsification head, a motor, a frame and the like.
The process of emulsification compounding is the working principle of rapid centrifugal centrifugation using emulsification head. The material is subjected to rapid compression, stretching and shearing, so that the material is fully and optimally mixed.
The raw materials of the cylinder are made of SUS304. The inner and outer surfaces are treated. The joint between the stator and the shaft is assembled by mechanical seal, which is not leaking and reliable.
emulsifier high shear emulsifier mixer small lab emulsifier mixer
emulsifier high shear emulsifier mixer small lab emulsifier mixer
3). the cosmetics industry: detergents, conditioning agents, shampoos, body lotions, perfumes;
4). Pharmaceutical industry: *, drug lotion, medicine cream, health care products, drug preparation;
5). paper industry: pulp, adhesive, *, resin emulsification.
emulsifier high shear emulsifier mixer small lab emulsifier mixer
4. Product parameters:
emulsifier high shear emulsifier mixer small lab emulsifier mixer
Working Capacity/Gallons.
50
100
200
300
Motor H.P(inner/outer).
2/10
3/20
5/40
7.5/60
RPMs of Agitators(inner/outer).
25/1750
25/1750
25/1750
25/1750
Spray Port
1.5"
1.5"
1.5"
1.5"
Product Inlet
2"
2"
2"
2"
Steam Inlet
1.5"
1.5"
1.5"
1.5"
Condensate Outlet
1.5"
1.5"
1.5"
1.5"
Product Outlet
2.5"
2.5"
2.5"
2.5"
Diameter(ØA)
40"
48"
56"
63"
Diameter(ØB)
44"
52"
60"
67"
Shell Height(L)
12"
16"
20"
24"
Outlet Height(X)
21"
21"
21"
21"
Overall Height(H)
59"
63"
71"
80"
Effective Length(F)
67"
72"
84"
97"
Design Pressure(Psi)
90
90
90
90
Design Temperature(°F)
325
325
325
325
Note:All measurements are approximate
Note: the dimensions of the form and other technical parameters in the form are in discrepancy with the technical accessories of the contract because of the product improvement, and the size of the contract appendix is the criterion.
The above dimension is only for reference, we can make special dimension according to client specific requirement
emulsifier high shear emulsifier mixer small lab emulsifier mixer
5. Technical characteristics:
1) . The emulsion tank is a high-precision machine with a line speed of up to 10m/s. The material is subjected to rapid compression, stretching and shearing to make the material fully and optimally mixed.
2) . When repairing the machine, do not use a hammer to directly strike during the process of dis-assembly and reassembly. Use a wooden hammer or a wooden block to gently tap to avoid damaging parts.
3) . the machine seal: divided into static and dynamic seals. The static seal adopts O-shaped rubber ring and the dynamic seal adopts hard mechanical combined seal. It is found that the hard sealing surface is scratched and should be repaired on the flat glass or flat casting immediately. The abrasive is preferably ≥200# silicon carbide abrasive paste. If the seal is damaged or cracked, please replace it immediately.
4) . During the use process, regular maintenance should be carried out according to the processing materials.
5) . For the maintenance and use of the motor, please refer to the motor instruction manual.
6) . Most of the random spare parts are standard parts of the national standard and ministry, and the market procurement is more convenient.
7) . When replacing the sealing ring, first unscrew the stator, remove the impeller and replace the mechanical seal and 0-ring (usually replace it within one year
8). When replacing the bearing, remove the belt and loosen the fixing screw to remove the bearing sleeve and then replace the bearing to replace it (in general, the bearing is replaced every three years)
