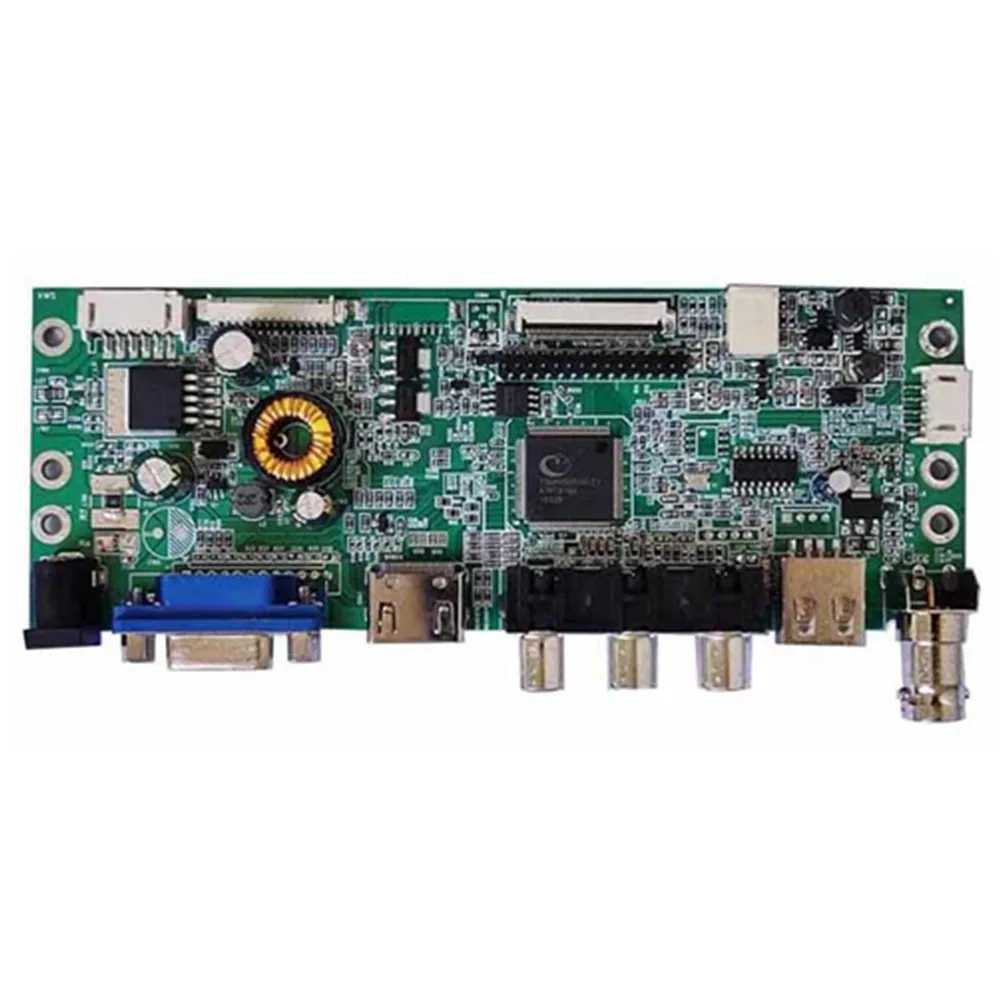

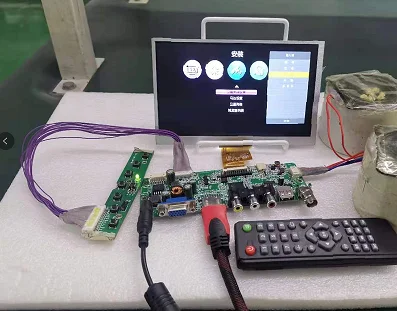

Model controller board V56 2AV T CVBS VGA USB HD BNC LVDS lcd board for small size Screen with VGL VGH VCOM Vgamar and backlight converter

Share on (62019365087):


Price:$10.00 - $16.00

Quantity:


Product Overview

Description


V59 universal lcd tv controller board For LCD LED Screen Panel





Product Description

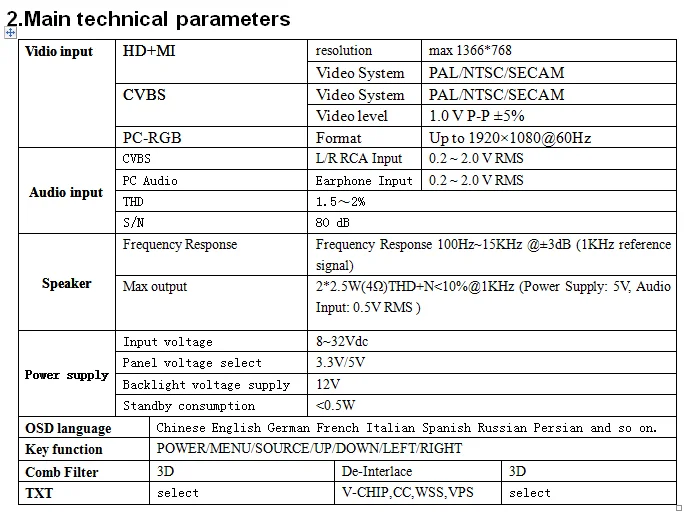

Specifications of the Lcd Panel Driver Board:







































































Model:

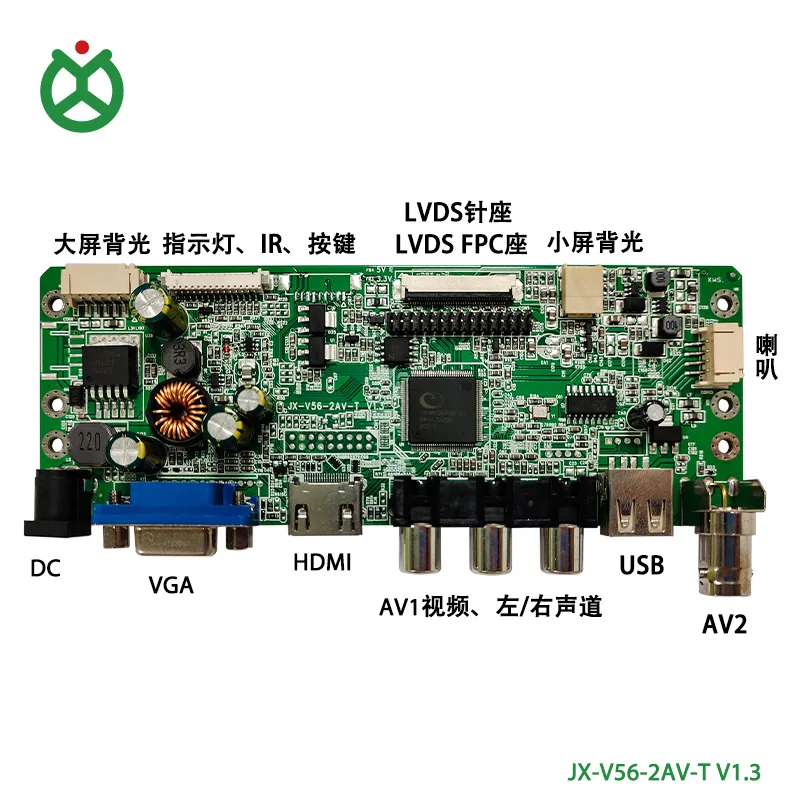

JX-V56-2AV-T



Size :

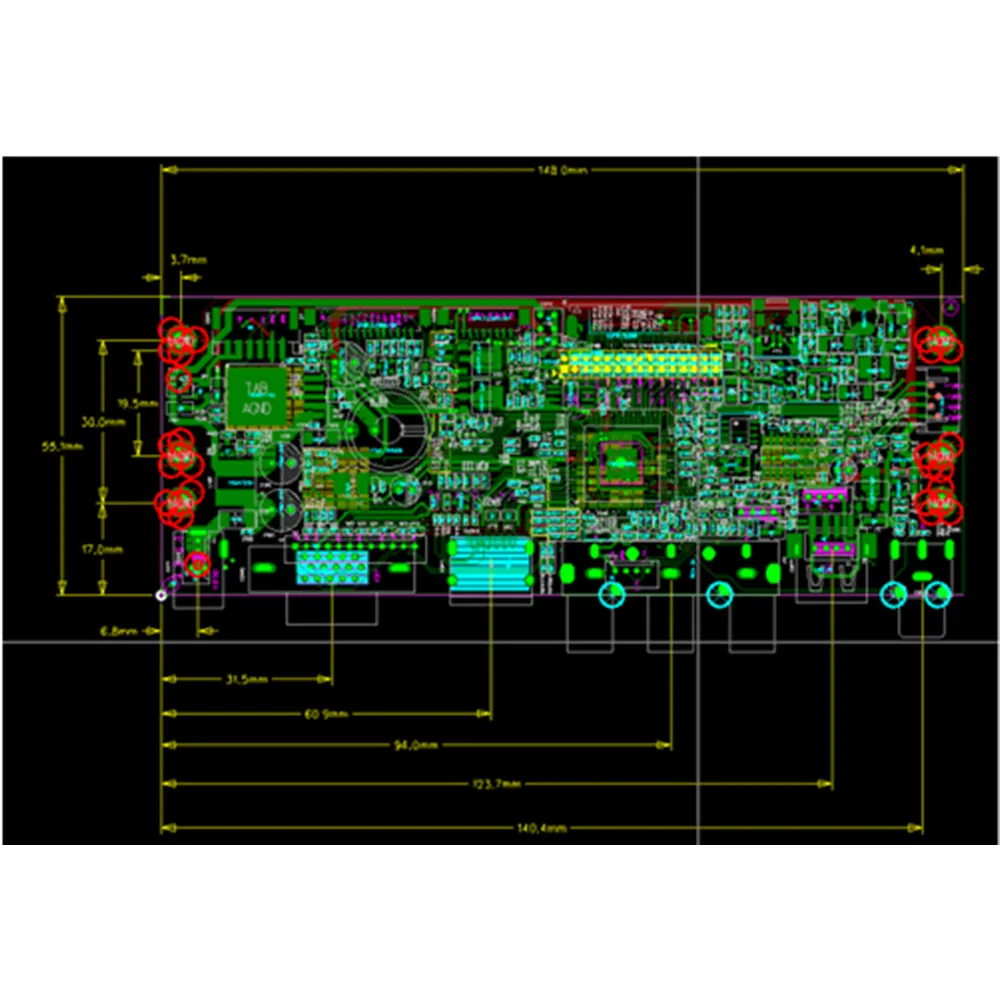

148.0x55.1mm



Amplifer:



2*3W



Screen Voltage supply:



3.3V/5V



Key function:



power/menu/source/up/down/left/right



HD+MI:



Input HD+MI1.3



VGA:



Input



USB:



Input



DVI:



Input



Input Working voltage:



8~32Vdc



Resolution:



800*600~1366*768



Language:



English German French Italian Spanish Russian Arabic Persian and any other



Storage temerature:



-40~85°C



Working humidity:



40-95%



Storage Humidity:



40-95%



Brand:



JX/ODM





 .png




.png

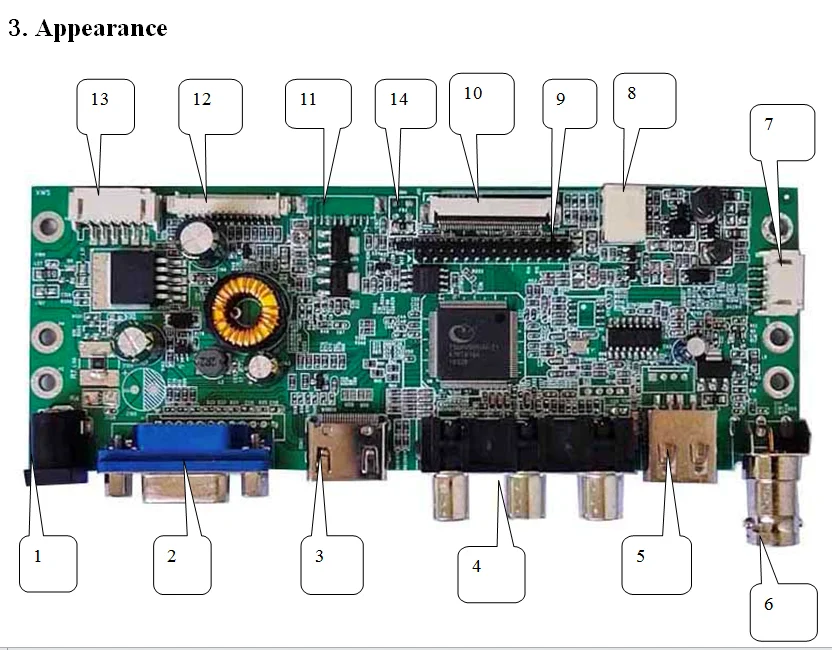

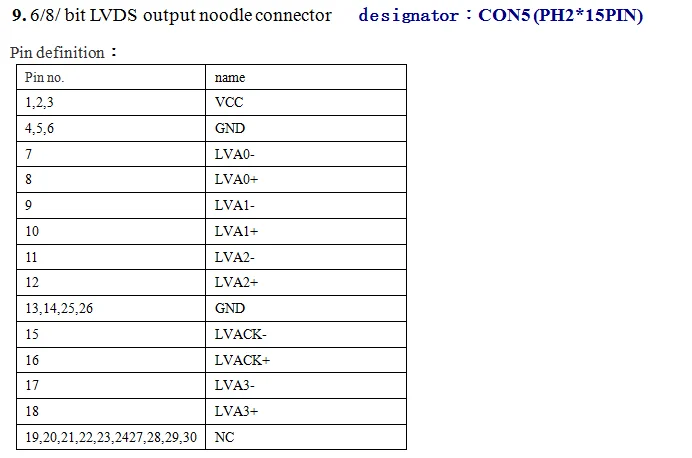

V56-2AV LVDS.png


.png
