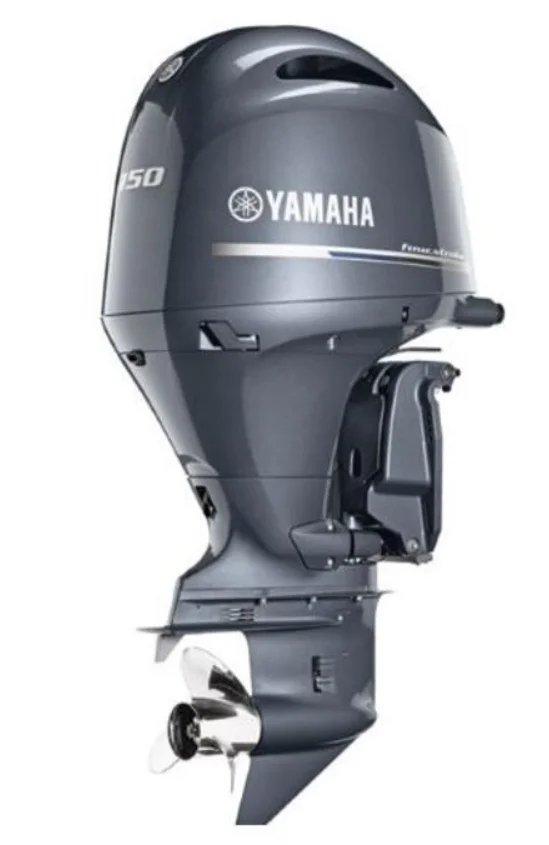

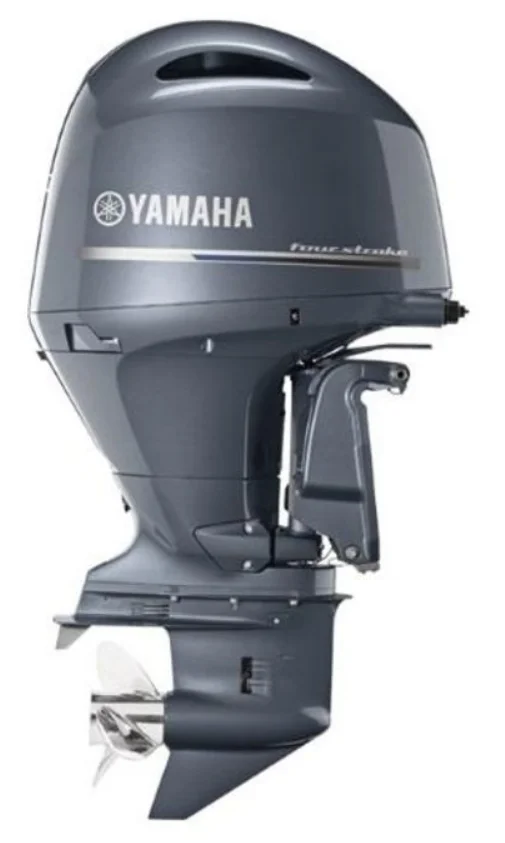

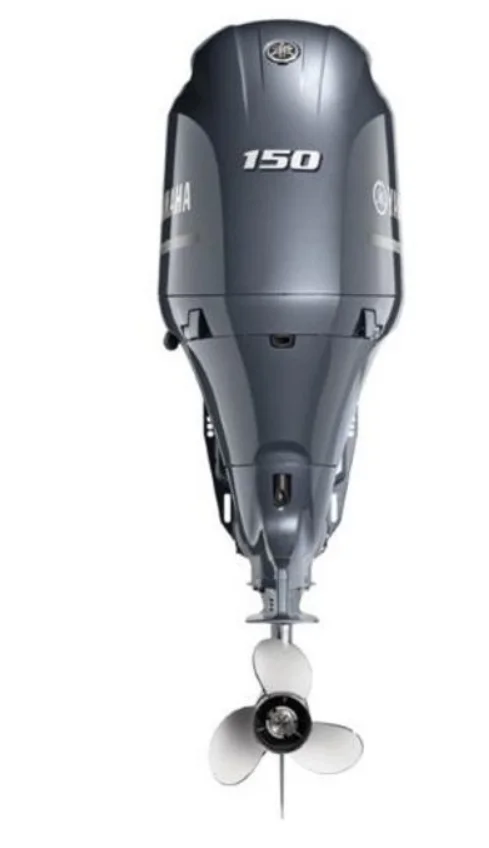

Outboard Motors brand new Yamahass 150hp F150XB In Line Four 2.7L Power trim and tilt

IN-LINE 4 150 hp

The F150 is one that started it all and it’s more popular than ever. Powerful, light and compact, it’s now mechanical or digital compatible, making it available to more boaters than ever before.

Compatible with mechanical controls or digital Command Link Plus® or Helm Master® controls
Only 478 pounds (20” shaft model)
Available in 20” or 25” shafts
Powerful 50-amp alternator (2.8-liter digital) or 35-amp alternator (2.7-liter mechanical)

IMPRESSIVE POWER-TO-WEIGHT

A proven 16-valve DOHC In-Line design, with four valves per cylinder maximizes efficiency and power. It also streamlines design, giving the F200 class-leading power-to-weight and making the F175 nearly 30 pounds lighter than its closest 1.7-liter competitor.

OPTIMUM POWER

Precision Multi-Point Electronic Fuel Injection and long-track intake system combine to maximize power and fuel efficiency across the line of In-Line Fours (except F150 Mechanical).

TWO-STROKE PERFORMANCE FROM A FOUR STROKE

Four valves per cylinder maximizes combustion efficiency in a way that no two stroke can, delivering the utmost in clean, quiet power and performance.

QUICK ACCELERATION

A 10mm Offset Crankshaft allows for larger intake volume design. Four tuned intake tubes boost torque in low and mid-speed ranges for quick acceleration.

POWERFUL HOLE SHOT

The Composite Intake Manifold is a lightweight, compact design, making these engines very versatile. Long Tube Intake Tracks are tuned to increase airflow, boosting low-end and midrange torque. This means a more powerful hole shot and increased acceleration. Even with all this responsive power, an air silencer box and surge tank reduce air intake noise and air turbulence for smoother operation.

INCREDIBLE LOW AND MID-RANGE TORQUE

Variable Camshaft Timing (VCT), available on F175 and F200, advances or slows the camshaft timing based on engine load and RPM, improving intake and exhaust efficiency and boosting torque in the 2,000 to 3,500 RPM range

ENGINE COMPARISON

Engine Type Inline 4
Displacement 2.7L (Mechanical) / 2.8L (DEC)
Bore x Stroke 94 x 96.2 (3.70 x 3.79in) - 96 x 96.2mm (3.78 x 3.79in)
Prop Shaft Horsepower 150hp @ 5500 rpm
Full Throttle RPM Range 5000 ~ 6000 rpm
Alternator Output at W.O.T. 35 - 50 Amp
Compression Ratio 9.0:1 & 10.3:1
Fuel Induction System EFI
Weight* 20" shaft / 217kg (478 lbs), 25" shaft / 221kg (487 lbs)
Recommended Fuel Octane 87 & Octane 89
Recommended Engine Oil Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration Yamaha 10 Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating 3-Star
Exhaust Through Propeller
Intake 16
Ignition TCI Microcomputer
Spark Plug NGK-LFR6A-11 & LFR5A-11
Alternator Output 35 - 50 Amp
Starting System Electric
Lubrication Wet Sump
Engine Oil Capacity 4.5L/4.3L
Recommended Cooling Thermostatic Control
Ethanol Blend Limit 10% Maximum
Gear Ratio 2.00:1
Gear Shift F-N-R
Shaft Length 20" - 25"
Degree of Tilt 70°
Degree of Trim -4° through +16°
Dry Weight 217kg (478 lbs) - 222kg (489 lbs)
Mounting Centers 26"
Steering
Steering Angle (maximum) 32° from center, either direction

 Wooden Box
