Electric Small Bracket type Pneumatic Rock Bolt Core Drilling Rig
- Category: >>>
- Supplier: Shanghai Newton Machinery Co. Ltd.
Share on (62019504449):
Product Overview
Description

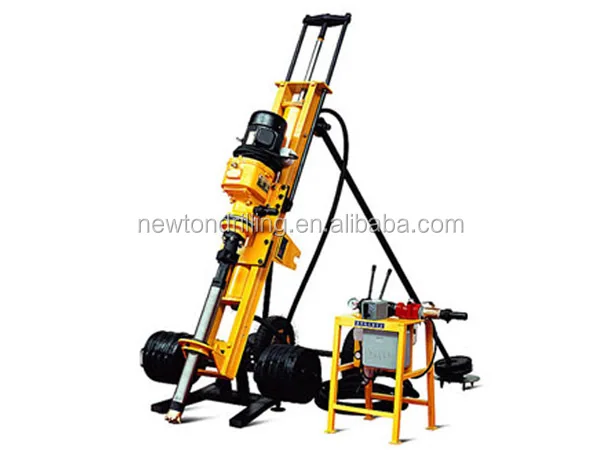

Electric Small Bracket type Pneumatic Rock Bolt Core Drilling Rig F1
Main features
4 innovations
1) The double guide rod structure reduces the height of the column frame from 2.75m to 2.14m. Due to the reduced height of the column frame, the center of gravity is low, the movement is convenient, and the work is stable.
In the guide rails of the carriage and the legs, the hinged part of the base of the drill frame is provided with a flat toothed disc, which enhances the rigidity of the column and is stable and reliable during operation. Adding a weight plate on the machine makes the rig more convenient when moving, and it is more stable and reliable when working.
2) Setting the leg pad, even if the rig is not easily displaced on the loose soil, ensuring the smooth operation of the drilling operation.
3) Hydraulic power station
The second generation of the national patent, its power part is separated from the operating part, and it is only necessary to move the console separately with the drilling machine to realize multi-point operation.
The split pump station reduces the vibration of the operating part and prolongs the service life of components such as pressure gauges and piping.
4) Flexible pumping station configuration
There are three types of hand-operated diesel engines, electric starter diesel engines and electric motors: The power can be removed, which is good for field handling operations.
Technical Paramters
| F1 | |
| Rock rigidity | F=6 - 20 |
| Diameter of hole | 50 - 80 mm |
| Drill depth | >=15 m |
| Maximum propulsion | 3500 N |
| Rotate speed | 90 r/min |
| Air consumption | >=3.5 m3/min |
| Weight | 175 kg |
| F2 | |
| Rock rigidity | F=6 - 20 |
| Drill diameter of hole | 68 - 130 mm |
| Drill depth | >=20 m |
| Maximum propulsion | 5000 N |
| Rotate speed | 90 r/min |
| Air consumption | >=7 m3/min |
| Weight | 260 kg |
1) -------------JAC30(5m3/min,8bar)diesel screw air compressor,pls click here.
2)--------------JA30(5m3/min 8bar) Electrical portable air compressor,pls click here.
3)------------- HG330-8 (10m3/min 8bar) Diesel portable compressor,pls click here.
Note: the machine will including 1pc drilling bit and 20m drilling pipes.
Related other DTH Hard Rock Drilling Rigs Recommend:
GIA series Open Pit Drilling Rigs,pls click to view.
Hongwuhuan HC series Blast Hole Crawler Drilling Machine,pls click to view.
Hydraulic Drilling Rigs,pls click to view;
Other Electricl Small DTH Drilling Rigs,pls click to view.
Diesel Portable Screw Air Compressor,pls click to view.
Electrical Mining Screw Air Compressors,pls click to view.
Pls contact me for more informations.
Phone whatsapp:+86 18721862438.
Packing Details for Fseries Electric DTH Drilling rig
Company Information
Our factory was founded in 1997,covers an area of 173,160 square meters,inside there are 70,000 square meters standard workshops. We has advanced production lines,assembly lines,quality control center and electrostatic spray coating lines.Manufactures in making air compressors and drilling machines. We currently manufactures a wide range of machines,such as all kinds of piston air compressors,screw air compressors,pneumatic rock drills,pneumatic and hydraulic down hole drills,breakers,drilling wagons etc.
In May 25th 2016 Our factory signed a strategic cooperation agreement with Atlas (China) Investment Co., Ltd. Under the agreement, and we will jointly develop, produce and sell mining & construction equipments.
Machine working site
Our Services
Pre-Sales Service After-Sale Service
•Professional sale service your inquiry & consulting; •Training support of machine operation;
•Customized your machines solutions; •Spare parts supply support;
•Factory & machine inspected; •Problems & Technical supply;
•Training support; •Engineers available to service machine overseas.
Packaging & Shipping
FAQ
1. How long is your air compressor & drilling rig warranty?
∗ 1 years for the whole machine after leave the factory
2. Do you provide After- sales service parts?
∗Of course, we have.
3.How long could your machine be used?
∗More than 10 years if have regular maintenance.
4. How is your machine quality?
∗All the machines must pass the strict test before leave factory.
And our factory has above 20 years manufacturing experience,can gurantee the quality.
5.Which payment term you accpet?
∗Now we will accpet TT,LC,Western Union,Trade Assurance online,Paypal,Cash,etc.
6.How about the delivery time?
∗Within about 1 week.
7.Can visit your factory?
∗Yes,welcome to our factory. We will treat you in China,and pick you up at airport.
We are near to Pudong Airport.
8.Are you a manufacturer?
∗We are trade offcie in Shanghaim,our factory is in Zhejiang.
