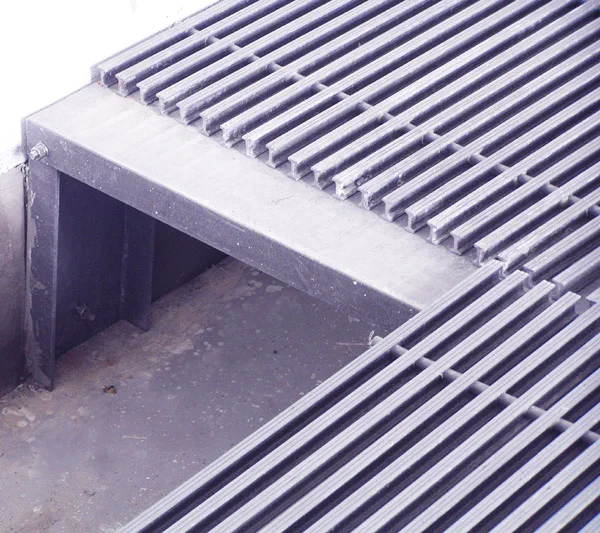

corrosion resistant fiberglass decking floor with heavy load bearing frp decking big span grating

Product Overview

Description

corrosion resistant fiberglass decking floor with heavy load bearing frp decking big span grating

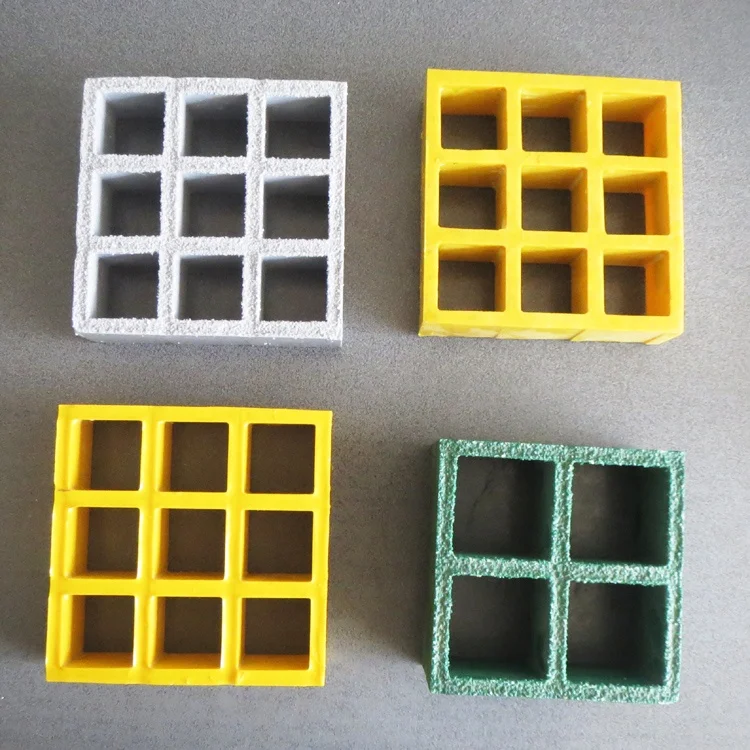

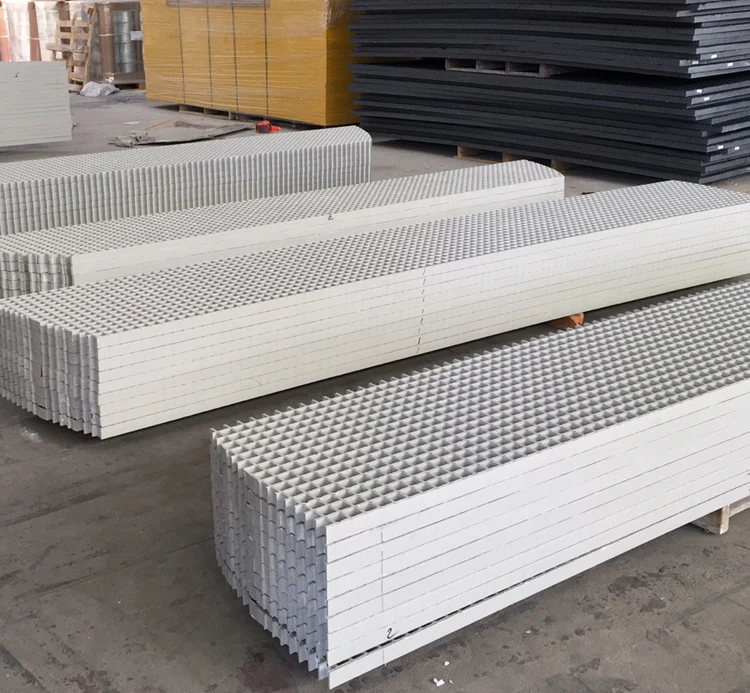

we supply molded frp grating and pultruded frp grating:

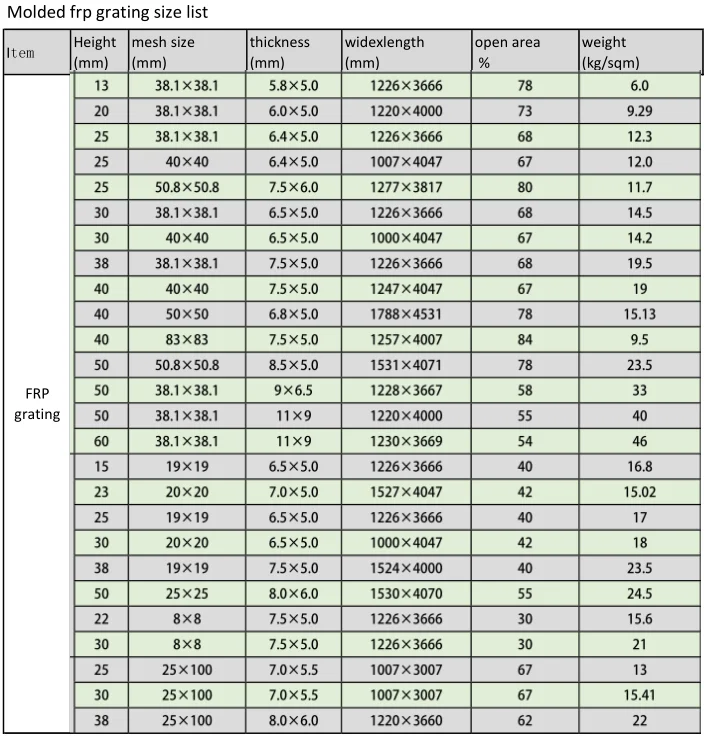

molded frp grating size list:

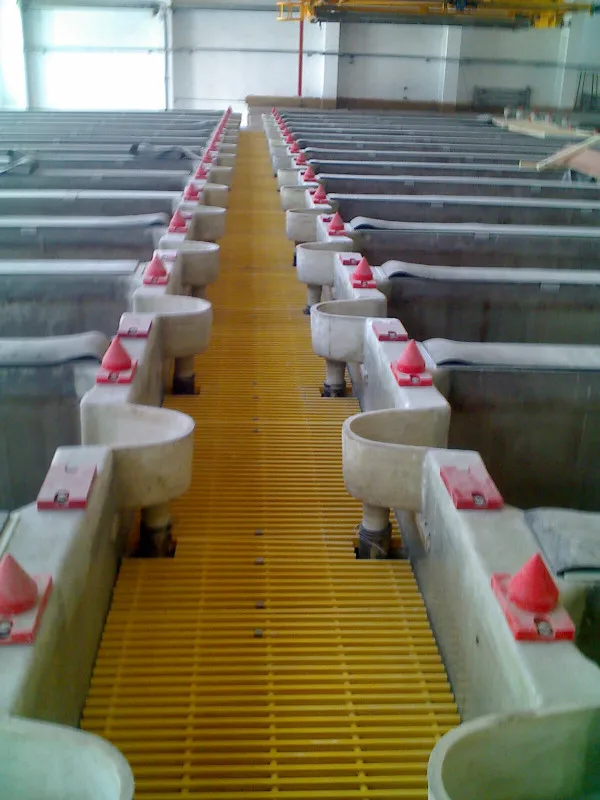

Fiberglass grating materials are oftentimes used for walkways, sun-screens, decking, docks, ramps, and other public structures

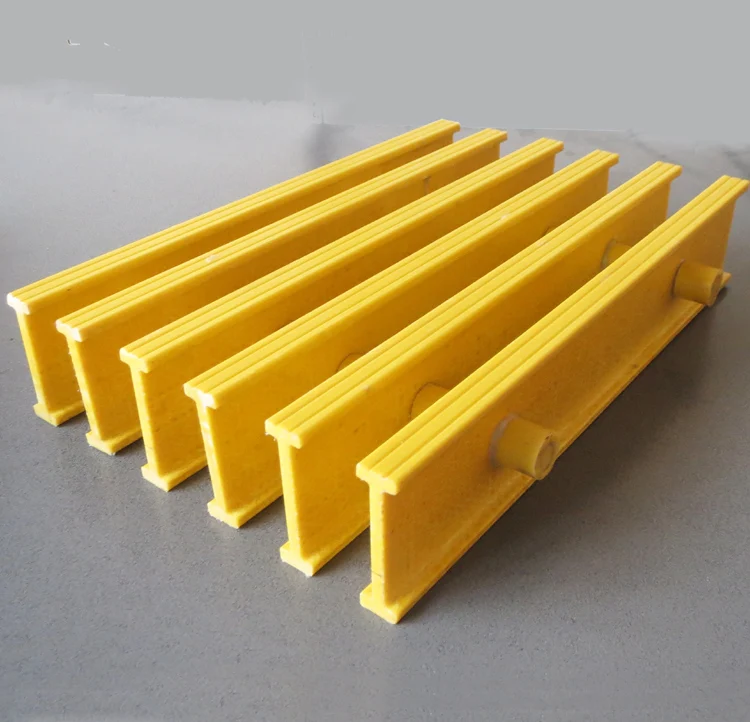

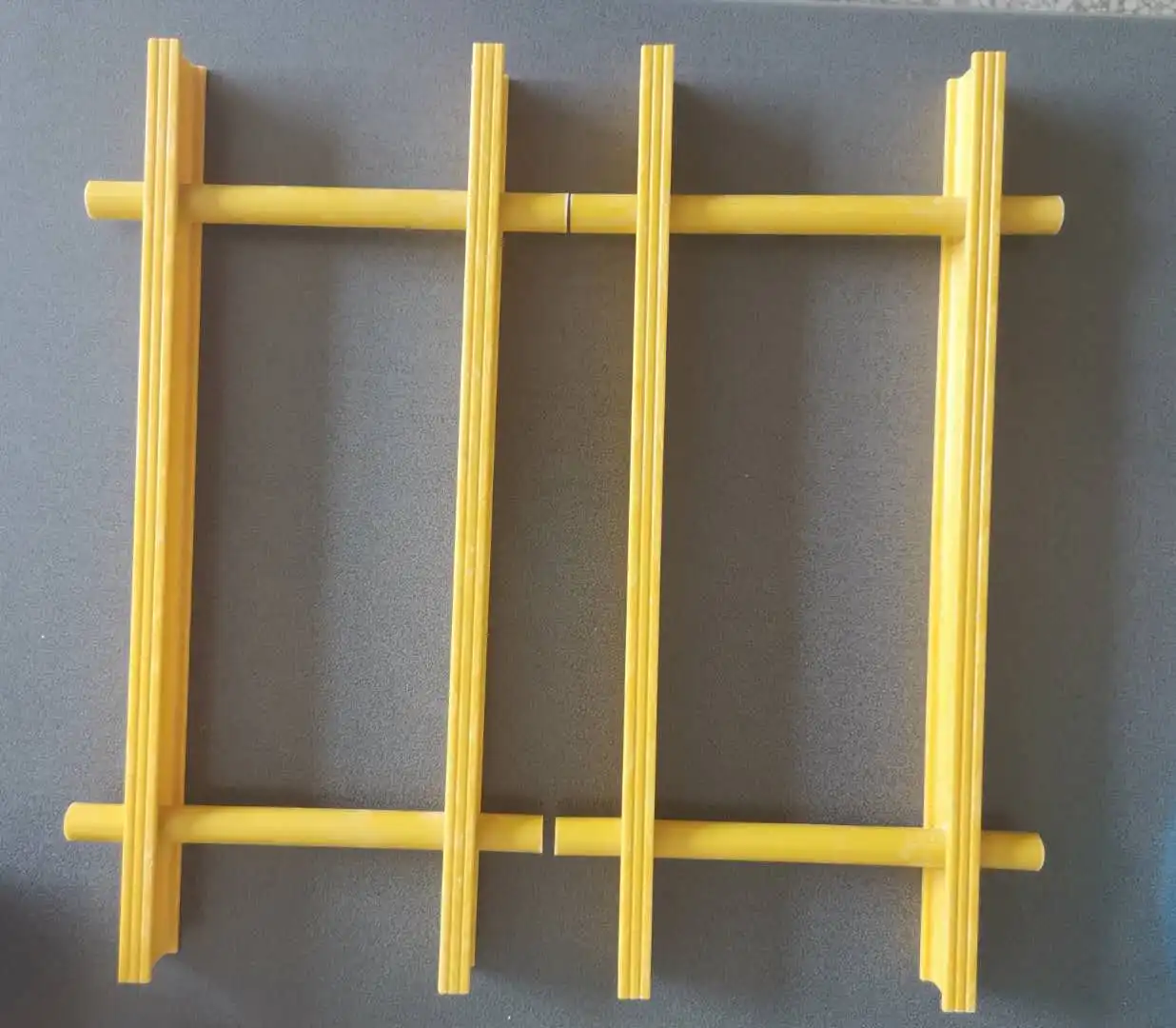

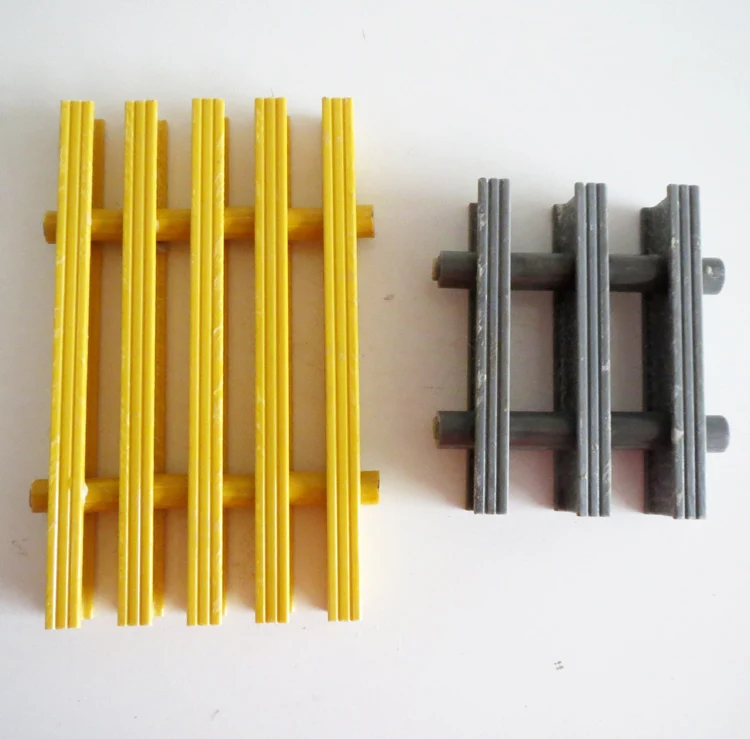

1- manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions.

2 5mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;

3-Easy to install;

4-Can be cut at any lengths you need; open area is decided by customer

5-Grating clamps are available.

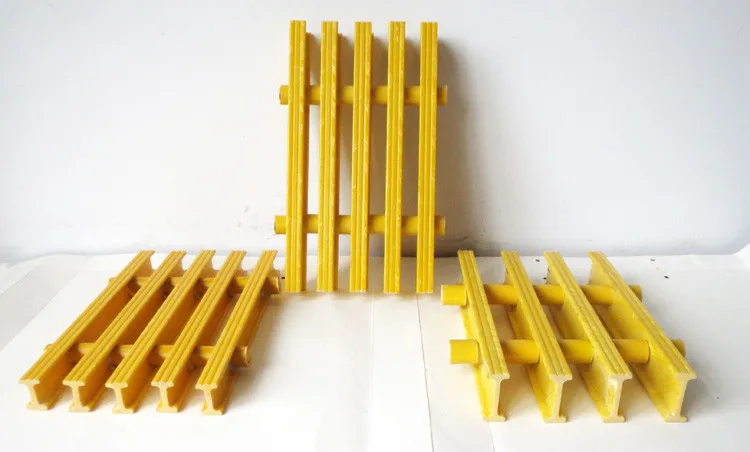

FRP pultruded grating size list:

Art No.	“I”high A (mm)	“I"Top width B (mm)	"I" bottom width D (mm)	clearance C (mm)	open area	approx weight (kg/sqm)
5025	25	30	30	30	50	10
4025	25	15	15	10	40	13.8
5025	25	15	15	15	50	11.9
6025	25	15	15	23	60	10
4038	38	15	15	10	40	20.5
5038	38	15	15	15	50	17.8
6038	38	15	15	23	60	14
6038ii	38	15	15	23	60	18.9
4040	40	40	20	27	40	19.5
5040	40	40	20	40	50	17
6040	40	40	20	60	60	14
4040i	40	30	30	20	40	14
5040i	40	30	30	30	50	12
6040i	40	30	30	45	60	10
6050	50	15	15	23	60	16
5050	50	15	15	15	50	19.6
4050	50	15	15	10	40	23.14
4058	58	15	15	10	40	32
5058	58	15	15	15	50	27
6058	58	15	15	23	60	22
4065	65	30	30	20	40	17
5065	65	30	30	30	50	15
6060	60	30	30	45	60	12

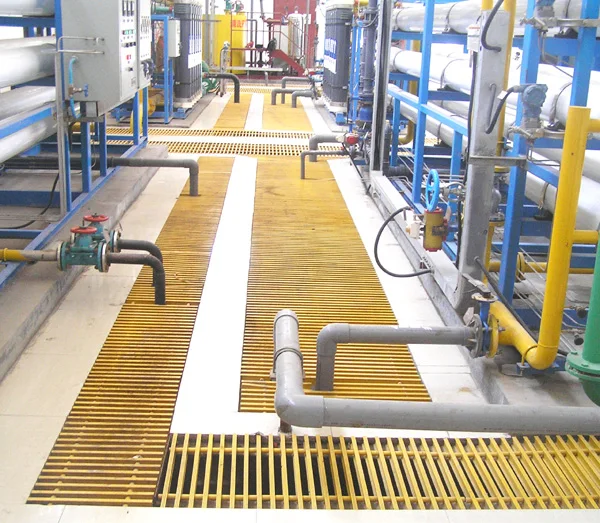

FRP grid trench cover advantages:

1. High strength, and lightweight

2. Anti-corrosion

3. Durable, long severice life

4. Insulation

5. Weather resistance, could work under extremely temperature

6. Dimension stable

7. fire proof

Yalong Pultrusion fiberglass profile including:

fiberglass rod, round tube, channel, angle, I beam, square & rectangular tube, window frame, shutter blade, other structural profile, etc.

Above profile generally be assembled to:

Structural shapes

Fiberglass window and shutter

Pultruded Fiberglass Grating

Guardrail handrail fence

Insulation ladders and stairs

Cooling tower components

filler supports, anti-freeze board, grating walkway

Structure and support

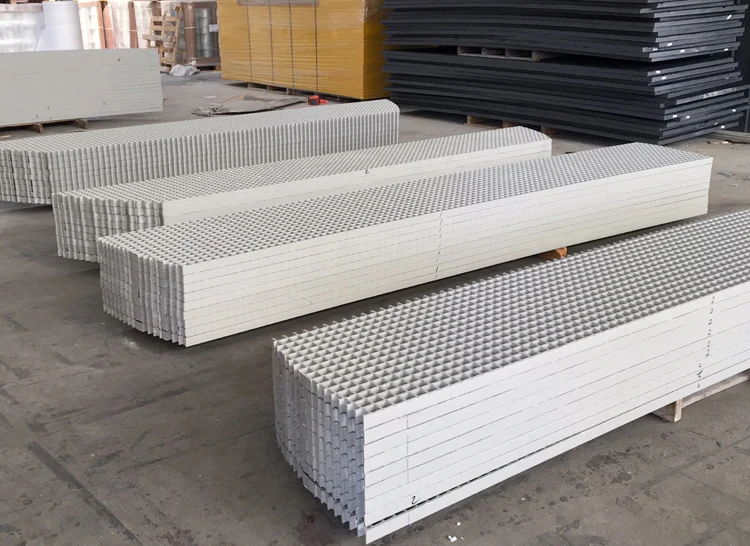

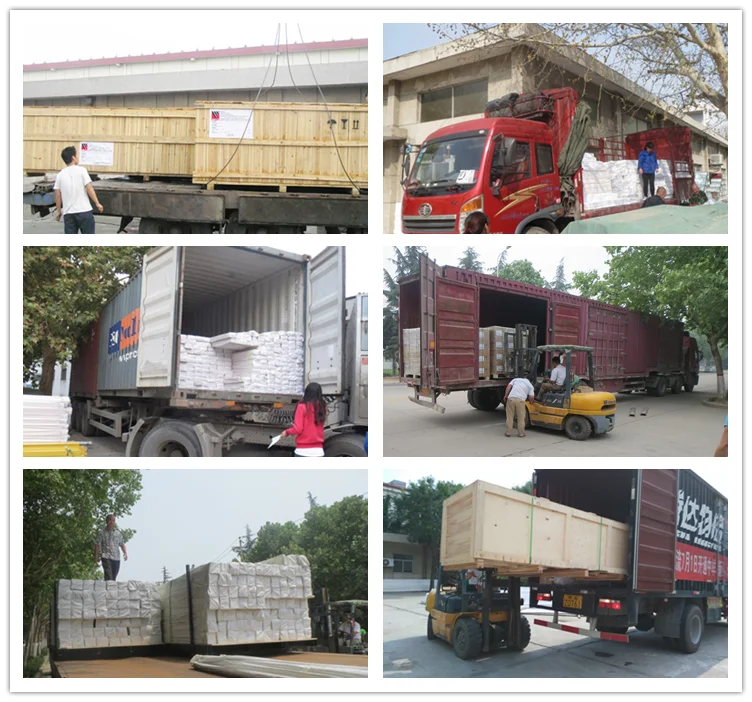

 Packing&Shipping

Our customer: UK, USA, Australia, Ireland, Turkey, Brazil, Philippine,Thiland, Canada, etc
