Product Overview
Description
How to make zipper
Product Description

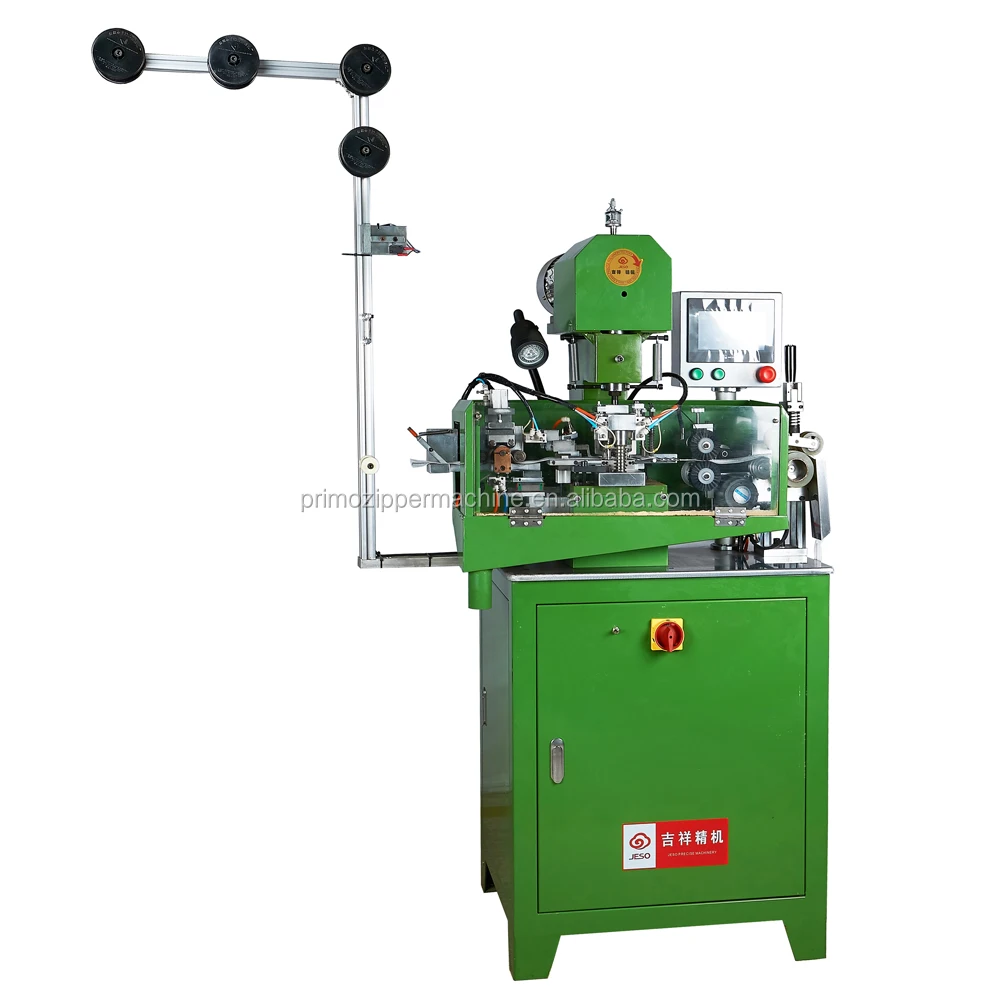

Auto metal zipper gapping machine double teeth selection type
Auto metal zipper gapping machine double teeth selection type | ||
Model | PM-051 | |
Power | 0.75KW | |
Production | 1600pcs/H with 60cm zipper | |
Volt | 220V | |
Machine Weight | 245Kgs | |
Machine Dimensioms(L×W×H) | 1.60×0.65×1.85 m | |
Shipping Measurement(L×W×H) | 1.00×0.75 ×1.60 m | |
Main feature
This machine adopts double teeth selection knife to gap and trim the gapping length, the location by crochet hook and servo motor.this process keep teeth safe, not need to select teeth by hand, save labor and improve the efficiency
1) industrial control computer control technology, high stability of the system.
2)The action by hydraulic power, pneumatic accessories.
3)Lower die fixed on machine plate and the upper die run to work, vertical merge and inject
4)Injection pressure by a single level and double class pressure (optional), speed can be adjusted, melt back pressure can be controlled.
5)automatic checkout system,if working meet some problem,it show in computer and ask you how to deal with it
Product Application
inject pin and box plastic stop and two ways plastic stop for plastic teeth zipper,nylon teeth zipper and metal teeth zipper
(1).Plastic zipperpin and of #3~#30 size
(2).Plastic zipper with mixture color
1) industrial control computer control technology, high stability of the system.
2)The action by hydraulic power, pneumatic accessories.
3)Lower die fixed on machine plate and the upper die run to work, vertical merge and inject
4)Injection pressure by a single level and double class pressure (optional), speed can be adjusted, melt back pressure can be controlled.
5)automatic checkout system,if working meet some problem,it show in computer and ask you how to deal with it
Product Application
inject pin and box plastic stop and two ways plastic stop for plastic teeth zipper,nylon teeth zipper and metal teeth zipper
(1).Plastic zipperpin and of #3~#30 size
(2).Plastic zipper with mixture color
Detailed Images

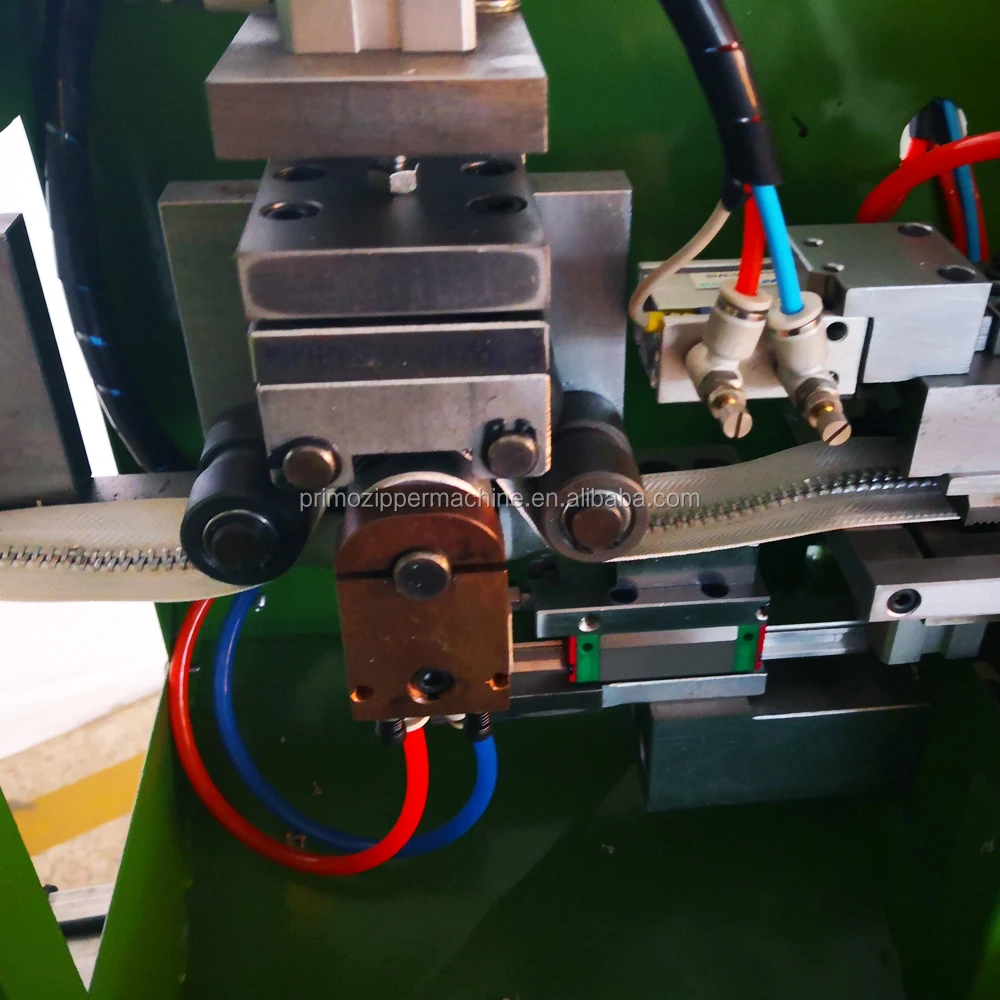

Position system
Before gapping metal teeth,this system can let zipper into right way

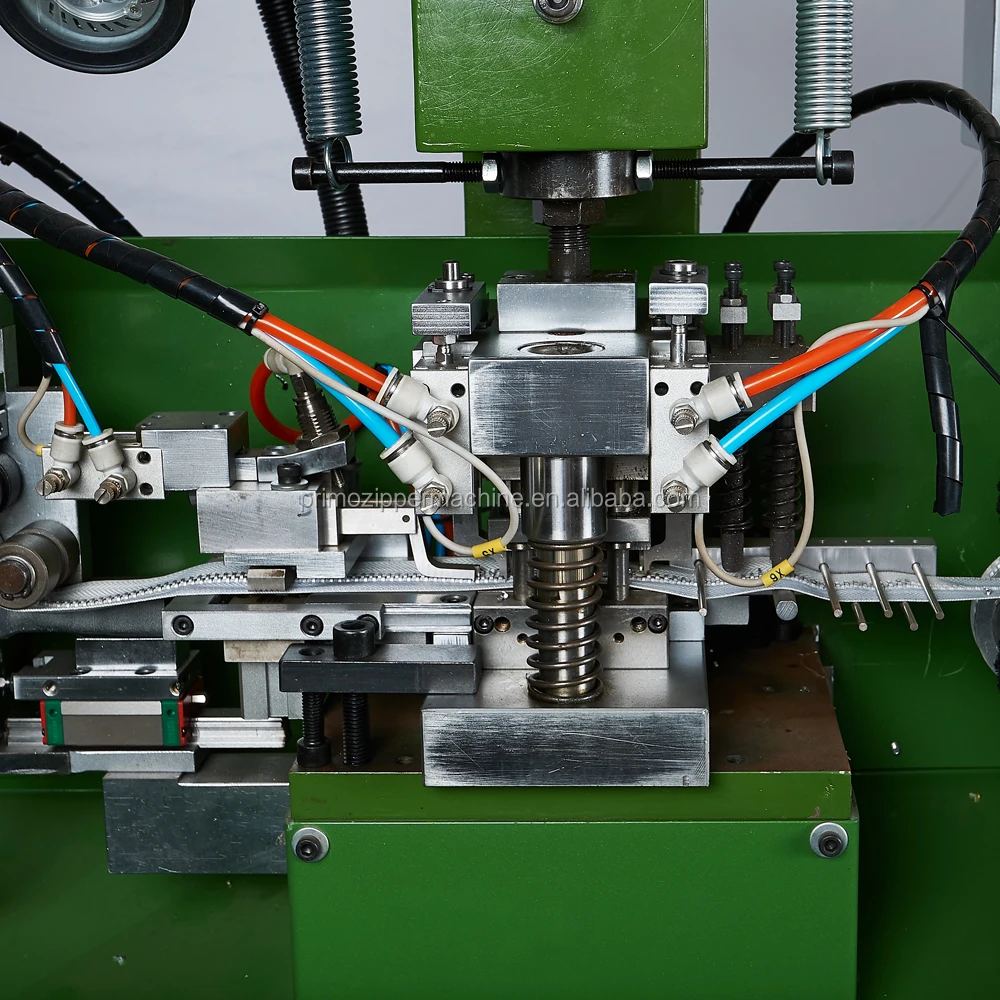

Double selection gapping system
This system use double selection gapping mold,gap metal teeth clearly and precisely

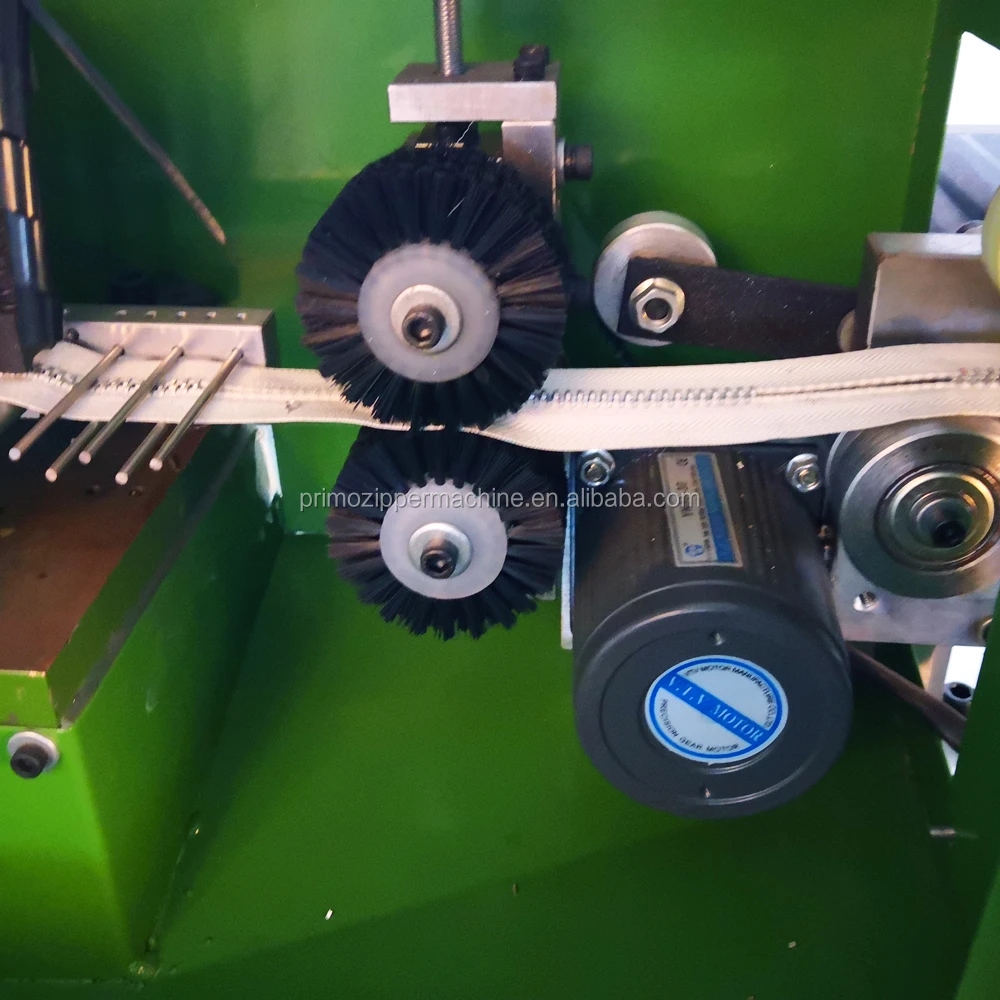

Clean system
The roller brush will clean the surface remain metal zipper

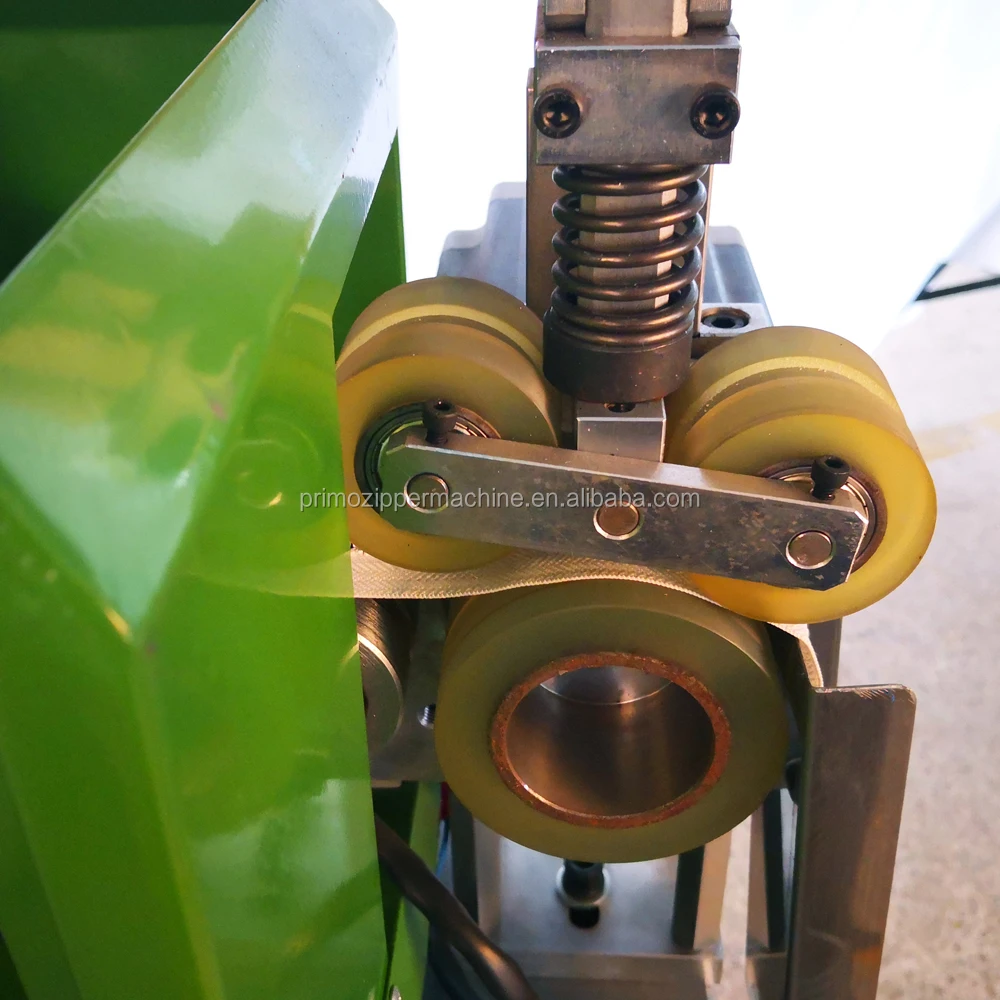

The pressure roller system.
The pressure roller press the gapping metal zipper and let the zipper go out the machine
