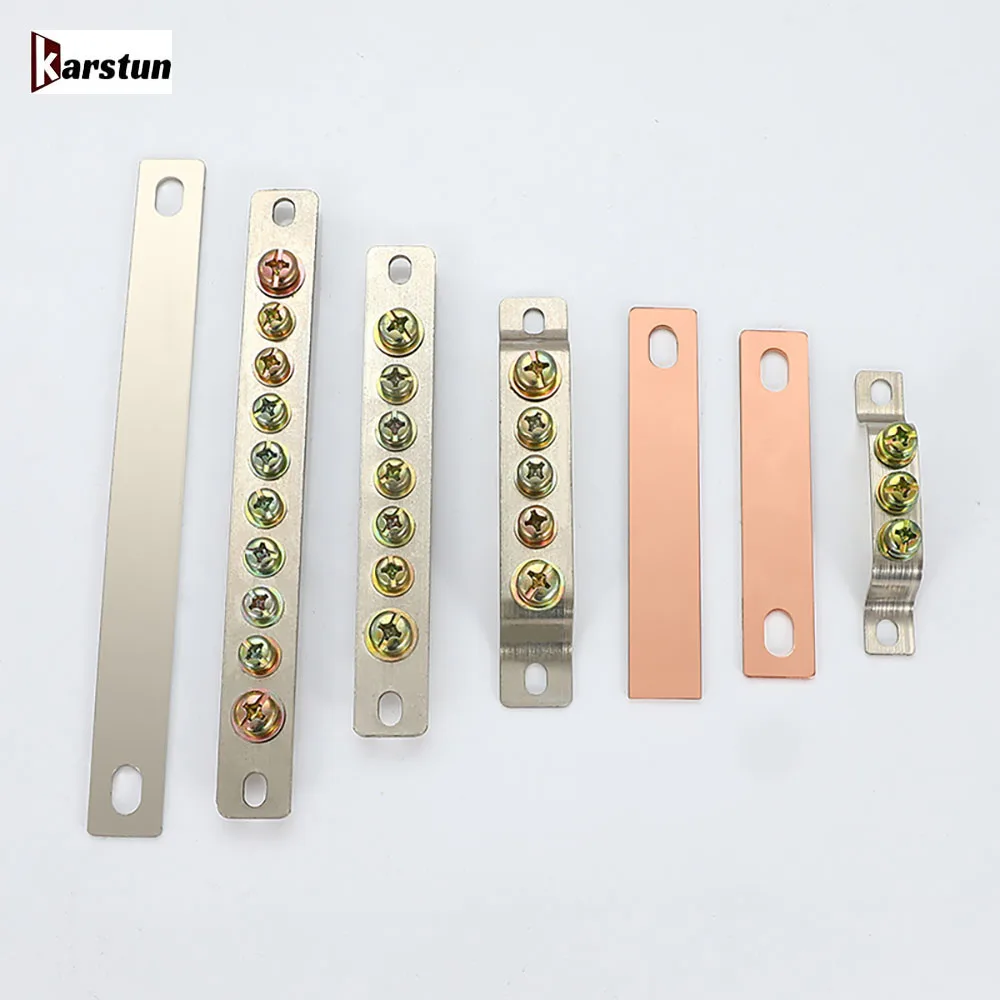

connecting cables connecting electrodes inexpensive tin plated and nickel plated copper busbars
connecting cables connecting electrodes inexpensive tin-plated and nickel-plated copper busbars
connecting cables connecting electrodes inexpensive tin-plated and nickel-plated copper busbars
connecting cables connecting electrodes inexpensive tin-plated and nickel-plated copper busbars
connecting cables connecting electrodes inexpensive tin-plated and nickel-plated copper busbars
connecting cables connecting electrodes inexpensive tin-plated and nickel-plated copper busbars
connecting cables connecting electrodes inexpensive tin-plated and nickel-plated copper busbars

connecting cables connecting electrodes inexpensive tin plated and nickel plated copper busbars

Share on (62019625220):


Price:

Quantity:


Product Overview

Description





Main Products


Welcome to Karstun~
We specialize in R & D and production of high-end new energy lithium battery soft connection, bus bar and other connector manufacturers.


Supply industry
rail transit, new energy vehicles, ships, energy storage systems, drone battery pack connection, etc

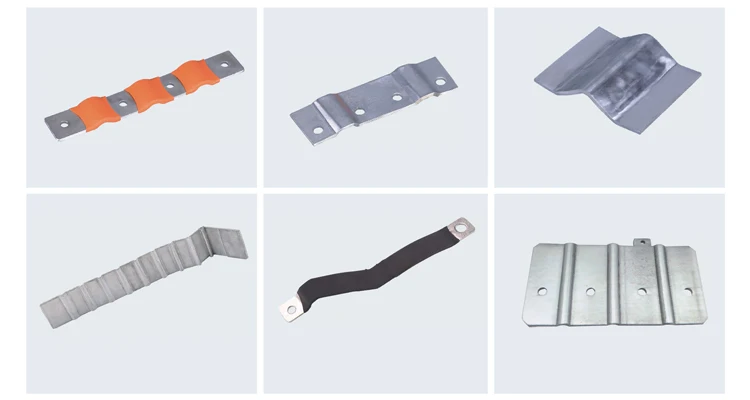

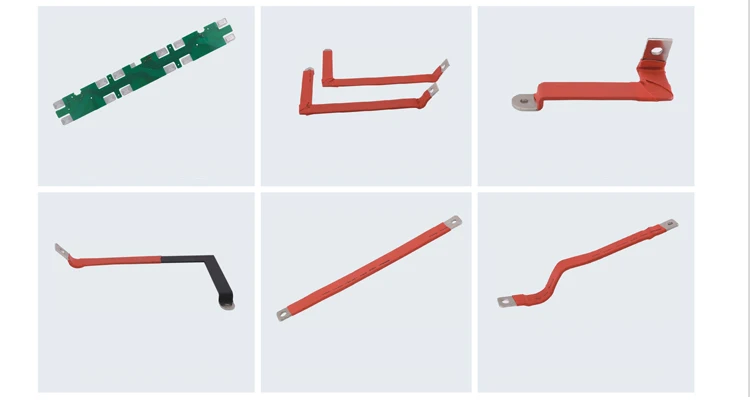

Supply products

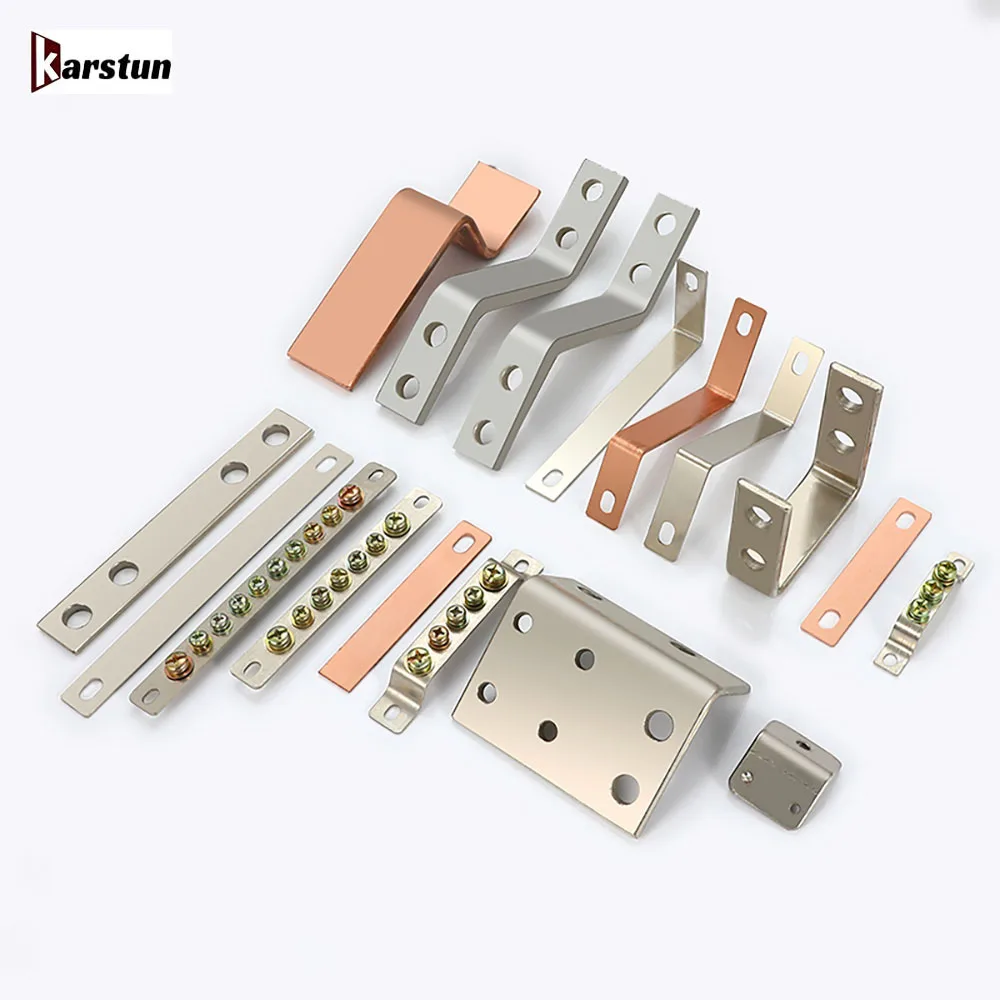

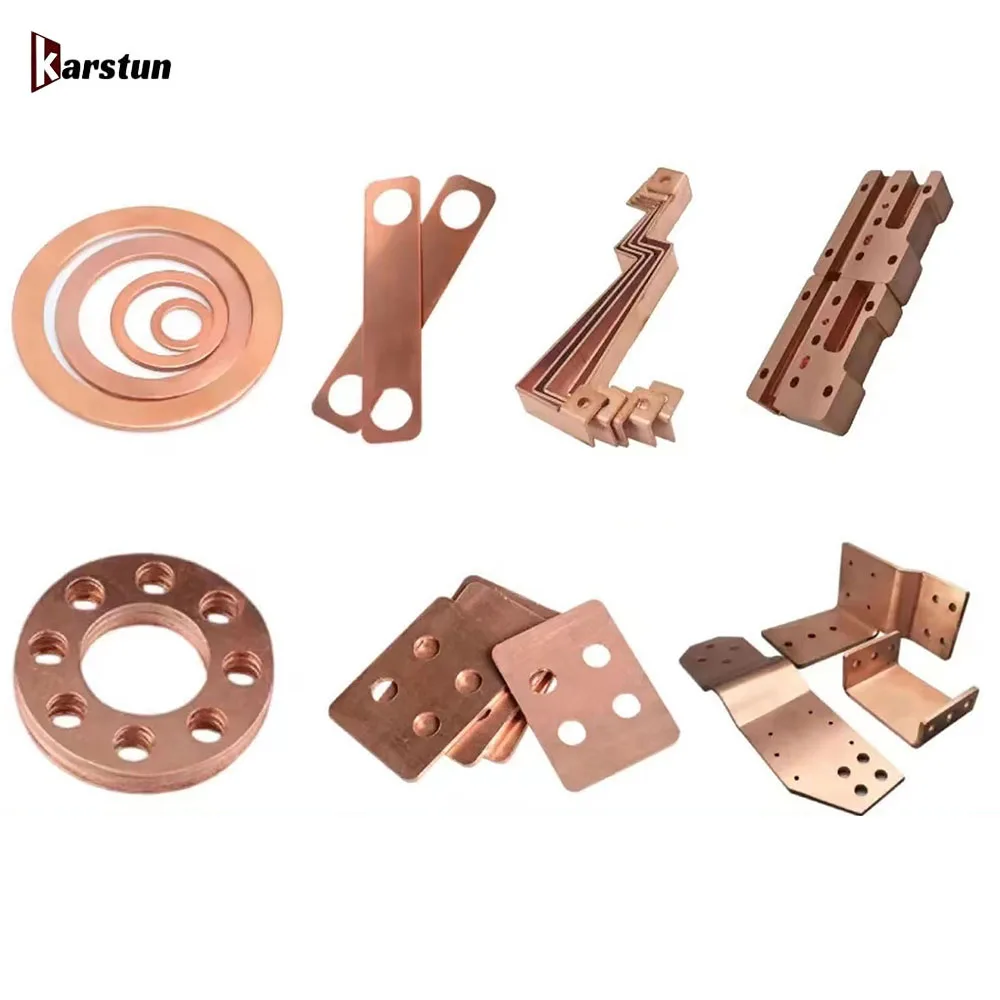

copper and aluminum bus bar
 copper soft connection
copper soft connection
aluminum soft connection

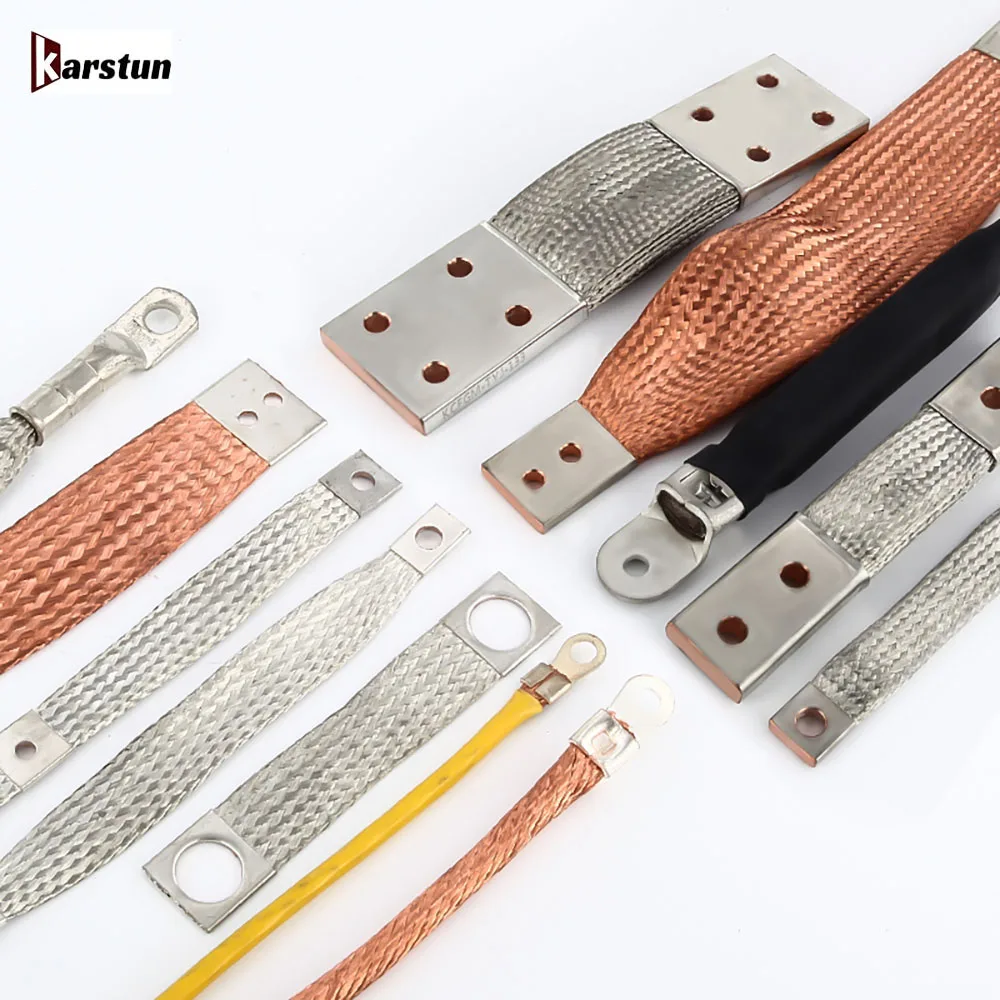

 braided soft connection
charging pile bus bar
high and low voltage soft connection
copper nickel bus bar
aluminum nickel bus bar
 rail transit connection terminals


Products Description

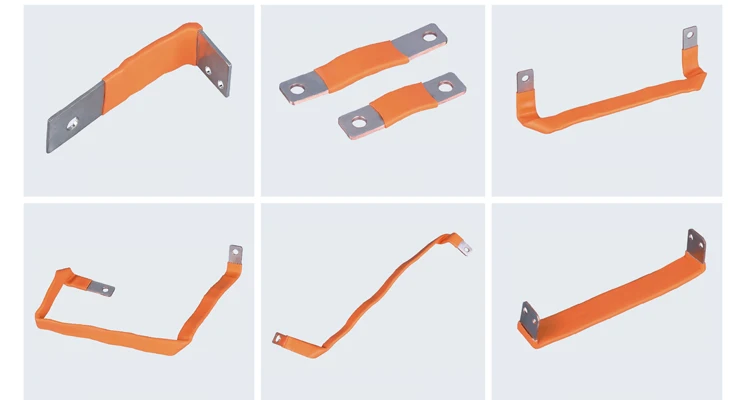

Flexible bus bar connectors are developed from high conductivity based electrolytic grade copper sheets/foils.
The battery bus bars current can be from 100 A to 2000 A. It can be used for HV or LV battery pack like 12V battery, 24 battery or
48V large battery.
Welcome to inquiry us now.


 Flexible bus bar connectors are developed from high conductivity based electrolytic grade copper sheets/foils.
Material Standard
GB : T2 Copper with Min. 99.9%
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS: C1100
BS: C101
Other Material also can be customized
Copper Foil of
Single Layer Thickness
0.03/0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure,
we will advise suitable thickness
Copper foll  width
10mm-300mm
Insulation surface
PVC dipping ,PE heat shrink tubes and Insulation Spray.
Surface Plating
Nickel, tin or silver plated etc
Plating Thickness:Normally 3um to 12um
or upon customers' request
Resistance

0.00001Ω
Conductivity

57%
Flame Retardant/Fire Resistance
UL94-V-0 or upon you request
Operating Temperature

-45 to +150 ºC
Sample/Trial Order
Delivery Time
In 3-7 working days according to different bus bar structure and manufacture process

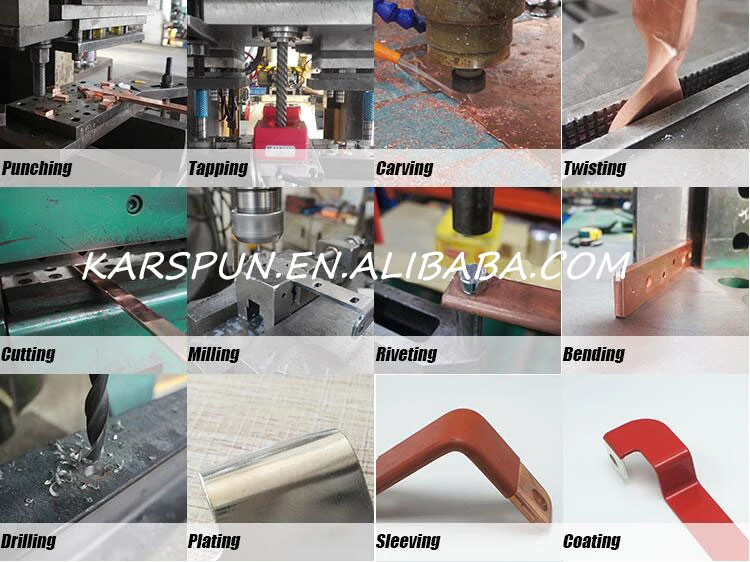

Manufacturing Technique




Recommend Products










5 years in Alibaba
Help companies develop and grow together.

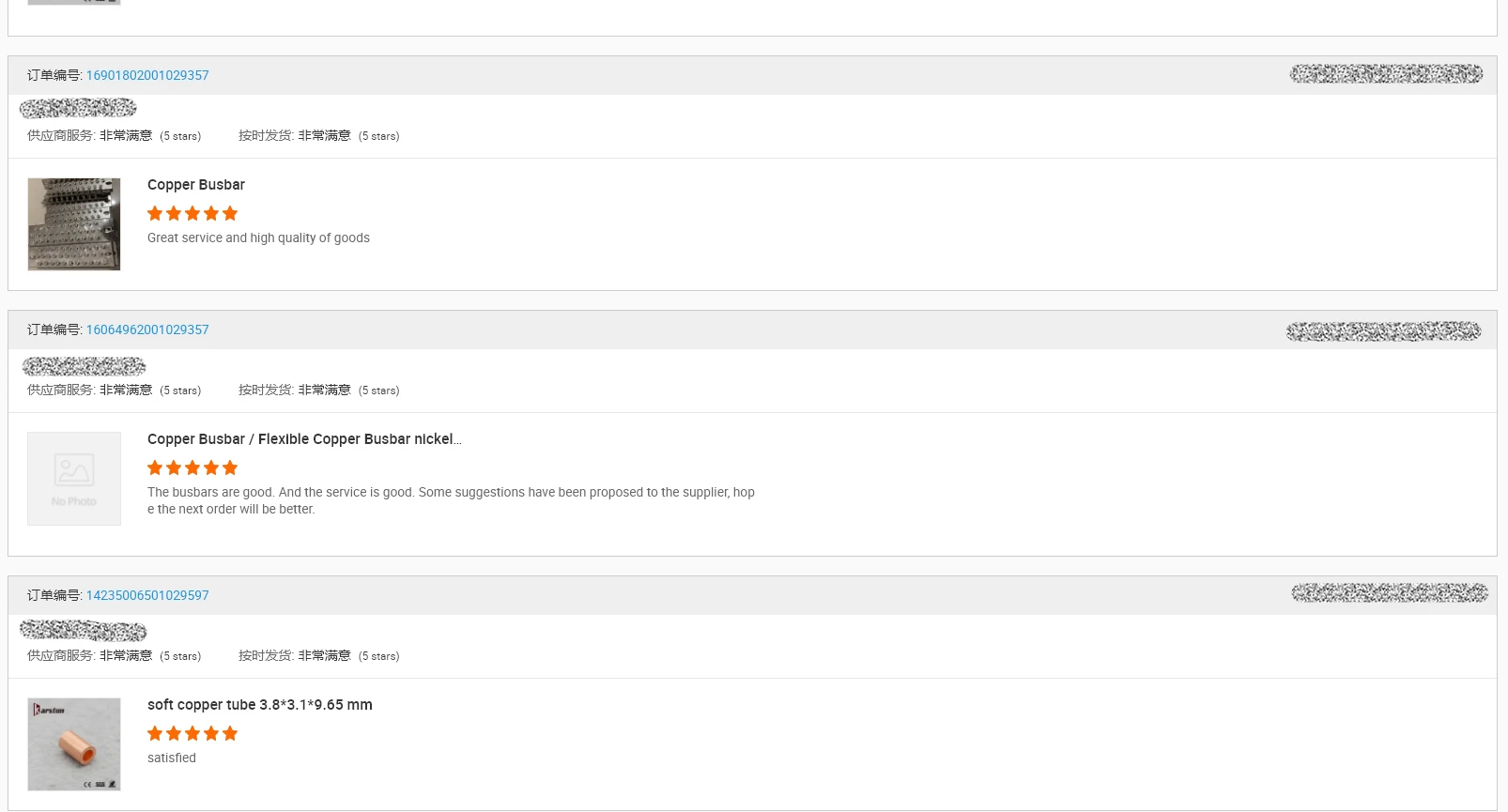

Our praise is worthy of your trust
