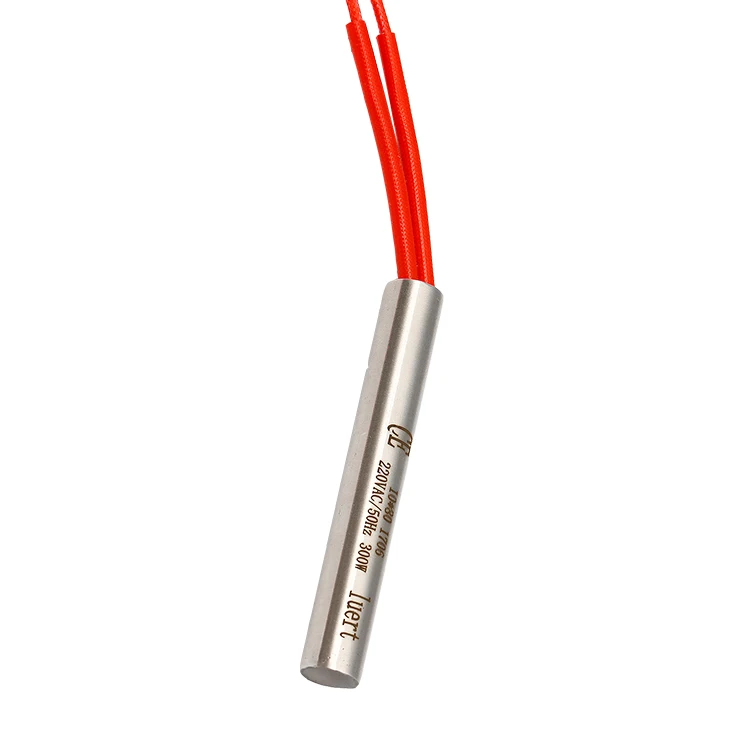

12 volt Durable Incoloy 840 Heating Element Cartridge hot rod Heater
- Category: >>>
- Supplier: Taizhou Luertai Electric Heating Appliance Co. Ltd.
Share on (62019694816):
Product Overview
Description
Product Description
Cartridge heater introduction
Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,that is used in heating applications.by way of insertion into metal blocks via a series of drilled holes.
Cartridge heaters are manufactured in two basic forms - high density and low density. High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
Cartridge Heater for Mould Parameter | ||
Resistance heating wire material | Cr20Ni80 | |
Tube material | SS304,SS316,SS310S,SS321,INCOLOY 800,INCOLOY 840 | |
Tube diameter | 3-30mm | |
Diameter tolerance | -0.02~0.2mm (as your request) | |
Tube length | 15-3000mm | |
Length tolerance | ±1mm | |
Max. Temperature | 800℃ | |
Wattage tolerance | -10%~5% | |
Voltages | 12V/24V/36V/48V/110V/220V/230V/380V/415V/440V | |
Standard cold zone | 5-10mm | |
Insulation resistance (cold) | ≥500MΩ | |
Max. leakage current | ≤0.5mA | |
Thermocouple | Type J , Type K ,Type E | |
Details Images
* High-Density swaged Cartridge Heater
* Many diameters offered as standard
* Alloy sheath for high corrosion resistance
* Using Centerless Machine to standardize Diameter, high thermal efficiency, fast heat dissipation.
* Advanced technology and equipment make the quality good and stable.
Standard Product Parameter
Special diameter, length of cartridge, length of lead, and extra features are availabe on request
Certifications
We have CE,ROHS and letters patent
