EN71, ANSI,ASTM and ISTA simulated transportation vibration test bench

Product Overview

Description

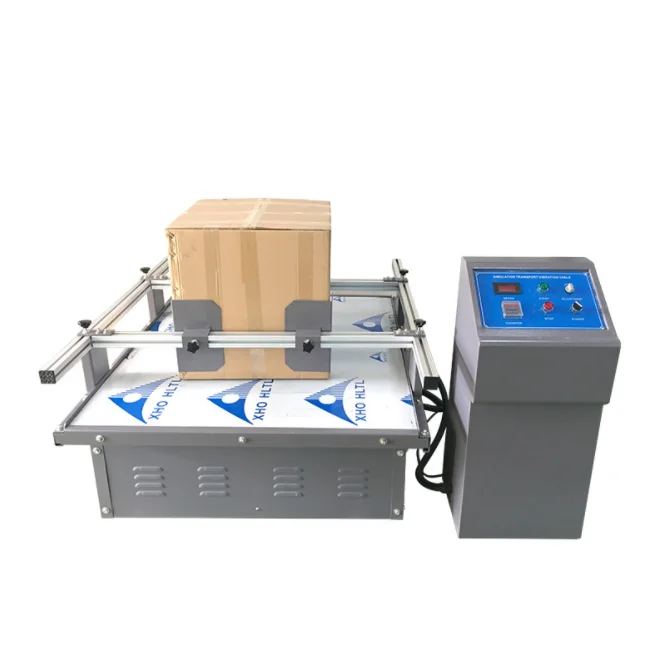

EN71, ANSI,ASTM and ISTA  simulated transportation vibration test bench

Use

The simulated transportation vibration test bench is also called the simulated transportation vibration test bench, which is used to simulate the damage caused by the jolts in the vehicle transportation and to identify the products

The ability to withstand environmental vibration is applicable to the evaluation of the ability of the rated load test article to withstand the actual road conditions during the road transportation process, thus

It is widely used in toy, electronic, electromechanical, photoelectric, ceramic, computer and communication equipment, auto parts, packaging and transportation, and other industries.

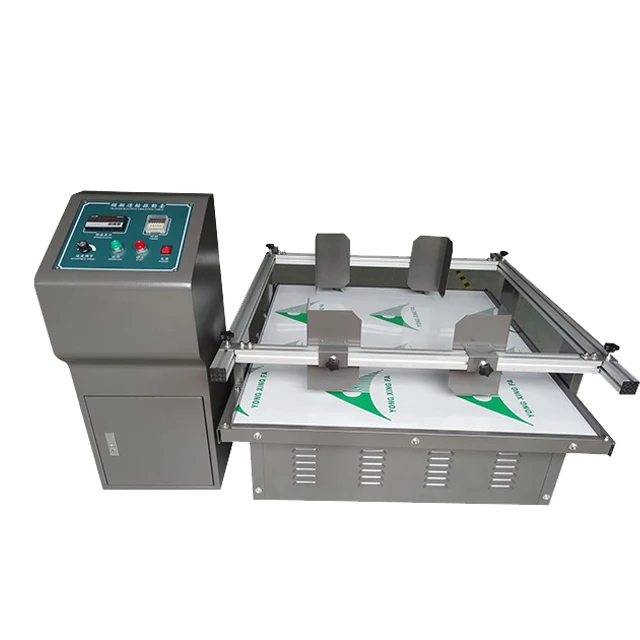

EN71, ANSI,ASTM and ISTA  simulated transportation vibration test bench

Character

1.The simulated vehicle transportation vibration test bench is a professional vehicle transportation vibration test bench equipment

2. Digital display of vibration frequency, real-time synchronous display of control parameters without manual intervention, high-precision control

3. Synchronous noise reduction belt drive, strong and durable, low noise

4. The test fixture adopts the guide rail type, which is convenient and safe to operate

5. The base of the machine is equipped with heavy-duty channel steel and anti-vibration rubber pad, which is easy to install, stable and low noise, no need to install anchor screws

6. Dc/ac motor motor speed regulation, smooth operation, strong load capacity

7. With timing function

8. Rotary vibration (commonly known as horse type), in line with European and American transport standards

9. The design standard conforms to the European and American transportation standards EN71, ANSI, UL, ASTM and ISTA.

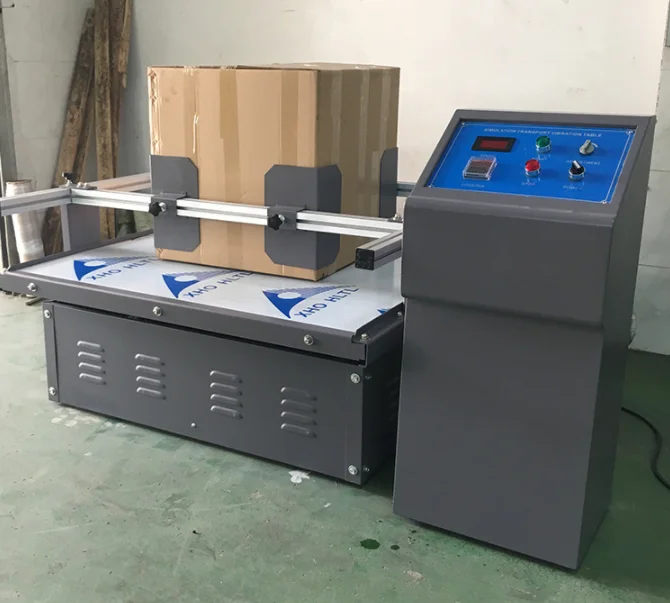

EN71, ANSI,ASTM and ISTA  simulated transportation vibration test bench

Standard ASTM-D999 ASTM-D4728 GB2423.5 IEC68-2-27



Specification

1. Maximum test load: 100kg

2. Test table size: 1200 x 1000mm

3. Fixed fixture: high quality aluminum profiles with movable fixture fixed products, double fixture

4. Frequency range: 100-300rpm

5. Amplitude range: 1 inch (25.4mm)

6. Vibration mode: rotary

7. Simulated speed: 25-40km /h

8. Power supply voltage: AC220V 50HZ

9. Machine weight: about 160kg

10. Power: 0.75kw
