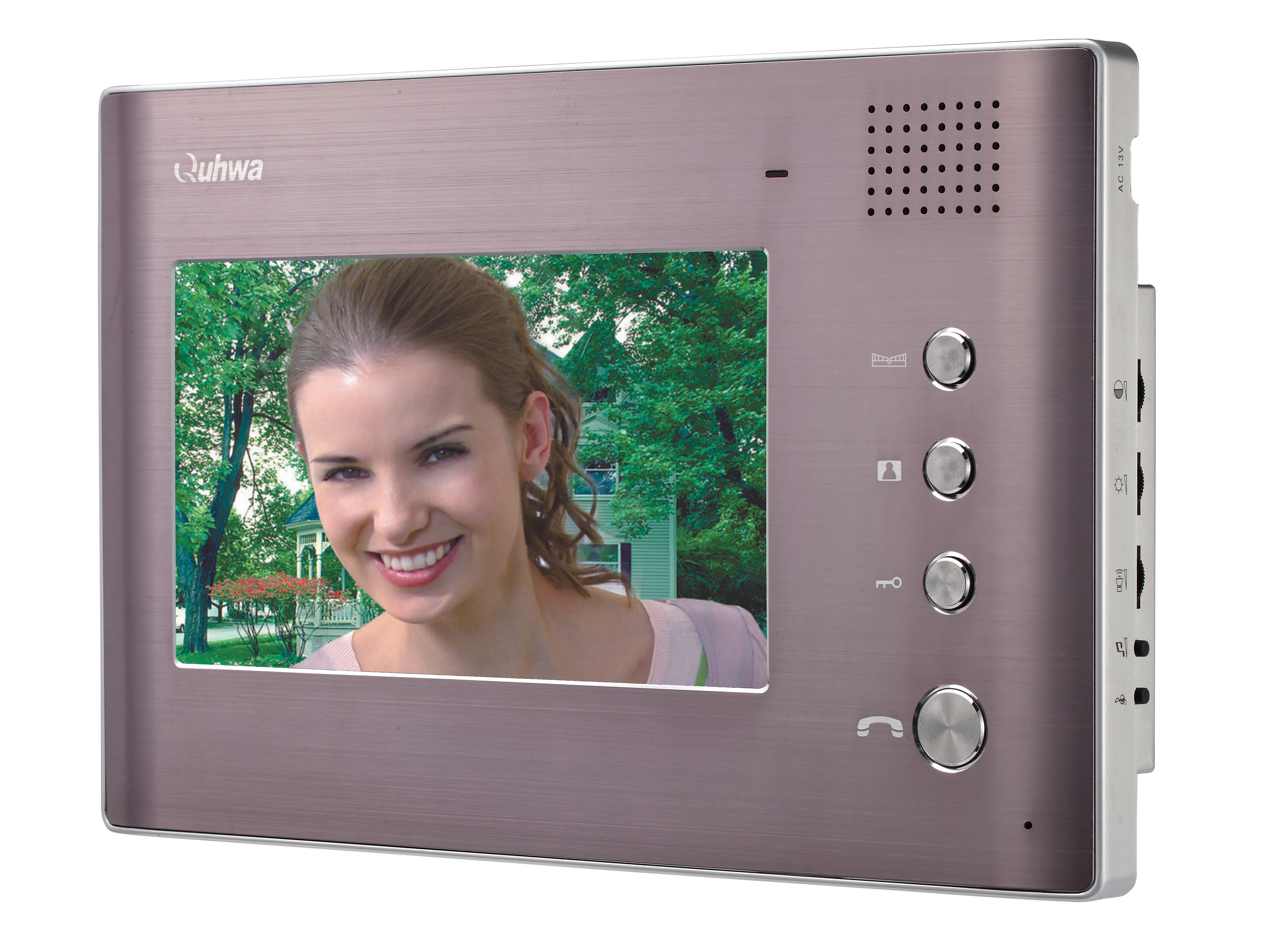

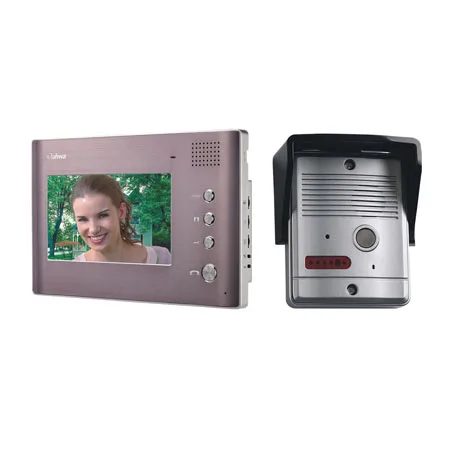

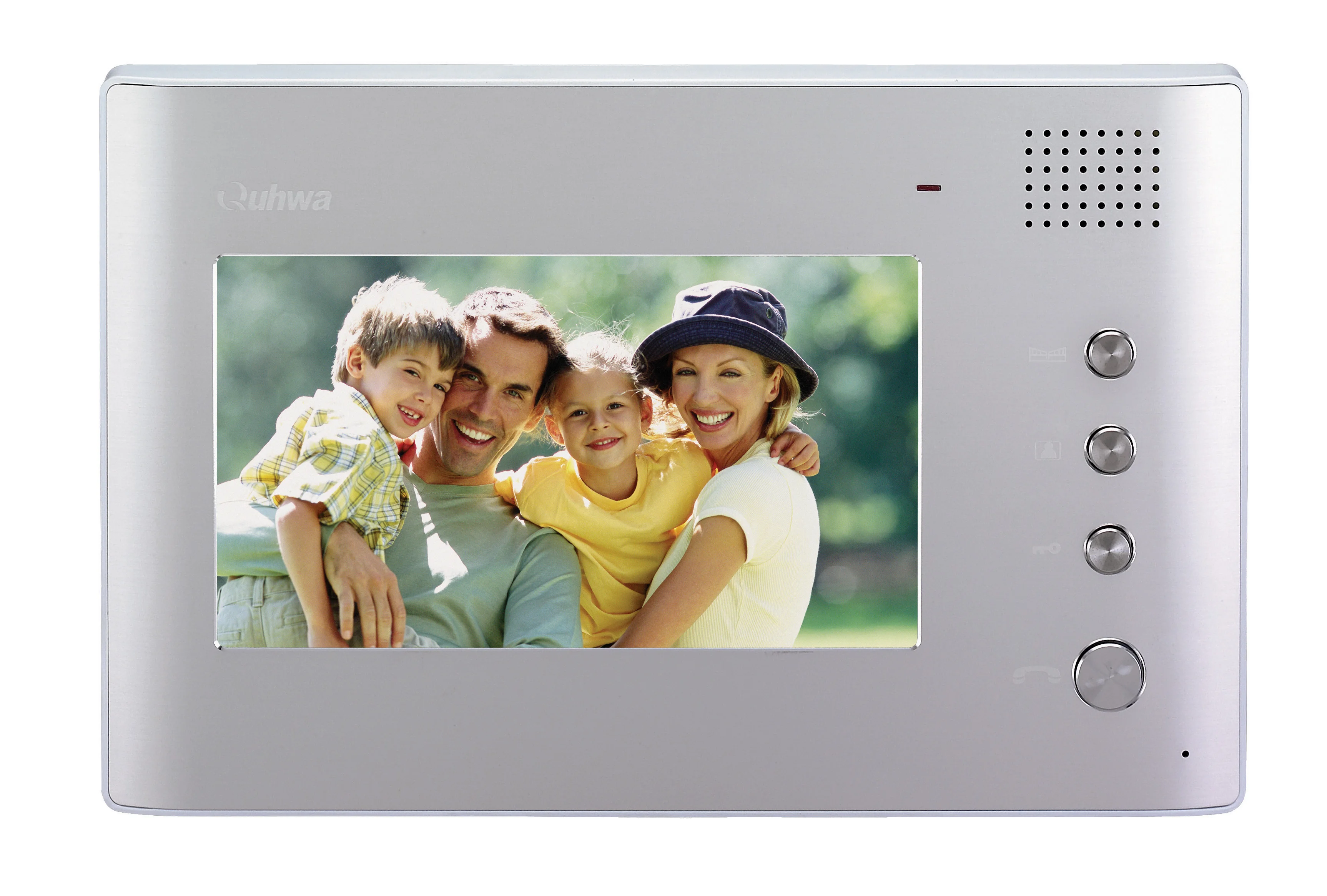

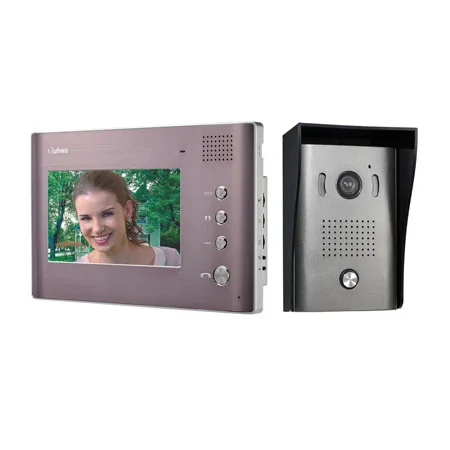

Safe House Intercom Video Door Phone Door Opening System Quhwa

*Apply for 4 wires system

*Talking,monitoring,doorlock release

*Brightness,contrast,talking volume adjustment

*Mute melodies to avoid sound disturbance

*Double opening:also can control the gate door lock

*With 7''TFT LCD

*Colorful appearance available

*Size:255x165x29mm

*Cabke requirement:max 100m base on the last monitor to the door station.

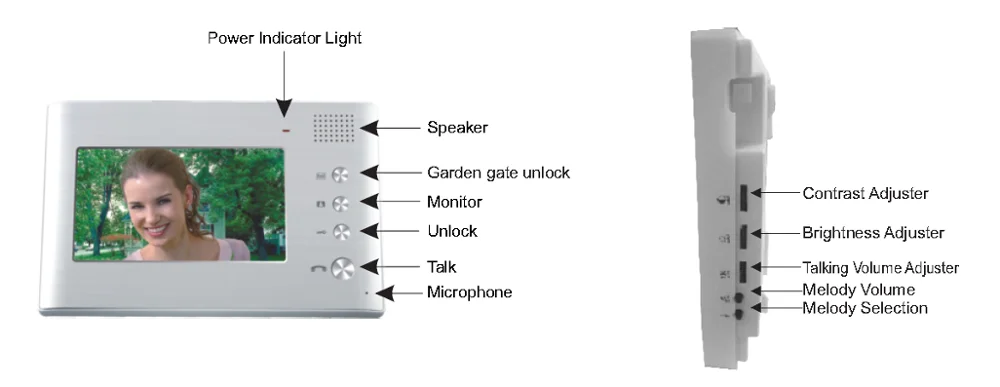

1.Features

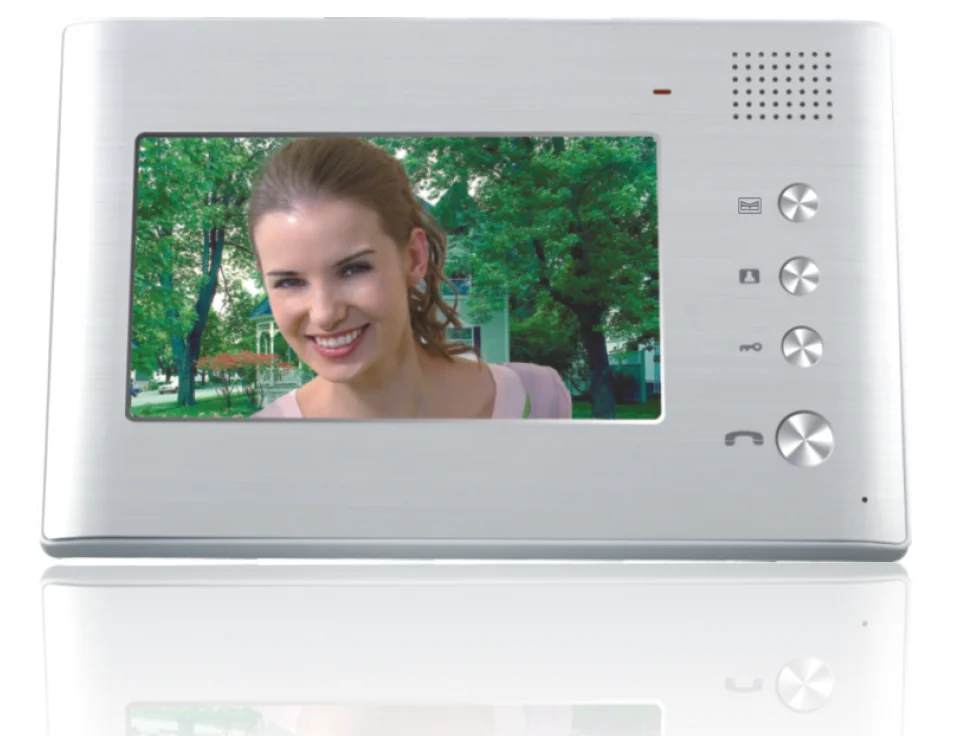

1. Aluminum alloy front panel with mechanical button.
2. 7" color TFT screen.
3. 14 melody for choice.
4. Talk, unlock, monitor function from the front panel.
5. Two opening function.
6. Brightness, Contrast, talking volume adjustable from the right side of panel.
7. Melody volume, Melody selection from the right side of panel.
8. Enclosed 15M cable and one adapter for DIY market.

 2.Indoor Monitor Performance Data

1. Adapter input voltage: AC100-240V/60Hz 50Hz
2. Adapter output voltage, output current: DC15V 1500mA
3. Talking time: 120s±10%
4. Monitoring time: 40s±10%
5. Working distance: 50M(4 x 0.5mm2)
6. Power consumption: standby<0.5W, working <10W
7. Illumination intensity: 2 luces
8. Working temperature: -5°C~40°C
9. Relative humidity: 10-90%(RH)
10. Dimension: 255[W]x 165[H]x 29[D]mm
